M. P. Möller Opus 10390 (1968)

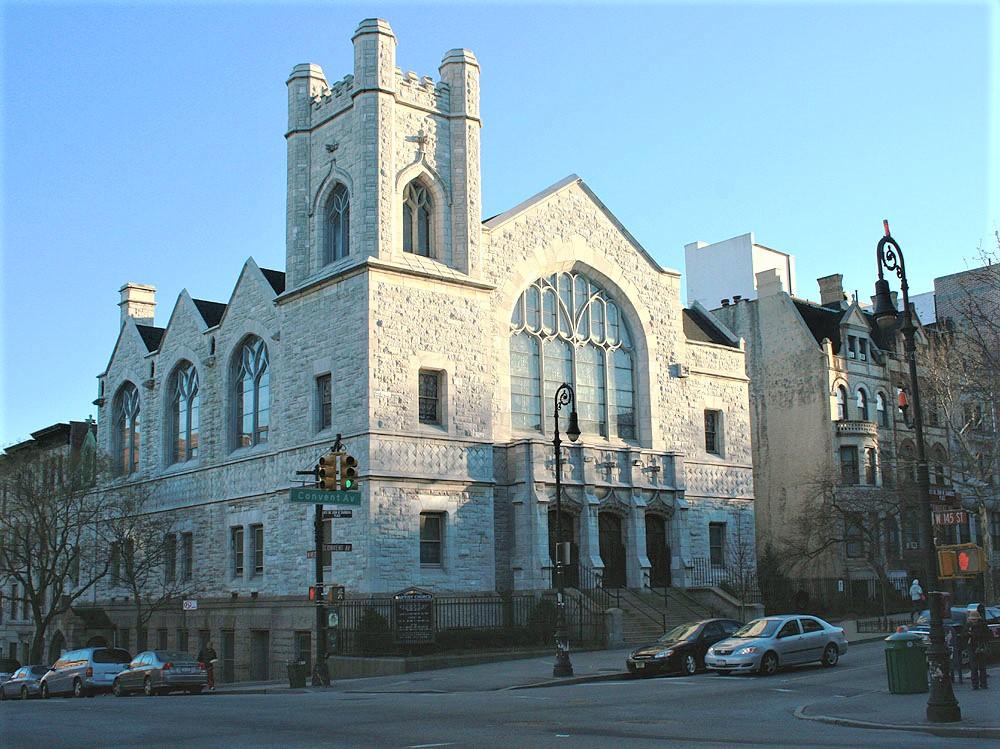

Convent Avenue Baptist Church: Sanctuary
420 West 145th Street at Convent Avenue
New York City: Manhattan, NY

Consoles

Main

Organ type: Traditional With Roll Top
4 manuals
47 stops
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-01-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-08-30 - Updated through online information from Jeff Scofield. -Database Manager

2010-12-04 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       New York, New York
       Convent Avenue Baptist Church

       Möller   Op. 10390   1968   4/45
       _________________________________________________

       GREAT                         CHOIR
    8' Principal        61        8' Gedeckt          61
    8' Bourdon          61        8' Erzähler         61
    4' Octave           61        8' Erzähler Celeste 49
    4' Spitzflöte       61        4' Koppelflöte      61
    2' Doublette        61    2 2/3' Nazard           61
   IV  Fourniture      244        2' Blockflöte       61
    8' Trompete         61    1 3/5' Tierce           61
       Unison Off                 8' Krummhorn        61
       Super                         Tremulant
       Chimes           CH           Sub
                                     Unison Off
       SWELL                         Super
   16' Rohrflöte        61           Chimes           25
    8' Rohrflöte        12           Zimbelstern       4
    8' Viole de Gambe   61
    8' Viole Celeste    54           PEDAL
    4' Principal        61       16' Contrebasse      32
    2' Waldflöte        61       16' Bourdon          32
   IV  Plein Jeu       244       16' Rohrgedeckt      SW
   16' Basson    L/2    61   10 2/3' Quint             7
    8' Trompette        61        8' Principal        12
    8' Vox Humana       61        8' Bourdon           5
    4' Clairon          61        8' Rohrflöte        SW
       Tremulant                  4' Choralbass       32
       Sub                        4' Rohrflöte        SW
       Unison Off                 2' Octavin          12
       Super                     II  Mixture          64
                                 32' Bombarde   L/2   12
       ANTIPHONAL                16' Bombarde         32
    8' Bourdon          61       16' Basson           SW
    8' Salicional       61        8' Bombarde         12
    4' Octave           61        4' Basson           SW
II-IV  Mixture         190
    8' Festival Trumpet 61

      [Received online from Jeff Scofield May 6, 2012]
