M. P. Möller Opus 10433 (1968)

St. Sebastian's Roman Catholic Church
801 Broad Avenue
Belle Vernon, PA

Images

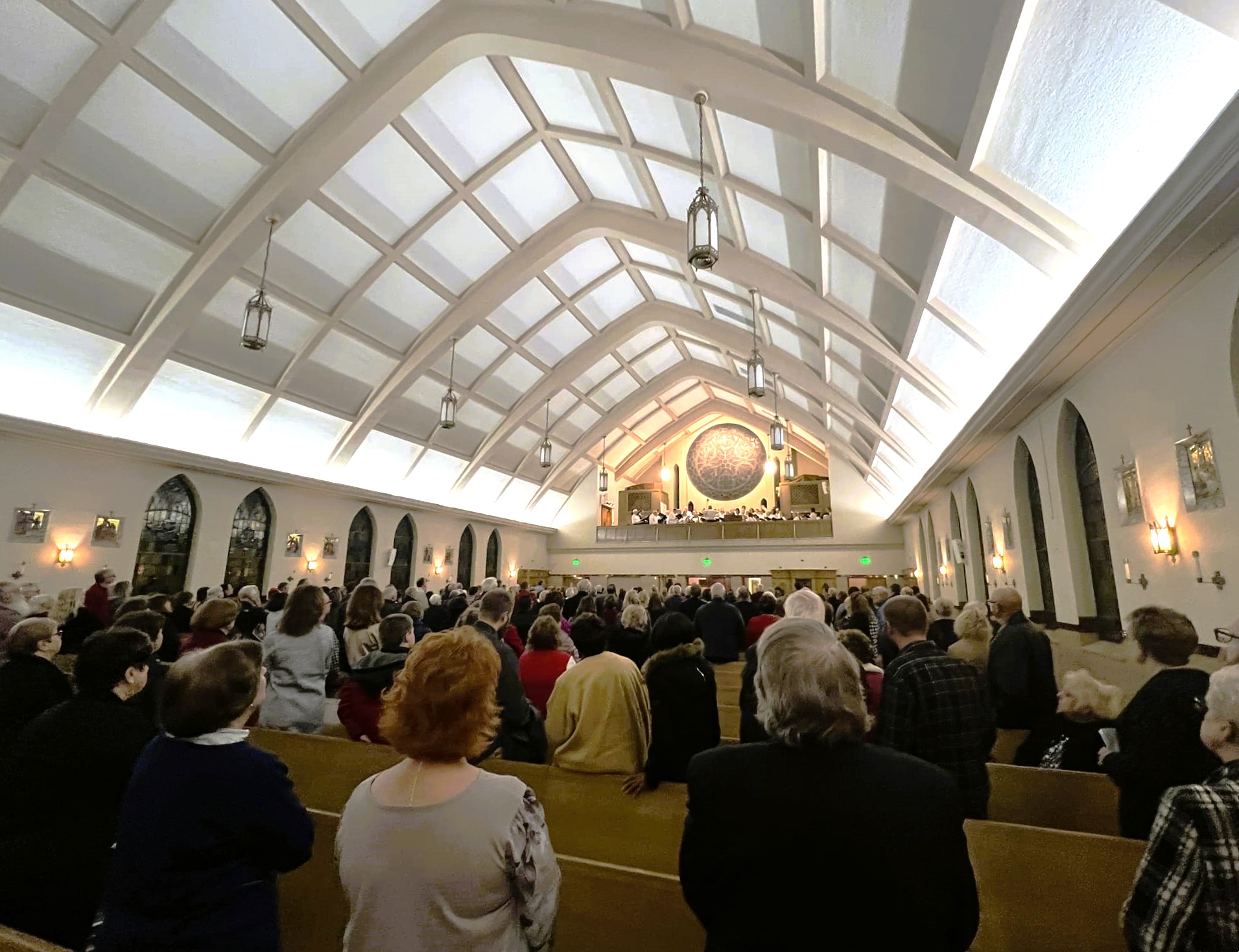

2023-12-11 - Church interior to rear and organ (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Console position: Console in Fixed Position, Center
2 manuals
8 stops
27 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-01-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-09-02 - Updated through online information from Jeff Scofield. -- Unusual for an 8-stop Artiste, the Great is unenclosed; the Swell is in a typical Artiste cabinet on the left side of the gallery. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Belle Vernon, Pennsylvania
            St. Sebastian R. C. Church

            Möller   Op. 10433   1968   2/9

            "This is a large church, so will need all the
            volume we can get.  VOICE FF"

            GREAT (unenclosed)
 1.     16' Bourdon         73 pipes
 2.      8' Principal       80 pipes
 3.      8' Rohrflöte       from #1
 4.      8' Gemshorn        from #13
 6.  2 2/3' Nasat           61 pipes
 7.      2' Octavin         from #2   repeat 5 top notes
 8.  1 1/3' Larigot         from #6   repeat 12 top notes
 9.     II  Mixture         122 pipes
10.         Chimes
11.         Tremolo

            SWELL
12.      8' Gedeckt         73 pipes
13.      8' Gemshorn        61 pipes
14.      4' Spitzprinzipal  73 pipes
15.      4' Gedeckt         from #12
16.      2' Doublette       from #14
17.     16' Trompette       85 pipes  1-6 half-length
18.      8' Trompette       from #17
19.      4' Clarion         from #17
20.         Tremolo

            PEDAL
21.     16' Bourdon         from #1
22.      8' Principal       from #2
23.      8' Rohrflöte       from #1
24.      8' Gemshorn        from #13
25.      4' Octave          from #2
26.      4' Gedeckt         from #12
27.     II  Mixture         from #9
28.     16' Trompette       from #17
29.      8' Trompette       from #17
30.      4' Clarion         from #17

[Received on line from Jeff Scofield September 02, 2009.]

Documents

(1967-03-24) Factory specifications, via Jeff Scofield -Jeff Scofield
