M. P. Möller Opus 10541 (1969)

Central Baptist Church: Sanctuary
300 North Roan Street
Johnson City, TN

Images

1999-07-02 - Chancel and Chamber Grillework (Photograph by Jeff Scofield/Database Manager)

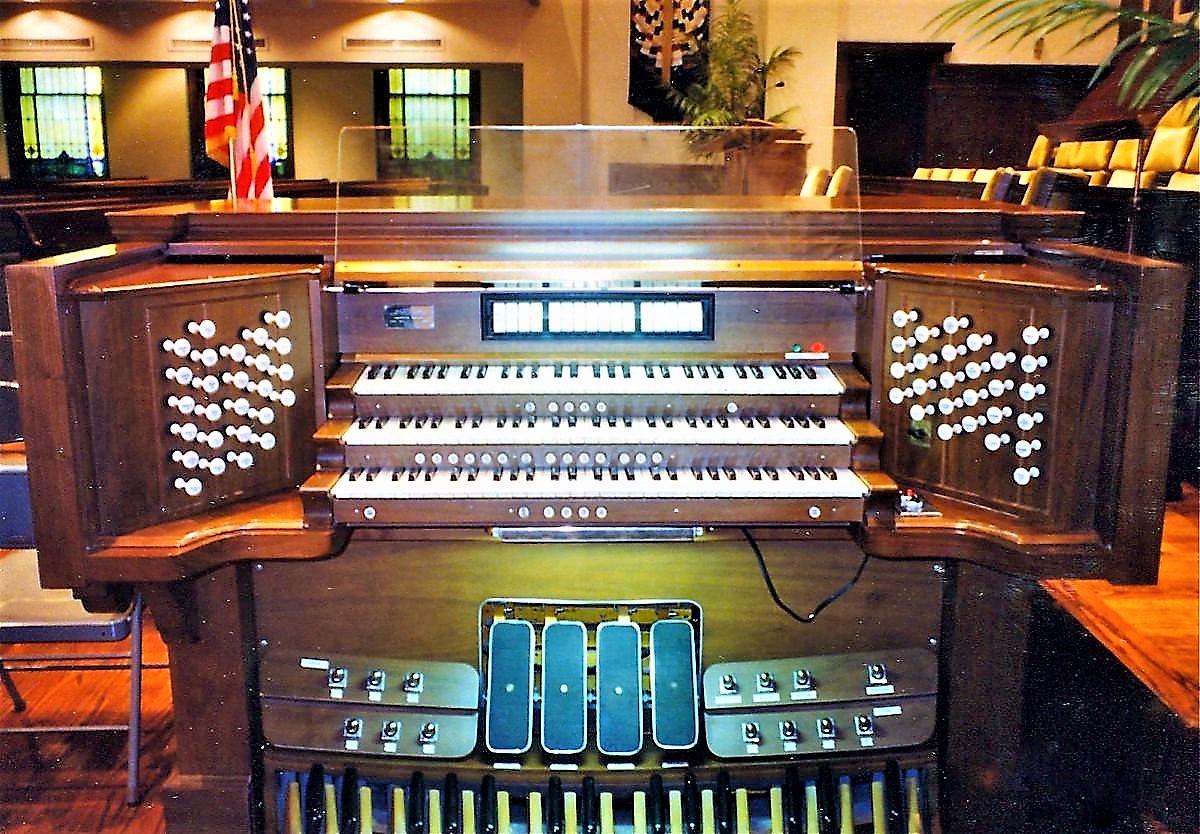

1999-07-02 - Console (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
41 stops
30 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-02-11 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-02-13 - Updated through information from Jeff Scofield. -Database Manager

2009-02-15 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the contract Source: Source not recorded Date not recorded

Johnson City, Tennessee
Central Baptist Church

Möller   Op. 10541   1969   3/36

       GREAT (3 3/4" wind)            SWELL (4" wind)
    8' Principal 61               16' Rohrgedeckt 61
    8' Gedeckt 61                  8' Rohrflöte 12
    4' Octav 61                    8' Viola da Gamba 61
    2' Super Octav 61              8' Viola Celeste tc 49
   IV  Fourniture 244              4' Principal 61
    8' Trumpet 61                  2' Blockflöte 61
       Unison Off                III  Mixture 183
       Chimes 21 (present)        16' Fagotto 61 (1-18 half-length)
                                   8' Trompette 61
       CHOIR (4" wind)             4' Fagotto 24
    8' Holzflöte 61                   Tremulant
    8' Erzähler 61                    Sub
    8' Erzähler Celeste tc 49         Unison Off
    4' Nachthorn 61                   Super
2 2/3' Nasat 61
    2' Principal 61                   PEDAL
1 3/5' Terz 61                    16' Principal 32
    8' Cor Anglais 61             16' Subbass 32
       Tremulant                  16' Rohrgedeckt SW
       Sub                         8' Octav 12
       Unison Off                  8' Rohrflöte SW
       Super                       4' Choral Bass 32
       Harp 49 (present)           4' Rohrflöte SW
                                  II  Rauschquint 64
       ECHO (present)             16' Contra Trumpet 12 GT
    8' Salicional 61              16' Fagotto SW
    8' Voix Céleste tc 49          8' Trumpet GT
    8' Concert Flute 61            4' Fagotto SW
    4' Flute 12
    8' Vox Humana 61
       Tremulant

 [Received on line from Jeff Scofield February 15, 2009.]

 [Received on line from Jeff Scofield February 15, 2009.]

Documents

(1969-05-13) Factory specifications, via Jeff Scofield -Jeff Scofield
