St. John United Methodist Church
104 Newberry Street NW
Aiken, SC
Images
2011-06-21 - Console and Nave (Photograph by Jeff Scofield/Database Manager)
2011-06-21 - Main Console (Photograph by Jeff Scofield/Database Manager)
2011-06-21 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

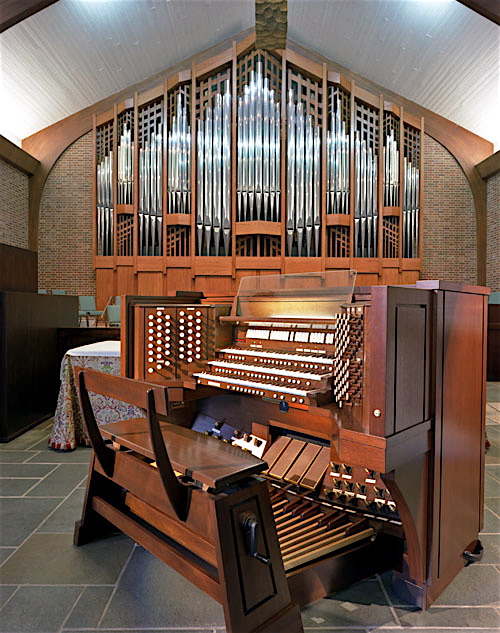

2004-09-21 - Console and Organ Case (Photograph courtesy of Schantz Organ Company/Database Manager)
2011-06-21 - Sanctuary Interior, Chancel, and Organ Case (Photograph by Jeff Scofield/Database Manager)
2011-06-21 - Nave, Balcony, and Antiphonal Organ Case (Photograph by Jeff Scofield/Database Manager)
2011-06-21 - Antiphonal Console (Photograph by Jeff Scofield/Database Manager)
2011-06-21 - Balcony and Antiphonal Organ Case (Photograph by Jeff Scofield/Database Manager)
2011-06-21 - Chancel and Main Organ Case (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 3 manuals
- 48 stops
- 73 registers
- 7 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Details Unknown)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2009-02-12 - Identified through online information from Eugene Walter. -- Organ consists of 4 divisions (Sw, Gt, Ch, Pd) located in the front of the church, plus 3 Antiphonal Divisions (An Sw, An Gt, An Pd) located in the rear balcony. Console described above is main chancel console which controls the entire instrument. Installation also includes a 2-manual and pedal tilting-tab console that controls the 3 Antiphonal Divisions only. Most specifics for this entry are from the Schantz website. -Database Manager
2011-02-21 - Updated through online information from Connor Annable. -Database Manager
Stoplist
Schantz shop specification Source: Source not recorded Date not recorded
Great Organ
16' Violone 73 pipes
8' Open Diapason 61 pipes
8' Violone ext.
8' Chimney Flute 61 pipes
8' Harmonic Flute 49 pipes
4' Octave 61 pipes
4' Nachthorn 61 pipes
2' Fifteenth 61 pipes
1 1/3' Mixture IV 244 pipes
8' Trumpet 61 pipes
Tremulant
8' Festival Trumpet [CH]
Chimes [CH]
Cymbelstern 5 bells
Tower Bells
Swell Organ
16' Bourdon 73 pipes
8' Diapason 61 pipes
8' Viola 61 pipes
8' Viola Celeste [GG]54 pipes
8' Bourdon ext.
4' Principal 61 pipes
4' Harmonic Flute 61 pipes
2 2/3' Nazard 61 pipes
2' Piccolo 61 pipes
1 3/5' Tierce 61 pipes
2' Mixture 244 pipes
16' Double Trumpet 85 pipes
8' Trumpet ext.
8' Oboe 61 pipes
4' Clarion ext.
Tremulant
8' Festival Trumpet [CH]
Harp [CH]
Choir Organ
8' Diapason 61 pipes
8' Stopped Diapason 61 pipes
8' Erzähler 61 pipes
8' Erzähler Celeste [TC] 49 pipes
4' Principal 61 pipes
4' Spindle Flute 61 pipes
2' Fifteenth 61 pipes
1 1/3' Larigot 61 pipes
1' Mixture III 183 pipes
8' Clarinet 61 pipes
8' English Horn 61 pipes
8' Oboe [SW]
Tremulant
8' Festival Trumpet 61 pipes
Harp 49 notes
Pedal Organ
32' Double Open Diapason digital
32' Contra Bourdon digital
16' Principal 44 pipes
16' Violone [GT]
16' Subbass 56 pipes
16' Bourdon [SW]
8' Octave ext.
8' Violone [GT]
8' Flute ext.
8' Bourdon [SW]
4' Choral Bass 32 pipes
4' Open Flute ext.
2 2/3' Mixture IV 128 pipes
32' Ophicleide digital
16' Trombone 44 pipes
16' Double Trumpet [SW]
8' Trumpet ext.
4' Oboe [SW]
8' Festival Trumpet [CH]
Chimes [CH]
Antiphonal Great Organ
8' Open Diapason 61 pipes
4' Octave 61 pipes
2' Super Octave 61 pipes
2' Mixture IV 244 pipes
8' Cornopean [ANT SW]
Antiphonal Swell Organ
8' Koppel Flute 61 pipes
8' Dolcan 61 pipes
8' Dolcan Celeste [TC] 49 pipes
4' Fugara 61 pipes
2' Octavin 61 pipes
8' Cornopean 61 pipes
Tremulant
Antiphonal Pedal Organ
16' Stopped Bass 12 pipes [ANT SW]
8' Koppel Bass [ANT SW]
16' Waldhorn [ANT SW]
[Received on line from Eric J. Gastier March 15, 2010.]
