Better Pipe Organ Database

M. P. Möller Opus 10619 (1969)

Sacred Heart Catholic Church: Church
21526 East River Road
Grosse Ile, MI

Images

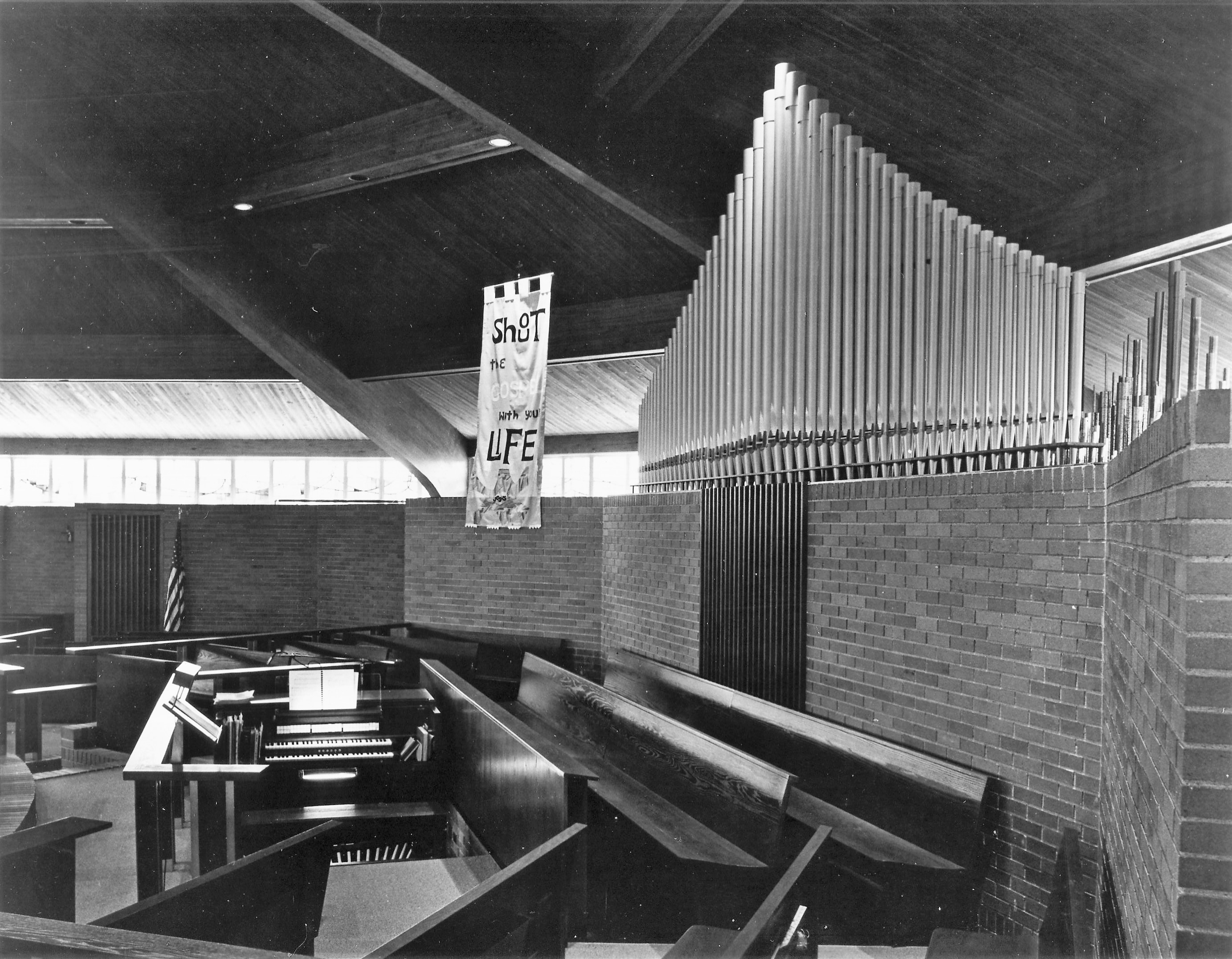

1970-04-11 - Choir Loft, Console, and Pipe Facade (Möller Promotional Photo; collection of Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
8 stops
26 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-02-13 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

Stoplist

Stoplist copied from the factory specifications via the OHS Archives Source: Source not recorded Date not recorded

    Grosse Ile, Michigan
    Sacred Heart R. C. Church

    Möller   Op. 10619   1969   2/9
    __________________________________________________________________________

    GREAT (exposed)            SWELL                       PEDAL

16' Rohrflöte     61        8' Holzgedeckt      61     16' Bourdon          GT
 8' Principal     61        8' Viole de Gambe   61      8' Principal        GT
 8' Rohrflöte     12        4' Spitzprincipal   61      8' Rohrflöte        GT
 8' Dulciana      49 a      4' Viole de Gambe   12      8' Viole de Gambe   SW
 4' Octave        12        2' Spitzoctave      12      4' Octave           GT
 4' Rohrflöte     12       16' Contre Trompette 12      4' Rohrflöte        GT
 2' Super Octave   7 b      8' Trompette        61     II  Mixture          GT
II  Mixture      122        4' Clarion          12     16' Contre Trompette SW
    Tremolo                    Tremolo                  8' Trompette        SW
    Chimes        pf                                    4' Clarion          SW

 a  1-12 from Rohflöte
 b  repeat top 5 notes

                [Received from Jeff Scofield February 19, 2005]

Documents

(1969-01-01) Factory Documentation Original Factory Documentation courtesy of the OHS Archive -Roman Lizak
