Schantz Organ Co. Opus 1306 (1974)

First Presbyterian Church: Sanctuary
100 W. Church Circle
Kingsport, TN

Images

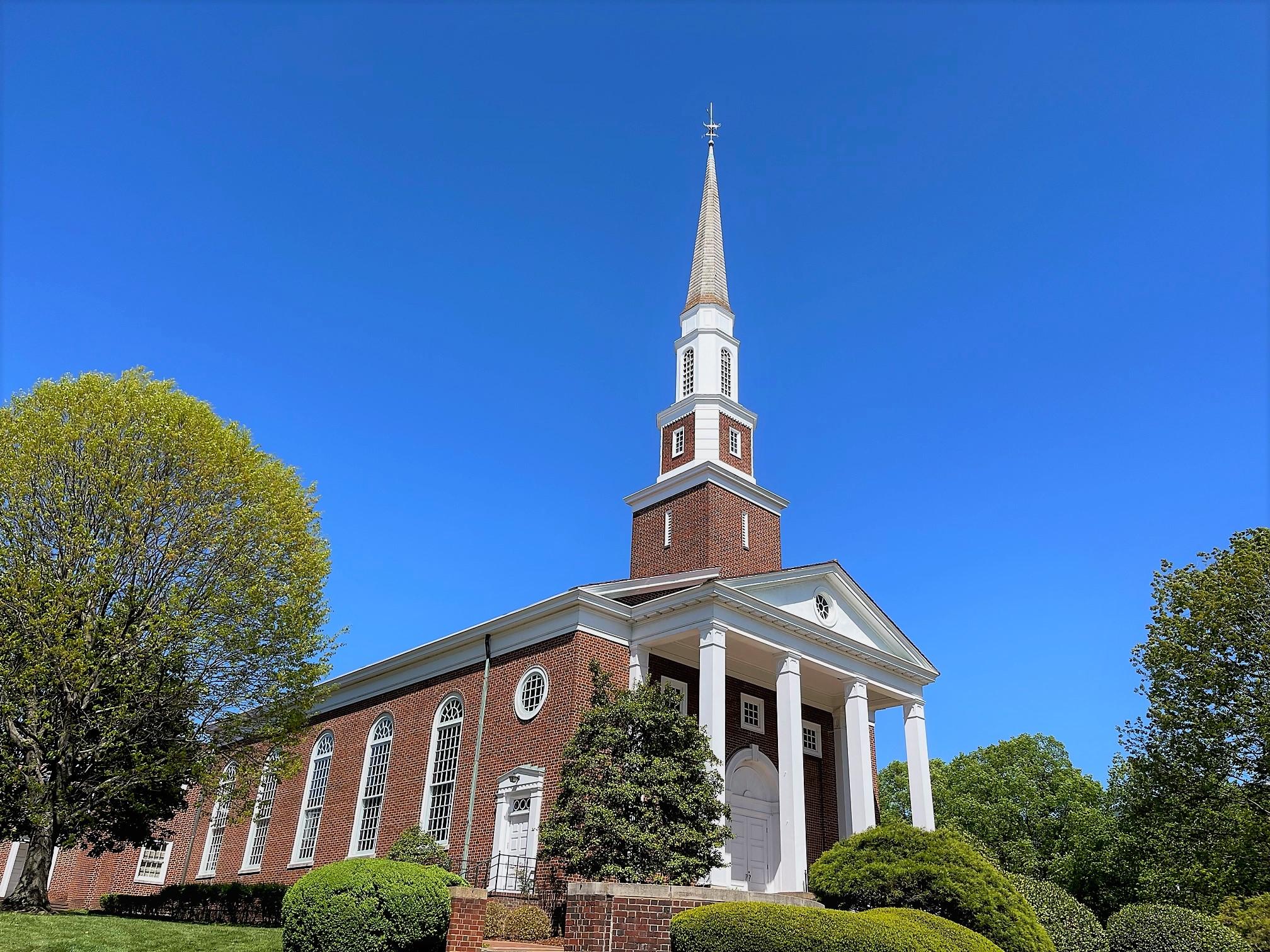

2023-04-17 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

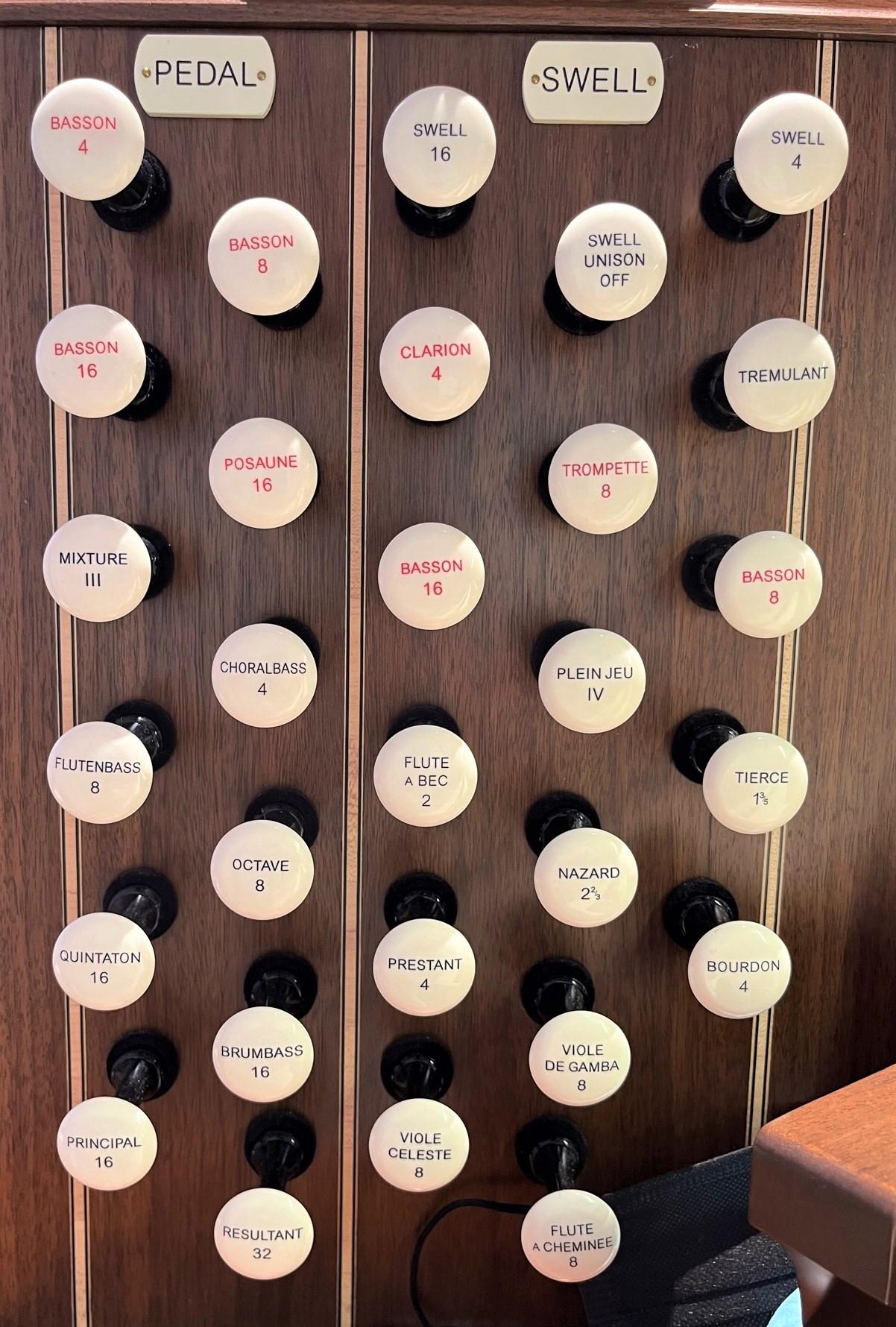

2023-04-17 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

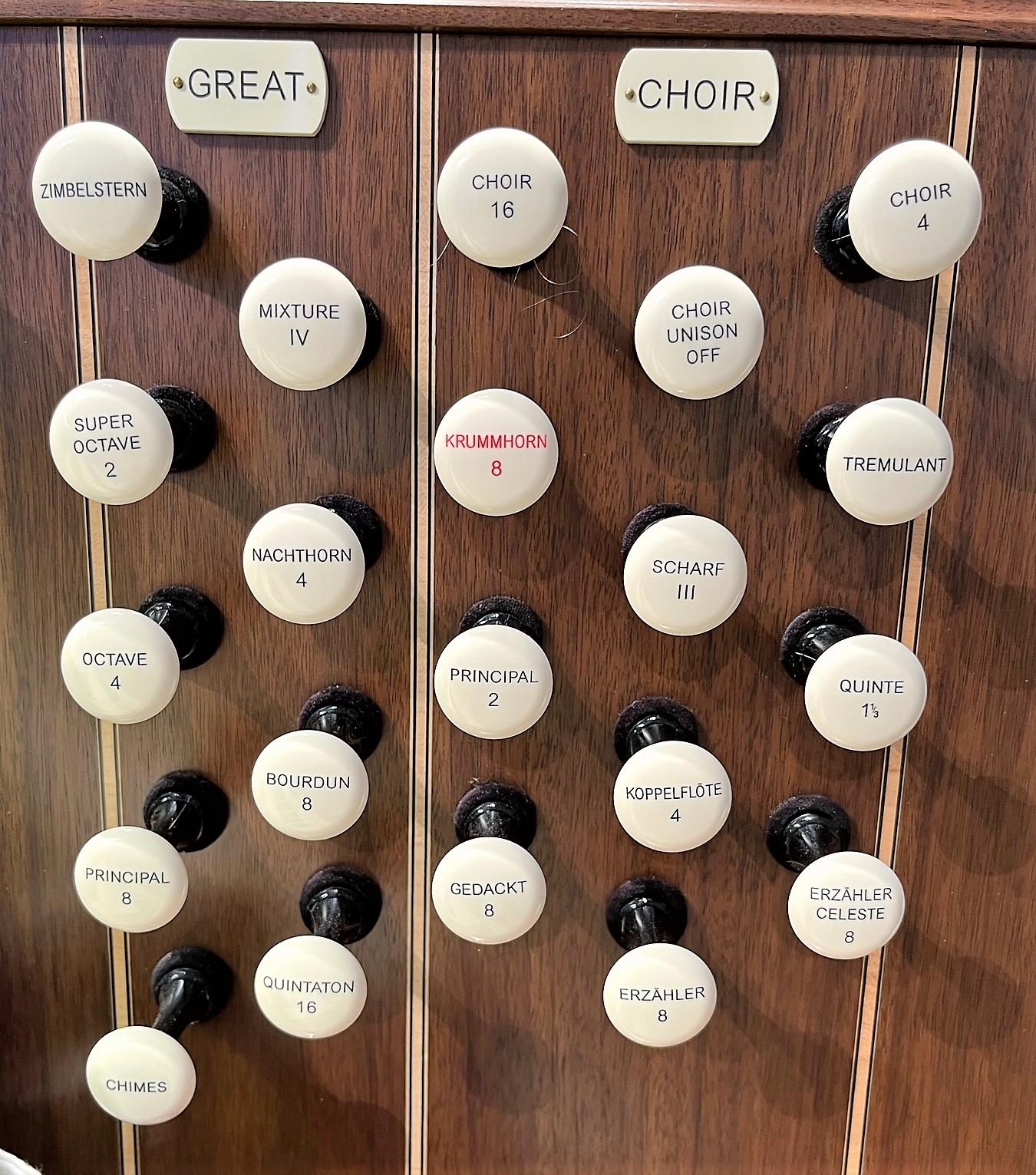

2023-04-17 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

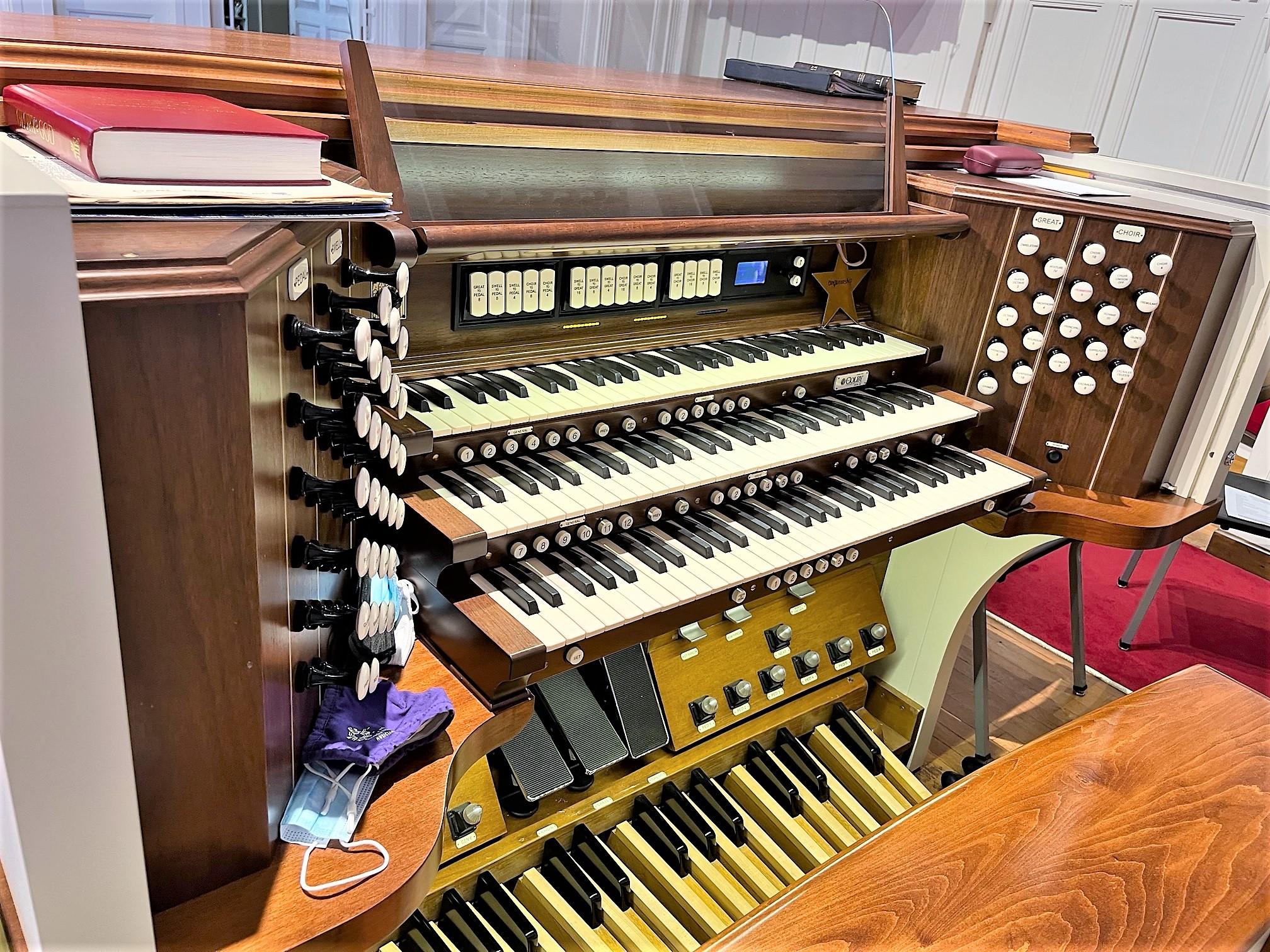

2023-04-17 - Console to left (Photograph by Jeff Scofield/Jeff Scofield)

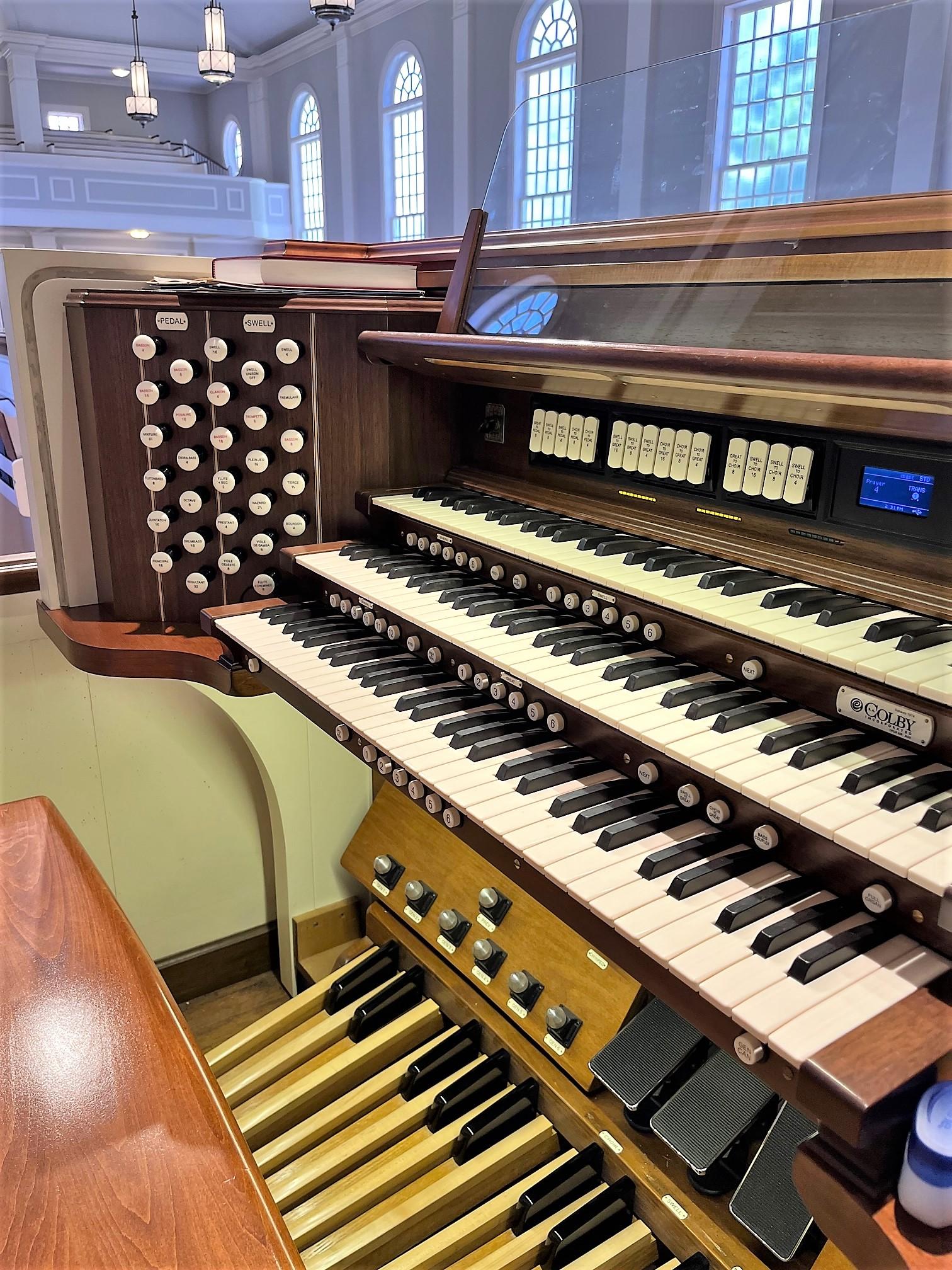

2023-04-17 - Console to right (Photograph by Jeff Scofield/Jeff Scofield)

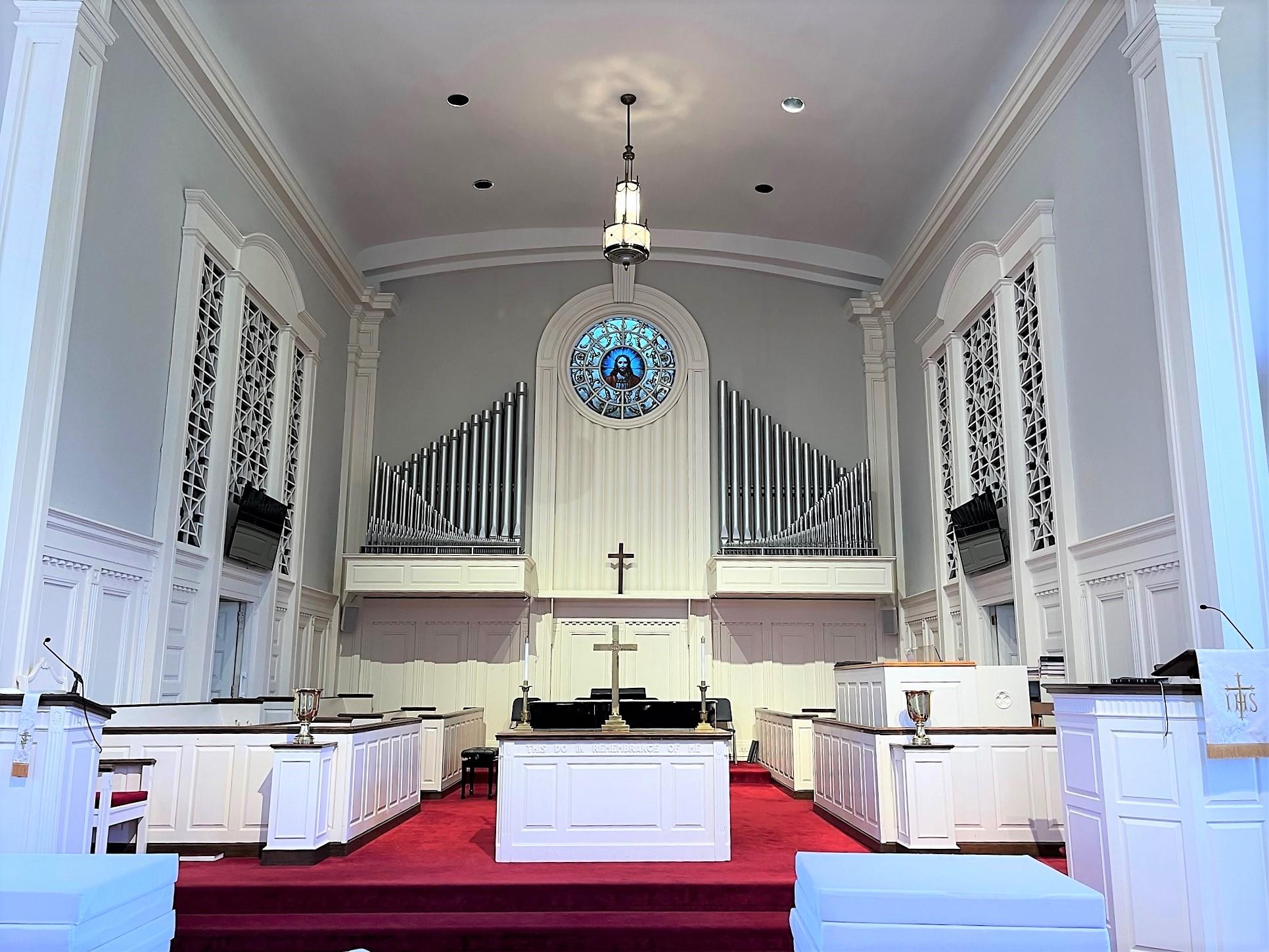

2023-04-17 - Chancel and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

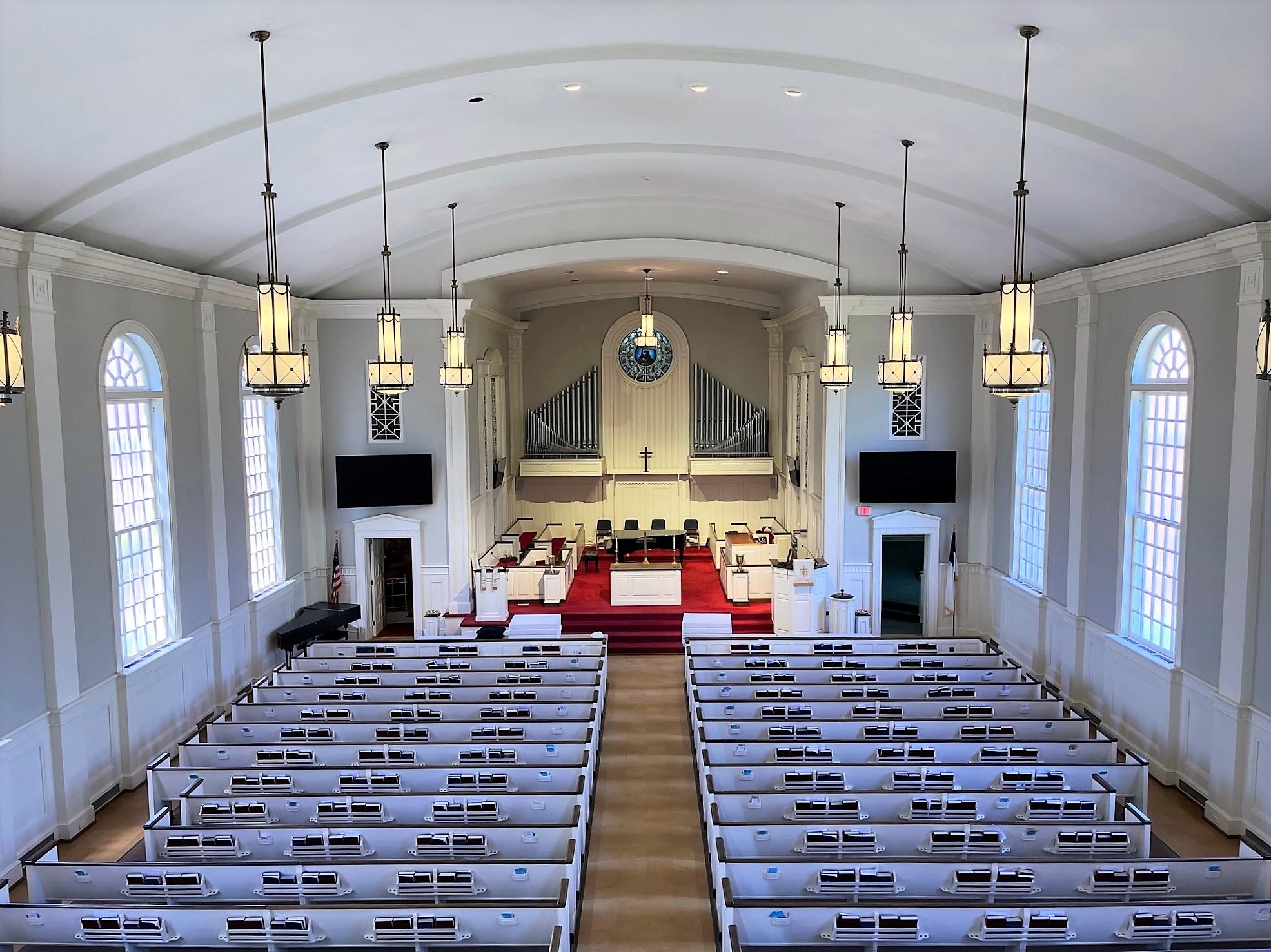

2023-04-17 - Church interior from balcony (Photograph by Jeff Scofield/Jeff Scofield)

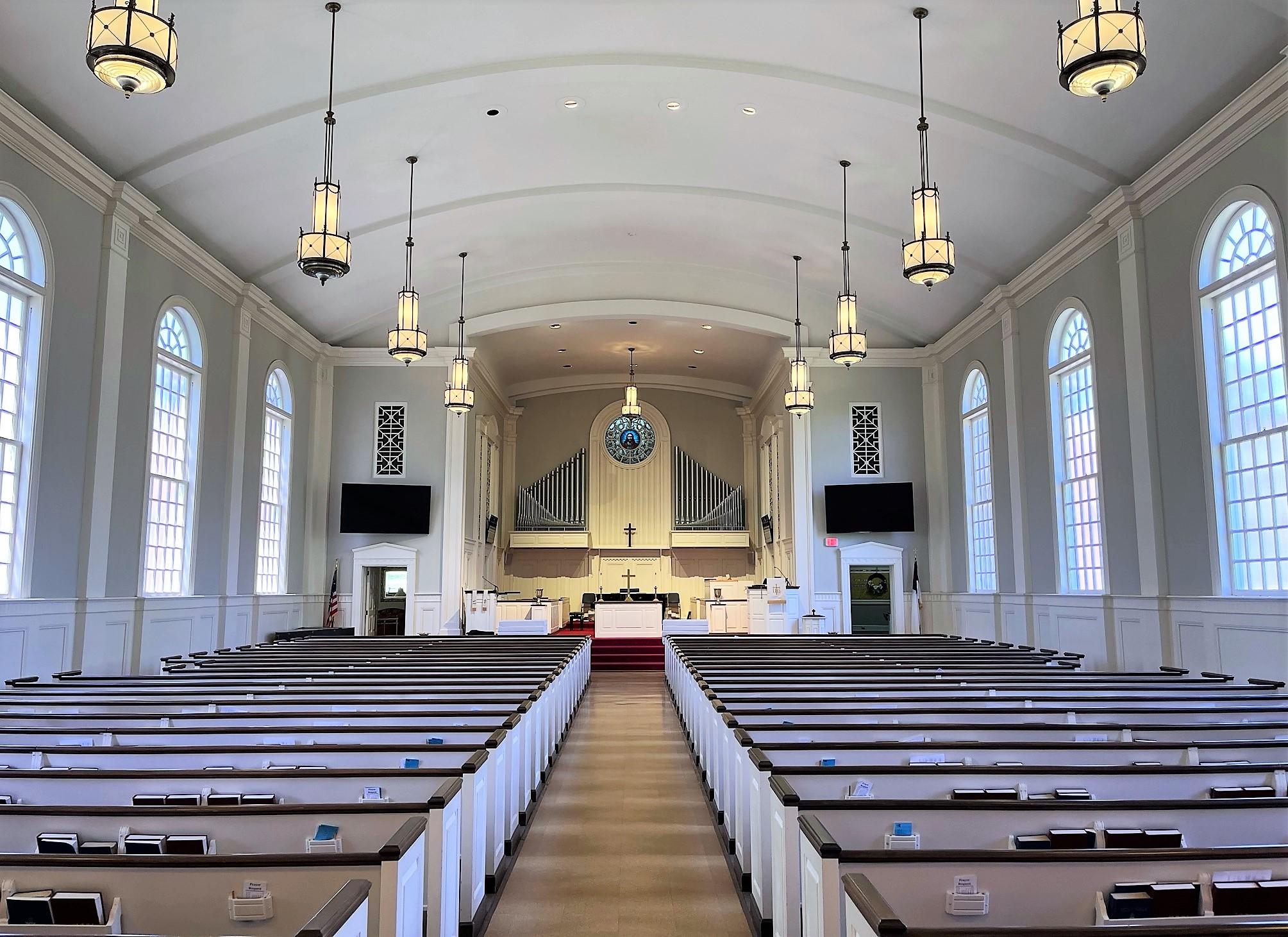

2023-04-17 - Church interior from floor (Photograph by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
33 stops
40 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-02-14 - Identified through online information from Jeff Scofield. -- Console converted to solid-state by Barger & Nix -Database Manager

Stoplist

Stoplist taken from the console July 2, 1999 Source: Source not recorded Date not recorded

Kingsport, Tennessee
First Presbyterian Church

Schantz   Op. 1306   1974   3/43

       GREAT                       CHOIR
   16' Quintaton 61             8' Gedackt 61
    8' Principal 61             8' Erzähler 61
    8' Bordun 61                8' Erzähler Celeste tc 49
    4' Octave 61                4' Koppelflöte 61
    4' Nachthorn 61             2' Principal 61
    2' Super Octave 61      1 1/3' Quinte 61
   IV  Mixture 244            III  Scharf 183
       Unison Off               8' Krummhorn 61
       Chimes                      Tremulant
                                   Sub
       SWELL                       Unison Off
    8' Flûte à cheminée 61         Super
    8' Viole de Gambe 61
    8' Viole Celeste tc 49         PEDAL
    4' Prestant 61             32' Resultant --
    4' Bourdon 61              16' Principal 32
2 2/3' Nazard 61               16' Brummbass 32
    2' Flûte à bec 61          16' Quintaton GT
1 3/5' Tierce 61                8' Octave 32
   IV  Plein Jeu 244            8' Flötenbass 12
   16' Basson 61                4' Choralbass 32
    8' Trompette 61           III  Mixture 96
    8' Basson 12               16' Posaune 32
    4' Clairon 61              16' Basson SW
       Tremulant                8' Basson SW
       Sub                      4' Basson SW
       Unison Off
       Super

 [Received on line from Jeff Scofield February 16, 2009.]

 [Received on line from Jeff Scofield February 16, 2009.]
