Better Pipe Organ Database

M. P. Möller Opus 10652 (1970)

Mansfield State College
115 Sherwood St.
Mansfield, PA

Images

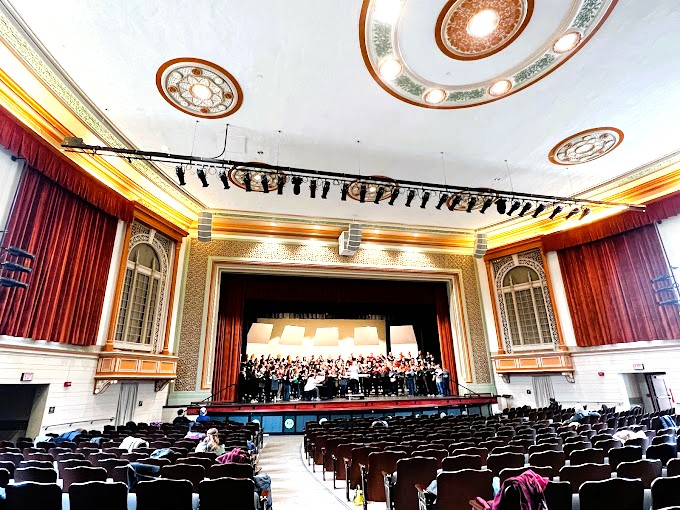

2023 - Auditorium interior (Allen Harchak, via Jeff Scofield/Jeff Scofield)

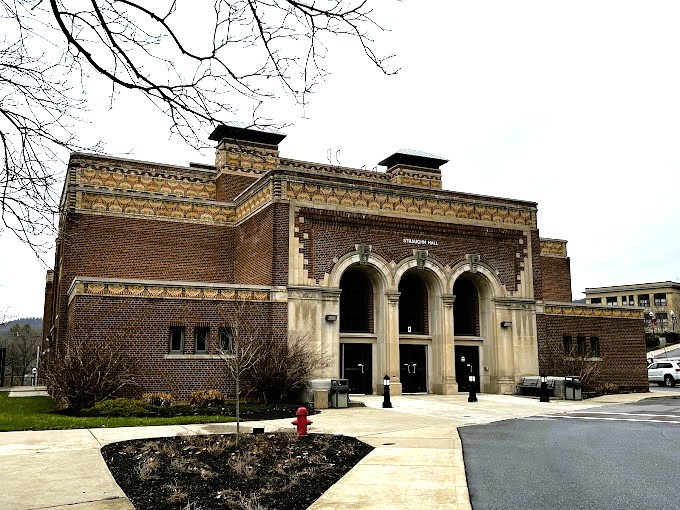

2023 - Building exterior (Allen Harchak, via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
27 stops
27 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2009-02-23 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-09-28 - Updated through online information from Jeff Scofield. -- The organ is completely straight. -Database Manager

2011-10-10 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

     Mansfield, Pennsylvania
     Mansfield State College

     Möller   Op. 10652   1970   3/35

     2 3/4" wind used throughout

     GREAT                      POSITIV
  8' Prinzipal 61            8' Holzgedackt 61
  8' Spitzflöte 61           4' Prinzipal 61
  4' Oktav 61                4' Koppelflöte 61
  2' Oktav 61                2' Blockflöte 61
 IV  Mixtur 244          1 1/3' Larigot 61
  8' Trompete 66                Blank
    (double trebles)         8' Krummhorn 61
     Unison Off                 Tremulant
                                Unison Off
     SWELL
  8' Salizional                 PEDAL
  8' Rohrflöte 61           16' Subbass 32
  4' Prinzipal 61            8' Oktavbass 32
  4' Waldflöte 61            8' Gedackt 32
  2' Gemshorn 61             4' Choralbass 32
 II  Sesquialtera 122           Blank
III  Scharf 183            III  Mixture 96
  8' Hautbois 61            16' Posaune 32 (L/2)
     Tremulant               4' Trichter Regal 32

[Received on line from Jeff Scofield September 28, 2009.]

Documents

(1970-01-09) Factory specifications, via Jeff Scofield -Jeff Scofield
