Better Pipe Organ Database

M. P. Möller Opus 10723 (1971)

Trinity Evangelical Lutheran Church
600 Ash Street
Johnstown, PA

Images

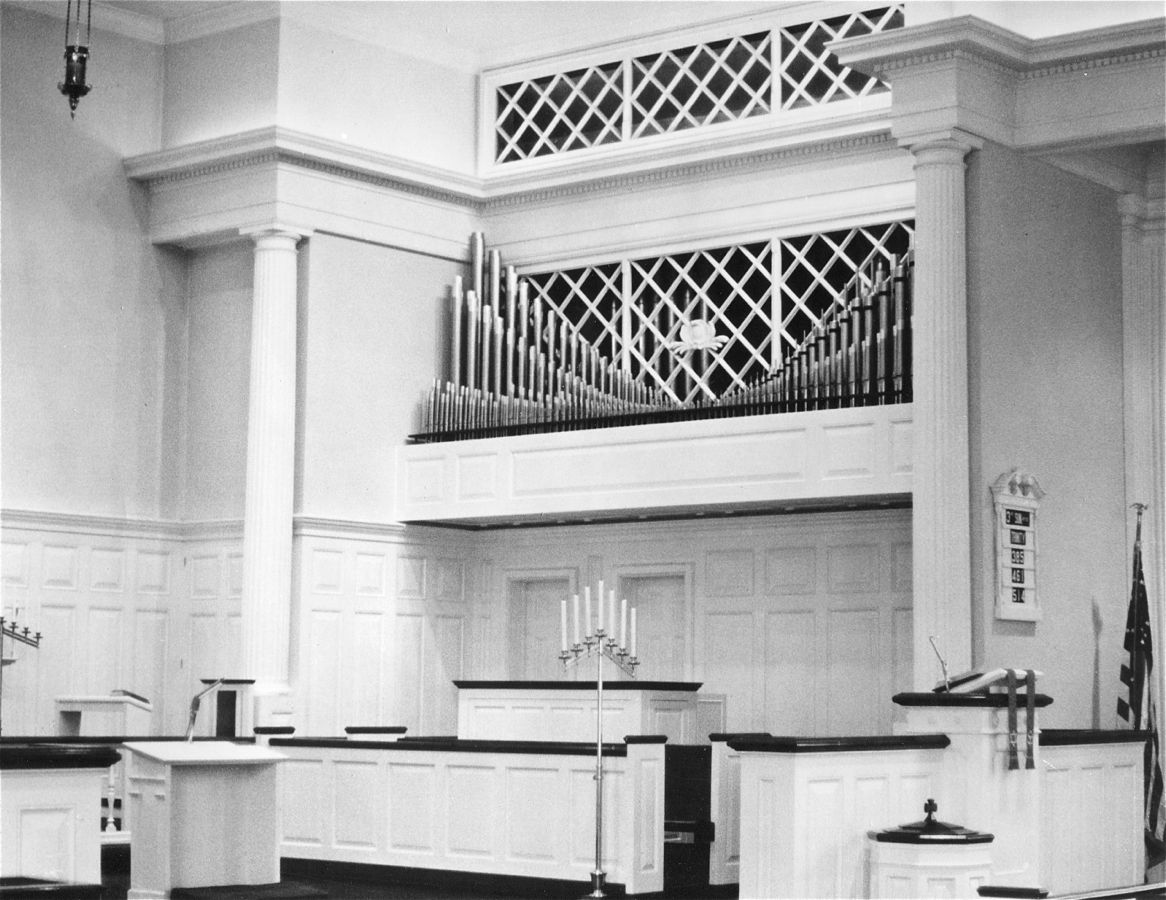

Unknown - Chancel, Console, Pipe Display, and Chamber Grillework (Möller Promotional Photo; collection of Jeff Scofield/Database Manager)

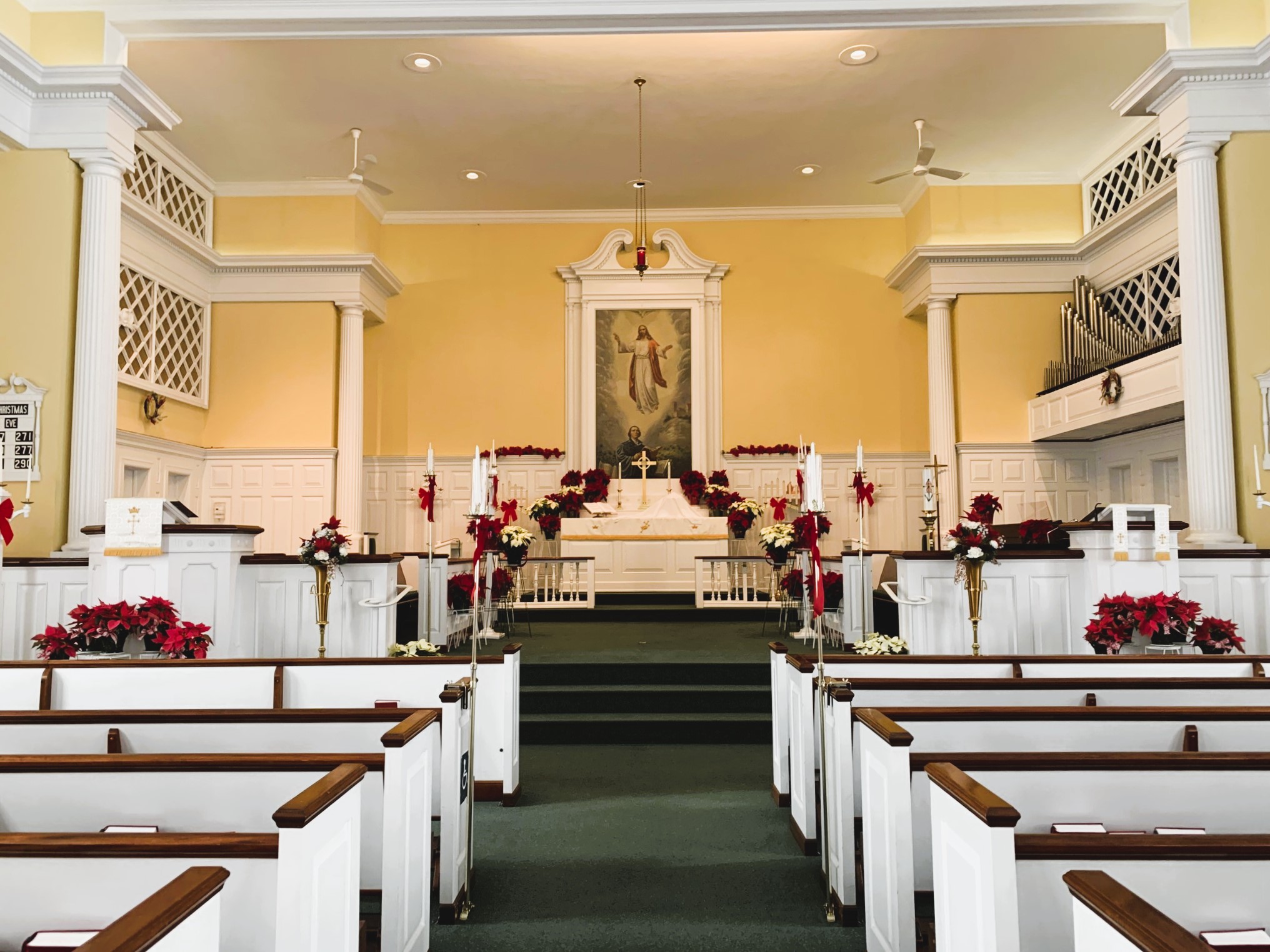

2023-12-23 - Church interior and exposed pipes (Church Facebook/Jeff Scofield)

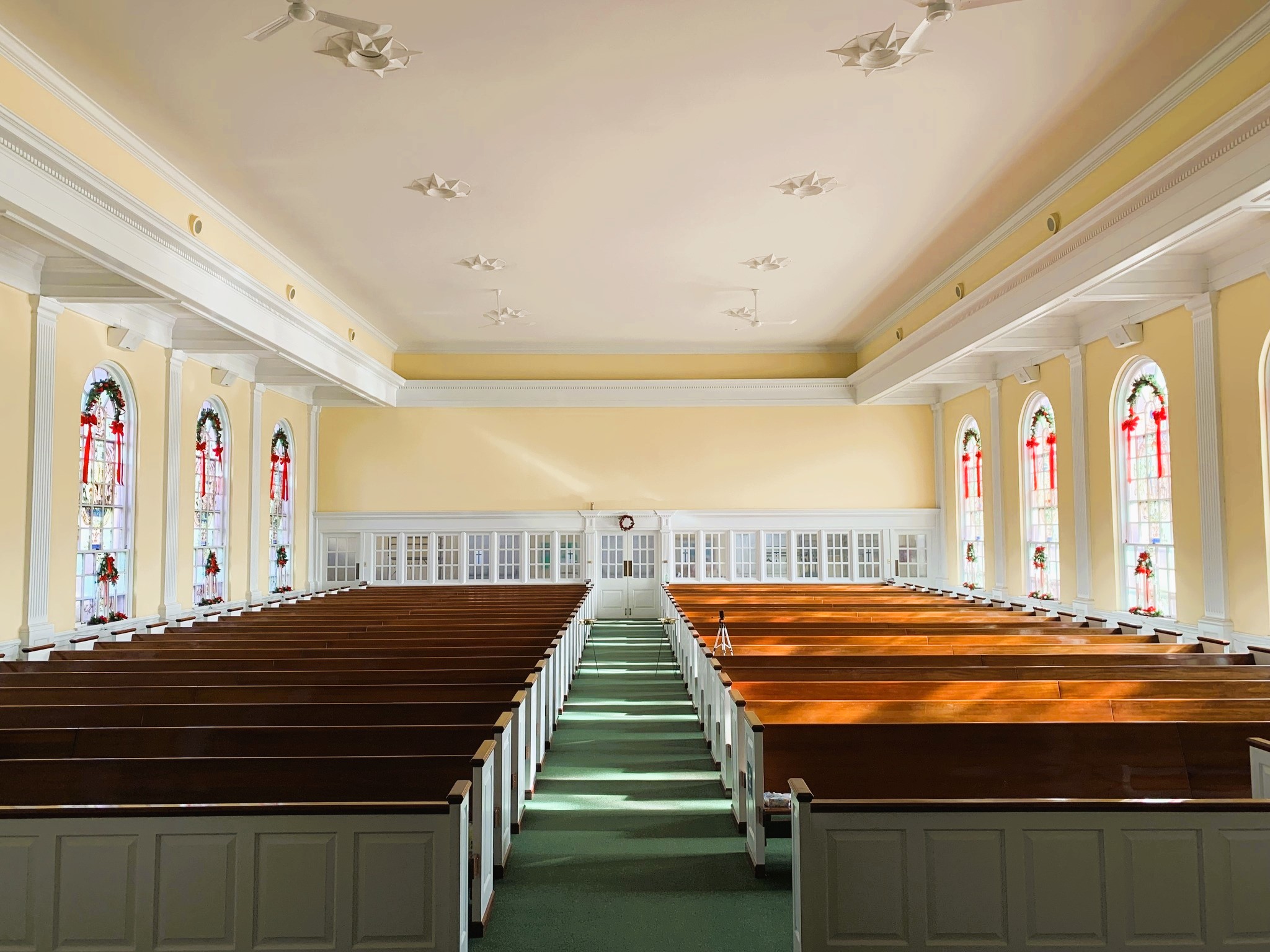

2022-12-01 - Church interior to rear (Church Facebook/Jeff Scofield)

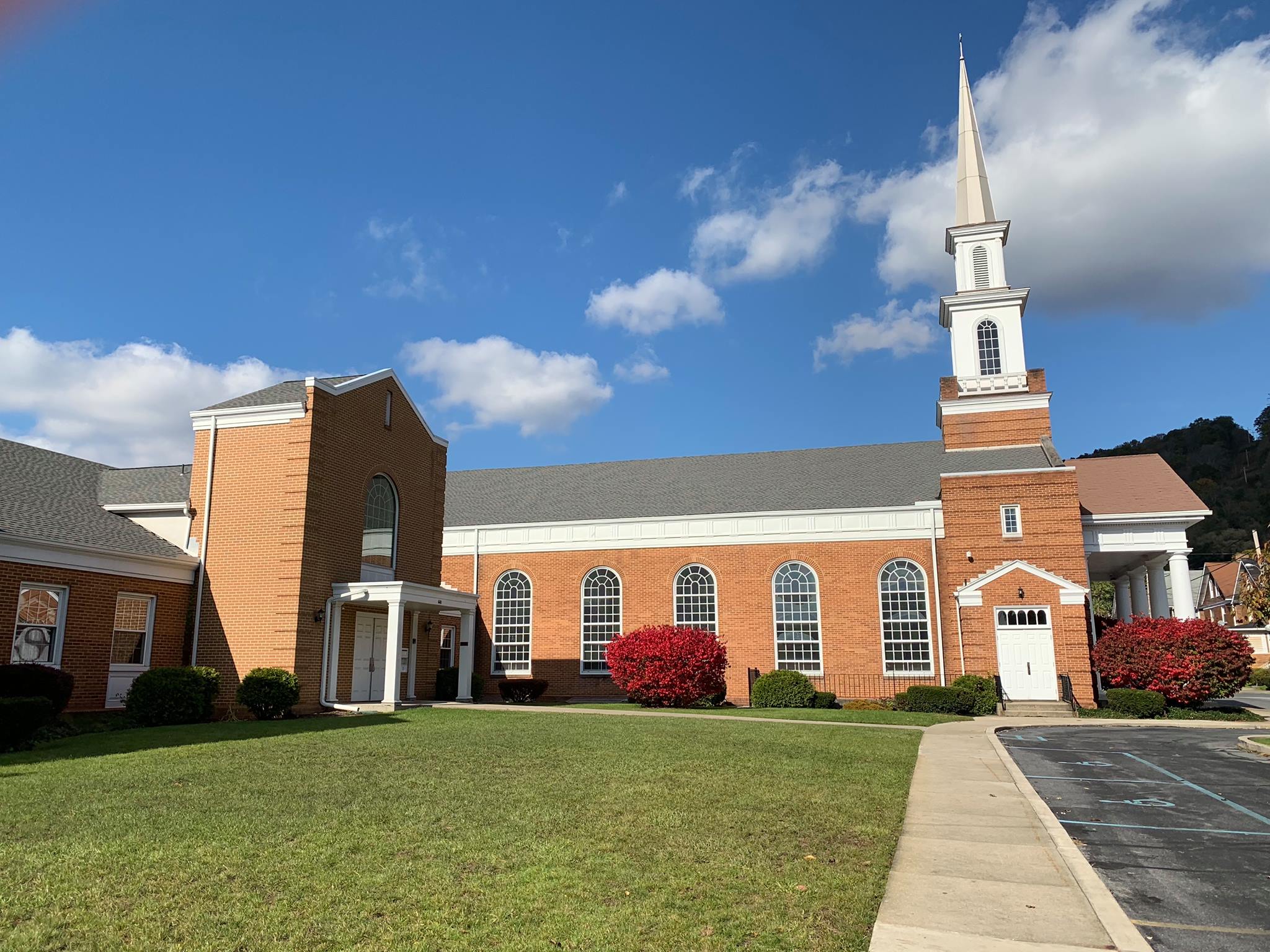

2018-10-30 - Church exterior (Church Facebook/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
12 stops
22 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2009-02-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2013-09-19 - Retained the 1958 Moller console, reworked for Op. 10723. -Database Manager

2018-07-11 - Updated by Rev Dr David Williams, who has heard or played the organ. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Johnstown, Pennsylvania
       Trinity Evangelical Lutheran Church

       Möller   Op. 10723   1971   2/15
       _______________________________________________________________________

       GREAT                    SWELL                        PEDAL
    8' Principal   61        8' Holzgedeckt      61      16' Principal      32
    8' Rohrflöte   61        8' Gemshorn         61      16' Bordun         12 SW
    8' Gemshorn    SW        8' Gemshorn Celeste 49       8' Octav          12
    4' Octav       61        4' Spitzprincipal   61       8' Rohrflöte      GT
    2' Blockflöte  61        4' Gedeckt          12       4' Octav          12
II-IV  Mixtur     208        2' Spitzoctav       12      16' Trompette Bass 12 SW
       Super             1 1/3' Quinte           61       4' Clarion        SW
       Chimes                8' Trompette        61
                             4' Clarion          12
                                Tremulant
                                Sub
                                Unison Off
                                Super

               [Received online from Jeff Scofield September 19, 2013]

Documents

(1970-05-19) Factory Documentation Factory Documentation courtesy of the OHS Archive -Roman Lizak
