M. P. Möller Opus 10734 (1972)

St. John the Baptist Episcopal Church
330 McClellan Street
Wausau, WI

Images

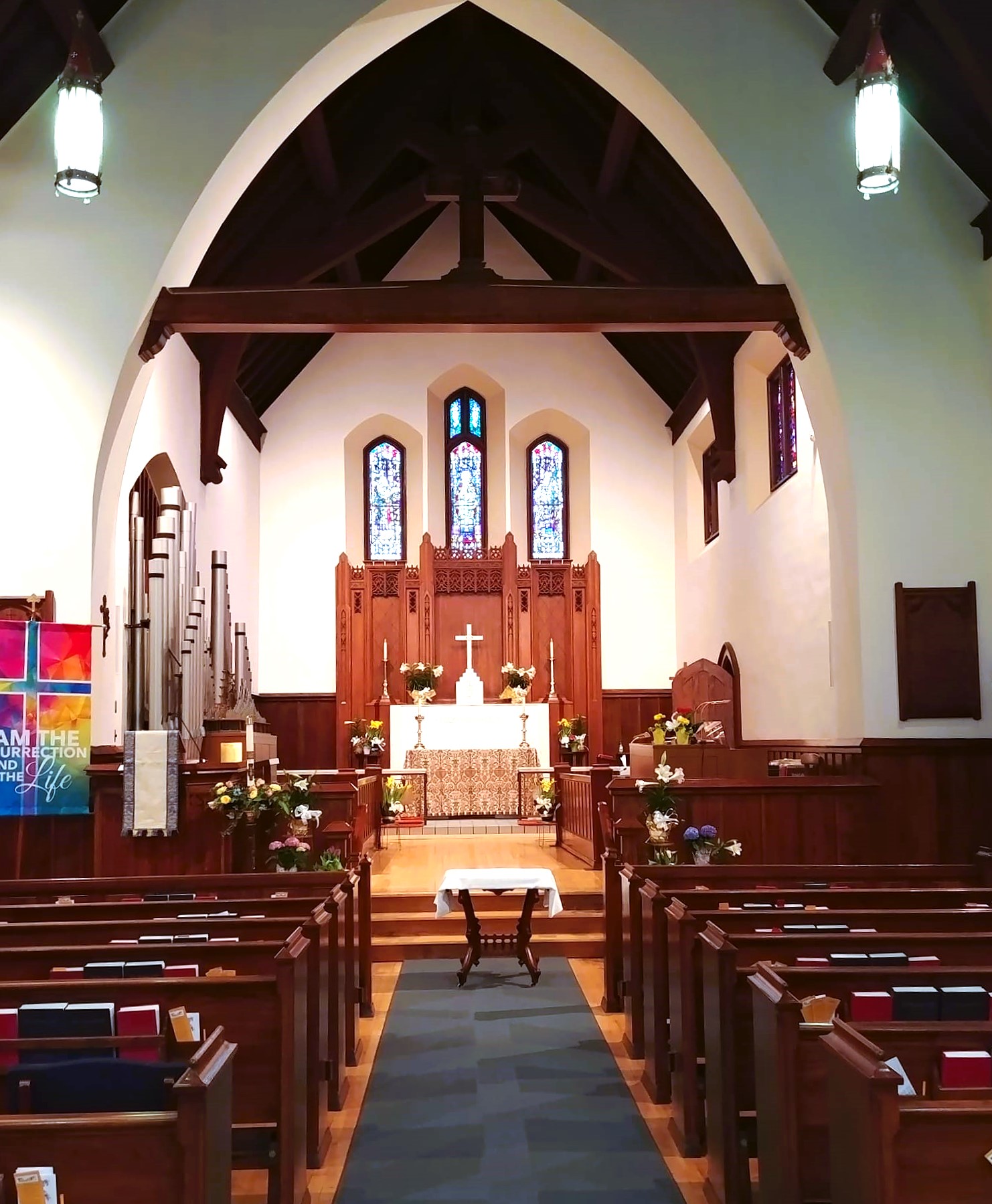

2023-04-08 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

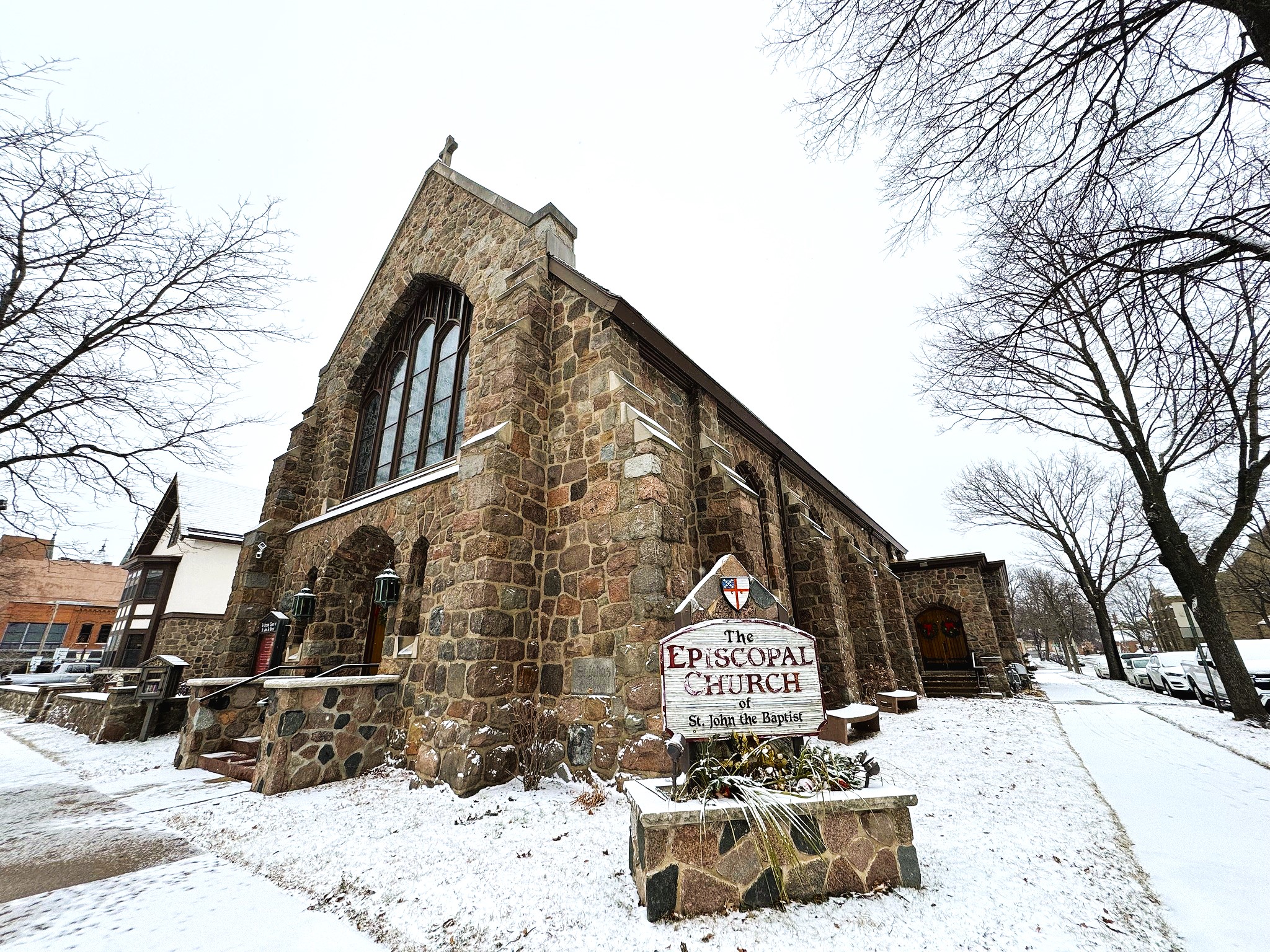

2025-01-08 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
9 stops
33 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons

Notes

2009-02-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-09-29 - Updated through online information from Jeff Scofield. -- Located in chamber to the left of the choir seating, with Great exposed in front of Swell; the only coupler is SW to GT 8' -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Wausau, Wisconsin
            Episcopal Church of St. John the Baptist

            Möller   Op. 10734   1971   2/11

            GREAT (exposed)
1.      16' Bourdon          73 pipes
2.       8' Principal        85 pipes
3.       8' Rohrflöte        from #1
4.       8' Gemshorn         from #15
5.       4' Octave           from #2
6.       4' Spitzflöte       73 pipes
7.       2' Super Octave     from #2
8.       2' Spitzflöte       from #6
9.     III  Mixture          183 pipes
10.      8' Trompette        from #21
11.      4' Trichter Regal   61 pipes
12.         Tremolo          enclosed in Swell Organ space
13.         Chimes           prepared for

            SWELL
14.      8' Gedeckt          73 pipes
15.      8' Gemshorn         80 pipes
16.      4' Weitprinzipal    73 pipes
17.      4' Gedeckt          from #14
18.      2' Doublette        from #16
19.  1 1/3' Larigot          from #15, repeat top octave
20.      1' Octavin          from #16, repeat top octave
21.     16' Double Trumpet   80 pipes, 1-6 half-length
22.      8' Trompette        from #21
23.      4' Clarion          from #21, repeat 5 top notes
24.         Tremolo

            PEDAL
25.     16' Bourdon          from #1
26.      8' Principal        from #2
27.      8' Spitzflöte       12 pipes, 20 from #6
28.      8' Gedeckt          from #14
29.      4' Octave           from #2
30.      4' Rohrflöte        from #1
31.      2' Spitzflöte       from #6
32.     IV  Mixture          from #2 and #9
33.     16' Double Trumpet   from #21
34.      8' Trompette        from #21
35.      4' Clarion          from #21
36.      4' Trichter Regal   from #11

[Received on line from Jeff Scofield September 29, 2009.]

Documents

(1970-07-01) Factory specifications via Jeff Scofield -Jeff Scofield
