Better Pipe Organ Database

M. P. Möller Opus 10745 (1972)

St. Michael & All Angels Episcopal Church: St. Michael Chapel
8011 Douglas Avenue
Dallas, TX

Note: Not extant. Not playable. (in this location)

Images

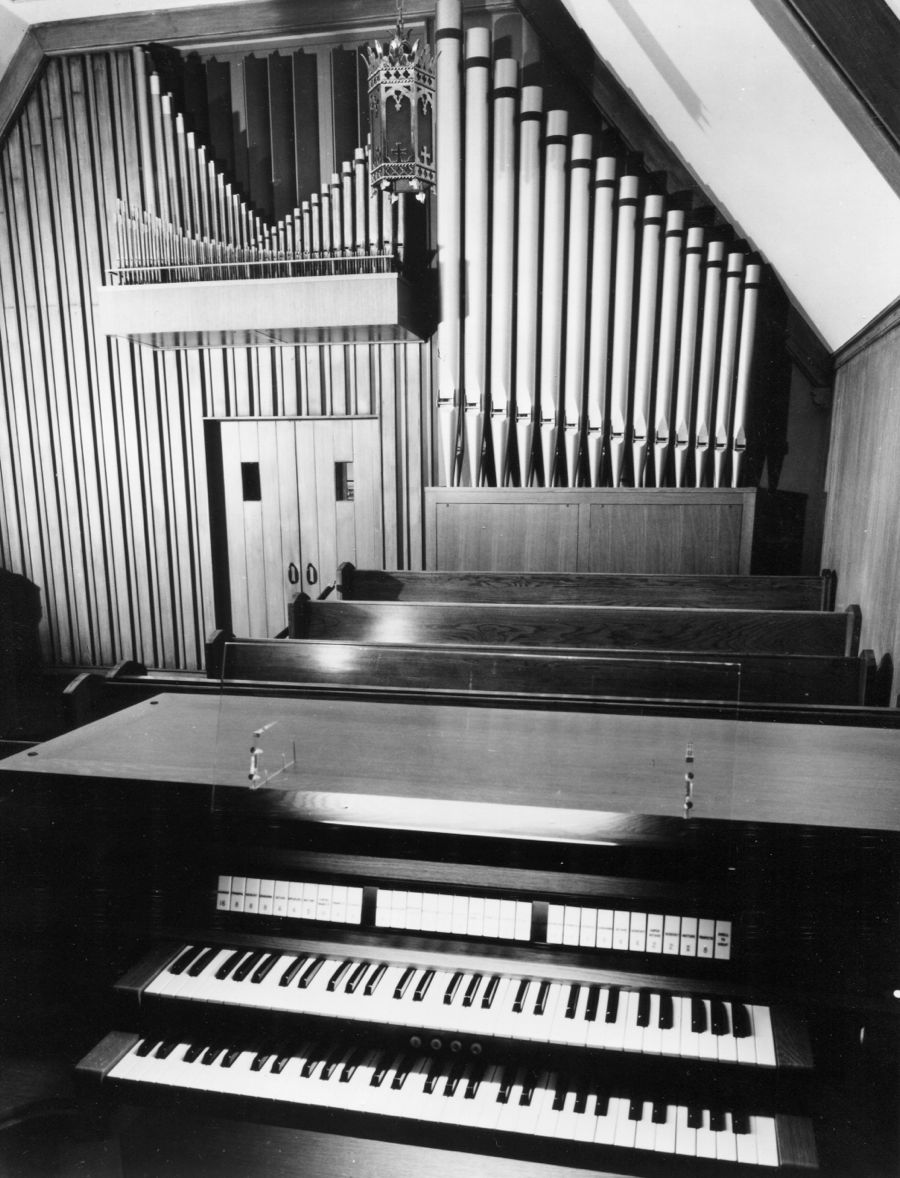

1972-09-09 - Console and Pipe Displays (Möller Promotional Photo; collection of Jeff Scofield/Database Manager)

Consoles

Main

Console position: Console in Fixed Position, Right
2 manuals
7 stops
29 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons

Notes

2009-02-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-09-30 - Updated through online information from Jeff Scofield. -- Was located in right rear corner of the room; replaced by Létourneau Op. 84 -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

           Dallas, Texas
           St. Michael and All Angels Episcopal Church
           St. Michael Chapel

           Möller   Op. 10745   1971   2/8

           GREAT
1.     16' Bourdon            92 pipes
2.      8' Principal          80 pipes
3.      8' Gedeckt            from #1
4.      8' Gemshorn           from #12
5.      4' Octave             from #2
6.      4' Gedeckt            from #1
7.      2' Super Octave       from #2    repeat 5 top notes
8.      2' Gedeckt            from #1    repeat 5 top notes
9.     II  Mixture            122 pipes
10.     8' Trompette          from #17

           SWELL
11.     8' Spitzflöte         73 pipes   low octave from #12
12.     8' Gemshorn           85 pipes
13.     8' Gemshorn Celeste   49 pipes   tc
14.     4' Spitzflöte         from #11
15.     2' Spitzflöte         from #11
16. 1 1/3' Larigot            from #12   repeat 7 top notes
17.    16' Contre Trompette   85 pipes   1-6 half-length
18.     8' Trompette          from #17
19.     4' Clairon            from #17
20.        Tremolo

           PEDAL
21.    16' Bourdon            from #1
22.     8' Principal          from #2
23.     8' Gedeckt            from #1
24.     8' Gemshorn           from #12
25.     4' Octave             from #2
26.     4' Spitzflöte         from #11
27.    II  Mixture            from #9
28.    16' Contre Trompette   from #17
29.     8' Trompette          from #17
30.     4' Clairon            from #17

[Received on line from Jeff Scofield September 30, 2009.]

Documents

(1970-08-01) Factory specifications via Jeff Scofield -Jeff Scofield
