M. P. Möller Opus 10750 (1972)

St. Paul's Evangelical Lutheran Church / St. Paul Lutheran
181 South Santa Clara
New Braunfels, TX

Images

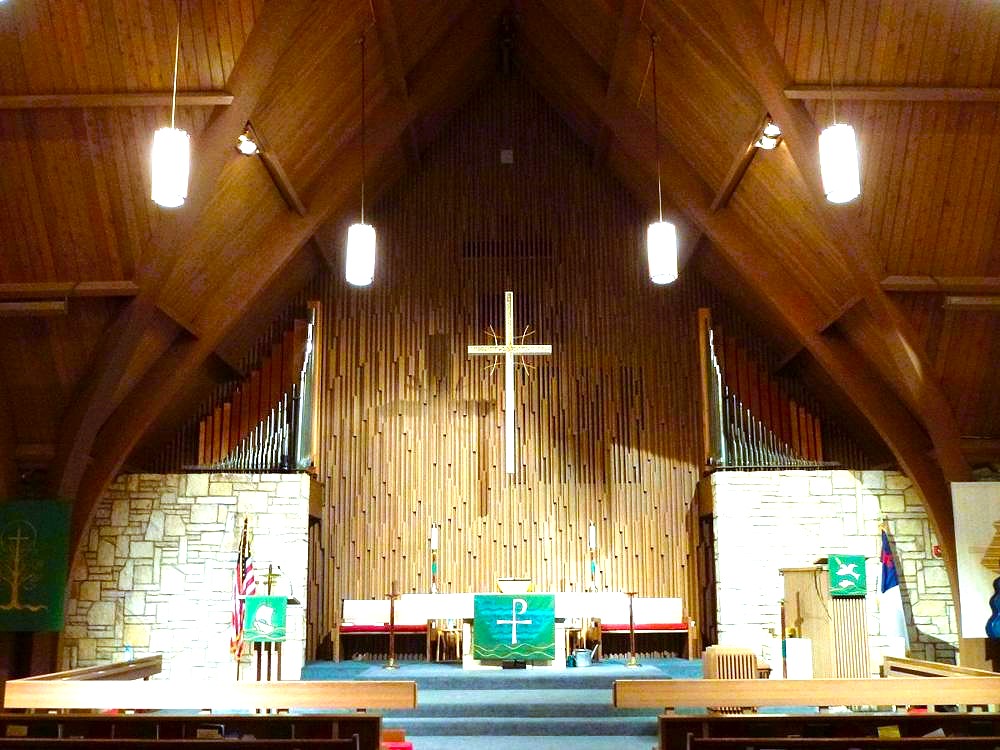

2014-07-16 - Chancel and Great Pipe Display (Photograph by Alex Bridges/Database Manager)

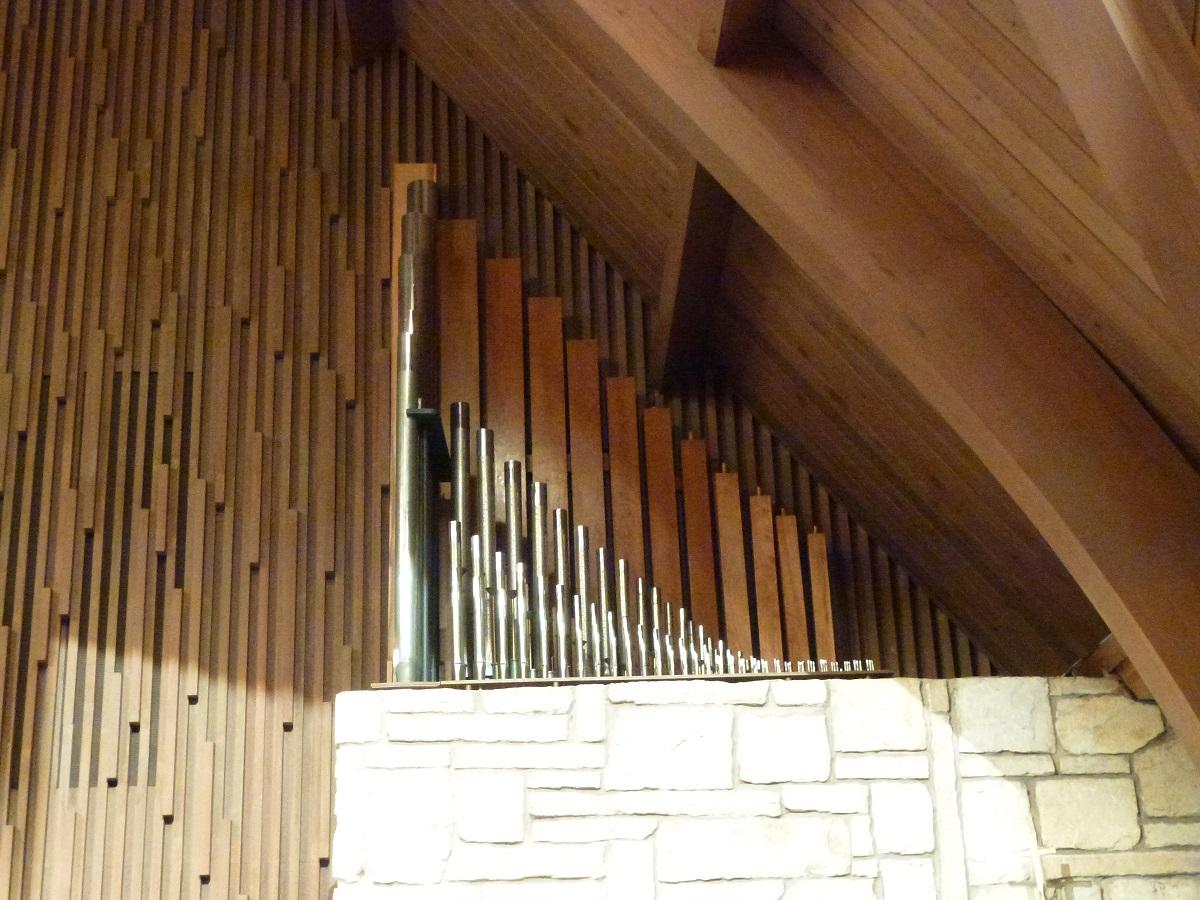

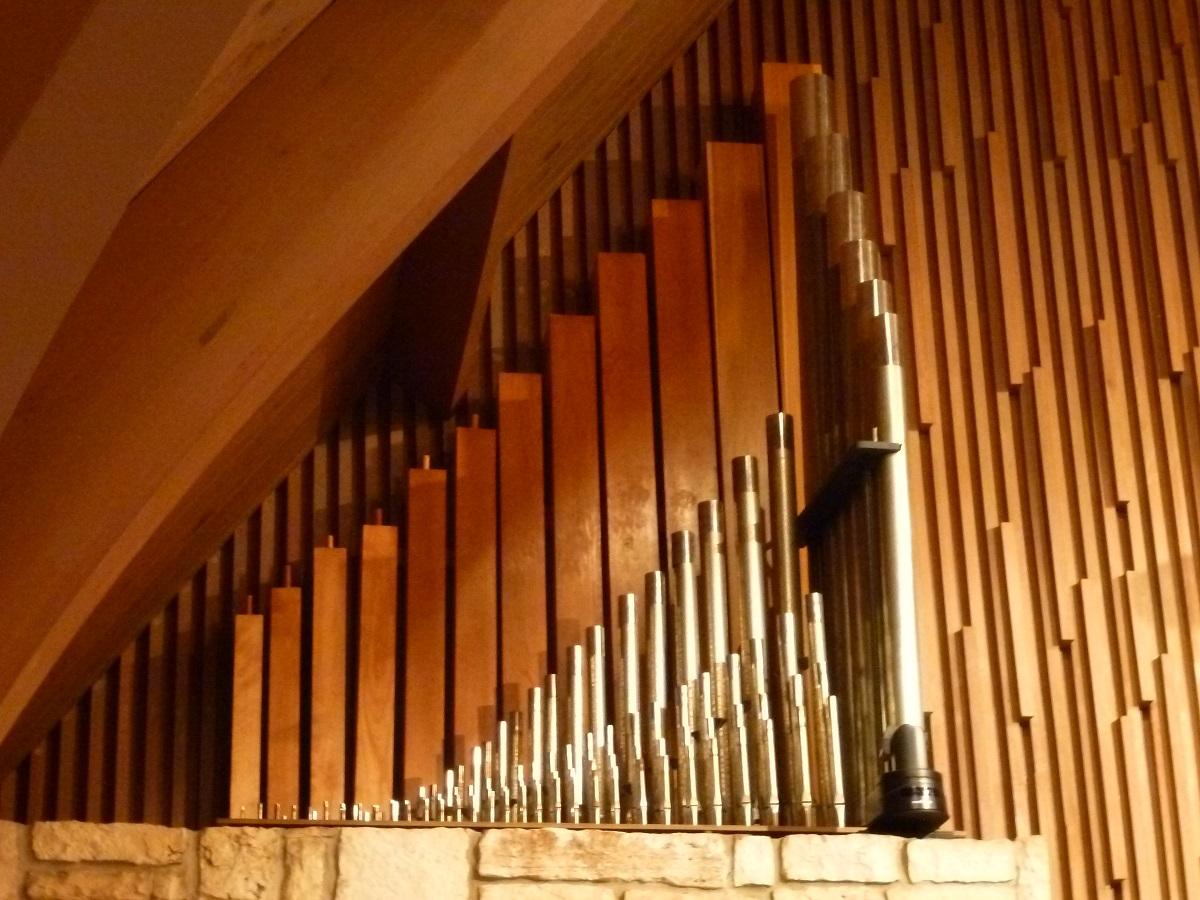

2014-07-16 - Divided Great Pipework (left side) (Photograph by Alex Bridges/Database Manager)

2014-07-16 - Divided Great Pipework (right side) (Photograph by Alex Bridges/Database Manager)

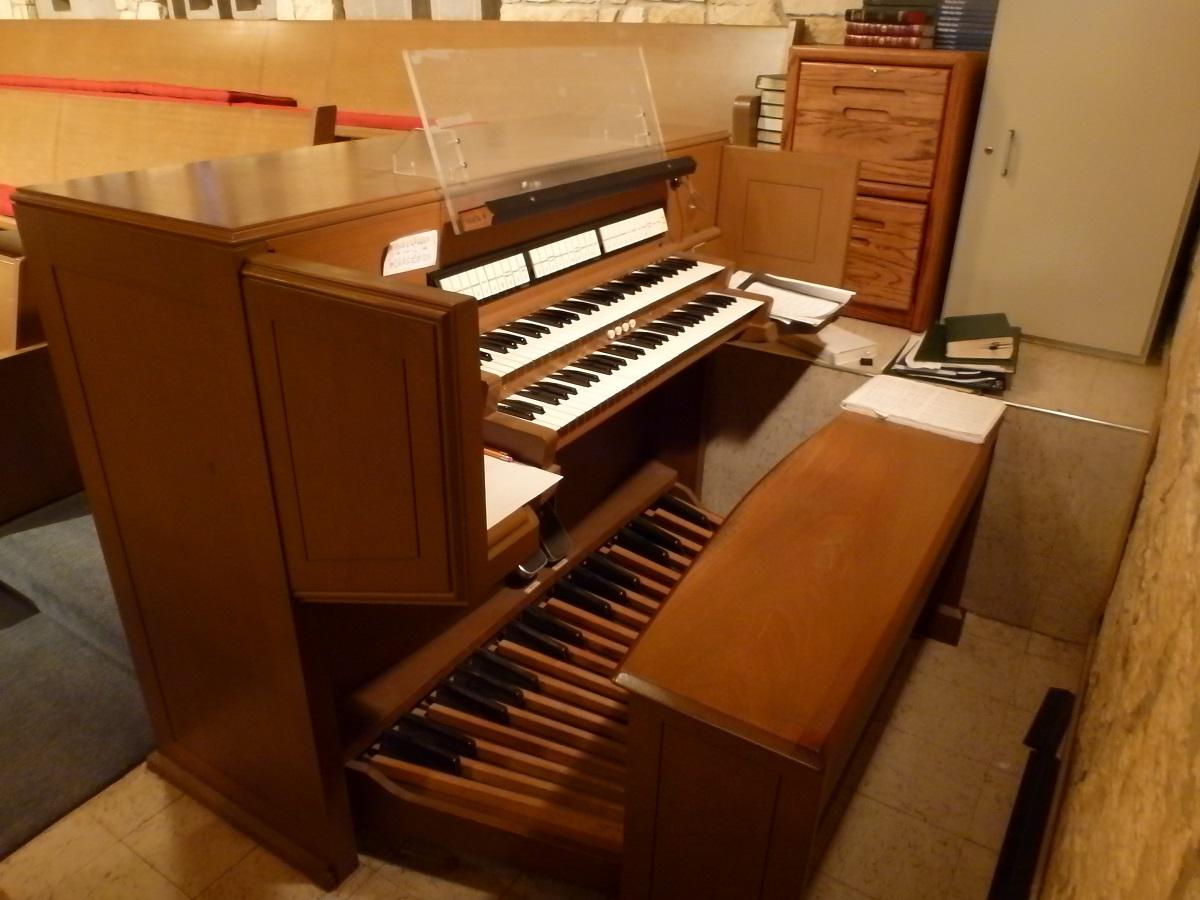

2014-07-16 - Console (Photograph by Alex Bridges/Database Manager)

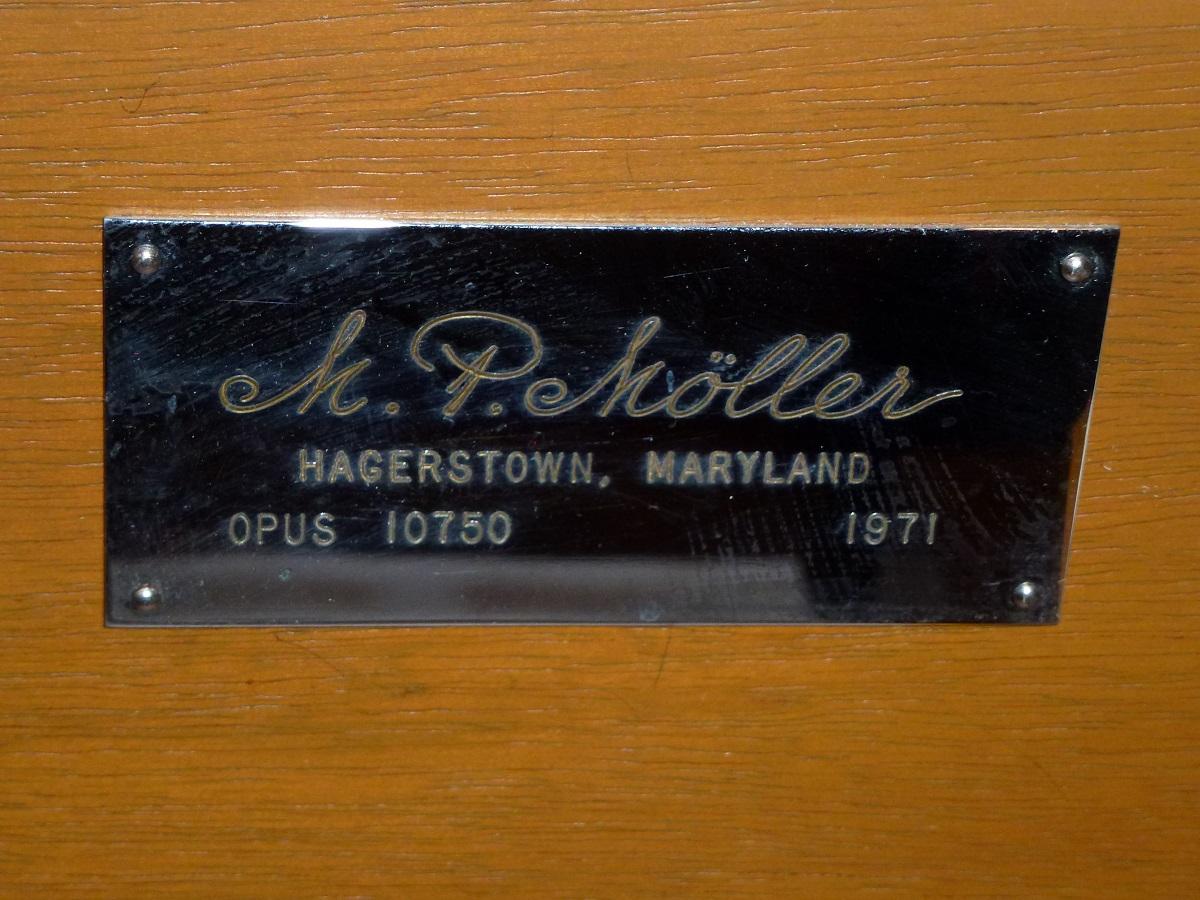

2014-07-16 - Builder's Nameplate (Photograph by Alex Bridges/Database Manager)

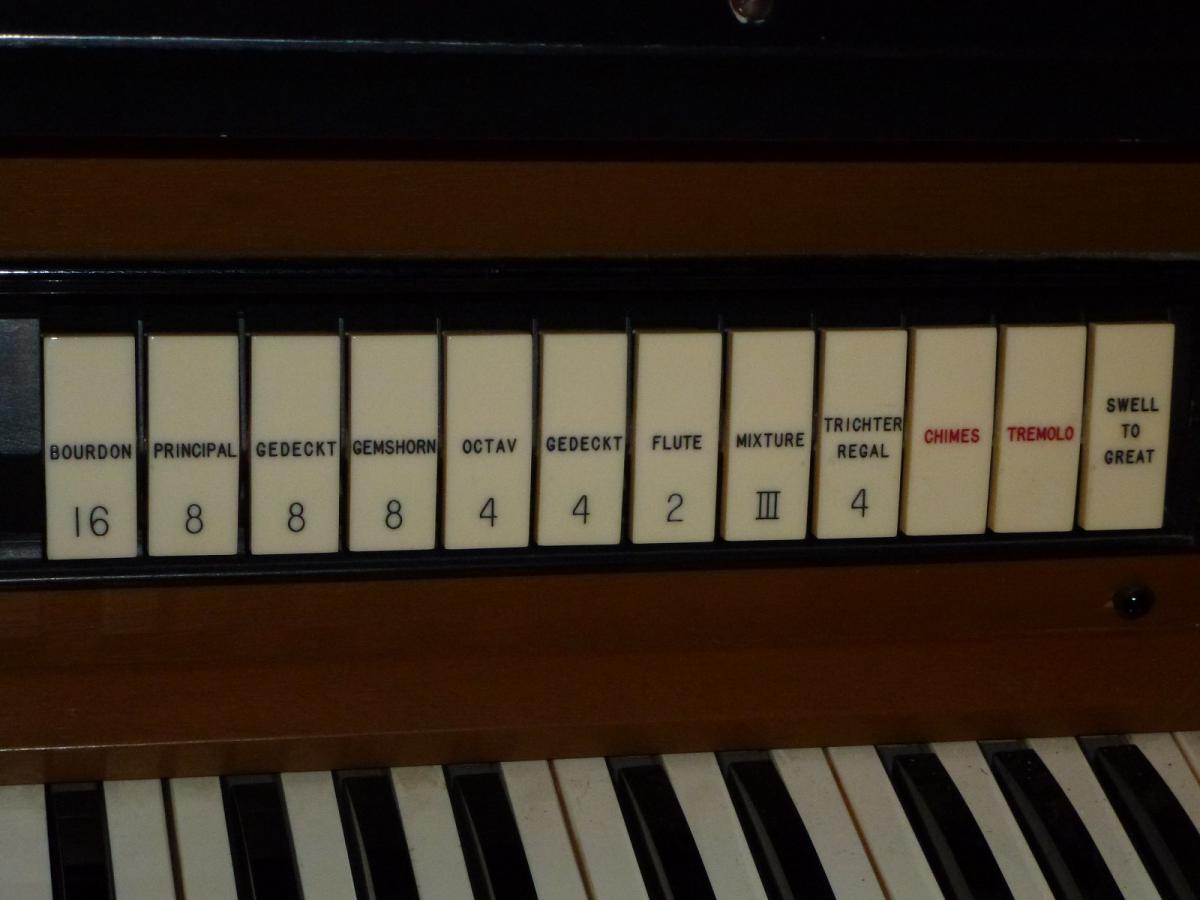

2014-07-16 - Great Rocking Tablets (Photograph by Alex Bridges/Database Manager)

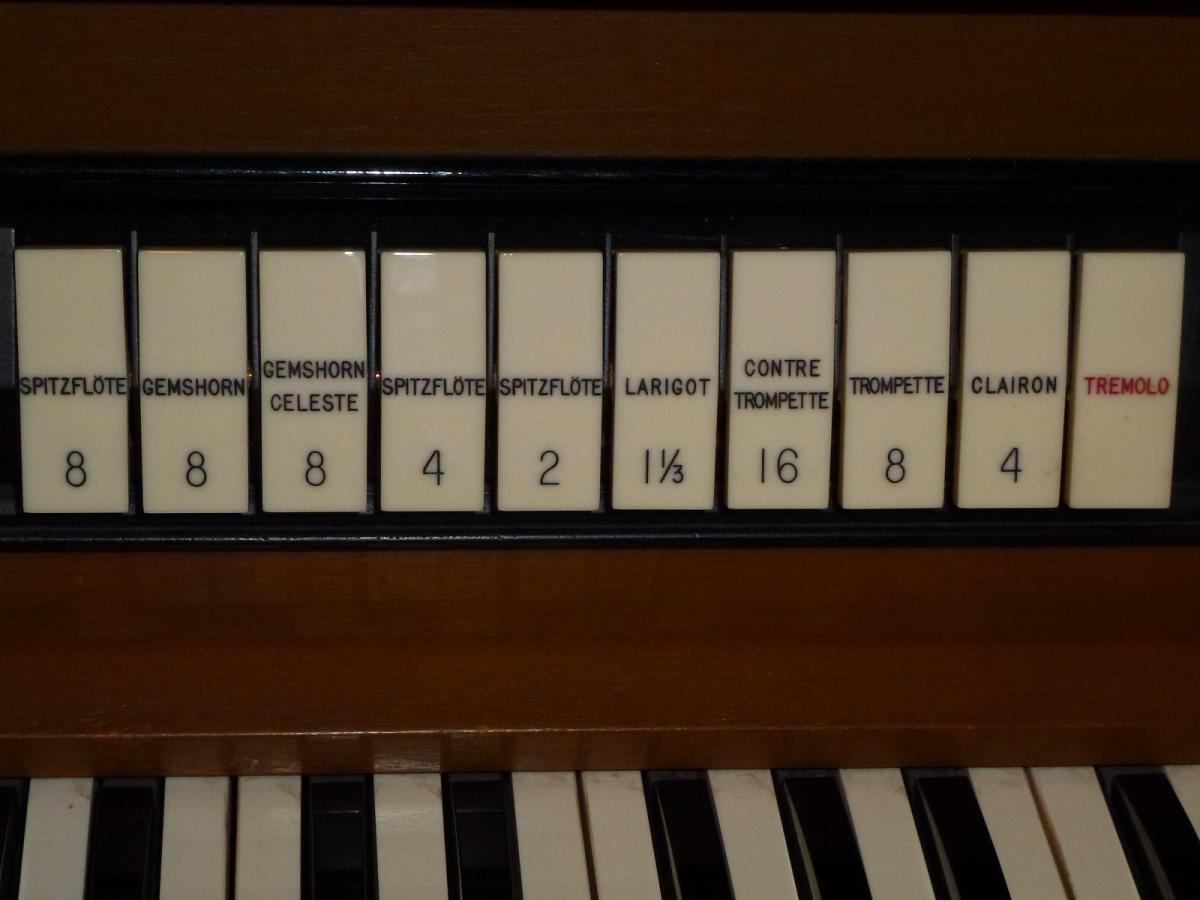

2014-07-16 - Swell Rocking Tablets (Photograph by Alex Bridges/Database Manager)

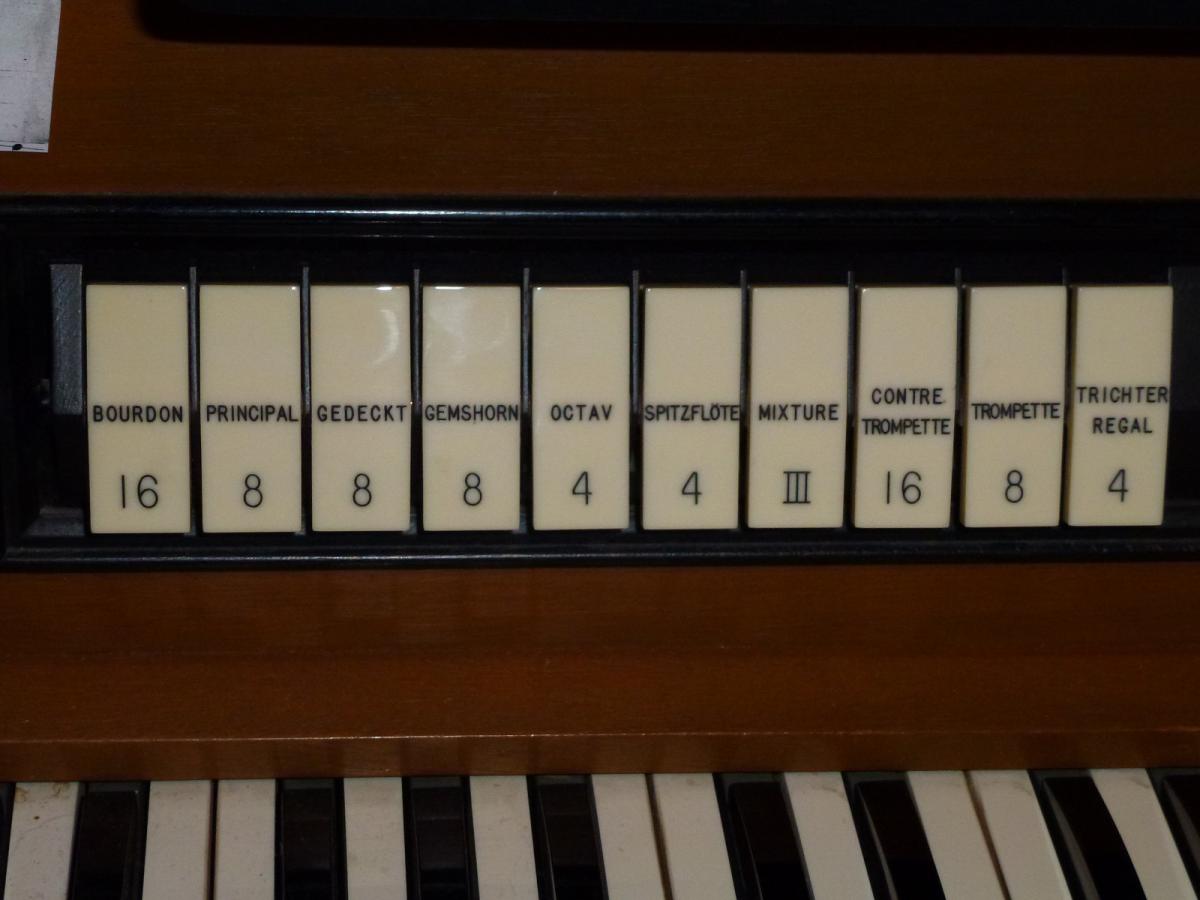

2014-07-16 - Pedal Rocking Tablets (Photograph by Alex Bridges/Database Manager)

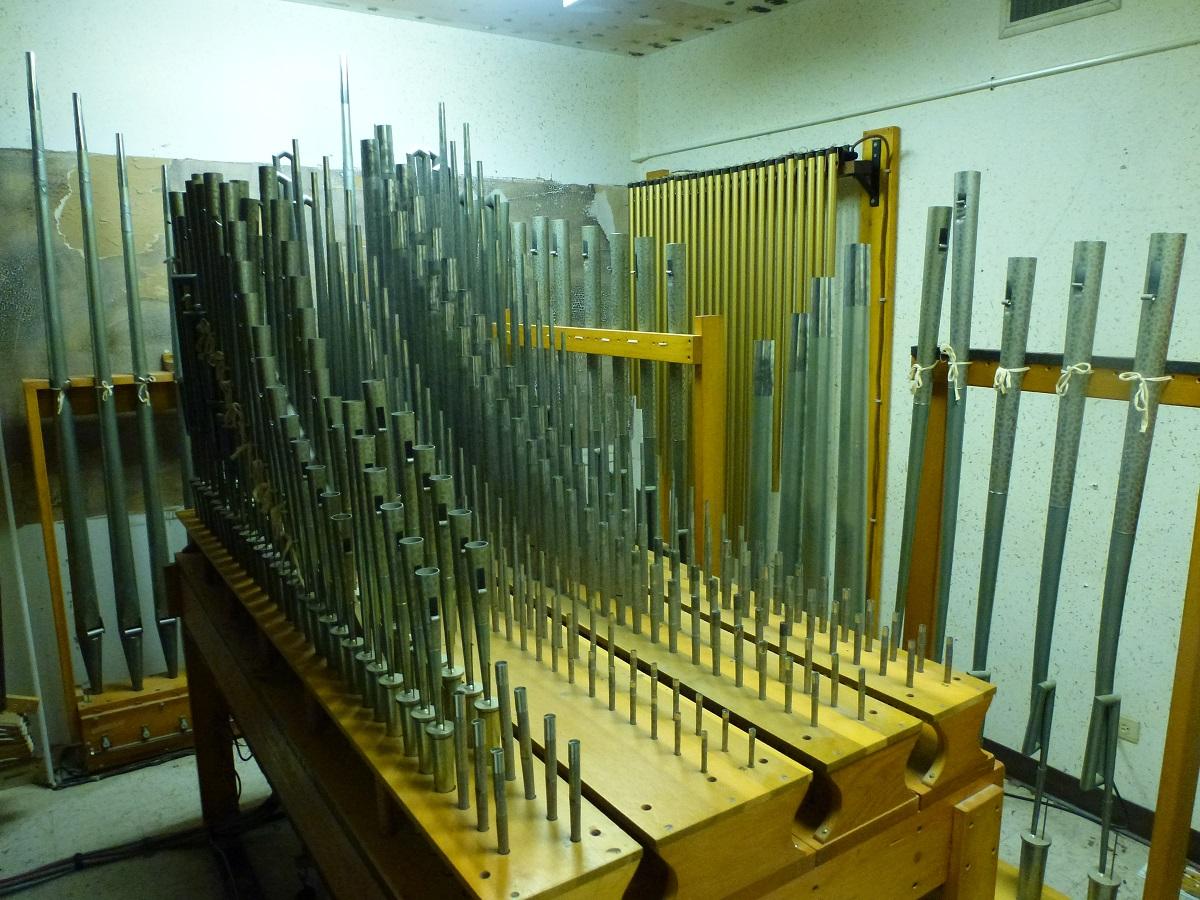

2014-07-16 - Swell Pipework, Offset Basses, Chimes (Photograph by Alex Bridges/Database Manager)

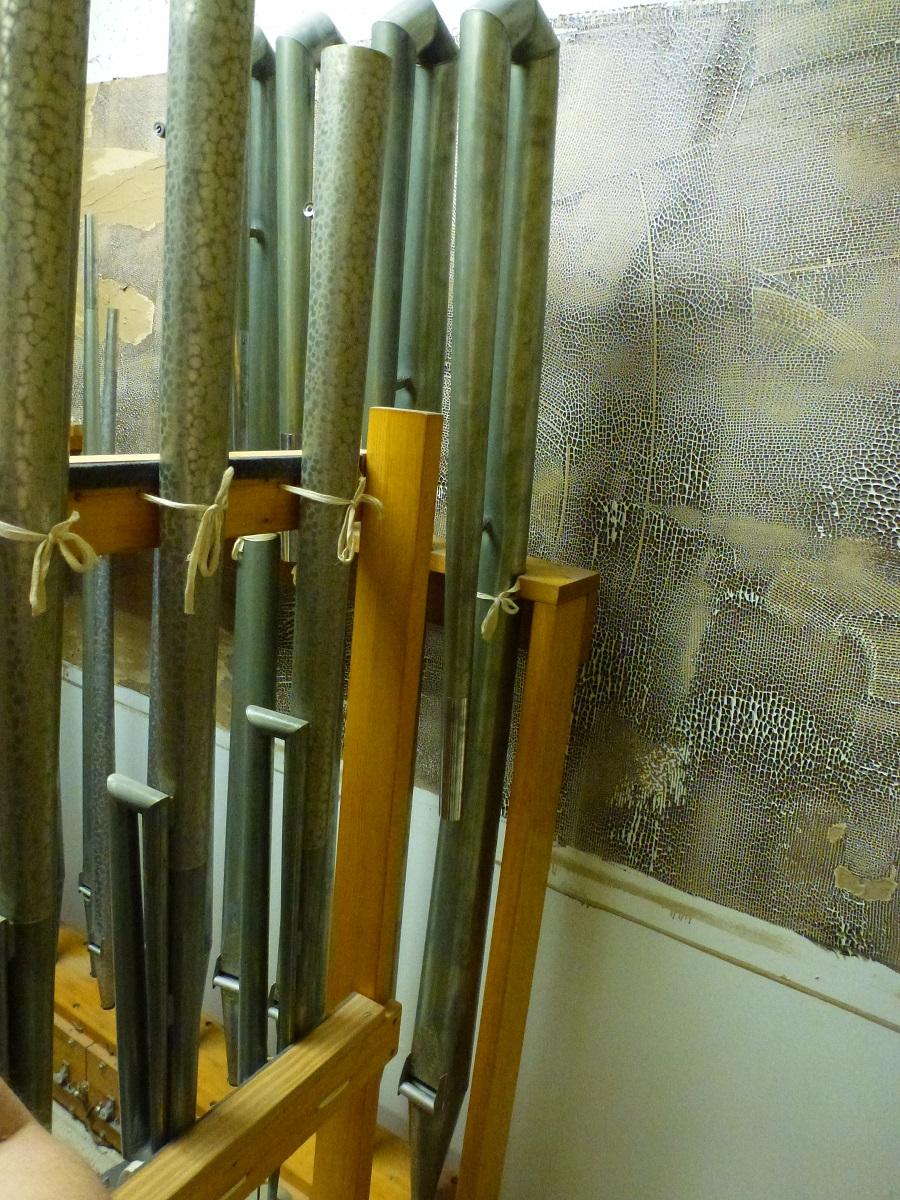

2014-07-16 - Pipework (offset Gemshorn basses - mitered) (Photograph by Alex Bridges/Database Manager)

2014-07-16 - Church Exterior (Photograph by Alex Bridges/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
2 manuals
28 stops
8 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has combination thumb pistons

Notes

2009-02-25 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-09-30 - Updated through on-line information from Jeff Scofield. -Database Manager

2013-02-10 - Updated through online information from Warren R. Johnson. -Database Manager

2014-09-10 - Updated through online information from Julius Coyle. -- Organ is in good shape and sounds nice. The Great is divided and exposed above and behind the altar. I could not get the chimes to work, but on my second visit to the church, I was assured that they worked. The organ has combination thumb pistons, but I am unsure if they work at all, are fixed, etc. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            New Braunfels, Texas
            St. Paul Evangelical Lutheran Church

            Möller   Op. 10750   1972   2/10

            GREAT
1.      16' Bourdon            97 pipes
2.       8' Principal          73 pipes
3.       8' Gedeckt            from #1
4.       8' Gemshorn           from #13
5.       4' Octav              from #2
6.       4' Gedeckt            from #1
7.       2' Flute              from #1
8.     III  Mixture            183 pipes
9.       4' Trichter Regal     61 pipes
10.         Tremolo
11.         Chimes             25 tubes  Mayland

            SWELL
12.      8' Spitzflöte         73 pipes  tc, 1-12 from #13
13.      8' Gemshorn           85 pipes
14.      8' Gemshorn Celeste   49 pipes  tc
15.      4' Spitzflöte         from #12
16.      2' Spitzflöte         from #12
17.  1 1/3' Larigot            from #13  repeat 7 top notes
18.     16' Contre Trompette   85 pipes  1-6 half-length
19.      8' Trompette          from #18
20.      4' Clairon            from #18
21.         Tremolo

            PEDAL
22.     16' Bourdon            from #1
23.      8' Principal          from #2
24.      8' Gedeckt            from #1
25.      8' Gemshorn           from #13
26.      4' Octav              from #2
27.      4' Spitzflöte         from #12
28.    III  Mixture            from #8
29.     16' Contre Trompette   from #18
30.      8' Trompette          from #18
31.      4' Trichter Regal     from #9

[Received on line from Jeff Scofield September 30, 2009.]

Documents

(1970-09-13) Factory specifications via Jeff Scofield -Jeff Scofield
