Better Pipe Organ Database

M. P. Möller Opus 10762 (1971)

Luck Evangelical Lutheran Church: Sanctuary
510 E. Foster Ave.
Luck, WI

Images

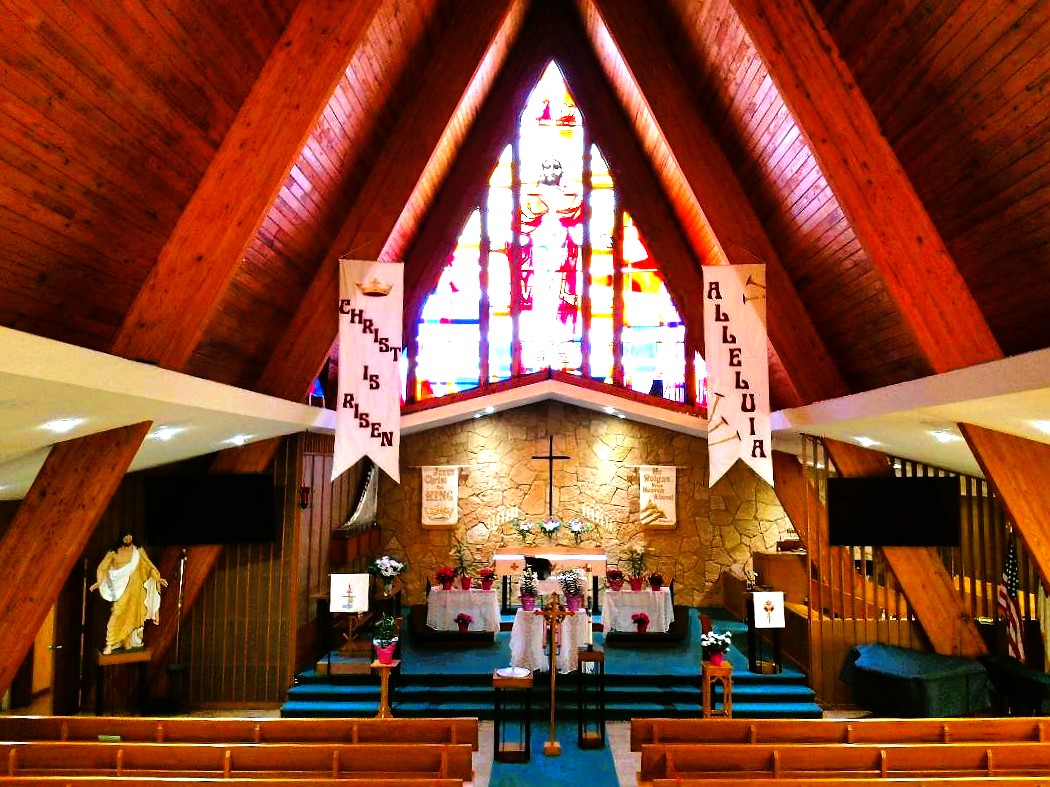

2021-04-04 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Console position: Console in Fixed Position, Right
2 manuals
26 stops
5 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: None

Notes

2009-02-25 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-10-08 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Luck, Wisconsin
            Luck Evangelical Lutheran Church

            Möller   Op. 10762   2/5   1971

            GREAT
 1.     16' Bourdon         92 pipes
 2.      8' Principal       85 pipes   Unenclosed
 3.      8' Gedeckt         from #1
 4.      8' Gemshorn        from #12
 5.      4' Octave          from #2
 6.      4' Gedeckt         from #1
 7.      2' Super Octave    from #2
 8.      2' Flute           from #1    repeat 5 top notes
 9.      8' Trompette       from #17
10.         Chimes                     Prepared for

            SWELL
11.      8' Gedeckt         from #1
12.      8' Gemshorn        80 pipes
13.      4' Spitzprinzipal  73 pipes
14.      4' Gedeckt         from #1
15.      2' Spitzoctav      from #13
16.  1 1/3' Larigot         from #12   repeat 12 top notes
17.      8' Trompette       61 pipes   1-6 half-length
18.      4' Clairon         from #17   62-73 from #13
19.         Tremolo

            PEDAL
20.     16' Bourdon         from #1
21.      8' Principal       from #2
22.      8' Gedeckt         from #1
23.      8' Gemshorn        from #12
24.      4' Octave          from #2
25.      4' Gedeckt         from #1
26.      2' Super Octave    from #2
27.      8' Trompette       from #17
28.      4' Clairon         from #17

[Received on line from Jeff Scofield October 08, 2009.]

Documents

(1970-11-19) Factory specifications via Jeff Scofield -Jeff Scofield
