M. P. Möller Opus 10766 (1971)

Images

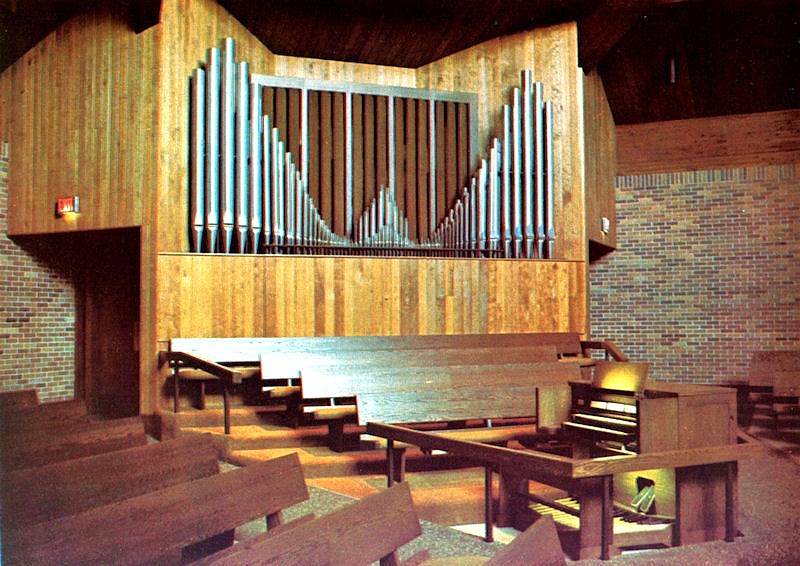

1972-06-30 - Choir gallery, exposed pipes & chamber, and console (Photograph from a 1981 Moller brochure in the collection of James R. Stettner/Database Manager)

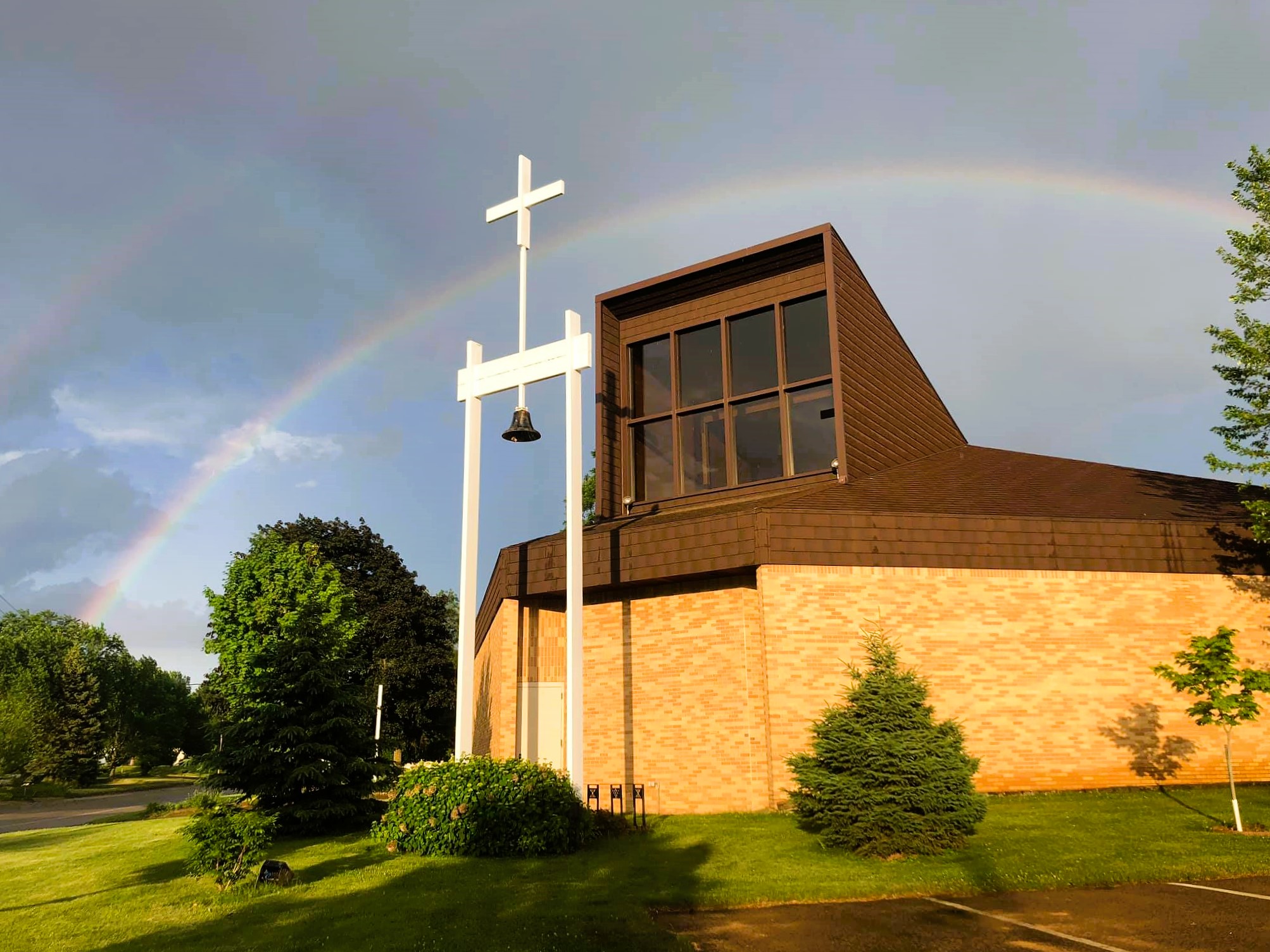

2021-06-10 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Center
• 2 manuals
• 7 stops
• 28 registers
• 3 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Tilting/Rocking Tablets Above Top Manual
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: None

Notes

2009-02-25 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2011-05-06 - Updated through online information from Richard C Greene. -Database Manager

Stoplist

Stoplist copied from the factory specifications, OHS Archives Source: Source not recorded Date not recorded

       St. Paul, Minnesota
       Our Redeemer Lutheran Church

       Möller   Op. 10766   1971   2/7
       ______________________________________________________________________

       GREAT (exposed)          SWELL                        PEDAL
   16' Bourdon     85        8' Spitzflöte       73 b    16' Bourdon
    8' Principal   85        8' Gemshorn         85       8' Principal
    8' Gedeckt               8' Gemshorn Celeste 49       8' Gedeckt
    8' Gemshorn              4' Spitzflöte                8' Gemshorn
    4' Octav                 2' Spitzflöte                4' Octav
    4' Gedeckt           1 1/3' Larigot                   4' Spitzflöte
2 2/3' Nazard      61       16' Contre Trompette 85      II  Mixture
    2' Super Octav           8' Trompette                16' Contre Trompette
1 1/3' Larigot      a        4' Clarion                   8' Trompette
       Tremolo                  Tremolo                   4' Clarion
       Chimes

    a  repeat 12 top notes
    b  low octave from Gemshorn

                   [Received from Jeff Scofield May 25, 2014]

Documents

• (1971-01-01) Factory Documentation Factory Documentation courtesy of the OHS Archive -Roman Lizak
