Better Pipe Organ Database

M. P. Möller Opus 10768 (1972)

St. Paul's Episcopal Church: Church
4051 Old Shell Road
Mobile, AL

Images

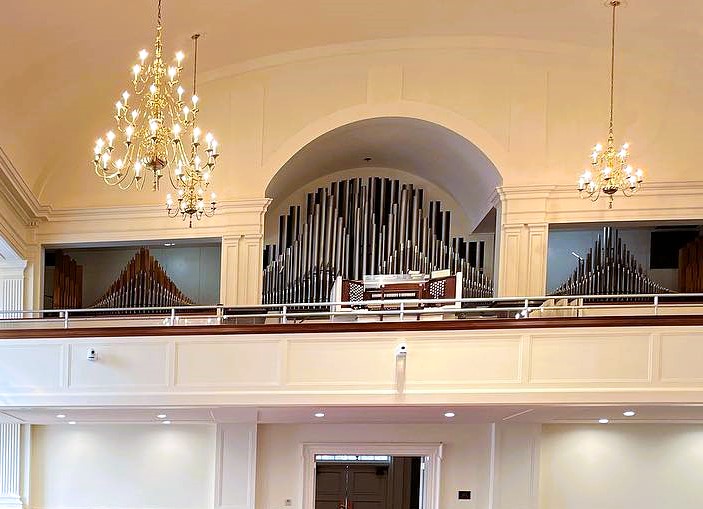

2023-09-25 - Organ in rear gallery (Church Facebook via Jeff Scofield/Jeff Scofield)

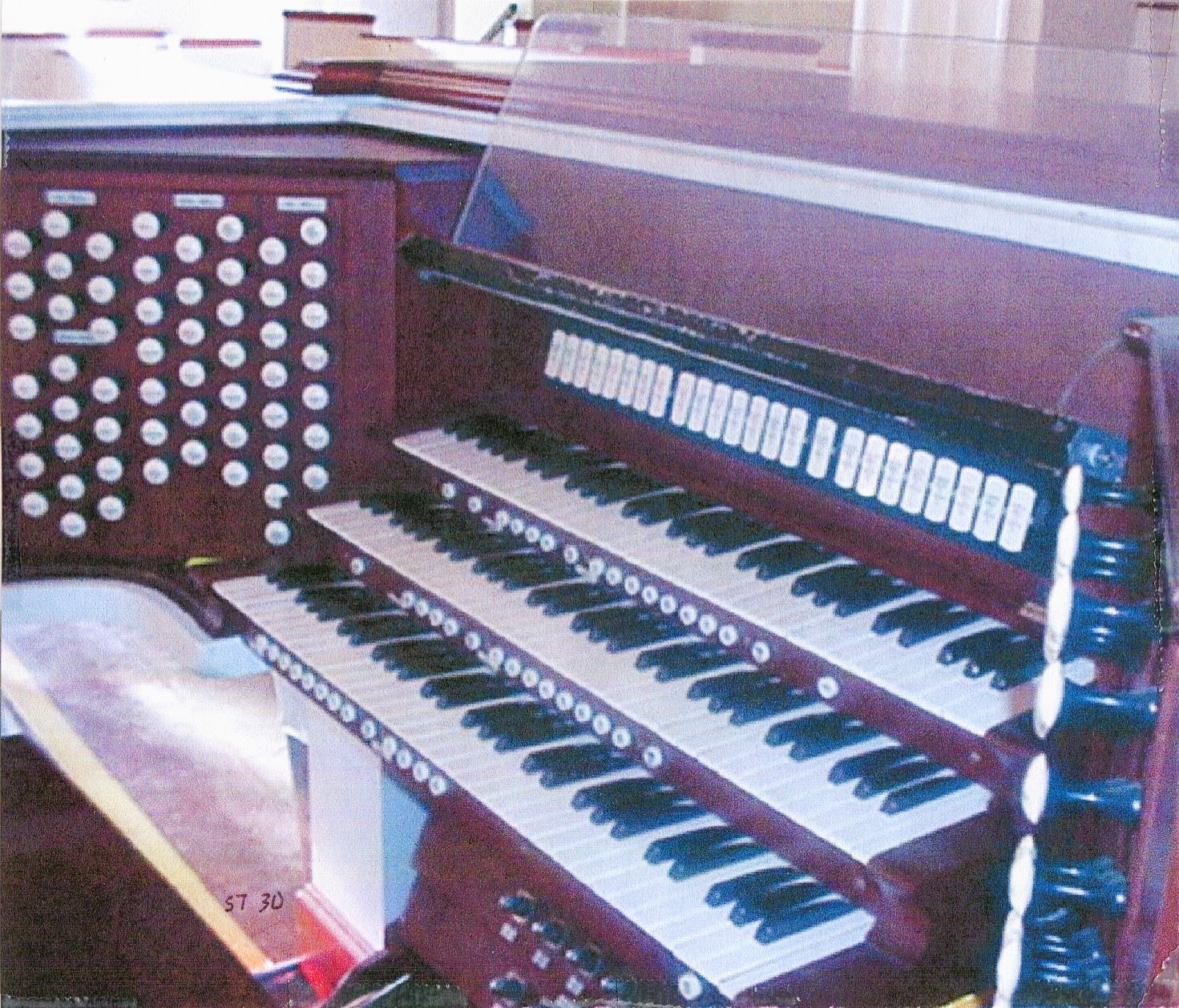

Unknown - Console (Collection of Jeff Scofield/Jeff Scofield)

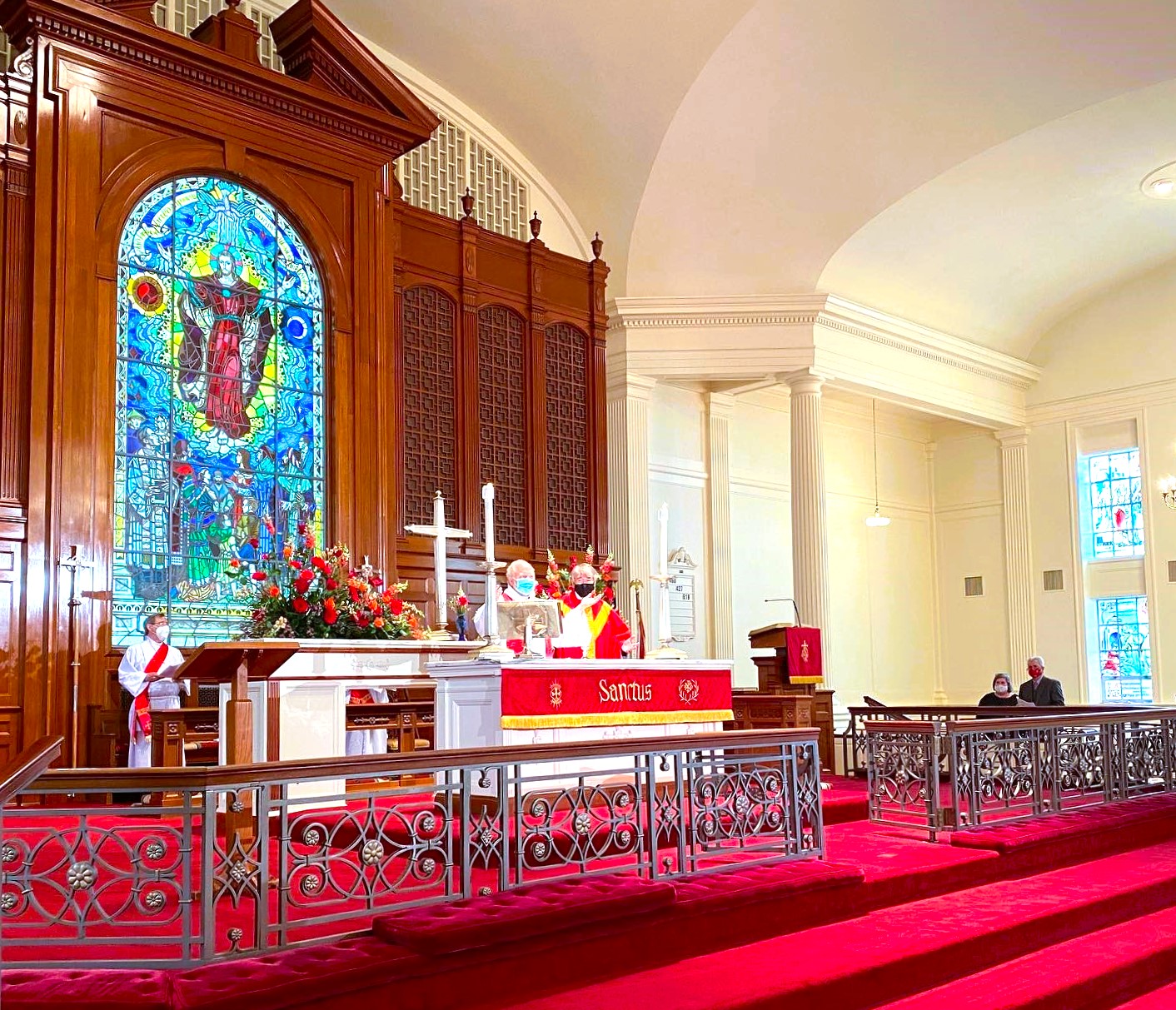

2021-02-13 - Chancel Organ (Church Facebook via Jeff Scofield/Jeff Scofield)

2024-05-15 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
61 stops
46 registers
7 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-02-25 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-10-10 - Updated through on-line information from Jeff Scofield. -- The Gallery Swell is enclosed and the rest of the gallery organ functionally displayed in front the of the swell shades; the console is located in the gallery; the chancel divisions are located in center chambers with no pipes visible -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Mobile, Alabama
       St. Paul's Episcopal Church

       Möller   Op. 10768   1972   3/62

       CHANCEL GREAT (3½ wind)           POSITIV (Gallery)(2 3/4")
   16' Principal (pf)                 8' Holzgedeckt 61
    8' Principal 61                   4' Koppelflöte 61
    8' Bourdon 61                 2 2/3' Nasat 61
    4' Octav 61                       2' Blockflöte 61
    4' Spitzflöte (pf)            1 3/5' Tierce 61
    2' Doublette 61                   8' Krummhorn 61
   II  Sesquialtera 122                  Tremulant
   IV  Fourniture 244                    Unison Off
  III  Scharf (pf)                    8' Harmonic Trumpet 61 (8")
   16' Trompete L/2 (pf)                 Zimbelstern
    8' Trompete (pf)
       Zimbelstern                       CHANCEL PEDAL (3½")
                                     32' Untersatz (elec)
       GALLERY GREAT (3")            16' Principal 32
    8' Principal 61                  16' Subbass 32
    8' Spitzflöte 61                 16' Rohrgedeckt SW
    4' Octav 61                       8' Principal 12
    2' Principal 61                   8' Gedeckt Pommer 32
II-IV  Mixtur 208                     4' Choralbass 32
    8' Trompette-en-Chamade (pf)     IV  Mixture 128
       Unison Off                    32' Posaune 12
       Chimes 21 (present)           16' Posaune 32
                                     16' Fagot SW
       CHANCEL SWELL (4")             8' Posaune 12
   16' Rohrgedeckt 61                 4' Clairon 12
    8' Geigen (pf)
    8' Rohrflöte 12                      GALLERY PEDAL (3")
    8' Viole de Gambe 61             16' Bourdon 32
    8' Viole Celeste 61              16' Gedeckt 12 SW
    8' Flauto Dolce Celeste II (pf)   8' Principal 32
    4' Principal 61                   8' Bourdon 12
    4' Blockflöte 61                  4' Octav 12
2 2/3' Nasard (pf)                   II  Mixtur 64
    2' Flachflöte 61                 16' Petite Bombarde SW
1 3/5' Tierce (pf)                    4' Clairon SW
   IV  Mixtur 244                     8' Trompette-en-Chamade (pf)
   16' Fagot 61 (L/2)
    8' Trompette 61
    8' Fagot 12
    4' Clairon 61
       Tremulant
    8' Harmonic Trumpet PO

       GALLERY SWELL (3")
    8' Rohrgedeckt 61
    8' Salicional 61
    8' Voix Celeste 49 tc
    4' Principal 61
    4' Hohlflöte 61
    2' Gemshorn 61
  III  Scharf 183
   16' Petite Bombarde 61 (L/2)
    8' Trompette 61
    4' Clairon 24
       Tremulant
       Sub
       Unison Off
       Super
    8' Trompette-en-Chamade (pf)

[Received on line from Jeff Scofield October 10, 2009.]

Documents

(1971-05-10) Factory specifications via Jeff Scofield -Jeff Scofield
