Better Pipe Organ Database

M. P. Möller Opus 10780 (1972)

Grace Lutheran Church: Sanctuary
30 Liberty Street
Shillington, PA

Images

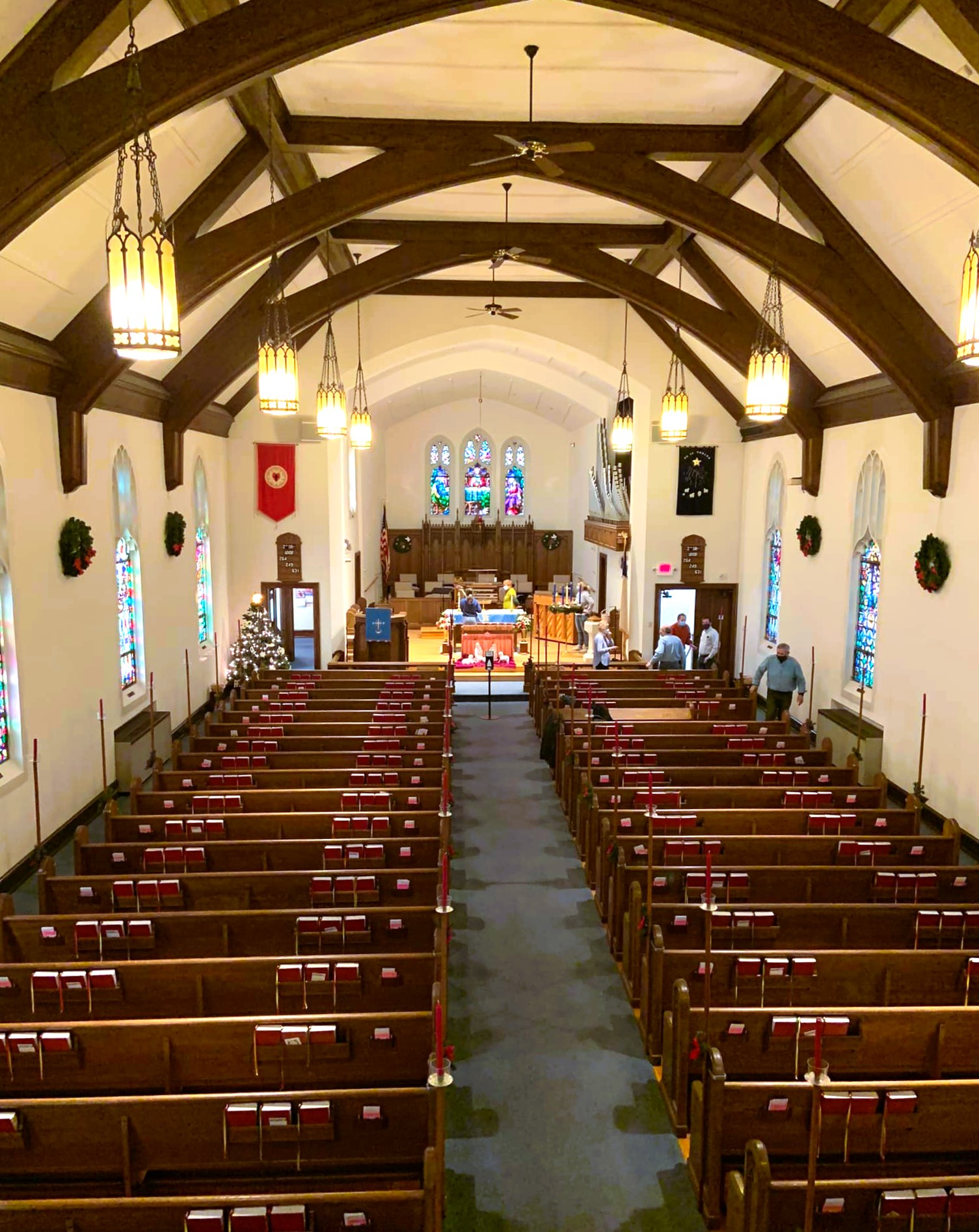

2021-12-04 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

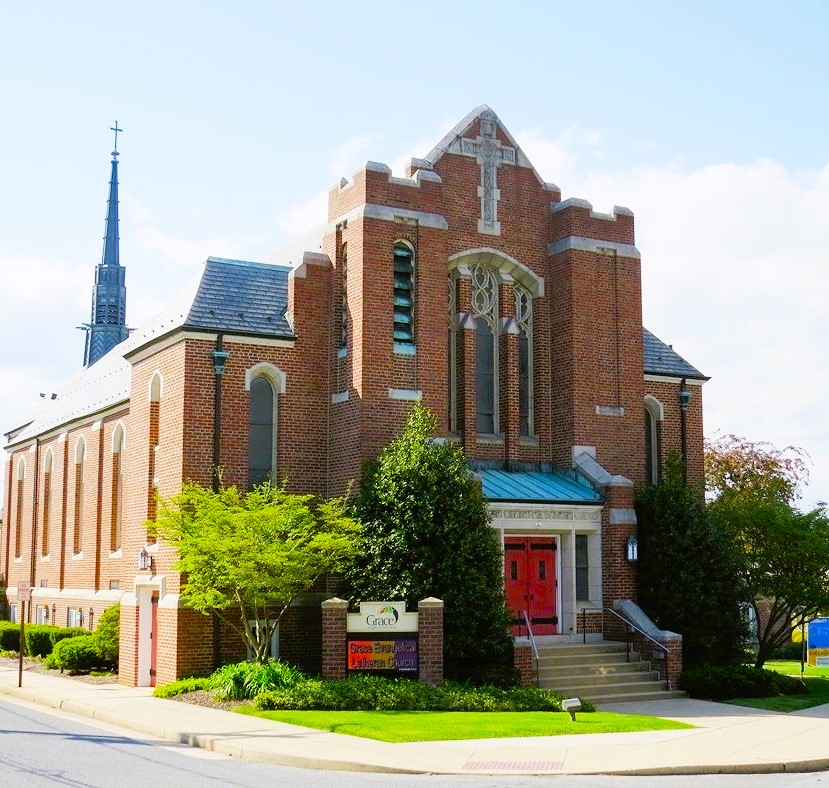

2020-05-09 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
32 stops
23 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-02-25 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-10-12 - Updated through on-line information from Jeff Scofield. -- Great division exposed -Database Manager

2013-04-14 - Updated through online information from Scott Crowell. -- New console and digital voices added 1990s. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Shillington, Pennsylvania
       Grace Evangelical Lutheran Church

       Möller   Op. 10780   1972   3/30

       GREAT                              CHOIR
    8' Principal 61                    8' Holzgedeckt 61
    8' Rohrflöte 61                    8' Erzähler Celeste II 110
    4' Octave 61                       4' Koppelflöte 61
    2' Waldflöte 61                2 2/3' Nazard (pf)
   IV  Mixture 244                     2' Principal 61
    8' Trompete 61 (dbl trbls)     1 3/5' Tierce (pf)
       Chimes 21 (pres Deagan A)   1 1/3' Larigot 61
                                      II  Cymbel 122
       SWELL                           8' Krummhorn 61
   16' Gedecktbass 61                     Tremulant
    8' Gedeckt 12                         Sub
    8' Viole de Gambe 61                  Unison Off
    8' Viole Celeste 54 GG                Super
    4' Weitprincipal 61
    2' Blockflöte 61                      PEDAL
  III  Mixture 183                    32' Resultant --
    8' Trompette 61                   16' Principal 32
       Tremulant                      16' Gedecktbass SW
       Sub                             8' Octave 12
       Unison Off                      8' Gedeckt SW
       Super                           4' Fifteenth 12
                                      II  Mixture 64
                                      16' Fagot 32  L/2
                                       4' Krummhorn CH

[Received on line from Jeff Scofield October 12, 2009.]

Documents

(1971-10-26) Factory specifications via Jeff Scofield -Jeff Scofield
