All Saints Episcopal Church
110 W. Hawthorne
Homewood (Birmingham), AL
Images
2023-12-22 - Grand Orgue pipework (enclosed ranks) (Photograph by Richard Byrd/Richard Byrd)
2023-12-22 - Recit pipework (Photograph by Richard Byrd/Richard Byrd)

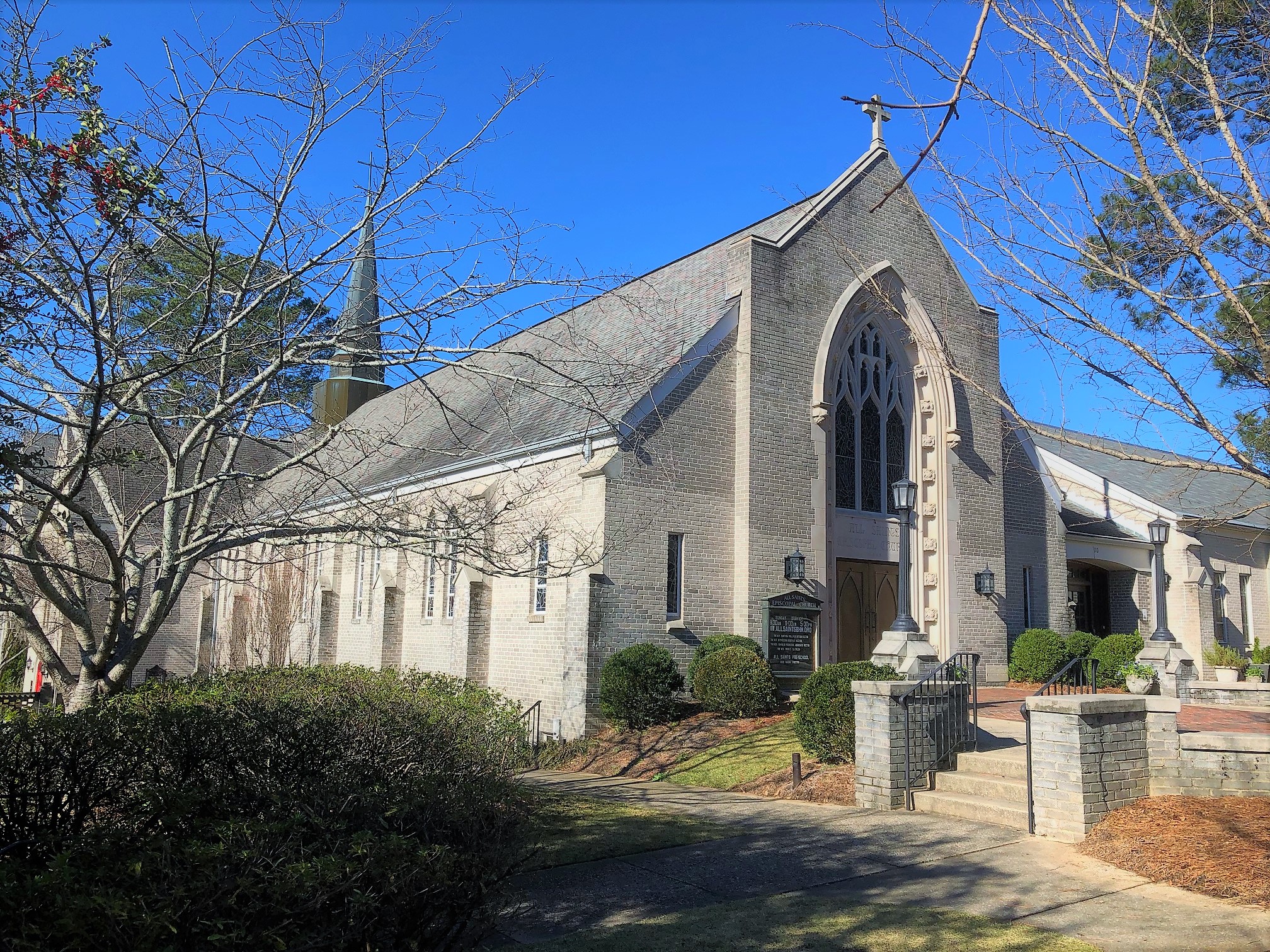

2022-01-11 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Church interior to rear (Photograph by Jeff Scofield/Jeff Scofield)

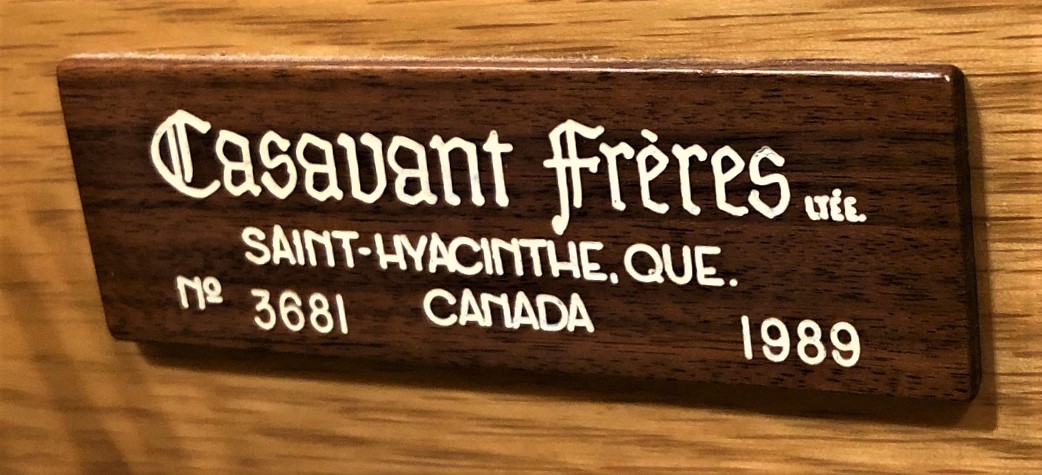

2022-01-11 - Builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Grand Orgue stops (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Recit stops (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Pedale stops (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Console (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Choir loft and console (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Chancel and organ chamber (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)
2022-01-11 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- 20 stops
- 24 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2009-02-27 - Identified through online information from James R. Stettner. -Database Manager
2009-02-28 - Updated through online information from James R. Stettner. -- The Grand Orgue flute chorus (16'/8', 4' 2-2/3', 2', 1-3/5') is under expression. The 8-4-IV and 8' Trumpet are not. -Database Manager
Stoplist
Source: Taken from console 12-22-23
GRAND ORGUE (Stops marked (*) are under expression ) Bourdon * 16 (12 (stopped wood)), Montre 8, Bourdon * 8 (61 (stopped metal)), Prestant 4, Flute a Fuseau * 4, Nazard * 2⅔, Quarte de Nazard * 2, Tierce * 1⅗, Fourniture IV, Trompette 8, Chimes
RECIT (Expressif) Flute a Cheminee 8, Viole De Gambe 8, Voix Celeste (GG) 8, Principal 4, Doublette 2, Cymbale III, Hautbois 8, Tremblant
PEDALE Soubasse 16, Bourdon (G.O.) 16 (- -), Octave Basse 8, Bourdon (G.O.) 8 (- -), Octave 4, Bombarde F/L 16, Trompette (G.O.) 8 (- -)
INTER-DIVISIONAL COUPLERS Rec. / Ped., Rec. / Ped., G.O. / Ped., , Rec. / G.O., Rec. / G.O.
FINGER PISTONS General (1 - 6), Recit (1 - 4), G. Orgue (1 - 4), G.O. /Ped. (rev), Cancel
TOE STUDS General (1 - 6), Pedale (1 - 4), G.O. / Ped. (rev), Clochettes (rev), Full Organ (rev)
PEDAL MOVEMENTS (Labeled; l - r) G. Orgue Expression (balanced), Recit Expression (balanced), Crescendo (balanced)
Specifications -- factory document Source: Source not recorded Date not recorded
Unsupported filetype pdf, view here.
