Better Pipe Organ Database

M. P. Möller Opus 10812 (1972)

Immanuel Lutheran Church
600 South Lincoln Road
Escanaba, MI

Images

2016-04-28 - Builder's Nameplate (Photograph by Jim Miller/Database Manager)

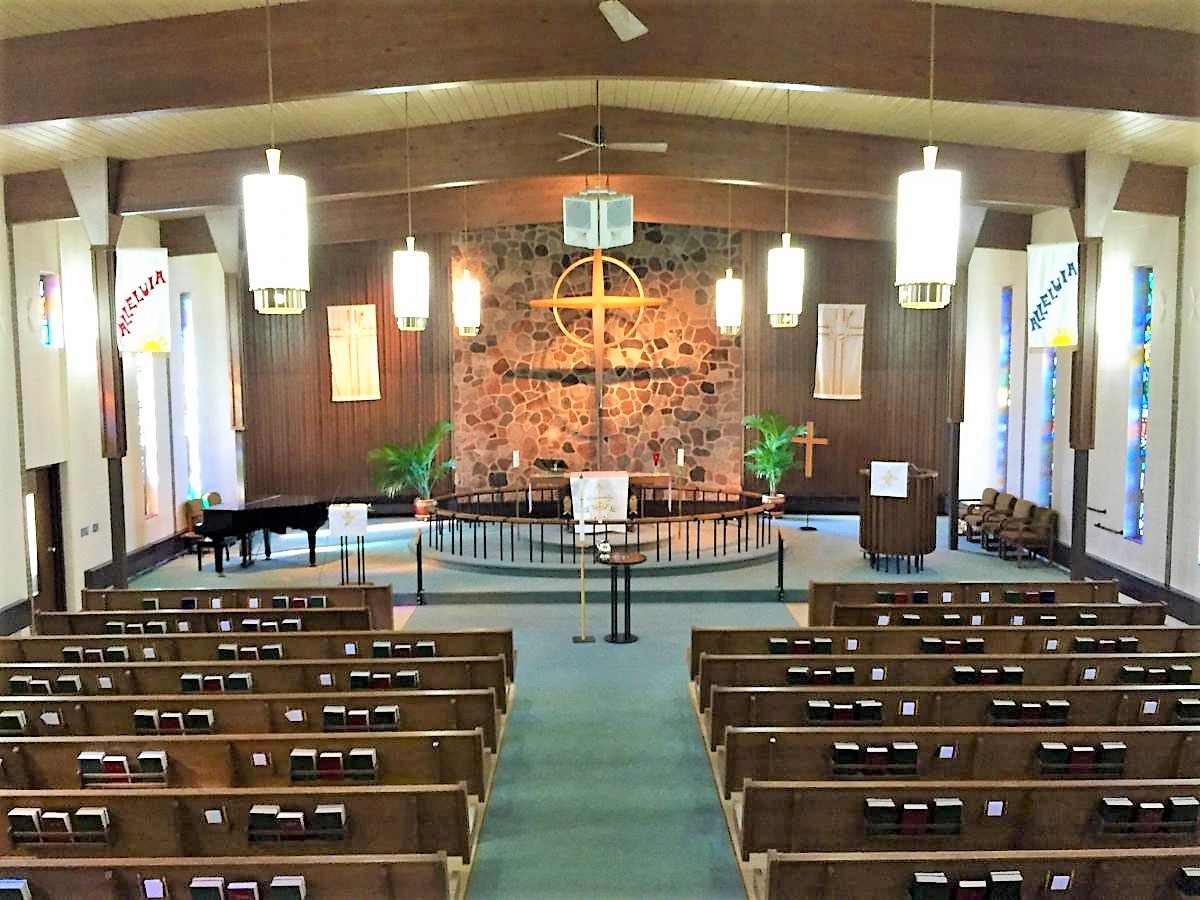

2016-04-26 - Sanctuary Interior and Chancel (Photograph by Jim Miler/Database Manager)

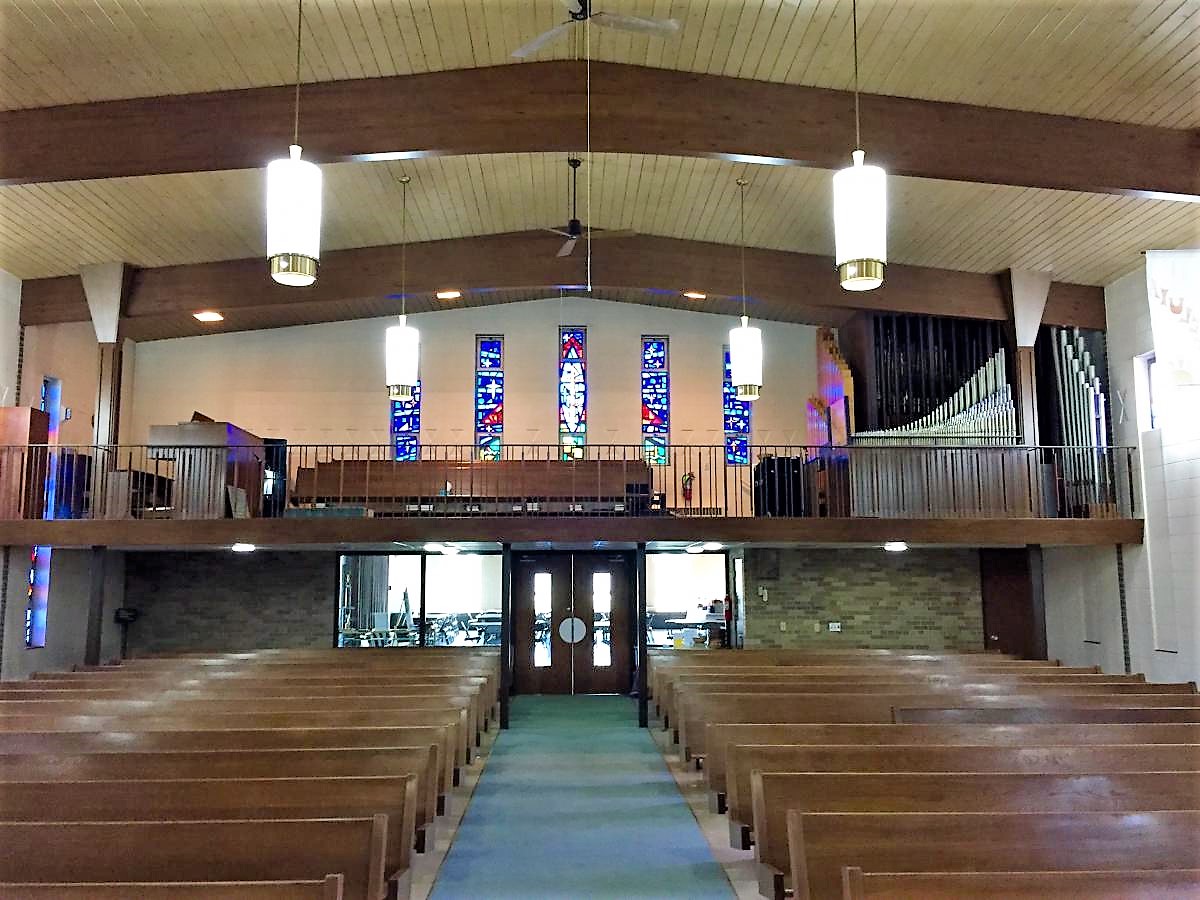

2016-04-26 - Nave, Gallery, Console, and Organ (Photograph by Jim Miler/Database Manager)

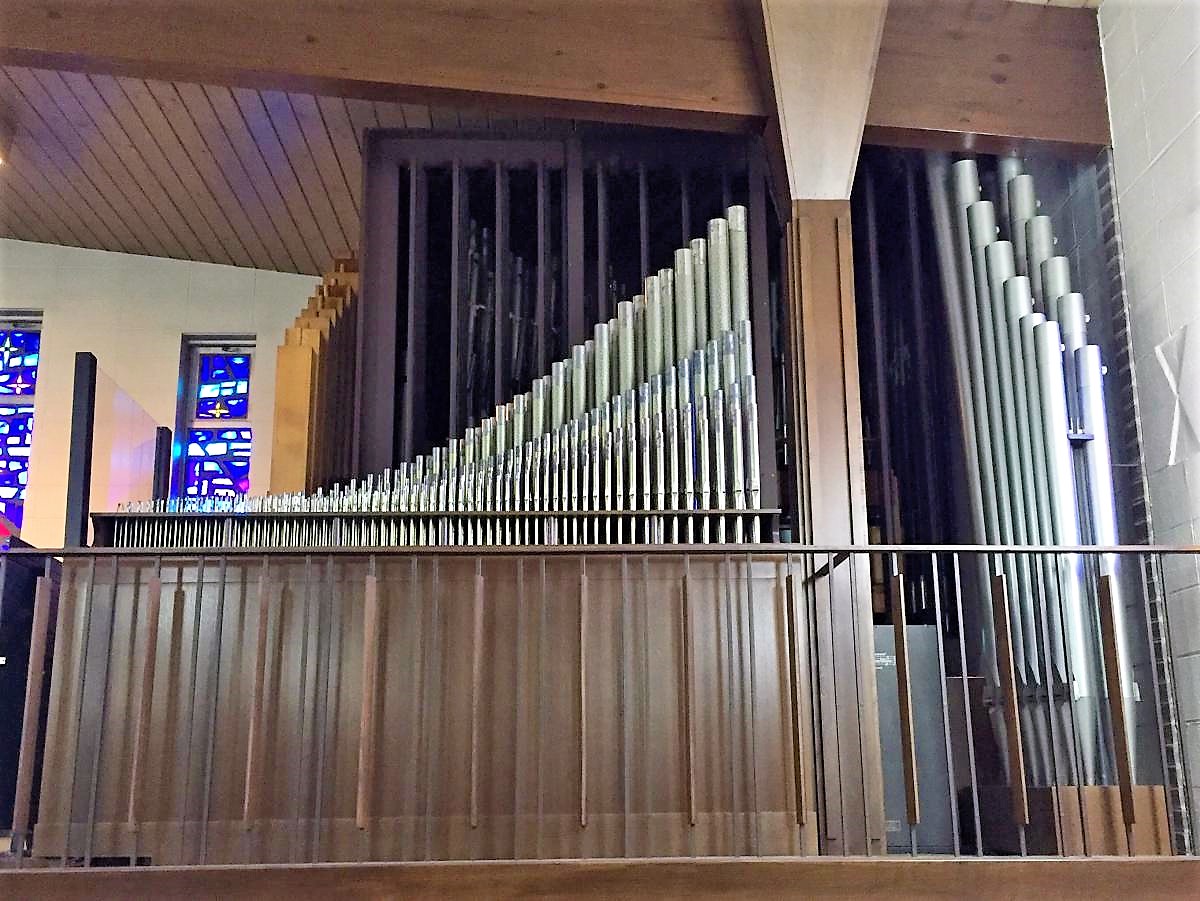

2016-04-26 - Great Pipe Display and Swell Case (Photograph by Jim Miler/Database Manager)

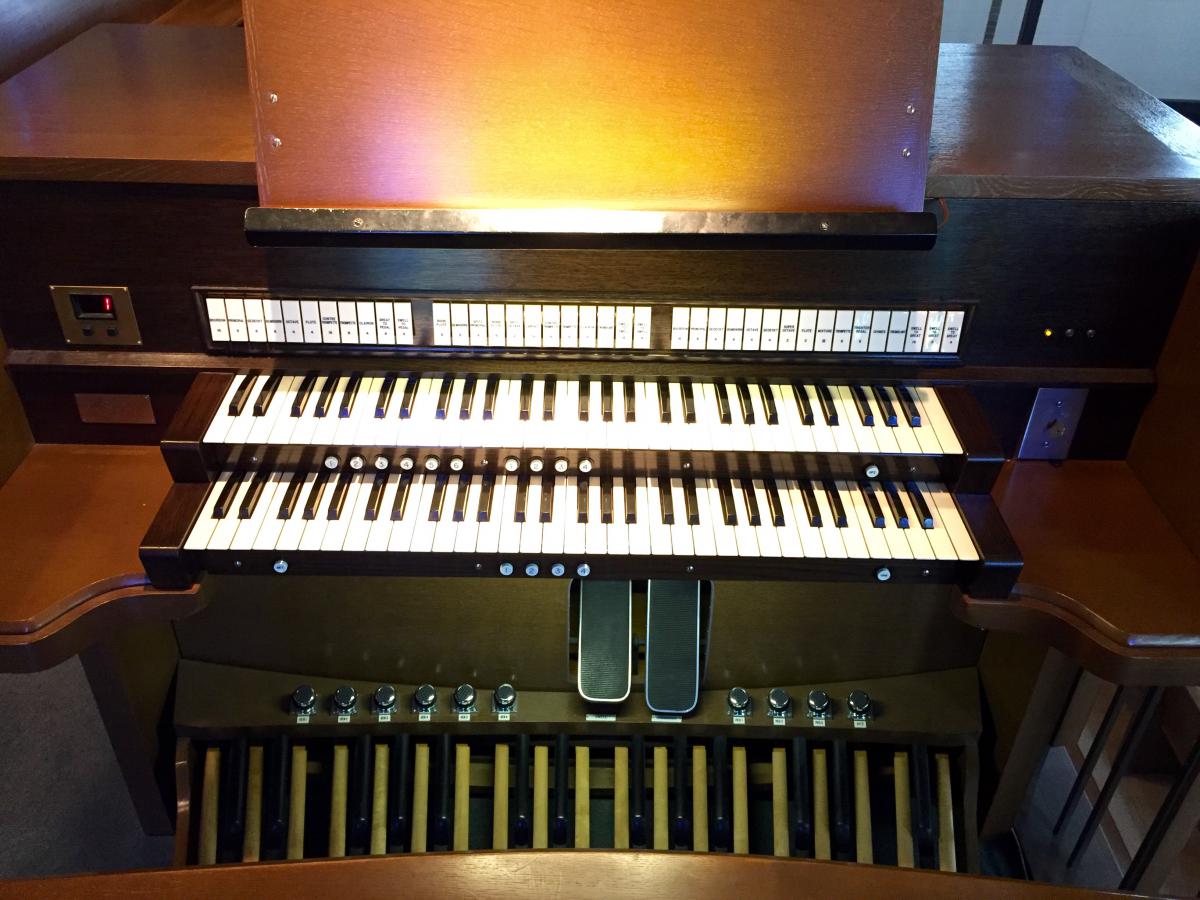

2016-04-26 - Console (Photograph by Jim Miler/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
2 manuals
8 stops
29 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-02-27 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-10-19 - Updated through online information from Jeff Scofield. -Database Manager

2016-05-22 - Updated through online information from Jim Miller. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Escanaba, Michigan
            Immanuel Lutheran Church

            Möller   Op. 10812   2/10   1972

            GREAT
 1.     16' Bourdon            97 pipes
 2.      8' Principal          73 pipes
 3.      8' Gedeckt            from #1
 4.      8' Gemshorn           from #14
 5.      4' Octave             from #2
 6.      4' Gedeckt            from #1
 7.      2' Flute              from #1
 8.    III  Mixture            183 pipes
 9.      8' Trompette          from #19
10.      4' Trichter Regal     61 pipes
11.         Tremolo
12.         Chimes                        prepared for

            SWELL
13.      8' Rohrflöte          73 pipes
14.      8' Gemshorn           80 pipes
15.      4' Spitzprinzipal     73 pipes
16.      4' Rohrflöte          from #13
17.      2' Spitzoktav         from #15
18.  1 1/3' Larigot            from #14   repeat 12 top notes
19.     16' Contre Trompette   80 pipes   1-6 half-length
20.      8' Trompette          from #19
21.      4' Clairon            from #19   repeat 5 top notes
22.         Tremolo

            PEDAL
23.     16' Bourdon            from #1
24.      8' Principal          from #2
25.      8' Gedeckt            from #1
26.      8' Gemshorn           from #14
27.      4' Octave             from #2
28.      4' Rohrflöte          from #13
29.    III  Mixture            from #8
30.     16' Contre Trompette   from #19
31.      8' Trompette          from #19
32.      4' Trichter Regal     from #10

[Received on line from Jeff Scofield October 19, 2009.]

Documents

Factory specifications, collection of Jeff Scofield Stoplist and accessories -Jeff Scofield
