Zion United Methodist Church
3652 State Highway Z
Gordonville, MO
Images

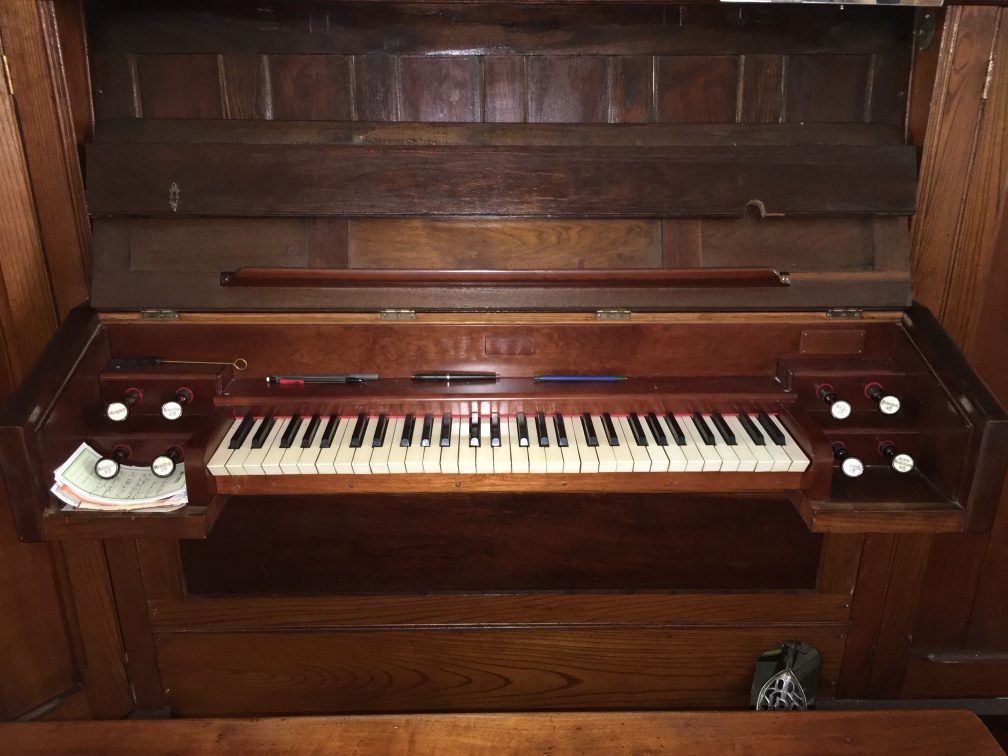

2020-01-22 - Keydesk (Photograph by Martha Nothdurft/Database Manager)

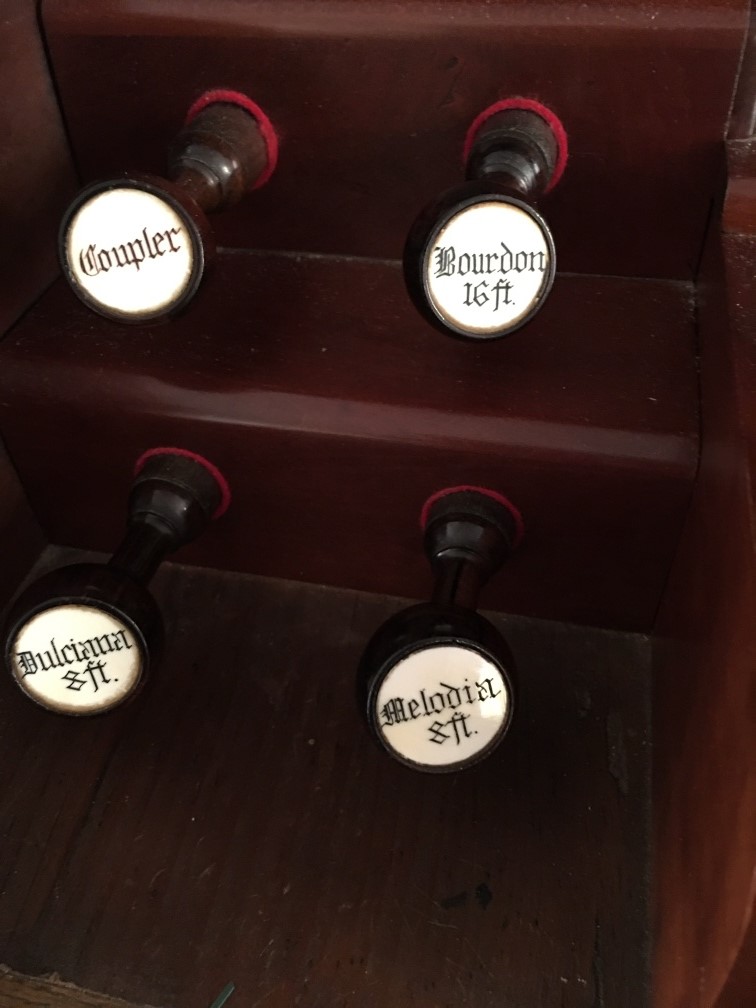

2020-01-22 - Keydesk: right stopjamb (Photograph by Martha Nothdurft/Database Manager)

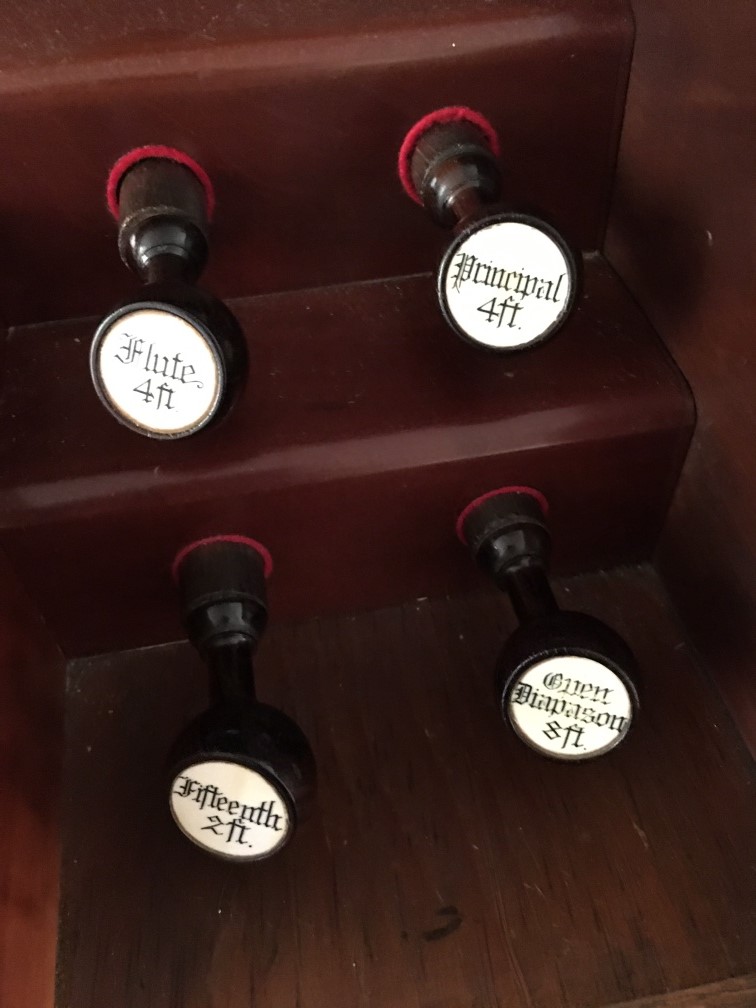

2020-01-22 - Keydesk: left stopjamb (Photograph by Martha Nothdurft/Database Manager)

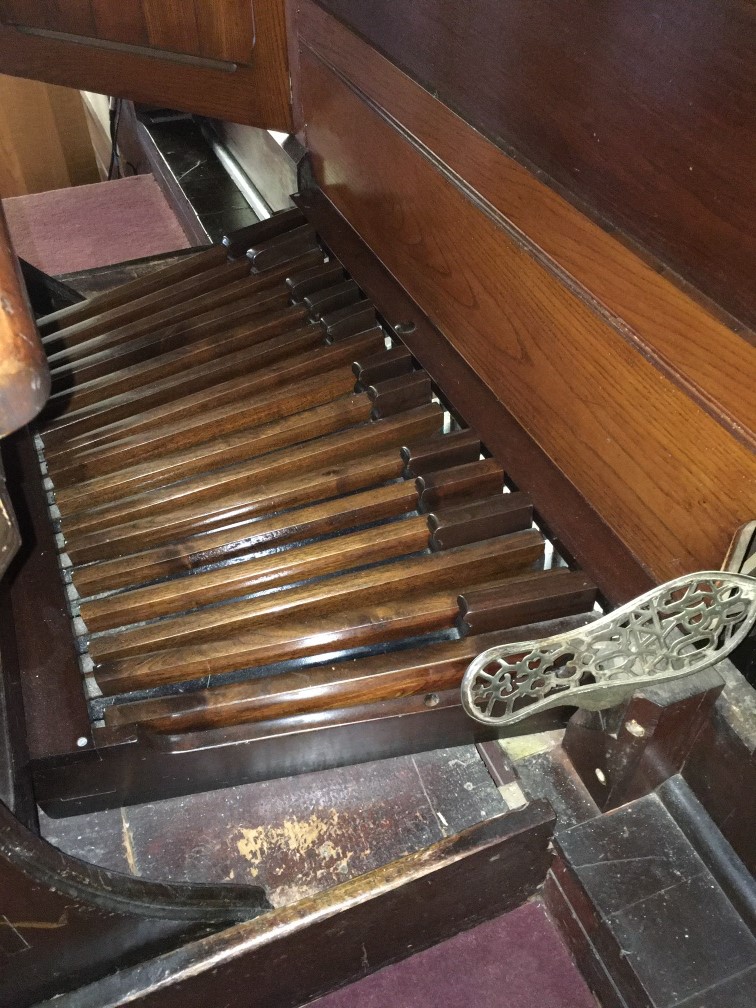

2020-01-22 - Keydesk: pedalboard, and expression shoe (Photograph by Martha Nothdurft/Database Manager)

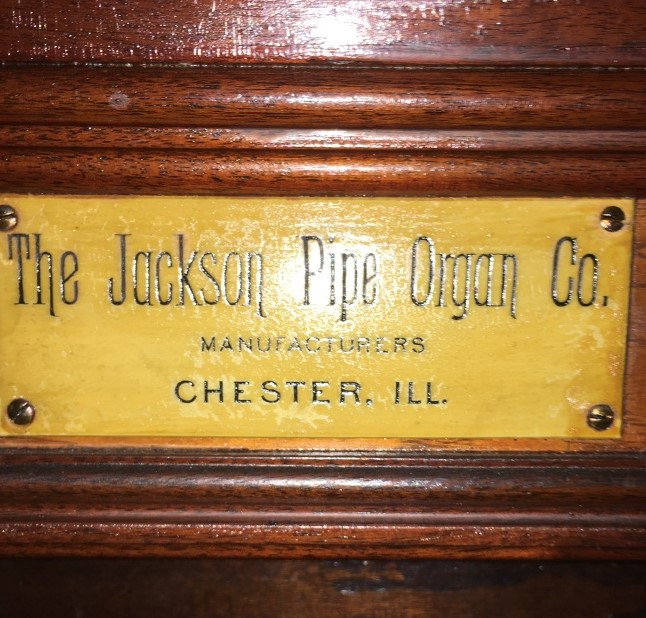

2020-01-22 - Builder's nameplate (Photograph by Martha Nothdurft/Database Manager)
2020-01-22 - Unenclosed 8 ft. Open Diapason behind the facade (Photograph by Martha Nothdurft/Database Manager)

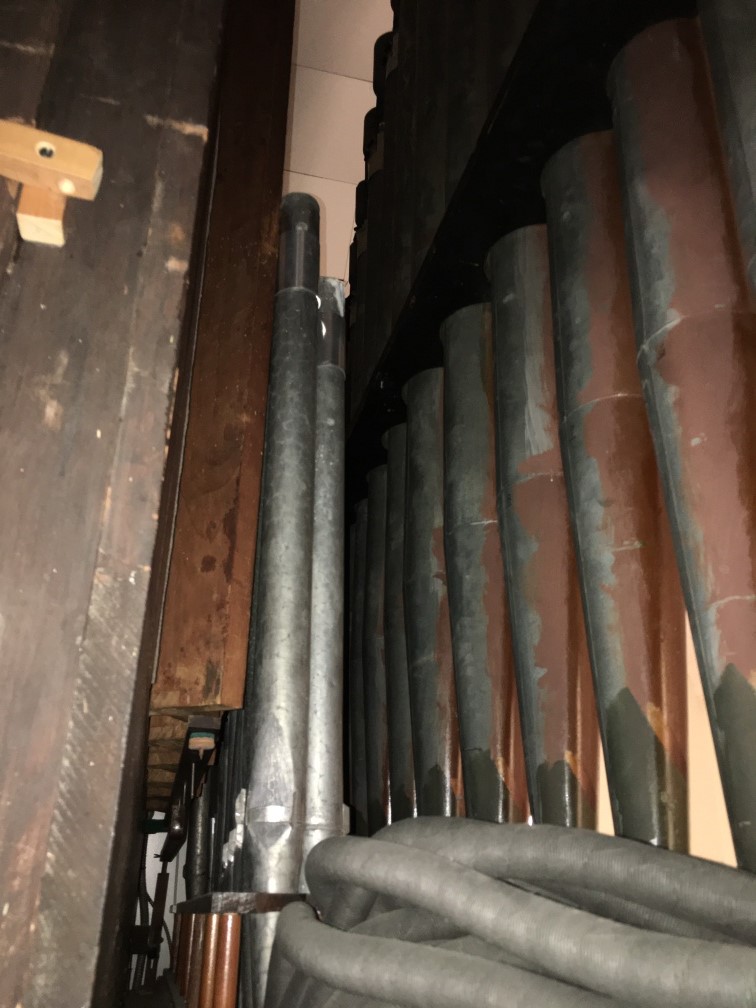

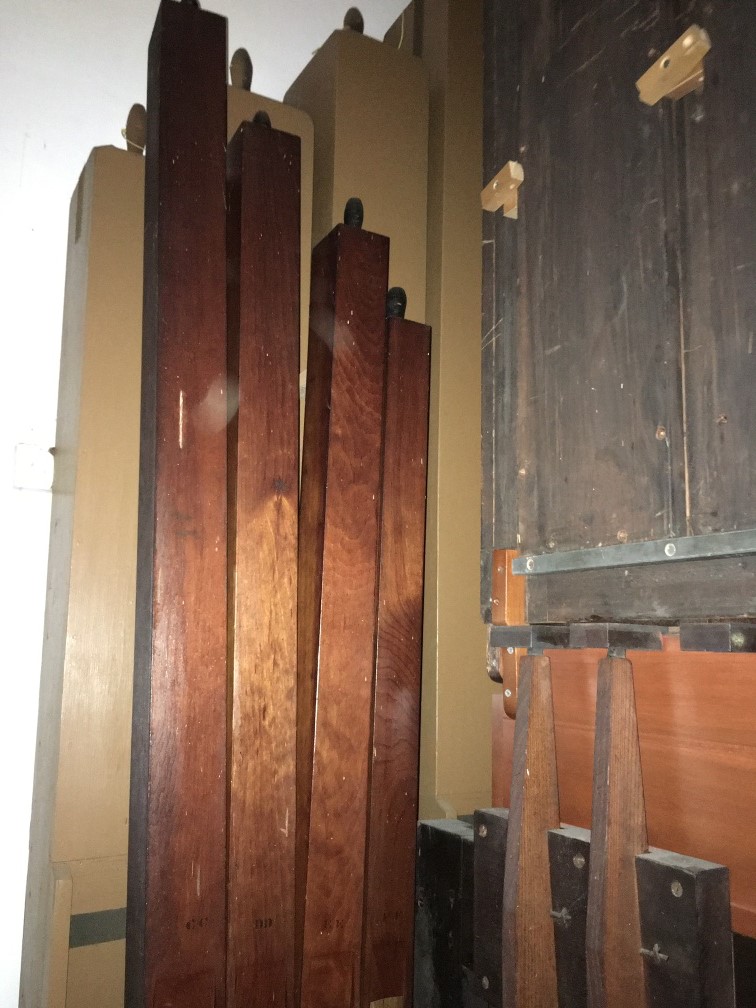

2020-01-22 - Pedal pipes (Photograph by Martha Nothdurft/Database Manager)

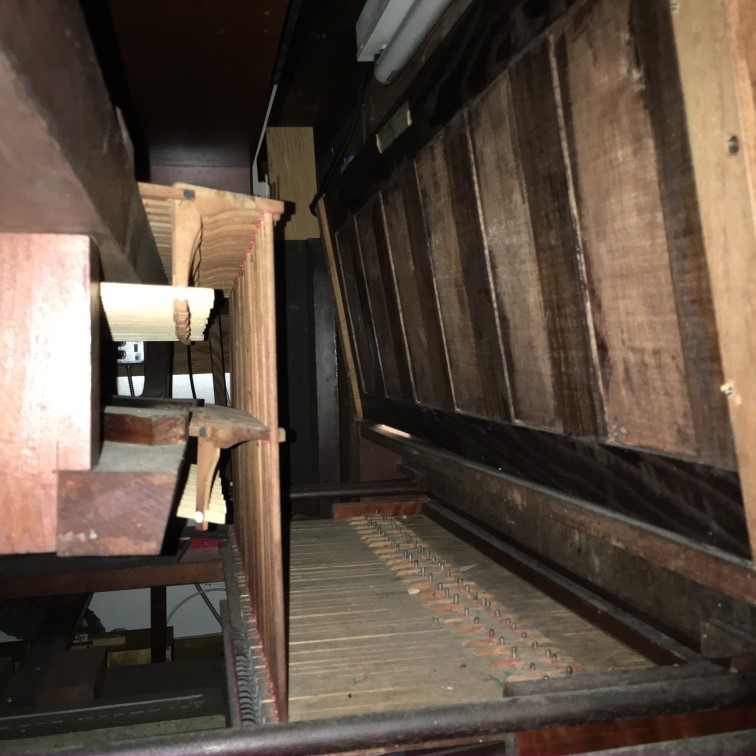

2020-01-22 - Manual key action and square rail (Photograph by Martha Nothdurft/Database Manager)
2020-01-22 - Reservoir, stop actions, Key action (Photograph by Martha Nothdurft/Database Manager)

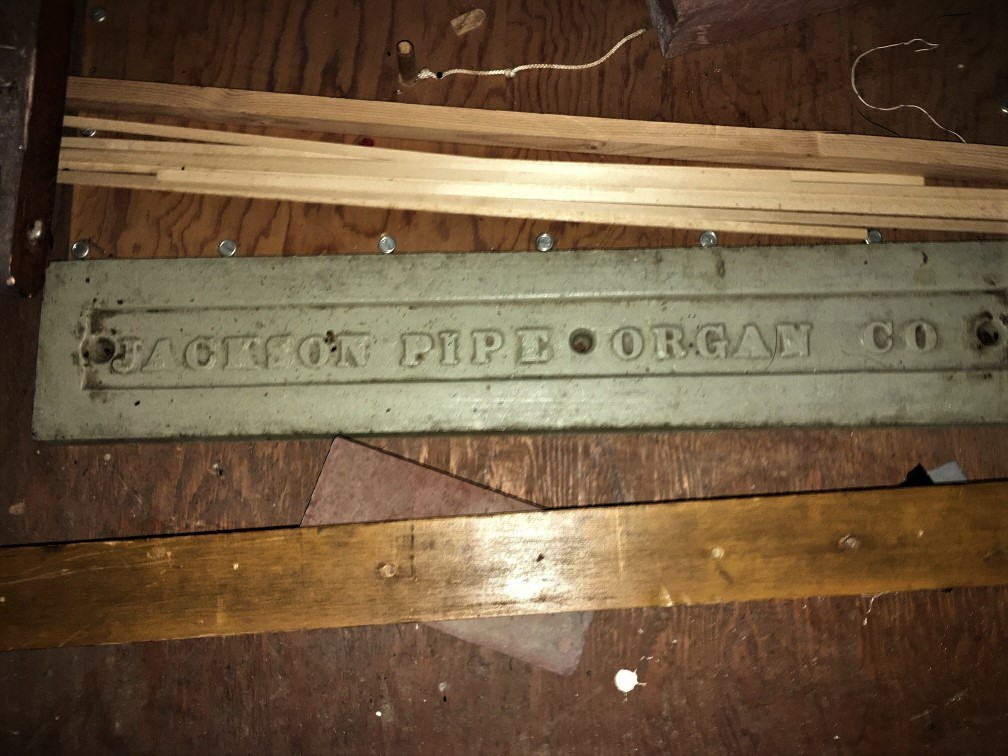

2020-01-22 - Builder's cast regulator weight (Photograph by Martha Nothdurft/Database Manager)

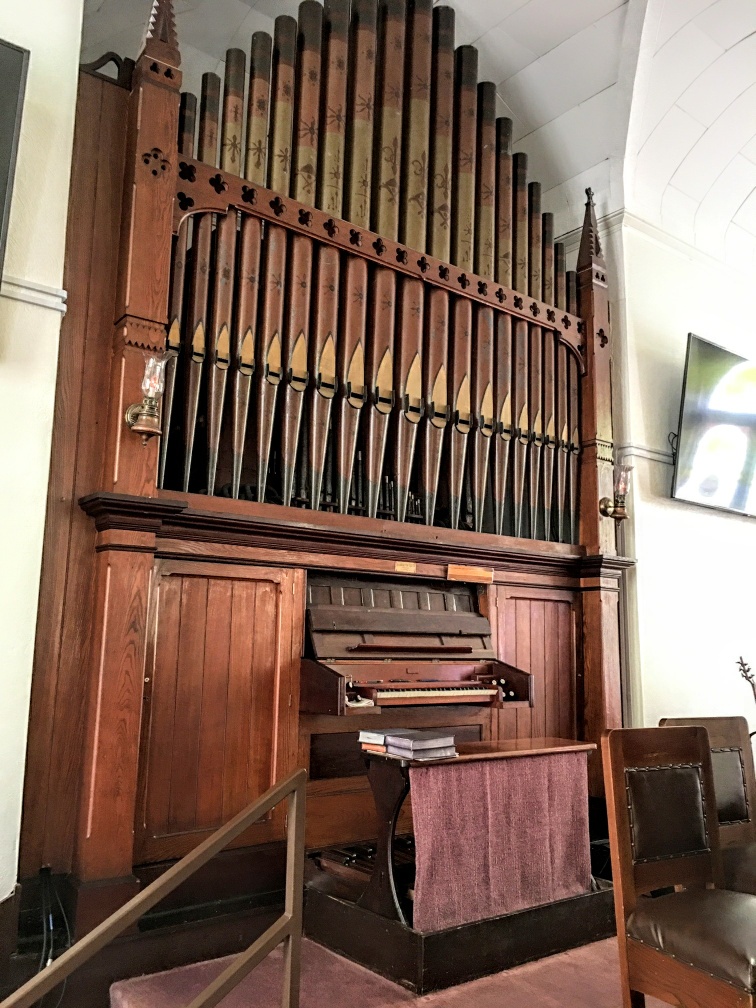

2020-01-22 - Organ case front and facade (Photograph by Martha Nothdurft/Database Manager)
Consoles
Main
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 1 manuals
- 7 stops
- 7 registers
- 2 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 58 notes
- Pedal compass: 27 notes
- Pedal Type: Flat Radiating
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: None
Notes
2004-10-30 - Bought used 1880s from St. Louis. -Database Manager
Stoplist
Typed stoplist from James R. Stettner Source: Stoplist copied from photos provided by the parish secretary Date not recorded
Zion United Methodist Church (Gordonville)
Cape Girardeau , Missouri
The JACKSON PIPE ORGAN CO., ca. 1880 - Original Specifications
<u>MANUAL (Expressive *)</u> <u>COUPLERS (Drawknob)</u>
8 ft. Open Diapason 58 Coupler [Manual to Pedal]
8 ft. Melodia (*) 58
8 ft. Dulciana (*) 58
4 ft. Principal (*) 58 <u>FOOT TRUNDLES</u>
4 ft. Flute (*) 58 None
2 ft. Fifteenth (*) 58
<u>PEDAL MOVEMENTS</u>
<u>PEDAL</u> Expression (balanced)
16 ft. Bourdon 27
<u>ACTION</u>: Mech. Key & Stop <u>VOICES</u>: 7 <u>STOPS</u>: 7 <u>RANKS</u>: 7 <u>PIPES</u>: 375
<u>NOTES</u>
The organ is free-standing and encased at the front of the room. It is recessed into
a center chamber with a case front and 19 handsomely stenciled facade pipes. The key-
desk is attached and projecting with a cover which lifts to form a music rack. Stops
are as drawknobs in terraced jambs on either side of the keyboard. Manual compass is
58-notes. The pedalboard is 27-notes, flat and radiating.
<u>Sources</u>: Photos by parish secretary Martha Nothdurft
Zion United Methodist Church (Gordonville)
3652 State Highway Z
Cape Girardeau , MO. 63701
(573) 243-8025 <u>Documented</u>: January 28, 2020
