M. P. Möller Opus 10924 (1973)

Brighton Heights Lutheran Church
3830 California Avenue
Pittsburgh, PA

Images

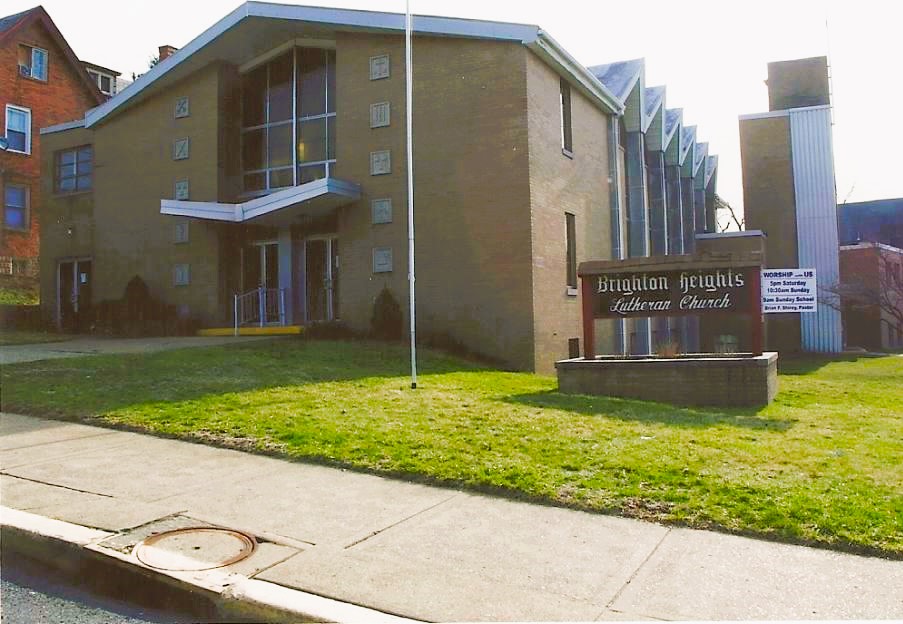

2022-09-26 - Church exterior (Church Facebook/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
5 stops
26 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-11-01 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Pittsburgh, Pennsylvania
            Brighton Heights Lutheran Church

            Möller   Op. 10924   1973   2/5

            GREAT
 1.     16' Bourdon           92 pipes
 2.      8' Principal         85 pipes   exposed
 3.      8' Gedeckt           from #1
 4.      8' Gemshorn          from #12
 5.      4' Octave            from #2
 6.      4' Gedeckt           from #1
 7.      2' Super Octave      from #2
 8.      2' Flute             from #1    repeat 5 top notes
 9.      8' Trompette         from #17
10.         Chimes            21 tubes   present Deagan "M"

            SWELL
11.      8' Gedeckt           from #1
12.      8' Gemshorn          80 pipes
13.      4' Geigenprinzipal   73 pipes
14.      4' Gedeckt           from #1
15.      2' Spitzoctav        from #13
16.  1 1/3' Larigot           from #12   repeat 12 top notes
17.      8' Trompette         61 pipes   1-6 half-length
18.      4' Clairon           from #17   top octave from #13
19.         Tremolo

            PEDAL
20.     16' Bourdon           from #1
21.      8' Principal         from #2
22.      8' Gedeckt           from #1
23.      8' Gemshorn          from #12
24.      4' Octave            from #2
25.      4' Gedeckt           from #1
26.      2' Super Octave      from #2
27.      8' Trompette         from #17
28.      4' Clairon           from #17

[Received on line from Jeff Scofield November 01, 2009.]

Documents

Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
