M. P. Möller Opus 10941 (1973)

St. John's Lutheran Church
39844 27-Mile Road
New Haven, MI

Images

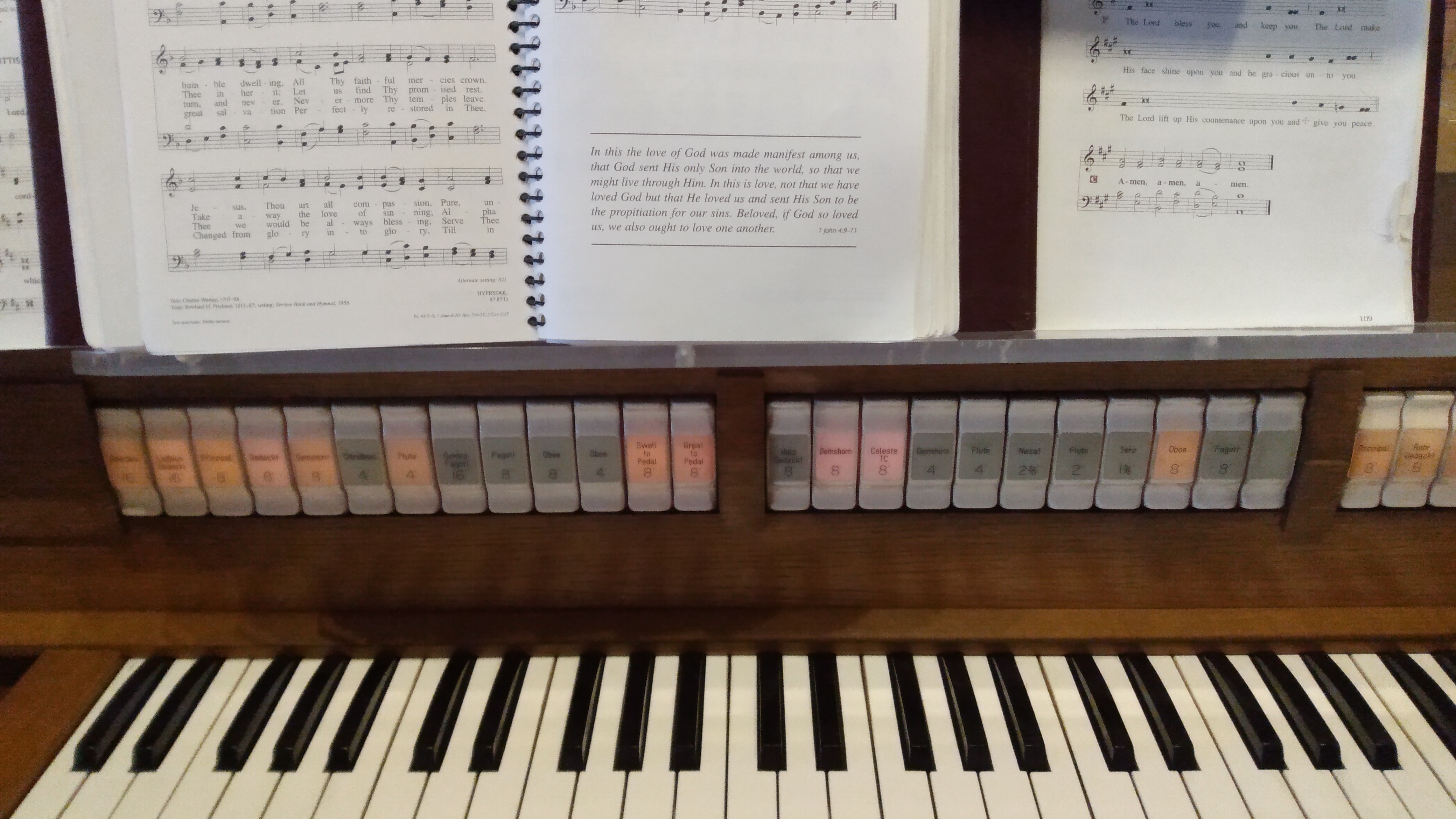

2022-08-13 - Console (Photograph by Paul Kacanowski/Paul Kacanowski)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
4 stops
22 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-12-22 - Updated through online information from Jeff Scofield. -Database Manager

2023-09-28 - The console now has lighted rocker tablets. -Jeff Scofield

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            New Haven, Michigan
            St. John Lutheran Church

            Möller   Op. 10941   1973   2/4

            Wind pressure:  Offsets 4½"; Trebles 3½"

            GREAT
 1.      8' Principal     73 pipes   1-12 from #2, #3 & #5
 2.      8' Gedeckt       80 pipes
 3.      8' Gemshorn      80 pipes
 4.      4' Octav         from #1
 5.      4' Flute         from #2
 6.      2' Super Octav   from #1
 7.      8' Trompette     from #15
 8.         Chimes                   prepared for

            SWELL
 9.      8' Gedeckt       from #2
10.      8' Gemshorn      from #3
11.      4' Flute         from #2
12.      4' Gemshorn      from #3
13.      2' Flute         from #2    repeat 5 top notes
14.  1 1/3' Larigot       from #3    repeat 12 top notes
15.      8' Trompette     61 pipes   1-6 half-length
16.      4' Clairon       from #15   12 top notes from #1
17.         Tremolo

            PEDAL
18.     16' Bourdon       12 pipes   20 from #2
19.      8' Gedeckt       from #2
20.      8' Gemshorn      from #3
21.      4' Principal     from #1
22.      4' Flute         from #2
23.      8' Trompette     from #15
24.      4' Clairon       from #15

[Received on line from Jeff Scofield December 22, 2009.]

Documents

(1973-04-11) Factory specifications, collection of Jeff Scofield Stoplist and accessories -Jeff Scofield
