Better Pipe Organ Database

M. P. Möller Opus 10955 (1974)

Three Bridges Reformed Church: Sanctuary
470 Main Street
Three Bridges, NJ

Images

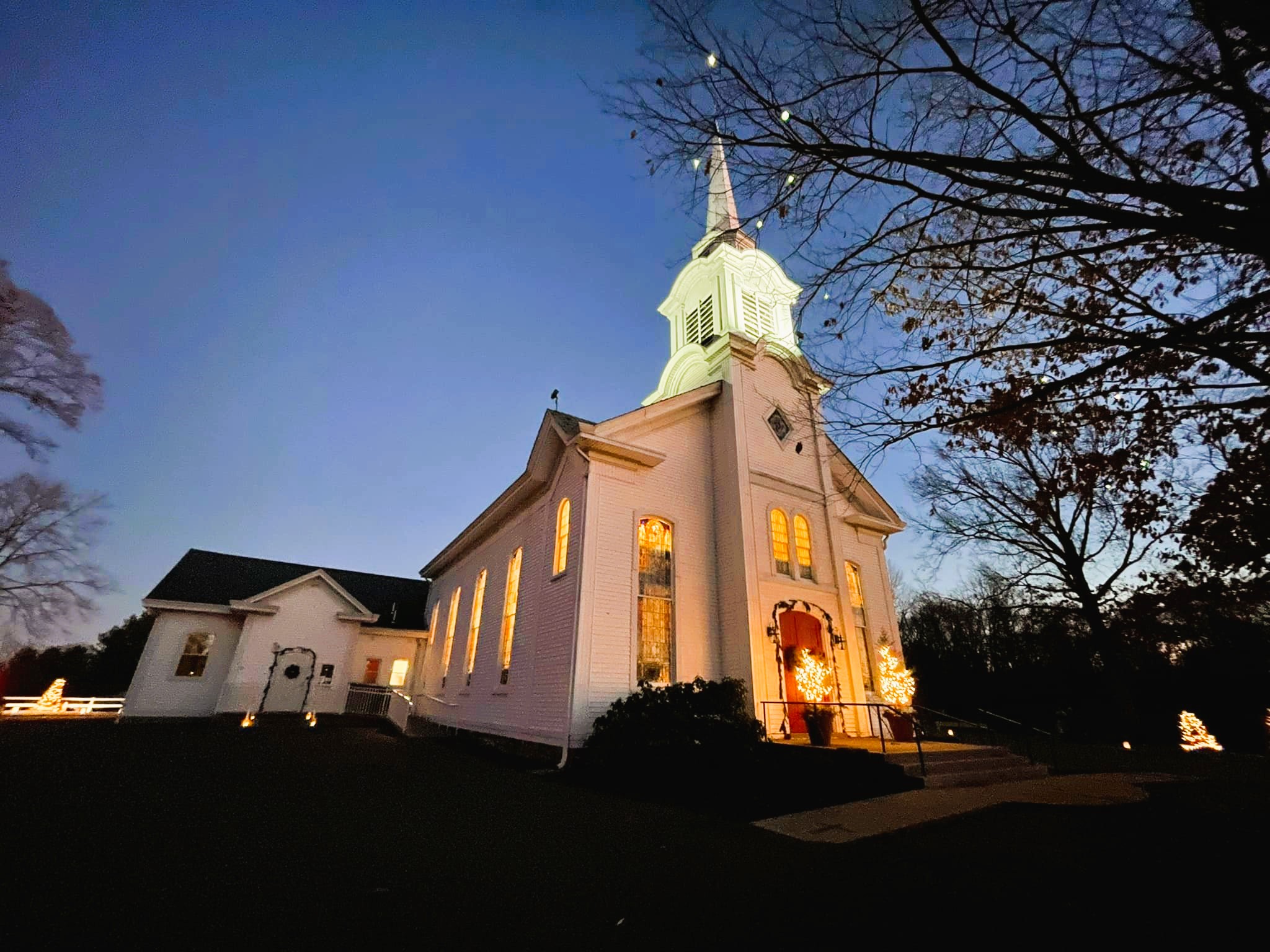

2021-12-19 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
22 stops
4 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: None

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-12-24 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Three Bridges, New Jersey
            Three Bridges Reformed Church

            Möller   Op. 10955   1974   2/4

            GREAT
 1.      8' Principal    73 pipes   1-12 from #2, #3, #5
 2.      8' Gedeckt      80 pipes
 3.      8' Gemshorn     80 pipes
 4.      4' Octav        from #1
 5.      4' Flute        from #2
 6.      2' Super Octav  from #1
 7.      8' Trompette    from #15
 8.         Chimes                  prepared for

            SWELL
 9.      8' Gedeckt      from #2
10.      8' Gemshorn     from #3
11.      4' Flute        from #2
12.      4' Gemshorn     from #3
13.      2' Flute        from #2    repeat 5 top notes
14.  1 1/3' Larigot      from #3    repeat 12 top notes
15.      8' Trompette    61 pipes
16.      4' Clairon      from #15   12 top notes from #1
17.         Tremolo

            PEDAL
18.     16' Bourdon      12 pipes   20 from #2
19.      8' Gedeckt      from #2
20.      8' Gemshorn     from #3
21.      4' Principal    from #1
22.      4' Flute        from #2
23.      8' Trompette    from #15
24.      4' Clairon      from #15

[Received on line from Jeff Scofield December 24, 2009.]

Documents

(1973-07-11) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
