Better Pipe Organ Database

M. P. Möller Opus 10966 (1974)

Elim Covenant Church
5540 - 30th Avenue South
Minneapolis, MN

Images

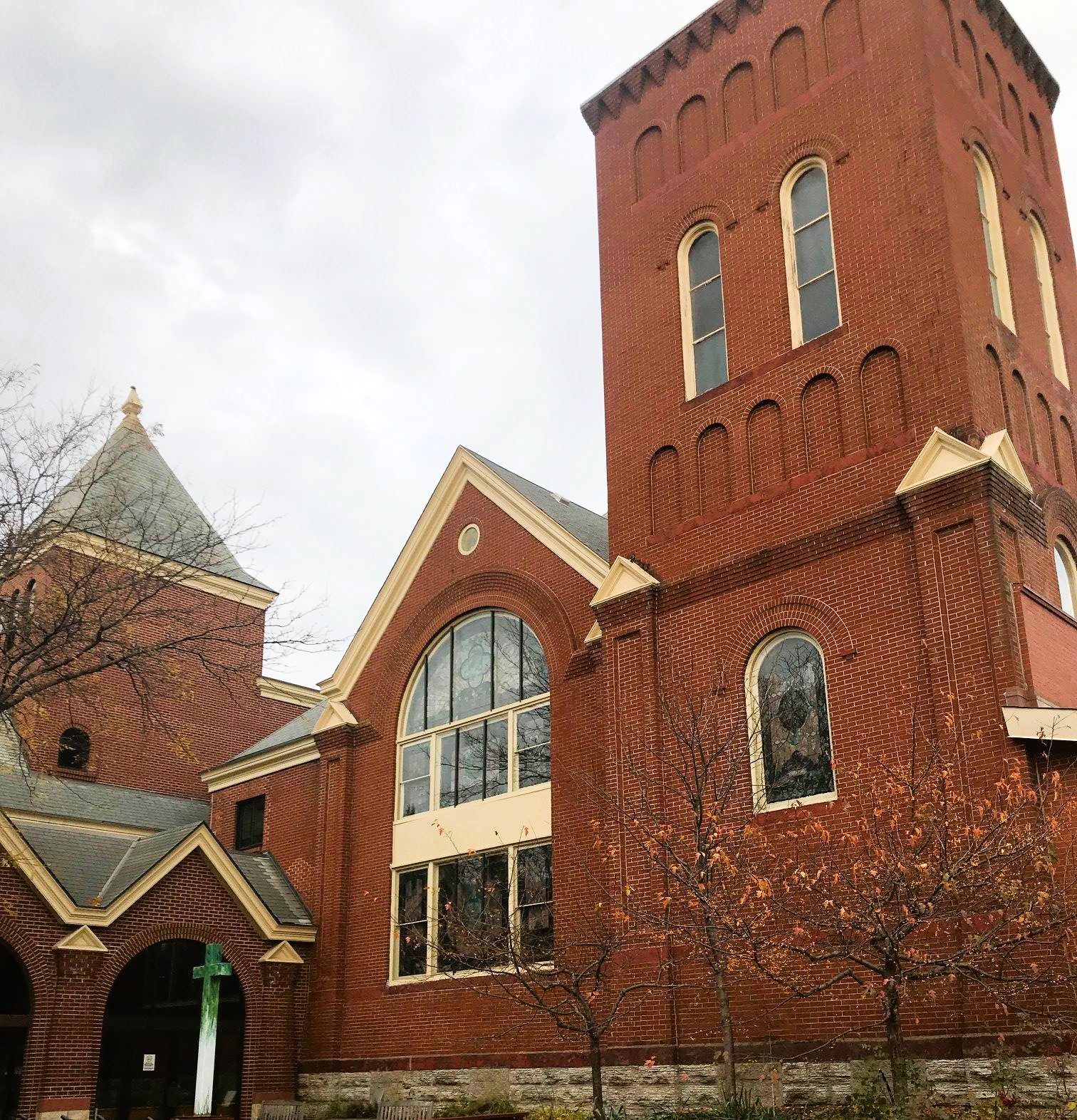

2018-11-06 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
16 stops
31 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-12-24 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Minneapolis, Minnesota
        Elim Covenant Church

        Möller   Op. 10966   1974   3/19

        GREAT (exposed)            SWELL
     8' Principal 61           16' Bourdon 61
     8' Koppelflöte CH          8' Hohlflöte 12
     8' Spitzflöte CH           8' Viol de Gambe 61
     4' Octave 61               8' Viol Celeste 49 tc
 2 2/3' Nazard CH               4' Principal 61
     2' Super Octave 61         4' Flute 12
III-IV  Fourniture 220      2 2/3' Nazard 7
        Sub                     2' Principal 12
        Unison Off              8' Trompette 61
        Super                   4' Clarion 12
        Chimes (pf)                Tremulant
                                   Sub
        CHOIR                      Unison Off
     8' Koppelflöte 61             Super
     8' Spitzflöte 61
     8' Unda Maris 49 tc           PEDAL
     4' Nachthorn 61           32' Resultant --
 2 2/3' Nazard 61              16' Contra Basse 32
     2' Nachthorn 12           16' Bourdon SW
 1 3/5' Tierce (pf)             8' Principal 12
     8' Trichter Regal 61       8' Flute SW
        Tremulant               4' Choral Basse 12
        Sub                     4' Flute SW
        Unison off             16' Trumpet (pf)
        Super

[Received on line from Jeff Scofield December 24, 2009.]

Documents

(1974-03-15) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
