M. P. Möller Opus 10982 (1974)

Todd Memorial Chapel
570 N. Garey Ave.
Pomona, CA

Images

2017-05-17 - Facade Pipework (Photograph by Roger Chaussee/Database Manager)

2017-05-17 - Console (Photograph by Roger Chaussee/Database Manager)

2017-05-17 - Builder's Nameplate (Photograph by Roger Chaussee/Database Manager)

2017-05-17 - Pedal Rocking Tablets (Photograph by Roger Chaussee/Database Manager)

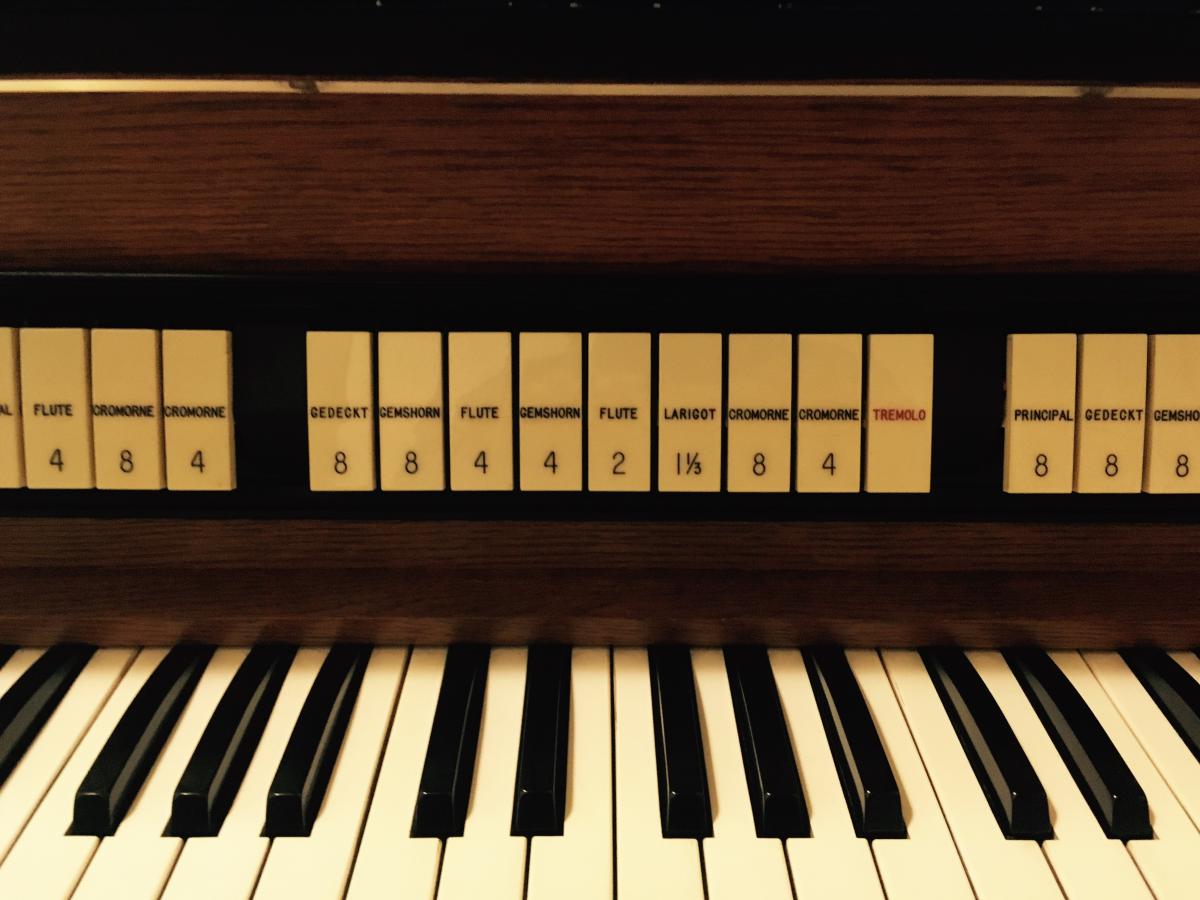

2017-05-17 - Swell Rocking Tablets (Photograph by Roger Chaussee/Database Manager)

2017-05-17 - Great Rocking Tablets (Photograph by Roger Chaussee/Database Manager)

2017-05-17 - Pedalboard and Expression Pedals (Photograph by Roger Chaussee/Database Manager)

Unknown - Chapel interior (Todd Memorial Chhhhapel/Jeff Scofield)

2018-09-29 - Chapel interior to rear (Jose Lyndion Perez/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
4 stops
22 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-12-25 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Pomona, California
            Todd Memorial Chapel

            Möller   Op. 10982   1974   2/4

            GREAT
 1.      8' Principal     73 pipes   1-12 from #2, #3 & #5
 2.      8' Gedeckt       80 pipes
 3.      8' Gemshorn      80 pipes
 4.      4' Octav         from #1
 5.      4' Flute         from #2
 6.      2' Super Octav   from #1
 7.      8' Cromorne      from #15
 8.         Chimes        20 tubes   present Maas

            SWELL
 9.      8' Gedeckt       from #2
10.      8' Gemshorn      from #3
11.      4' Flute         from #2
12.      4' Gemshorn      from #3
13.      2' Flute         from #2    repeat 5 top notes
14.  1 1/3' Larigot       from #3    repeat 12 top notes
15.      8' Cromorne      61 pipes
16.      4' Cromorne      from #15   12 top notes from #1
17.         Tremolo

            PEDAL
18.     16' Bourdon       12 pipes   20 from #2
19.      8' Gedeckt       from #2
20.      8' Gemshorn      from #3
21.      4' Principal     from #1
22.      4' Flute         from #2
23.      8' Cromorne      from #15
24.      4' Cromorne      from #15

[Received on line from Jeff Scofield December 25, 2009.]

Documents

(1973-10-11) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
