Better Pipe Organ Database

M. P. Möller Opus 10996 (1974)

Warsaw Baptist Church: Sanctuary
209 E. College St.
Warsaw, NC

Images

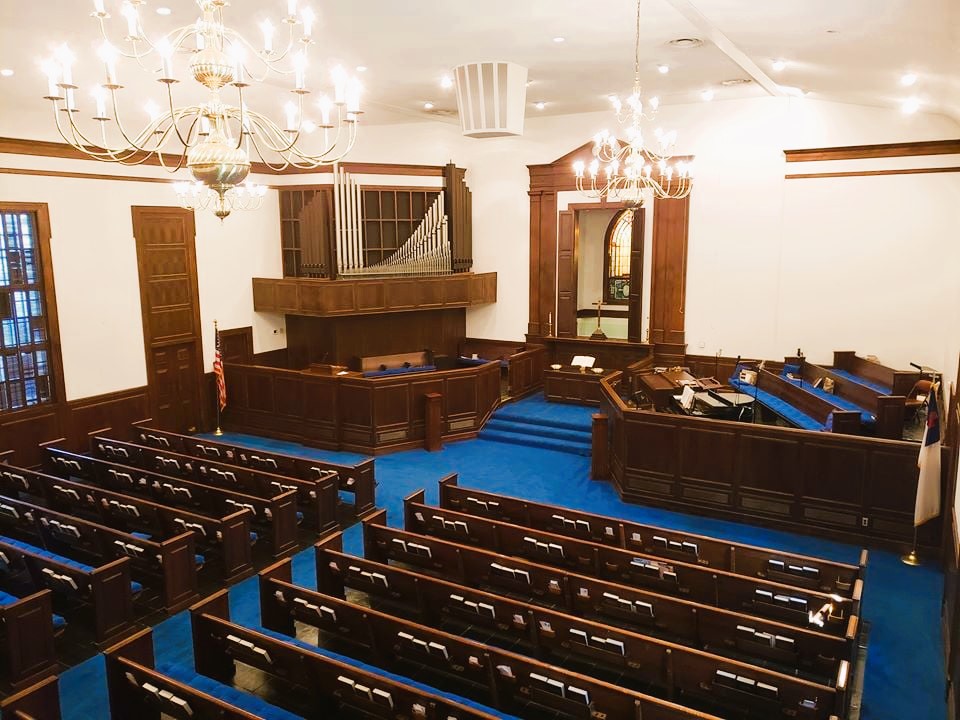

2021-08-14 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

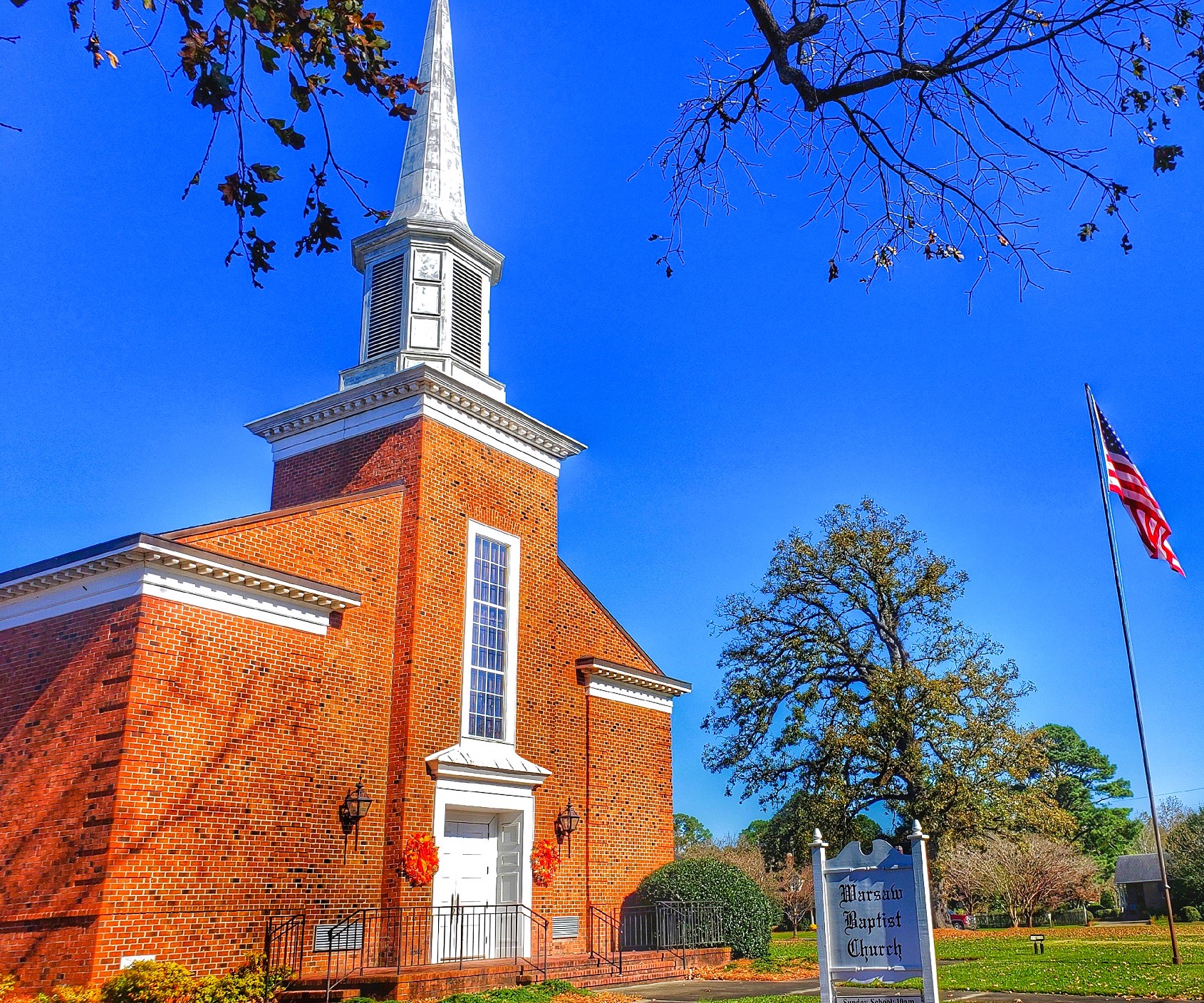

2022-10-29 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
28 stops
8 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-12-25 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Warsaw Baptist Church
            Warsaw, North Carolina

            Möller   Op. 10996   1974   2/10

            GREAT
 1.     16' Borudon            97 pipes
 2.      8' Principal          73 pipes
 3.      8' Gedeckt            from #1
 4.      8' Gemshorn           from #13
 5.      4' Octav              from #2
 6.      4' Gedeckt            from #1
 7.      2' Flute              from #1
 8.    III  Mixture            183 pipes
 9.      4' Trichter Regal     61 pipes
10.         Tremolo
11.         Chimes             21 tubes   Mayland

            SWELL
12.      8' Rohrflöte          73 pipes
13.      8' Gemshorn           80 pipes
14.      4' Spitzprincipal     73 pipes
15.      4' Rohrflöte          from #12
16.      2' Spitzoctave        from #14
17.  1 1/3' Larigot            from #13   repeat 12 top notes
18.     16' Contre Trompette   80 pipes   1-6 half-length
19.      8' Trompette          from #18
20.      4' Clarion            from #18   repeat 5 top notes
21.         Tremolo

            PEDAL
22.     16' Bourdon            from #1
23.      8' Principal          from #2
24.      8' Gedeckt            from #1
25.      8' Gemshorn           from #13
26.      4' Octav              from #2
27.      4' Rohrflöte          from #12
28.    III  Mixture            from #8
29.     16' Contre Trompette   from #18
30.      8' Trompette          from #18
31.      4' Trichter Regal     from #9

[Received on line from Jeff Scofield December 26, 2009.]

Documents

(1974-01-11) Factory specifications, courtesy of Jeff Scofield -Jeff Scofield
