Better Pipe Organ Database

M. P. Möller Opus 11043 (1975)

Northbrook Evangelical Covenant Church
2727 Tecany Road
Northbrook, IL

Images

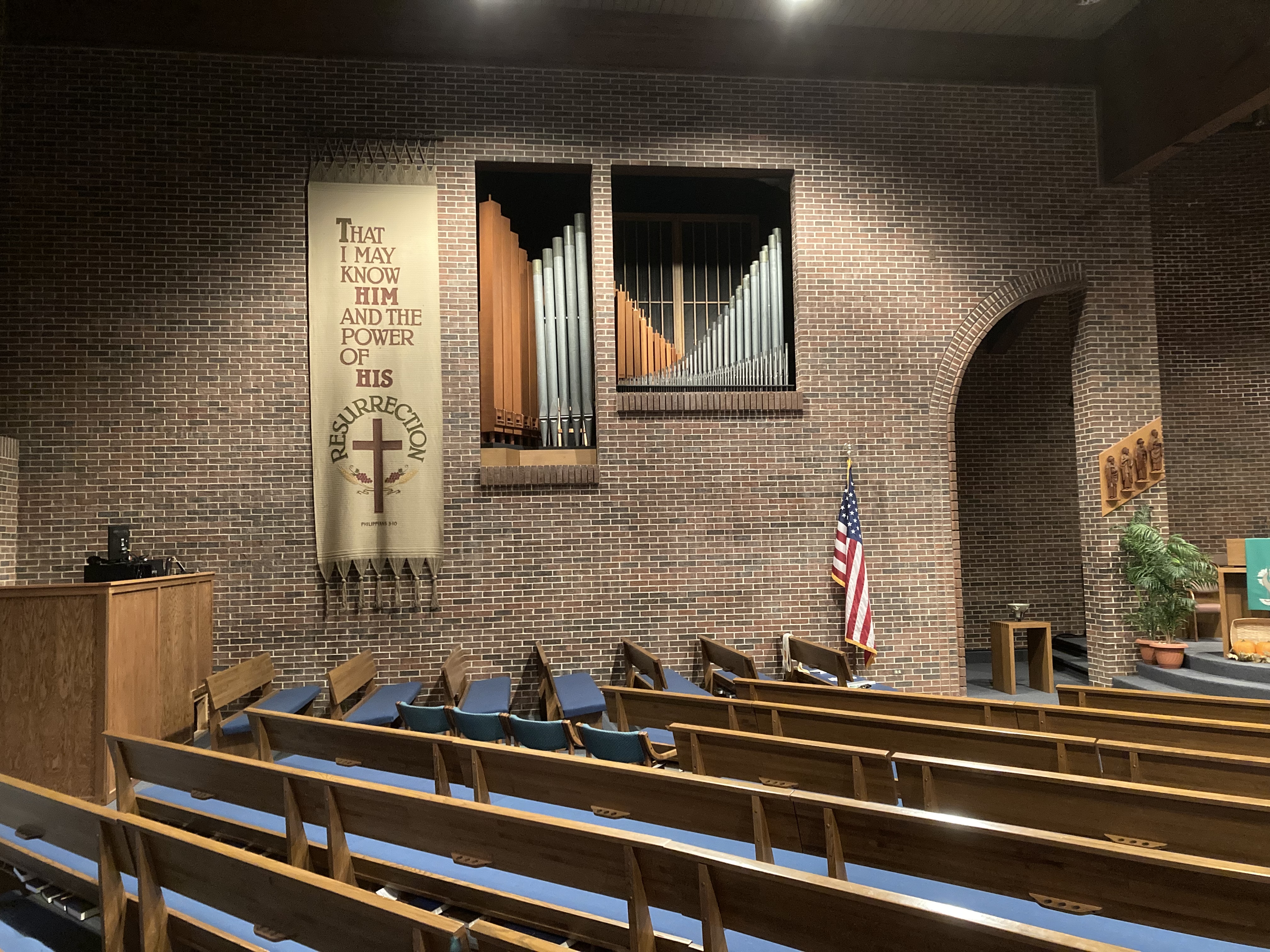

2022-11-05 - Pipework (Photograph by Howard Eckdahl/Howard Eckdahl)

2022-11-05 - Console and pipework (Photograph by Howard Eckdahl/Howard Eckdahl)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
8 stops
31 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-12-31 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

             Northbrook, Illinois
             Evangelical Covenant Church

             Möller   Op. 11043   1975   2/10

             GREAT
 1.      16' Bourdon            92 pipes
 2.       8' Principal          80 pipes
 3.       8' Gedeckt            from #1
 4.       8' Gemshorn           from #14
 5.       4' Octave             from #2
 6.       4' Gedeckt            from #1
 7.       2' Super Octave       from #2    repeat 5 top notes
 8.       2' Flute              from #1    repeat 5 top notes
 9.  II-III  Mixture            126 pipes
10.       8' Trompette          from #20
11.          Tremolo
12.          Chimes             21 tubes   Mayland

             SWELL
13.       8' Rohrflöte          73 pipes
14.       8' Gemshorn           80 pipes
15.       8' Gemshorn Celeste   49 pipes   tc
16.       4' Spitzprincipal     73 pipes
17.       4' Rohrflöte          from #13
18.       2' Spitzoctave        from #16
19.   1 1/3' Larigot            from #14   repeat 12 top notes
20.      16' Contre Trompette   80 pipes   1-6 half-length
21.       8' Trompette          from #20
22.       4' Clairon            from #20   repeat 5 top notes
23.          Tremolo

             PEDAL
24.      16' Contra Bass        12 pipes   20 from #2
25.      16' Bourdon            from #1
26.       8' Principal          from #2
27.       8' Gedeckt            from #1
28.       8' Gemshorn           from #14
29.       4' Octave             from #2
30.       4' Rohrflöte          from #13
31.     III  Mixture            from #7 & 9
32.      16' Contre Trompette   from #20
33.       8' Trompette          from #20
34.       4' Clairon            from #20

[Received on line from Jeff Scofield December 31, 2009.]

Documents

Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
