Better Pipe Organ Database

Schantz Organ Co. Opus 2164 (2000)

Trinity Lutheran Church
1401 Madison Ave.
Detroit Lakes, MN

Images

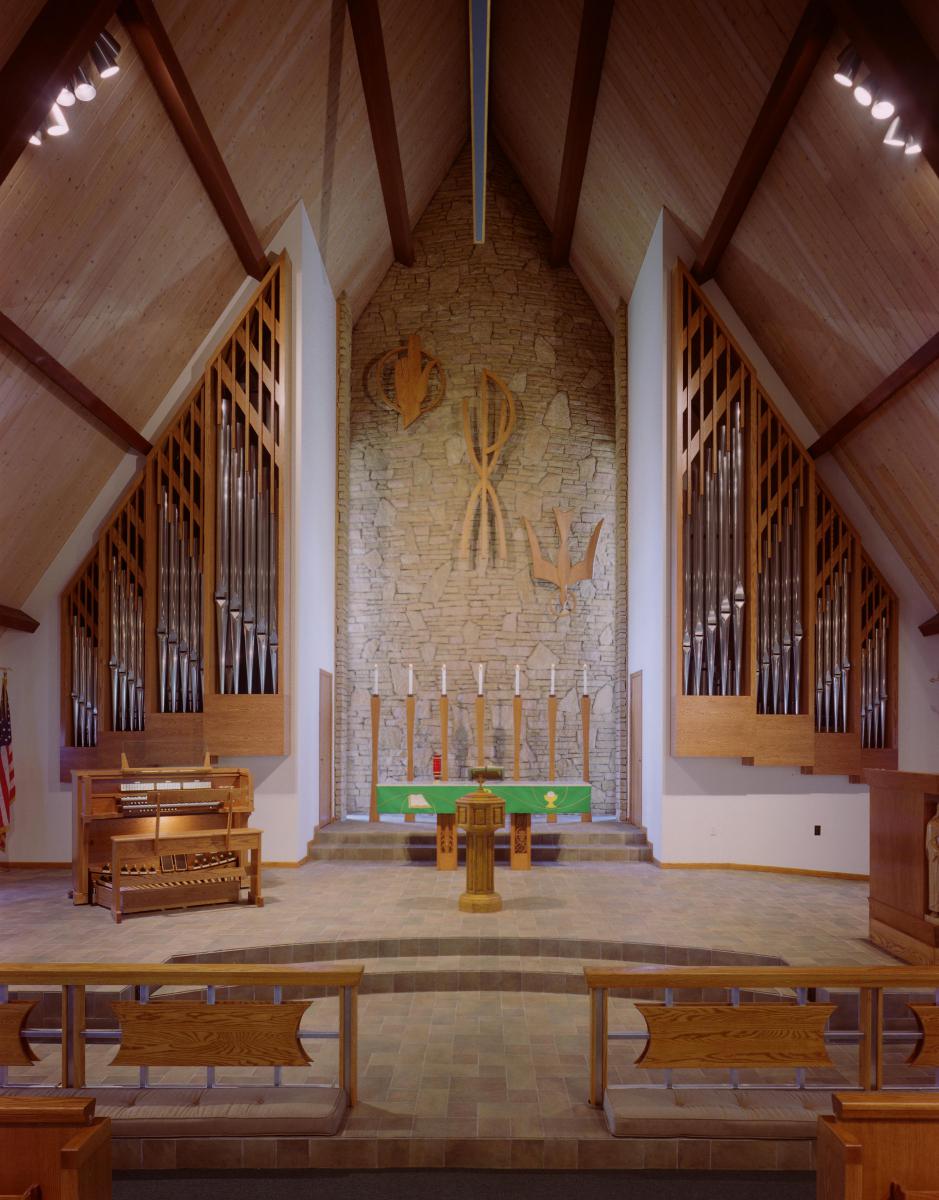

Unknown - Chancel, Console, and Organ Cases ((ca. 2002) Schantz Organ Company archives; image courtesy of Eric J. Gastier/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
18 stops
26 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2009-03-15 - Identified through online information from Richard C Greene. -Database Manager

2011-06-22 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist from the church. Source: Source not recorded Date not recorded

Detroit Lakes, Minnesota
Trinity Lutheran Church

Schantz Organ Co.

GREAT ORGAN
8' Principal 61 pipes
8' Rohrflöte 61 pipes
4' Octave 61 pipes
4' Harmonic Flute 61 pipes
2-2/3' Nasard 61 pipes
2' Gemshorn 61 pipes
1-3/5' Tierce 61 pipes
1-1/3' Fourniture IV 244 pipes
8' Trumpet [SW]
Tremulant

SWELL ORGAN
8' Gedeckt 61 pipes
8' Viola 61 pipes
8' Viola Celeste [TC] 49 pipes
4' Prestant 61 pipes
4' Koppelflöte 61 pipes
2' Octavin 61 pipes
8' Trumpet 61 pipes
8' Oboe 61 pipes
Tremulant

PEDAL
16' Subbass 56 pipes
16' Lieblichgedeckt [SW] 12 pipes
8' Octave 44 pipes
8' Subbass
8' Gedeckt [SW]
4' Choral Bass
4' Flute
16' Double Trumpet 12 pipes
8' Trumpet [SW]

[Received on line from Richard C Greene March 16, 2009.]

 [Received on line from Richard C Greene March 16, 2009.]
