Better Pipe Organ Database

Casavant Frères Ltée. Opus 1368 (1930)

All Saints' Anglican Church
15 Queen Street South
Hamilton, ON, CA

Note: Not extant. Not playable. (in this location)

Images

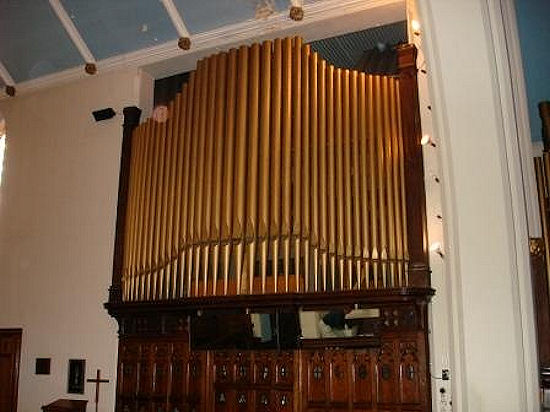

2008-10-09 - Sanctuary (north) facade (Photograph by Bruce Cross/Database Manager)

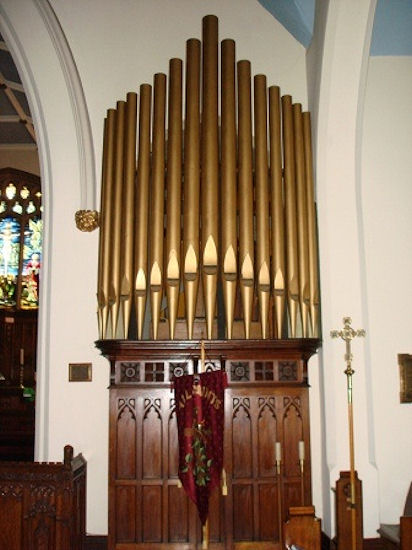

2008-10-09 - Nave (west) facade (Photograph by Bruce Cross/Database Manager)

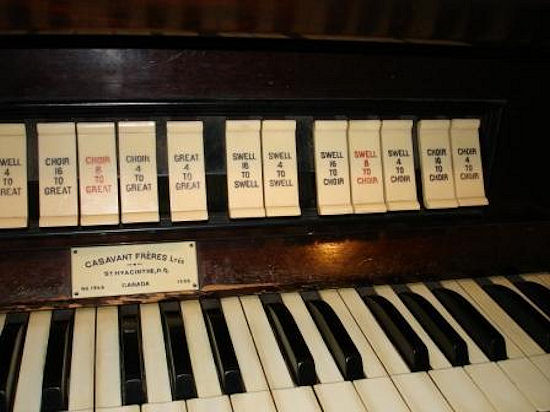

2008-10-09 - Couplers and builder's nameplate (Photograph by Bruce Cross/Database Manager)

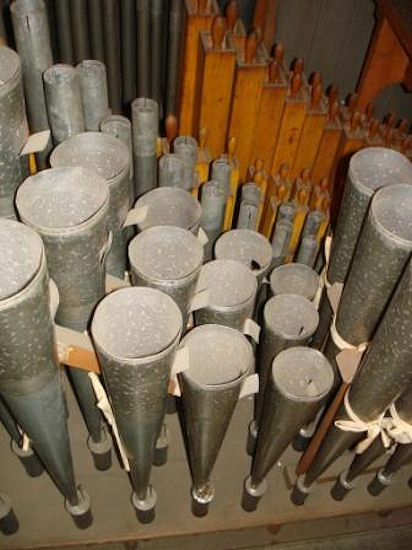

2008-10-09 - Pipework: Great (Photograph by Bruce Cross/Database Manager)

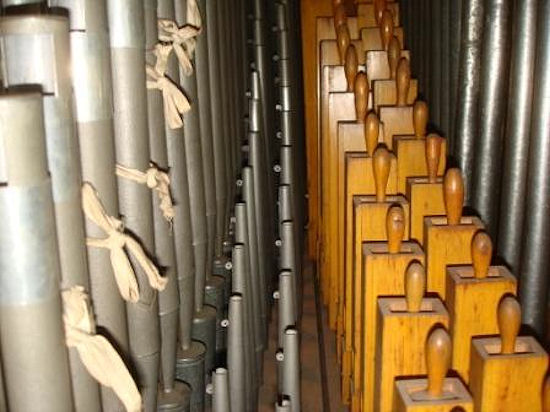

2008-10-09 - Pipework: Swell (Photograph by Bruce Cross/Database Manager)

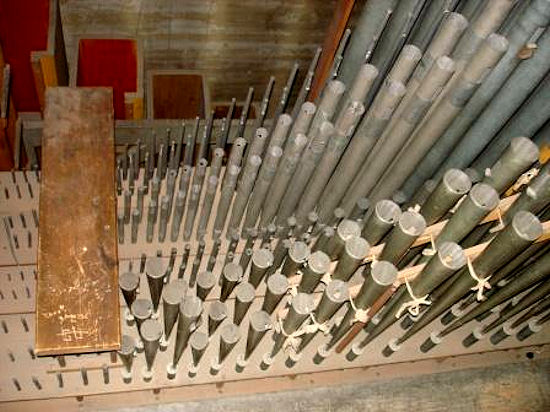

2008-10-09 - Pipework: Choir (Photograph by Bruce Cross/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
3 manuals
29 stops
32 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Not Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Adjustable Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2009-03-18 - Identified through online information from Bruce Cross. -Database Manager

2011-05-15 - Updated through online information from Andrew Staples. -- It appears from an online article this instrument was relocated to the Reformed Church in Dunnville Ontario in 2010. -Database Manager

Stoplist

Typed specification Source: from Bruce Cross Date not recorded

Hamilton, Ontario, Canada
All Saints' Anglican Church

Casavant Frères Ltée   Opus 1368   1930   3 manuals, 29 stops, 29 ranks
_______________________________________________________________________

        GREAT ORGAN                          SWELL ORGAN
     8' Open Diapason I     68           16' Bourdon             68
     8' Open Diapason II    68            8' Open Diapason       68
     8' Hohl Flute          68            8' Stopped Diapason    68
     8' Gemshorn            68            8' Viola da Gamba      68
     4' Principal           68            8' Voix Celeste (TC)   56
     4' Harmonic Flute      68            8' Aeoline             68
     2' Fifteenth           61            4' Flauto Traverso     68
     8' Trumpet             68            2' Piccolo             61
        Chimes (Ch)                       8' Cornopean           68
        Great 4' to Great                 8' Oboe                68
                                          8' Vox Humana          68
        CHOIR ORGAN                          Tremulant
     8' Open Diapason       68               Chimes (Ch)
     8' Melodia             68               Swell 4' to Swell
     8' Viole d'Orchestre   68               Swell 16' to Swell
     8' Dulciana            68
     4' Flute d'Amour       68               PEDAL ORGAN
     2' Flageolet           61           16' Open Diapason       44
     8' Clarinet            68           16' Bourdon             44
        Tremulant                        16' Gedeckt (Sw)        --
        Chimes                            8' Octave (fr. 16')    --
        Choir 4' to Choir                 8' Stopped Flute (Bdn) --
        Choir 16' to Choir               16' Trombone            32
                                             Chimes (Ch)

        COMBINATIONS                         COUPLERS
        Swell        5  (thumb)              Great to Pedal      8
        Great        4  (thumb)              Swell to Pedal      8  4
        Choir        3  (thumb)              Choir to Pedal      8
        Pedal        3  (thumb)              Swell to Great  16  8  4
        General      3  (toe)                Choir to Great  16  8  4
                                             Swell to Choir  16  8  4
        REVERSIBLES
        Swell to Pedal  (thumb)              EXPRESSION
        Great to Pedal  (thumb & toe)        Balanced Pedal - Swell
        Choir to Pedal  (thumb)              Balanced Pedal - Choir
        Swell to Great  (thumb)              Crescendo Pedal
        Swell to Choir  (thumb)
        Full Organ      (toe)


[Received from Steven E. Lawson  2017-08-21]

Stoplist from Bruce Cross Source: Source not recorded Date not recorded

Unsupported filetype pdf, view here.

Websites

Canadian Reformed Church to celebrate restoration of Casavant organ - Dunnville Chronicle - Ontario, CA - Description (Check Internet Archive, archive.is)
