Werner Bosch Opus 645 (1973)

Western Washington University: Performing Arts Center - Concert Hall
516 High St.
Bellingham, WA

Images

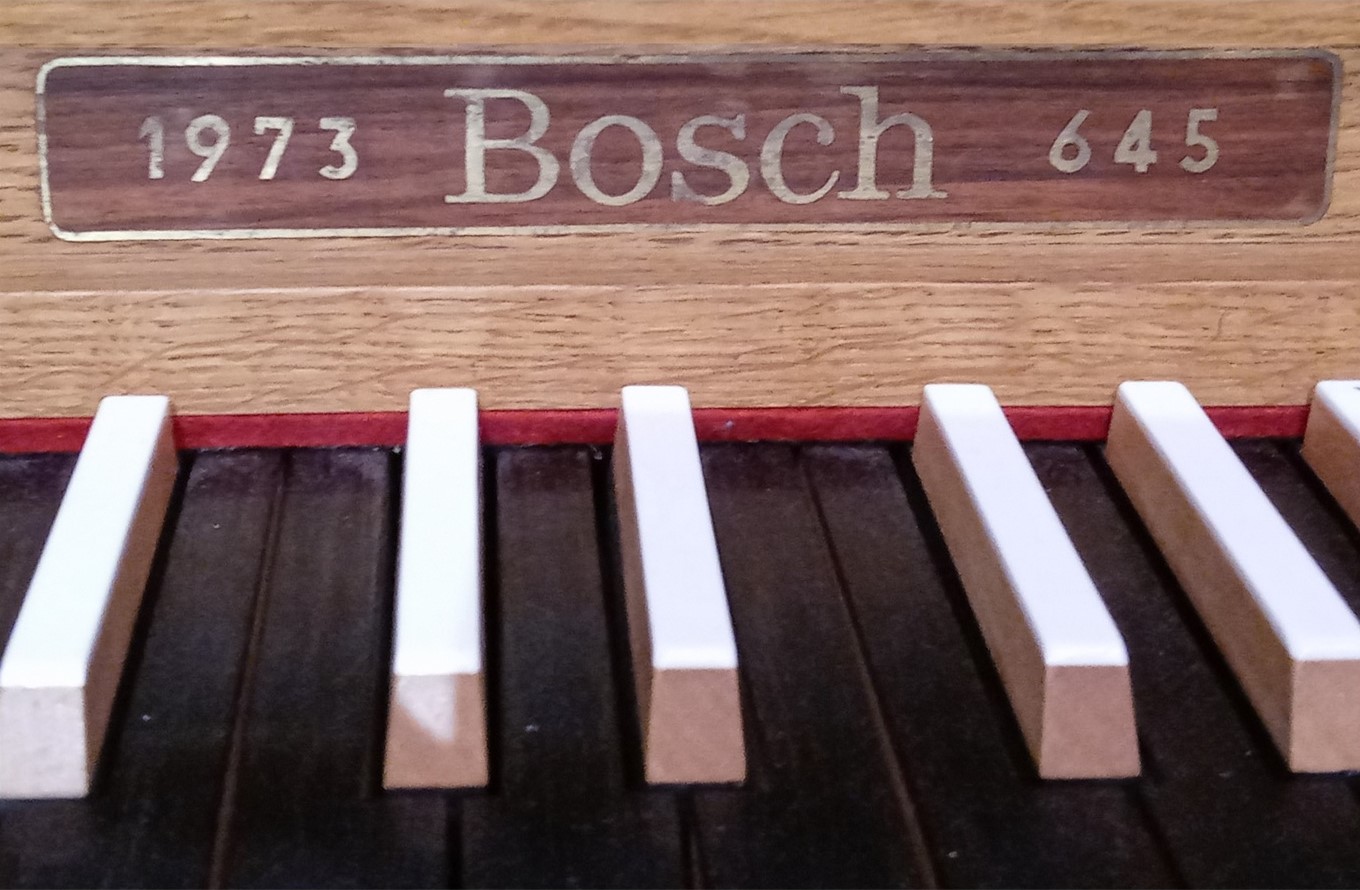

2021-12-13 - Builder's label (Photograph by James R. Stettner/Jim Stettner)

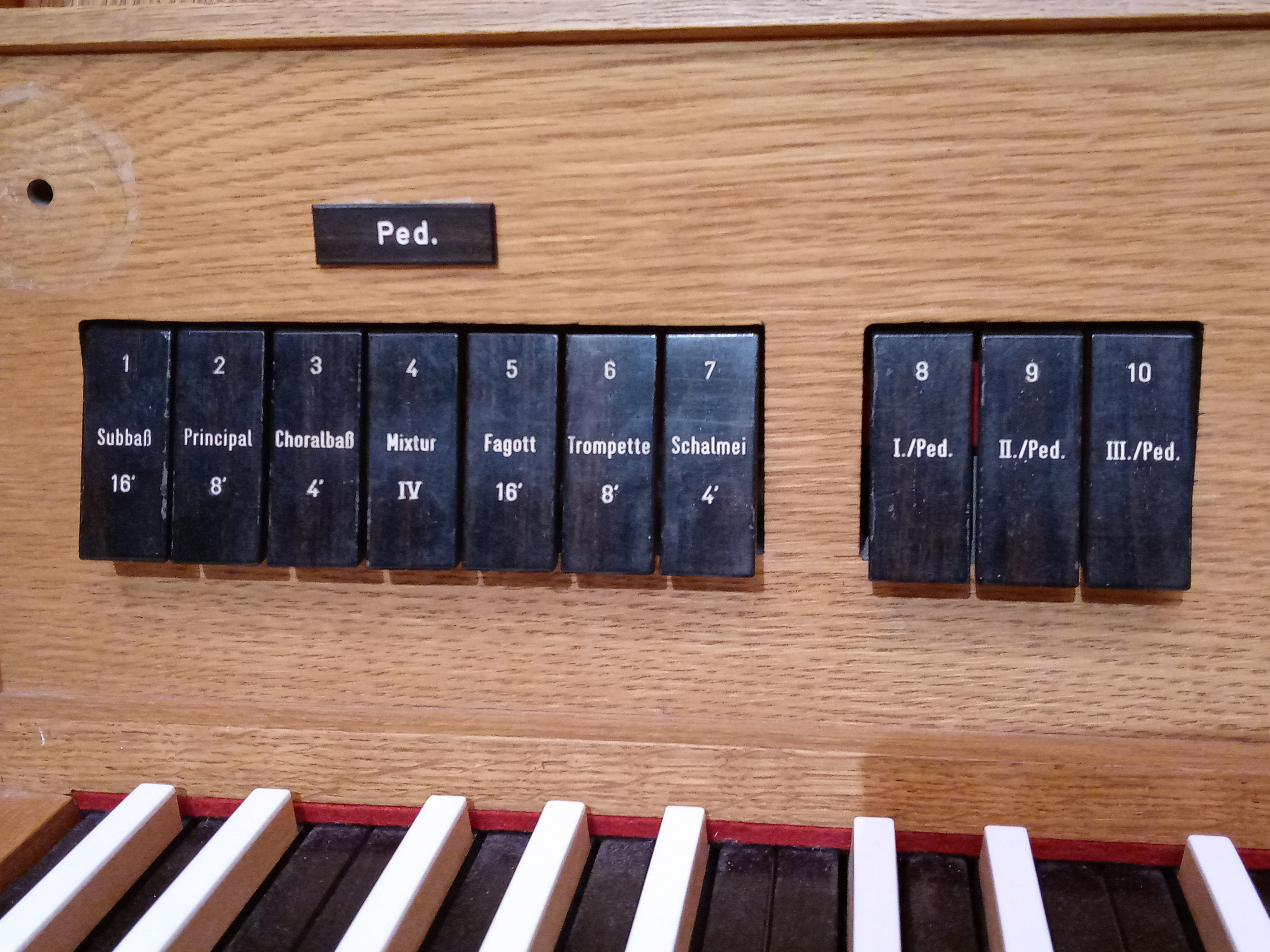

2021-12-13 - Pedal stops and couplers (Photograph by James R. Stettner/Jim Stettner)

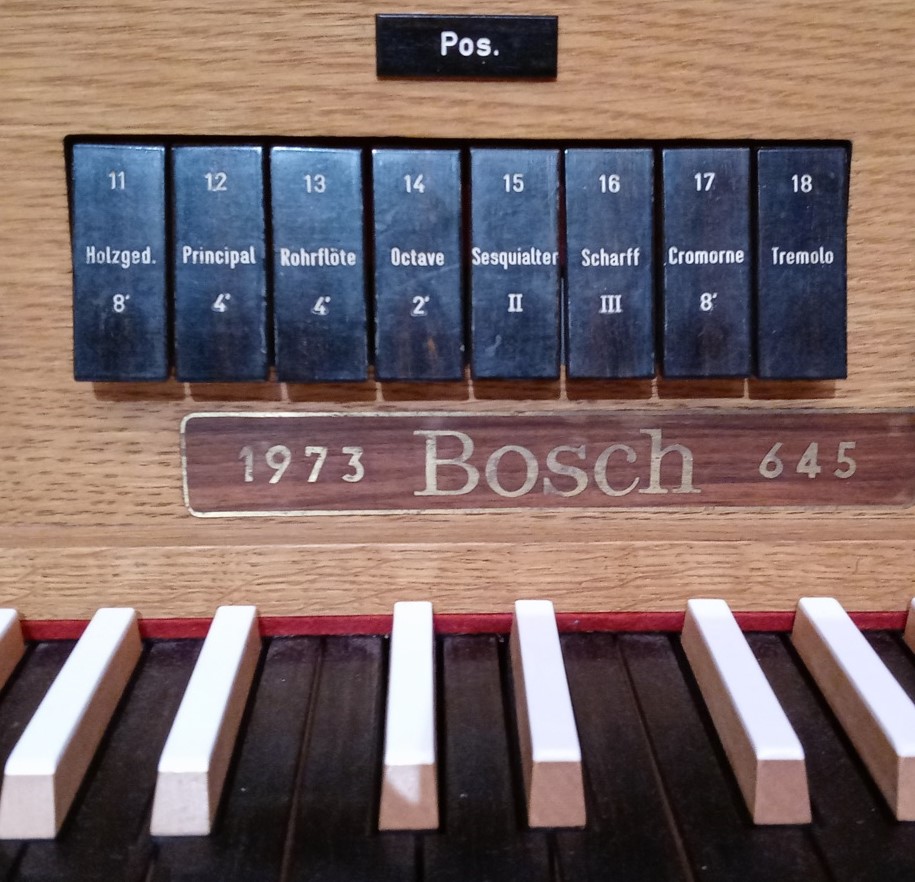

2021-12-13 - Positiv stops (Photograph by James R. Stettner/Jim Stettner)

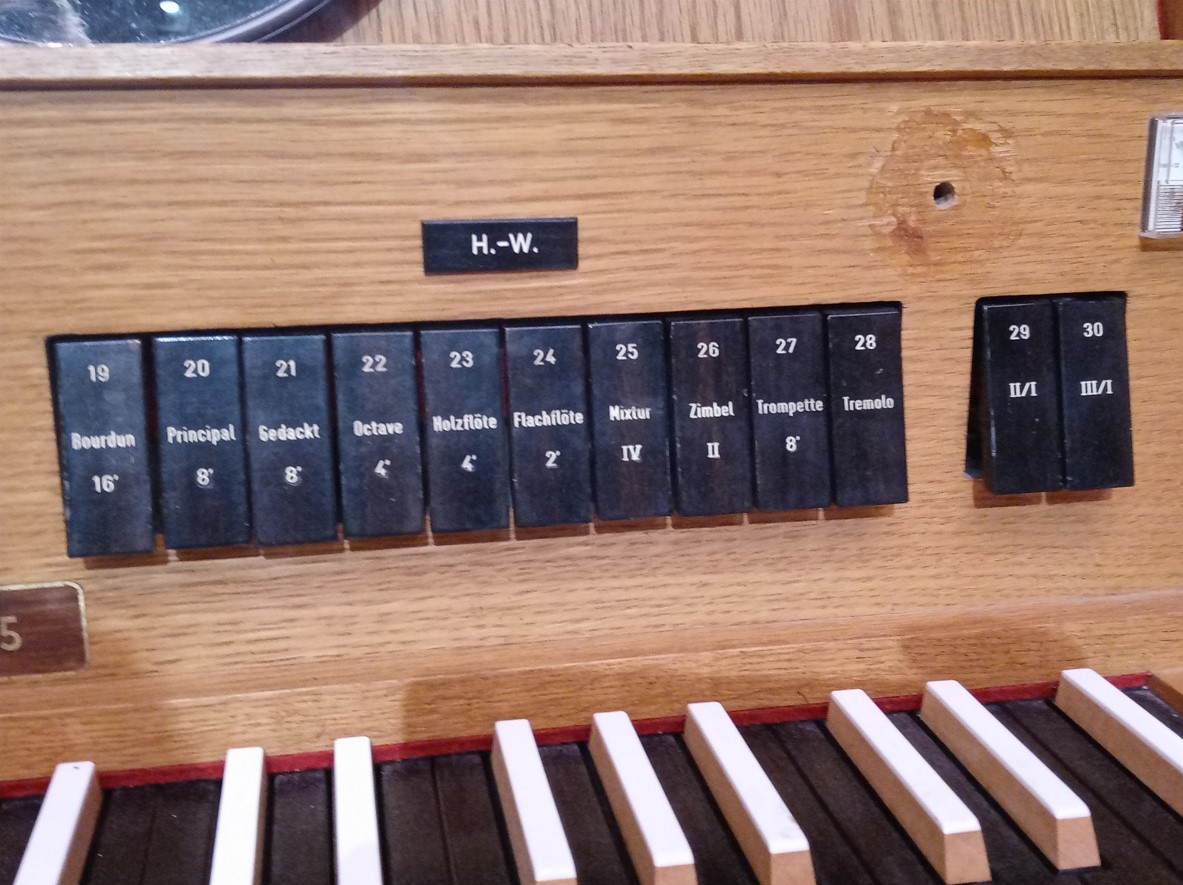

2021-12-13 - Hauptwerk stops and couplers (Photograph by James R. Stettner/Jim Stettner)

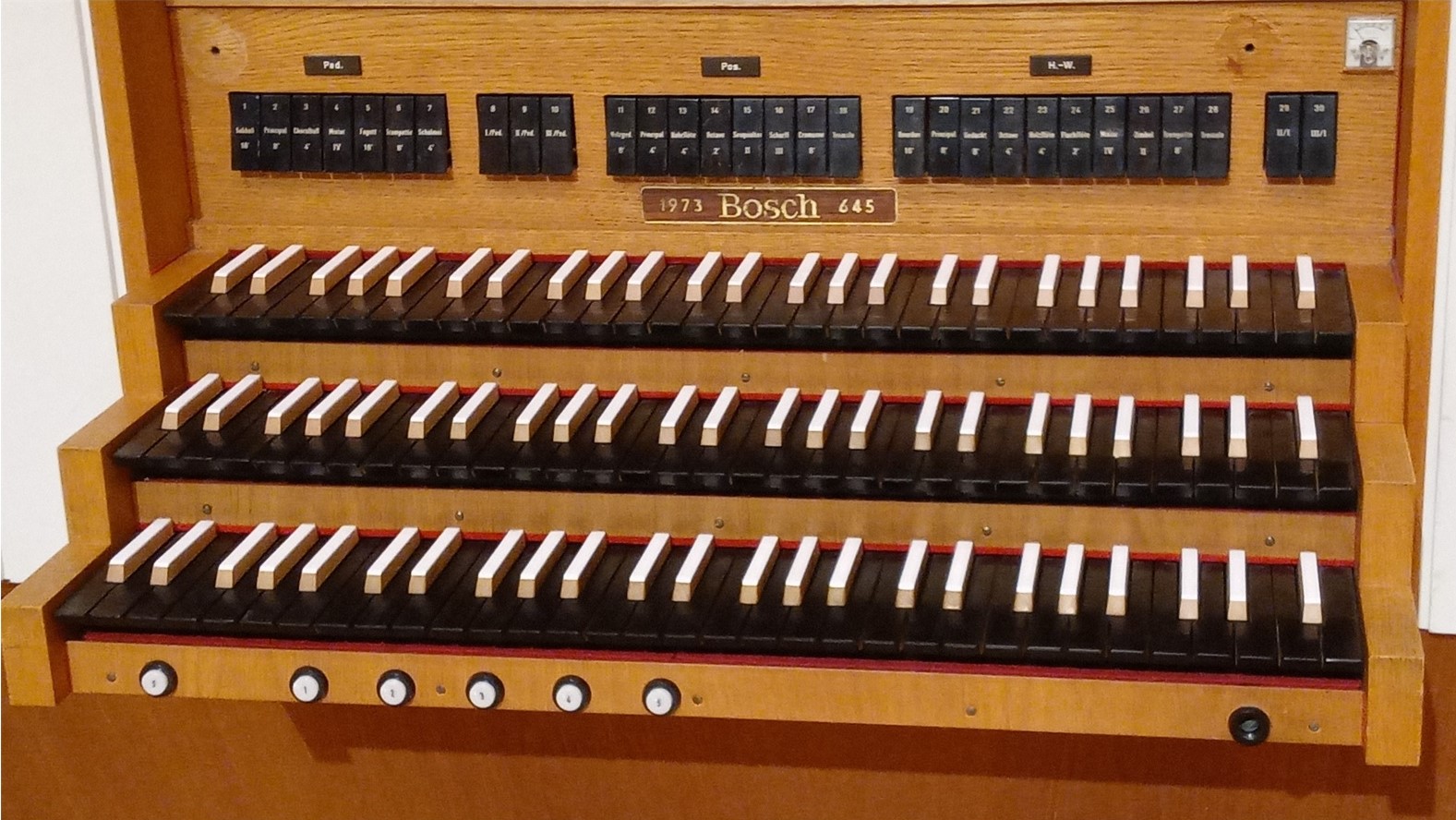

2021-12-13 - Keydesk (Photograph by James R. Stettner/Jim Stettner)

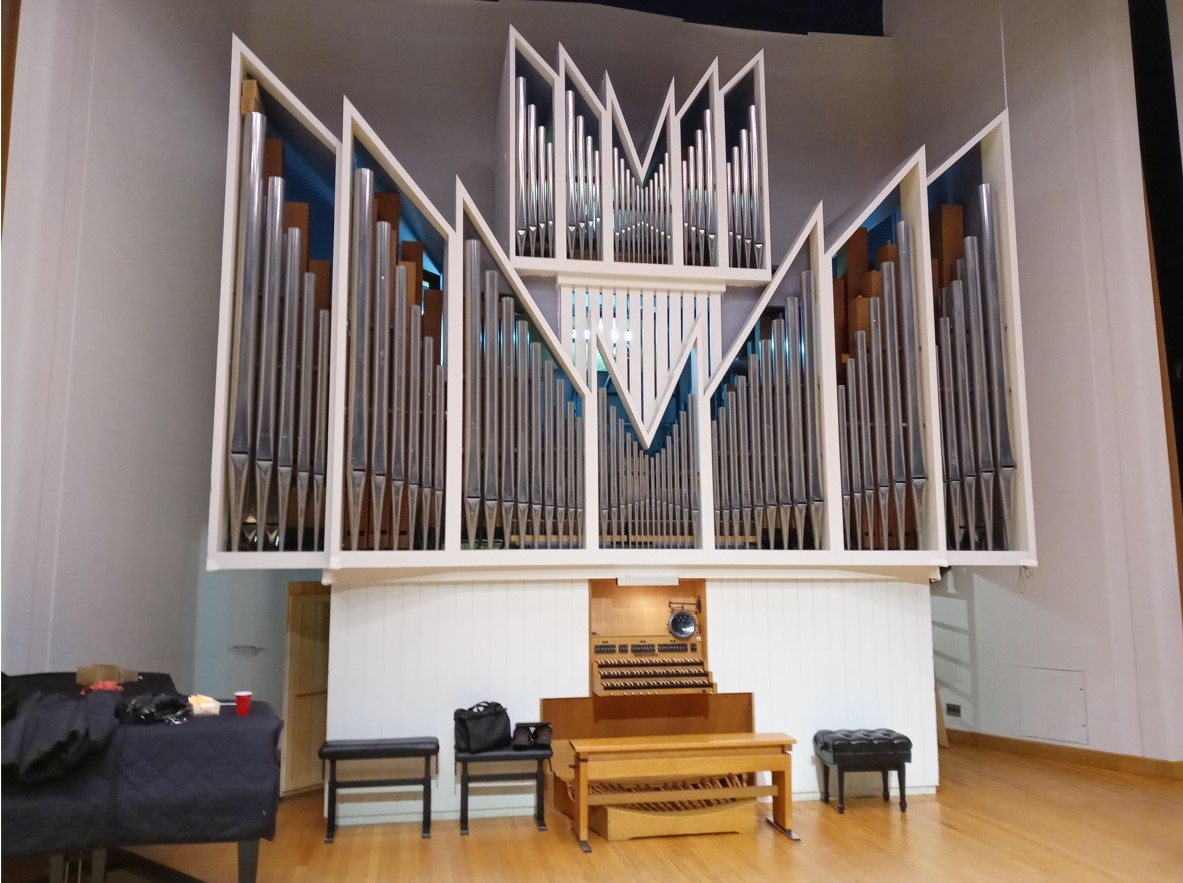

2021-12-13 - Organ case at back of stage (Photograph by James R. Stettner/Jim Stettner)

2016-04-15 - Western Washington University Concert Choir in front of the organ. (Photograph from an archival source: Western Washington University, submitted by Chris Casquilho/Chris Casquilho)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
3 manuals
23 stops
23 registers
4 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: No Enclosed Divisions
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2004-10-30 - Status Note: There 1991. -Database Manager

2006-01-09 - Updated through online information from James R. Stettner. -Database Manager

2021-12-13 - The pipework for the top manual is on the same level as the Hauptwerk and immediately behind the facade. It is a tenor C, V-rank Cornet and the only stop on that manual - so there is no stop action. -Jim Stettner

Stoplist

Source: Stoplist copied from the keydesk December 13, 2021

Bellingham, Washington
Western Washington University

Werner Bosch, Opus 645, 1973 - Original Specifications


    HAUPTWERK (I)                            COUPLERS
16' Bourdon                      56          I./Ped.
8'  Principal                    56          II./Ped.
8'  Gedeckt                      56          III./Ped.
4'  Octave                       56
4'  Holzflöte                    56          III/I
2'  Flachflöte                   56          II/I
IV  Mixtur                      224
II  Zimbel                      112
8'  Trompette                    56          FINGER PISTONS
    Tremolo                                  General              1 - 5
                                             S      [Set]
                                             C      [Cancel]
    POSITIV (II)
8'  Holzged.                     56
4'  Principal                    56
4'  Rohrflöte                    56
2'  Octave                       56
II  Sesquialter                 112
III Scharff                     168
8   Cromorne                     56
    Tremolo


    VORWERK (III - No Stop Tablet)

V   Cornet                (tc)  220


    PEDAL
16' Subbaß                       32
8'  Principal                    32
4'  Choralbaß                    32
IV  Mixtur                      128
16' Fagott                       32
8'  Trompette                    32
4'  Schalmei                     32
