Our Lady of the Rosary Catholic Church
5930 Woodward Avenue
Detroit, MI
Images
0008-05-17 - Church exterior (Photograph by Andrew Jameson via Wikipedia, submitted by Jeff Scofield/Jeff Scofield)
2020-01-28 - Church interior to front (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

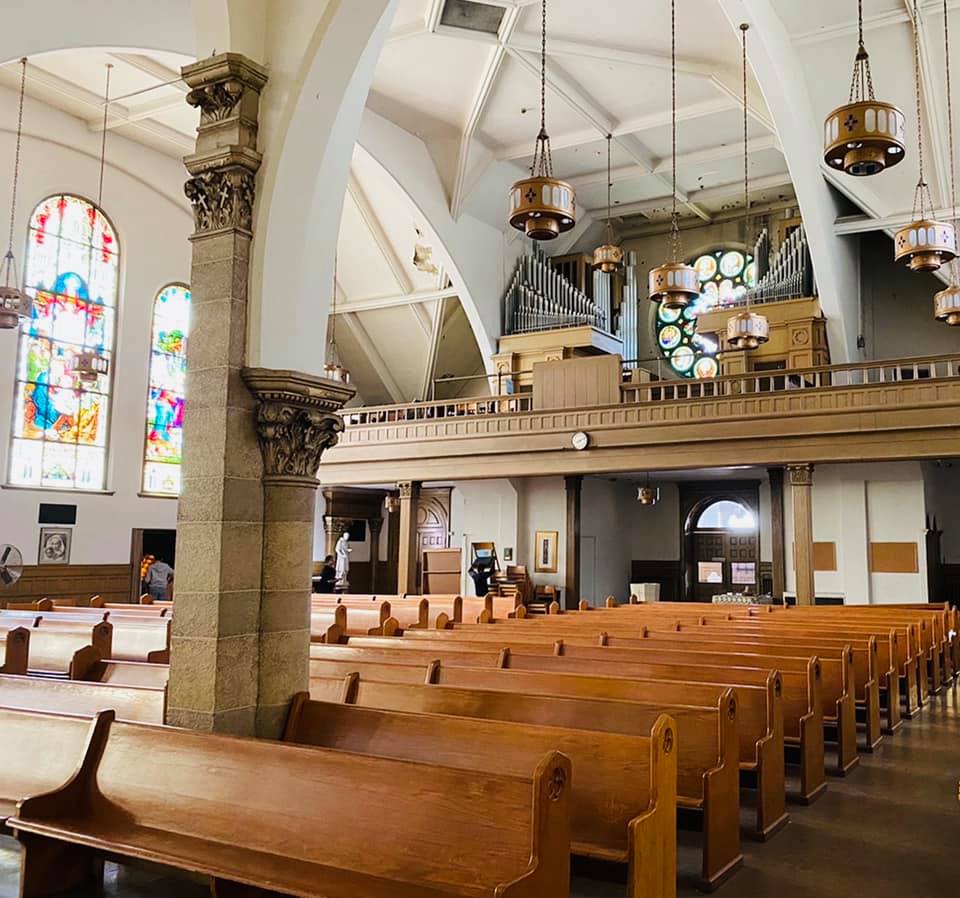

2020-05-16 - Church interior angle to rear and organ (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2018-09-13 - Church interior to gallery, organ and exposed pipes (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 2 manuals
- 22 stops
- 23 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 56 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Has crescendo
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has combination toe pistons
- Has tutti thumb pistons
Notes
2009-05-10 - Identified through online information from Ray Ahrens. -- Pipes in rear gallery, console on main floor near altar. -Database Manager
2010-06-25 - Updated through online information from Jeff Scofield. -- The Swell I and II division stops have 61 pipes per rank, but retain the 56-note keyboard; this was done so that the coupled division would have an effective compass of 49 notes. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Detroit, Michigan
Our Lady of the Rosary R. C. Church
Casavant Op. 2810 1964 2/30
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
________________________________________________
GREAT SWELL I
16' Quintadena 56 8' Gemshorn 61
8' Principal 56 8' Gemshorn Céleste tc 49
8' Rohrflöte 56 4' Koppelflöte 61
4' Octave 56 8' Trompette 61
4' Spitzflöte 56 Tremulant
2' Flachflöte 56 Sub
IV Mixture 224 Unison Off
Super
PEDAL
16' Principal 32 SWELL II
16' Quintadena GT 8' Gedackt 61
8' Octave 32 4' Principal 61
8' Gedackt 32 2' Octave 61
4' Nachthorn 32 1 1/3' Nasard 61
III Mixture 96 IV Fourniture 244
16' Posaune 32 Tremulant
Sub
Unison Off
SuperTyped stoplist from Ray Ahrens. On-line update from Ray Ahrens. Source: Courtesy of the Casavant Frères Archives Date not recorded
Detroit, Michigan
Our Lady of the Holy Rosary, formerly known as St. Joseph Episcopal Church
Casavant Freres #2810, 1964
Great: Pedal:
16' Quintadena 56 16' Principal 32
8' Principal 56 16' Quintadena GT
8' Rohrflote 56 8' Octave 32
4' Octave 56 8' Gedackt 32
4' Spitzflote 56 4' Nachthorn 32
2' Flachflote 56 III Mixture 96
IV Mixture 244 16' Posaune 32
Chimes Gt/Sw 1/Sw 2 to Pedal
Sw 1 to Gt 16 8 4 Sw 1 to Pedal 8 - 4
Sw 2 to Gt 16 8 Sw 2 to Pedal 8 - 4
Swell 1: Swell 2:
8' Gemshorn 56 8' Gedackt 56
Gemshorn Celeste 44 4' Principal 56
4' Koppelflote 56 2' Octave 56
8' Trompette 56 1 1/3' Nasard 56
Tremolo IV Fourniture 244
Tower Chimes Tremolo
Sw 1 to Sw 1 16 4 Sw 2 to Sw 2 16 4
Unison Off Unison Off
[Received on line from Ray Ahrens May 7, 2009]
