Valley Forge Military Academy
1001 Eagle Road
Wayne, PA
Images
1964-07-04 - Chapel chancel and exposed pipes (Moller promotional photo, collection of Jeff Scofield/Database Manager)
1964-07-04 - Chapel Interior and exposed pipes (Moller promotional photo, collection of Jeff Scofield/Database Manager)
2019-10-15 - Chapel Interior (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Chapel Interior from balcony (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Chapel chancel and exposed pipes (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Chapel chancel and exposed pipes (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Console to left (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Console to right (Photograph by Jeff Scofield/Database Manager)

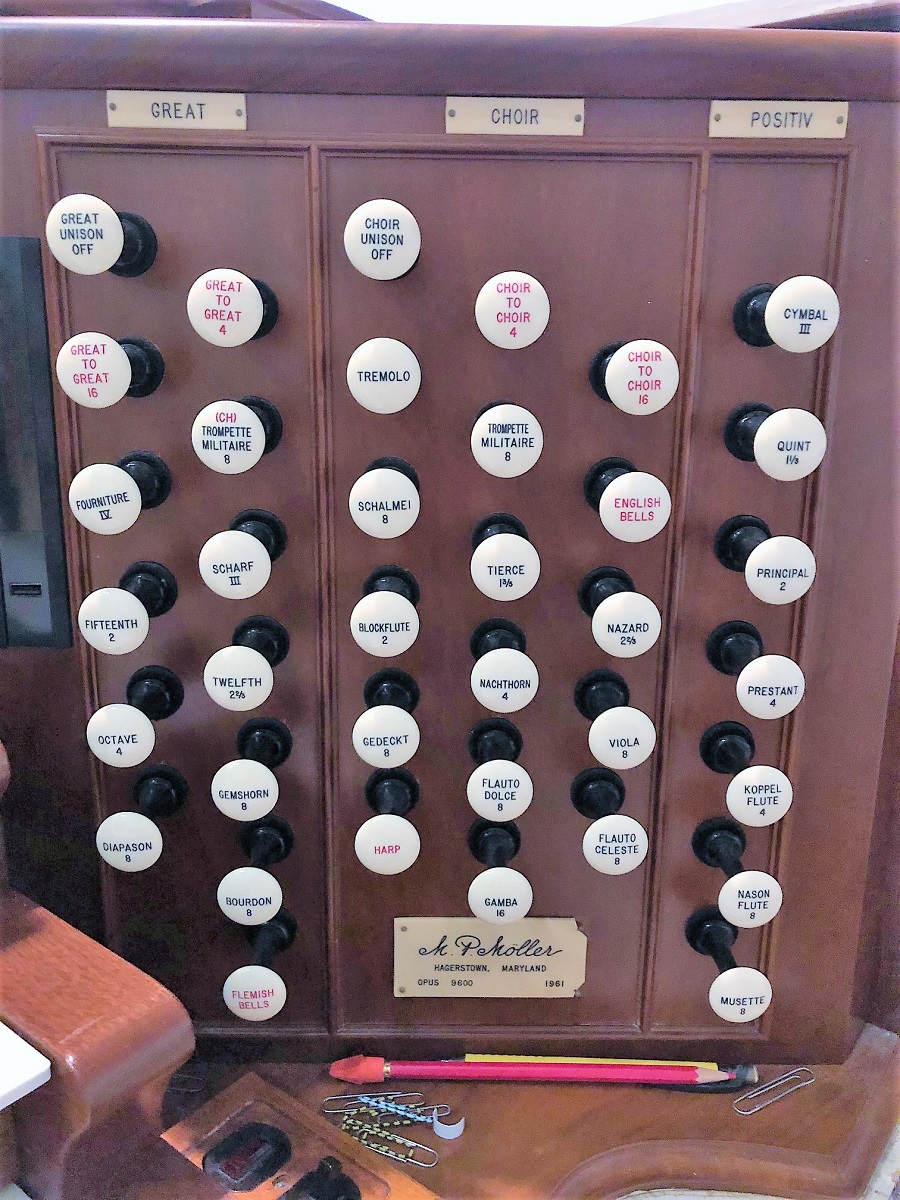

2019-10-15 - Left Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Right Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Builder name plate (Photograph by Jeff Scofield/Database Manager)
2019-10-15 - Chapel Exterior (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- 3 manuals
- 43 stops
- 5822 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Manual compass: 61 notes
- Pedal compass: 32 notes
Notes
2009-05-11 - Identified through online information from Jeff Scofield. -- This was the addition of 25 ranks, including two prepared-for divisions and 7 stops, to Op. 9200 installed in 1961. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Wayne, Pennsylvania
Valley Forge Military Academy
Chapel of the Atonement
Estey Op. 3188 1951 2/
Möller Op. R-545 1956 3/18
Möller Op. 9600 1961 3/29
Möller Op. A-9600 1964 /25
__________________________________________________________
GREAT (exposed) CHOIR
8' Diapason 61 16' Gamba 61
8' Bourdon 61 8' Viola 61
8' Gemshorn 61 8' Gedeckt 61
4' Octave 61 8' Flauto Dolce 61
2 2/3' Twelfth 61 8' Flauto Celeste 61
2' Fifteenth 61 4' Nachthorn 61
IV Fourniture 244 2 2/3' Nazard 61
III Scharf 183 2' Blockflöte 61
Sub 1 3/5' Tierce 61
Unison Off 8' Trompette Militaire 61
Super 8' Schalmei 61
8' Trompette Militaire CH Tremolo
Flemish Bells Sub
Unison Off
SWELL Super
Harp
16' Flute Conique 73 English Bells
8' Principal 73
8' Rohrflöte 73 PEDAL
8' Salicional 73
8' Voix Celeste 61 32' Bourdon 12
4' Octave 73 16' Contrebasse 32
4' Triangle Flute 73 16' Bourdon 32
2 2/3' Twelfth 61 16' Flute Conique SW
2' Fifteenth 61 16' Gamba CH
IV Plein Jeu 244 8' Octave 12
16' Fagot (1-42 L/2) 73 8' Bourdon 12
8' Trompette 73 8' Flute Conique SW
8' Oboe 12 4' Super Octave 12
4' Clarion 73 4' Bourdon 12
Tremolo 4' Flute Conique SW
Sub II Grave Mixture 64
Unison Off II Rauschpfeife 24
Super 32' Fagotto 12
Celeste Bells 16' Bombarde 32
16' Fagot SW
POSITIV (exposed) 8' Bombarde 12
4' Bombarde 12
8' Nason Flute 61 8' Trompette Militaire CH
4' Prestant 61 Harp
4' Koppel Flute 61 Flemish Bells
2' Principal 61 Celeste Bells
1 1/3' Quint 61
III Cymbal 183
8' Musette 61
[Received from Jeff Scofield October 21, 2019]
