Schantz Organ Co. Opus 2291 (2009)

St. Jude the Apostle Roman Catholic Parish
734 N. Glenview Avenue
Wauwatosa, WI

Images

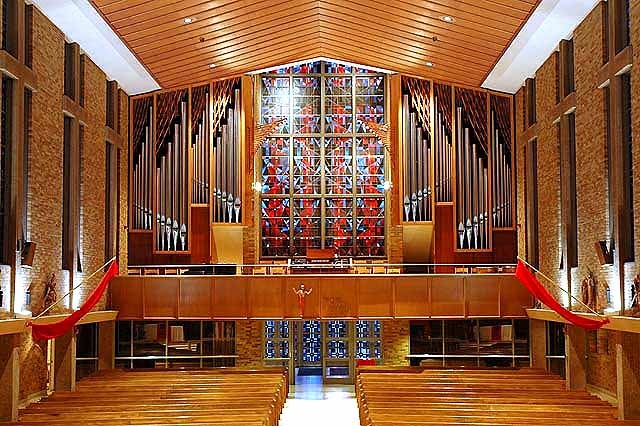

2009 - Church interior to gallery and organ cases (Photograph by Photograph courtesy of the Schantz Organ Co., submitted by Jeff Scofield/Jeff Scofield)

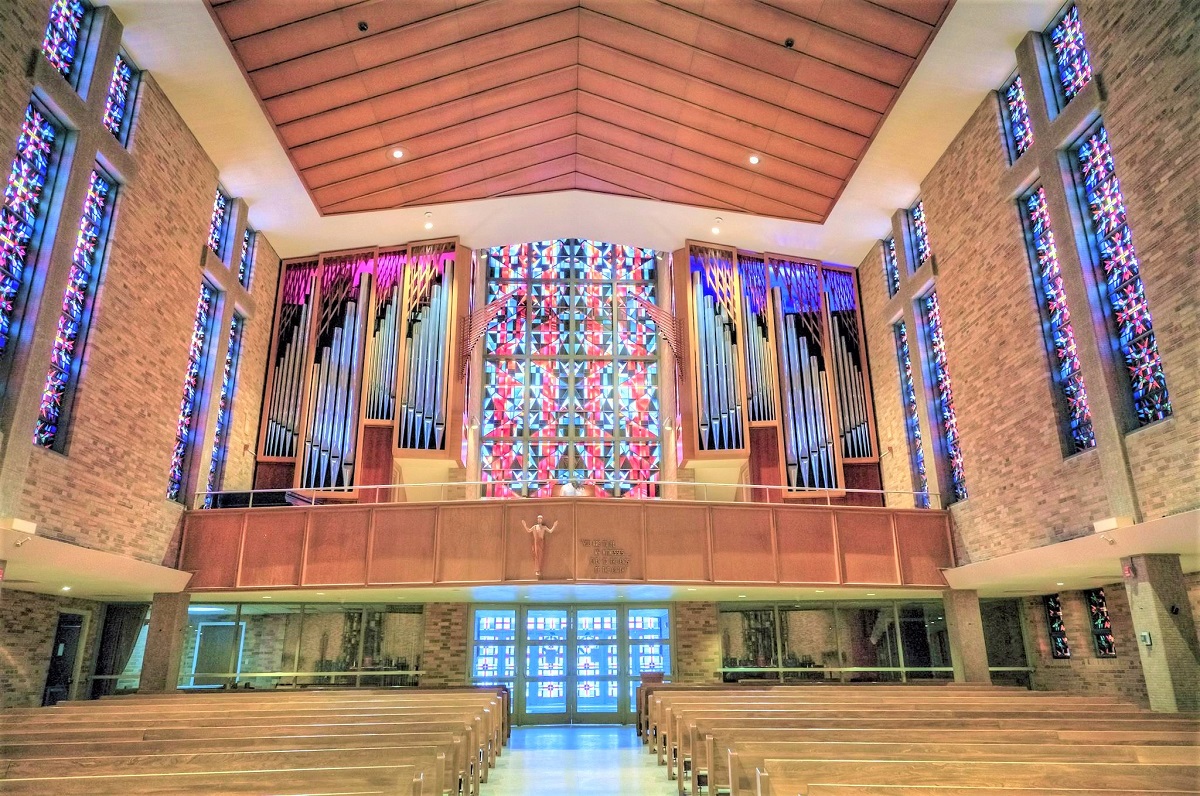

2009-06-14 - Rear gallery and organ (Schantz promotional photograph; used with permission/Database Manager)

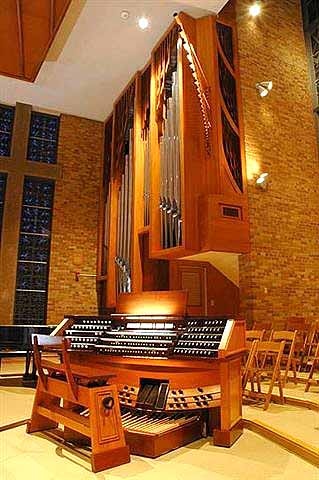

2009-06-14 - Console and left case (Schantz promotional photograph; used with permission/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
3 manuals
58 stops
35 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-05-19 - Identified through online information from Stephen Hall. -- Prepared for 8 additional ranks on main organ plus 5 rank antiphonal division. (Information from Milwaukee AGO newsletter, May 2009) -Database Manager

2009-06-15 - Updated through online information from Jeff Scofield. -- 7 stops prepared-for in main organ and a 5-stop Antiphonal is prepared-for -Database Manager

2013-12-27 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist from Schantz sales flyer Source: Source not recorded Date not recorded

    Wauwatosa, Wisconsin
    St. Jude the Apostle Catholic Parish

    Schantz   Op. 2291   2009   3/41

    GREAT                           SWELL
16' Contra Gamba 61             16' Lieblich Gedeckt 61
 8' Principal 61                 8' Geigen Principal 61
 8' Gamba 12                     8' Gedeckt 12
 8' Bourdon 61                   8' Salicional 61
 8' Harmonic Flute 49 *          8' Voix Celeste 54 GG
 4' Octave 61                    4' Principal 61
 4' Chimney Flute 61             4' Traverse Flute 61
 2' Fifteenth 61                 2' Block Flute 61
IV  Chorus Mixture 244       1 1/3' Quint 61
III Sharp Mixture (pf)          IV  Plein Jeu 244
16' Double Trumpet (pf)         16' Bassoon-Oboe 61
 8' Trumpet 61                   8' Trompette 61
    Tremulant                    8' Oboe 12
 8' Cor de Gaudete CH            4' Clairon 12
                                    Tremulant
    PEDAL                           Sub
32' Acoustic Bass --                Unison Off
32' Resultant --                    Super
16' Contra Bass 32
16' Bourdon 32                      CHOIR
16' Contra Gamba GT              8' Narrow Principal 61
16' Lieblich Gedeckt SW          8' Holzgedackt 61
 8' Octave Bass 12               8' Dolcan 61
 8' Bourdon 12                   8' Dolcan Celeste 49 tc
 8' Gamba GT                     4' Principal 61
 8' Gedeckt SW                   4' Spillflöte 61
 4' Choral Bass 32           2 2/3' Nasard 61
 4' Open Flute 12                2' Octavin 61
32' Grand Cornet --          1 3/5' Tierce 61
16' Trombone 32              1 1/3' Larigot (pf)
16' Double Trumpet (pf)      1 1/7' Septième (pf)
16' Bassoon-Oboe SW              1' Fife (pf)
 8' Tromba 12                  8/9' None (pf)
 8' Trumpet GT                 III  Fourniture (pf)
 4' Clarion GT                   8' Clarinet 61
 4' Oboe SW                         Tremulant
 8' Cor de Gaudete CH            8' Cor de Gaudete 61
                                 8' Trumpet GT
    ANTIPHONAL                      Sub
 5  Blank knobs                     Unison Off
                                    Super
**  1-12 from Bourdon               Zimbelstern 5

 [Received on line from Jeff Scofield June 15, 2009.]

Websites

["Pipe Notes" -- Milwaukee AGO, May, 2009] - Photograph, description, stoplist (Check Internet Archive, archive.is)
