United States Military Academy Cadet Chapel
722 Derussy Road
West Point, NY
Images
1941 - Console (Photograph by Moller promotional photo, collection of Jeff Scofield, submitted by Jeff Scofield/Jeff Scofield)
Unknown - Console (Photograph by Moller promotional photo, collection of Eugene Poole, submitted by Jeff Scofield/Jeff Scofield)
2021-10-14 - Console, chancel and left organ chamber (Photograph by Richard Ouellette, submitted by Jeff Scofield/Jeff Scofield)
2020-01-11 - Trompette-en-Chamade (Photograph by Joseph Routon, submitted by Jeff Scofield/Jeff Scofield)
2020-01-11 - Chapel interior (Photograph by Joseph Routon, submitted by Jeff Scofield/Jeff Scofield)
2020-01-11 - Console (Photograph by Joseph Routon, submitted by Jeff Scofield/Jeff Scofield)

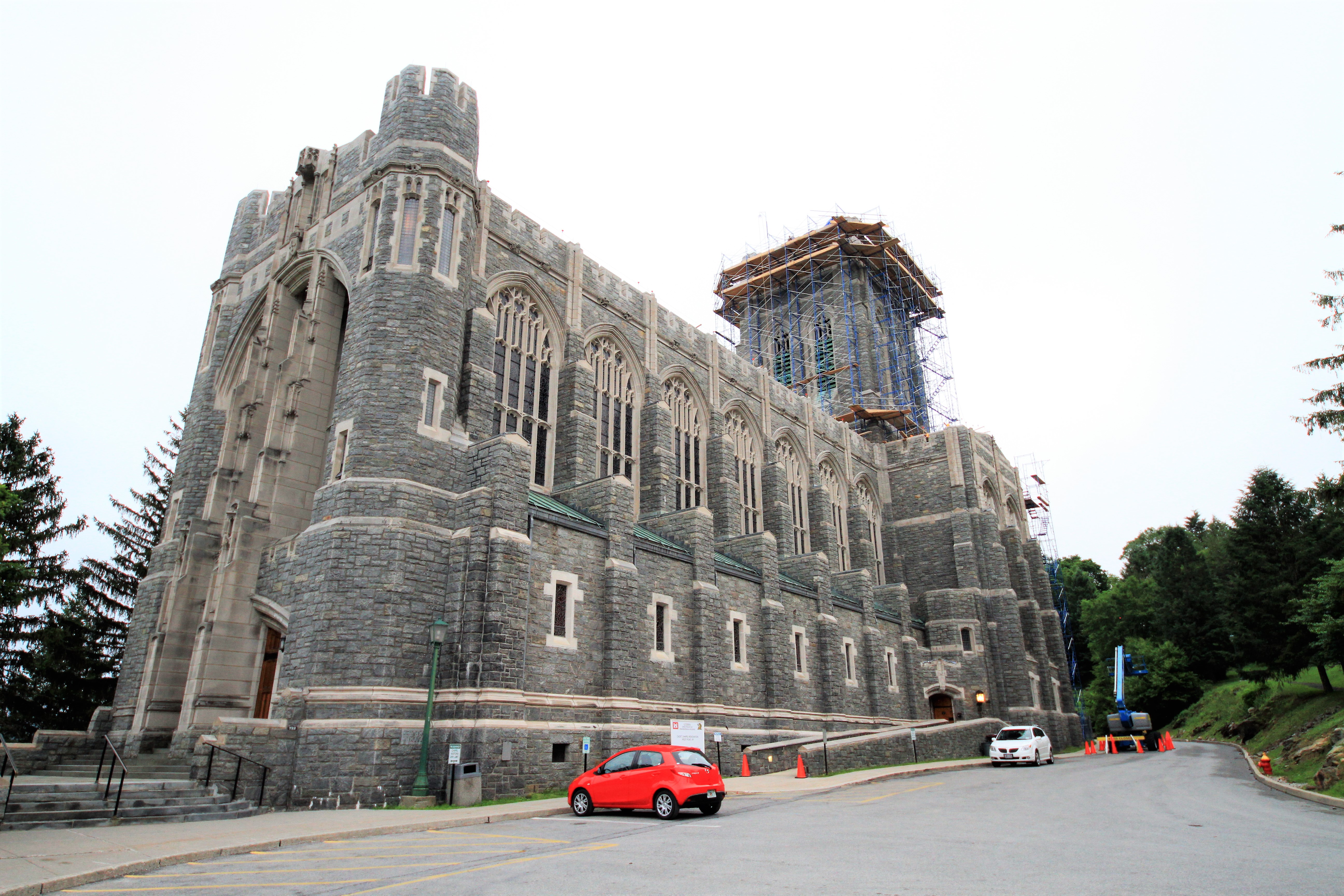

2015-06-15 - Chapel exterior (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Chancel organ cases (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Chapel interior (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - En-Chamade (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Right organ chambers (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Left organ chambers (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Chancel and right chambers (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Right stopjamb (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Left stopjamb (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - Console center (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2015-06-15 - 1950 Console (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2019-10-08 - Chapel interior (Photograph by Joe Routon/Joe Routon)
1950-08-04 - Console (Möller Promotional Photograph; collection of Jeff Scofield/Database Manager)
2006-09-06 - Console - West Point Chapel (Photograph by Gary Beaver/Database Manager)
Consoles
Main
- 4 manuals
- Stop layout Type: Stop Keys on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Has crescendo
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2009-05-25 - Identified through information from Grant Chapman: -- Addition of 16' Violone to the Pedal of highly altered Möller organ. [This was added to the existing four-manual console of 1920, which had originally controlled only 57 (not 230) ranks of pipes. Seven additional ranks were to be added in 1947, before a new four-manual console was built and installed in 1950.] -Database Manager
Stoplist
From 2004 AIO convention booklet Source: Source not recorded Date not recorded
West Point, New York
West Point Cadet Chapel
1911 M. P. Möller, Inc. Opus 1201 and others to present
Chancel Great (Manual I):
16' Violone
16' Dulciana
16' Rohrgedeckt
8' Service Diapason
8' Chorus Principal
8' Chorus Diapason
8' Montre
8' Suavial
5 1/3' Nazard
4' Chimney Flute
3 1/5' Tierce
2 2/3' Service Twelfth
2' Service Fifteenth
2' Doublette
V Plein Jeu
Enclosed Great (Manual I):
32' Open Wood
16' Diapason (C13)
8' Diapason Major
8' Viol Diapason
8' Harmonic Flute
8' Double Flute
4' Minor Octave
2' Super Octave
2' Harmonic Piccolo
III Mixture
Dutch Great (Manual I):
8' Principal
8' Bourdon
4' Octave
4' Koppelflöte
2 2/3' Nasat
2' Super Octave
2' Waldflöte
1 3/5' Terz
1 1/3' Larigot
1' Blockflöte
IV Fourniture
III Mixture
IV Scharf
Transept Great (Manual I):
16' Principal II
16' Rohrflute
16' Quintaton
8' Principal
8' Rohrflöte
4' Octave
4' Spitzflöte
2' Super Octave
2' Waldflöte
III Rauschquint
VII Mixture
V Zimbel
V Grand Cornet (C13)
II Rauschquint
VI Mixture
16' Trumpet
16' Trumpet
Choir Organ (Manual II):
16' Gemshorn
8' Principal
8' Clarabella
8' Gemshorn Celeste II
8' Keraulophone
8' Unda Maris IV
4' Principal
4' Harmonic Flute
4' Gemshorn
2' Fifteenth
2' Flageolet
III Plein Jeu
16' Tuba Major
8' Clarinet
8' Vox Humana
Transept Positiv (Manual II):
8' Principal
8' Holzgedeckt
8' Quintadena
4' Principal
4' Rohrfloete
2' Octave
2' Rohrpfeife
1 1/3' Quint
1' Super Octave
II Sesquialtera (C13)
VI Scharf
III Terzimbel
16' Dulzian
8' Cromorne
Swell Organ (Manual III):
16' Dulce Bourdon
8' Open Diapason
8' Geigen Diapason
8' Stopped Diapason
8' Quintadena
8' Salicional III
4' Octave
4' Forest Flute
2 2/3' Nasard
2' Fifteenth
2' Flautino
1 3/5' Tierce (C13)
III Mixture
IV Fourniture
16' Althorn
16' Basson
8' Trumpet
8' Oboe
4' Clarion
Solo Organ (Manual IV):
16' Contra Bass
8' Diapason Phonon
8' Horn Diapason
8' Violin Diapason
8' Horn Flute
8' Orchestral Flute
4' Solo Octave
4' Magic Flute
2' Super Octave
32' Bombard
16' Basset Horn
8' Harmonic Trumpet
8' Cornopean
8' Orchestral Clarinet
8' Hunting Horn
8' French Horn
4' Clarion
Harmonic Section (Floating):
8' Principal
8' Open Diapason
4' Octave
2' Super Octave
2' Fifteenth
XI English Mixture (selectable, Bonavia-Hunt)
IX French Mixture (selectable)
IV Quint Mixture
3 1/5' Dulciana Tierce
2 2/7' Dulciana Septieme
1 7/9' Dulciana None
16' Bourdon
3 1/5' Bourdon Tierce
2 2/3' Bourdon Quint
2 2/7' Bourdon Septieme
1 7/9' Bourdon None
8' Gemshorn
8' Gemshorn Celeste (G8)
2 2/3' Gemshorn
2' Gemshorn
16' Stenthorn Minor
8' Stenthorn Major
2 2/3' Stenthorn Quint
2' Stenthorn Fifteenth
8' Flauto Magico
8' Flauto Magico Celeste
16' Tuba Sonora
16' Military Trumpet
8' Military Clarion
8' French Trumpet
8' Tromba Batalla
3 1/5' Tromba Tierce
16' Major Open Wood
32' Bourdon
4' Rohrflöte
2 2/3' Stopped Flute
8' Cello Major
4' Salicet
III Harmonics of 16'
IX Harmonics of 32'
IV Armonia Grande
32' Ophicleide
10 2/3' Trombone Quint
4' Trombone
3 1/5' Trombone Tierce
Orchestral Organ (Floating):
8' Viol Diapason
8' Spire Flute
8' Spire Flute Celeste
8' Tibia Clausa II
8' Corno Dolce
8' Corno Dolce Celeste
8' Suave Flute II
8' Stopped Harm. Flute
8' 'Cello II-III
4' Principal
4' Piquant Flute
16' Viola
8' Viole Celeste
5 1/3' Viol Quint
4' Violina
3 1/5' Viol
32' Dulzian
16' Fagotto
8' Saxophone
8' Oboe Horn
8' Orchestral Oboe
Viol Organ (Floating):
16' Grand Viol
16' Grand Viol Celeste
8' Viol d'Gamba III
5 1/3' Viola
4' Viol Octave
4' Viola
3 1/5' Viol Tierce
2' Violetta
1 1/3' Viol Larigot
Reed Section (Floating):
16' Trumpet
8' Trichterregal
8' Krummhorn
8' Kopfregal
8' English Horn
8' Musette
Vox Section (Floating):
16' Vox Baritone
8' Vox Contralto
8' Vox Mezzo
8' Vox Soprano
Nave Section (Floating):
16' Subbass
8' Principal
8' Chimney Flute
4' Octave
4' Blockflöte
2' Super Octave
IV Mixture
16' Trumpet
Echo I (Floating):
16' Quintaton
8' Principal
8' Harmonic Flute
4' Octave
4' Spielflöte
2 2/3' Nasat
2' Super Octave
V Harmonia Aetheria
VII Mixture
16' Trumpet
Echo II (Floating):
16' Rohrbourdon
8' Principal
8' Salicional
8' Vox Celeste II
8' Unda Maris
4' Geigen Principal
4' Traverse Flute
2' Hohlfloete
1 1/3' Larigot
II Sesquialtera
VI Mixture
8' Vox Angelica
8' Vox Mystica
32' Bassoon
8' Trumpet
8' Trompette en Chamade
16' Principal
16' Subbass
10 2/3' Rohr Bourdon
8' Principal
4' Octave
VI Mixture
8' Trumpet
Percussions:
Chimes
Flemish Bells (electronic)
Harp (Mayland)
Celesta (Mustel)
Chinese Gong
Turkish Cymbal (crash/roll)
Zimbelstern
[Received from Connor Annable 2012-06-02.]
