Better Pipe Organ Database

Casavant Frères Opus 3806 (2002)

First Presbyterian Church: Sanctuary
701 N. Main St.
Newton, NC

Images

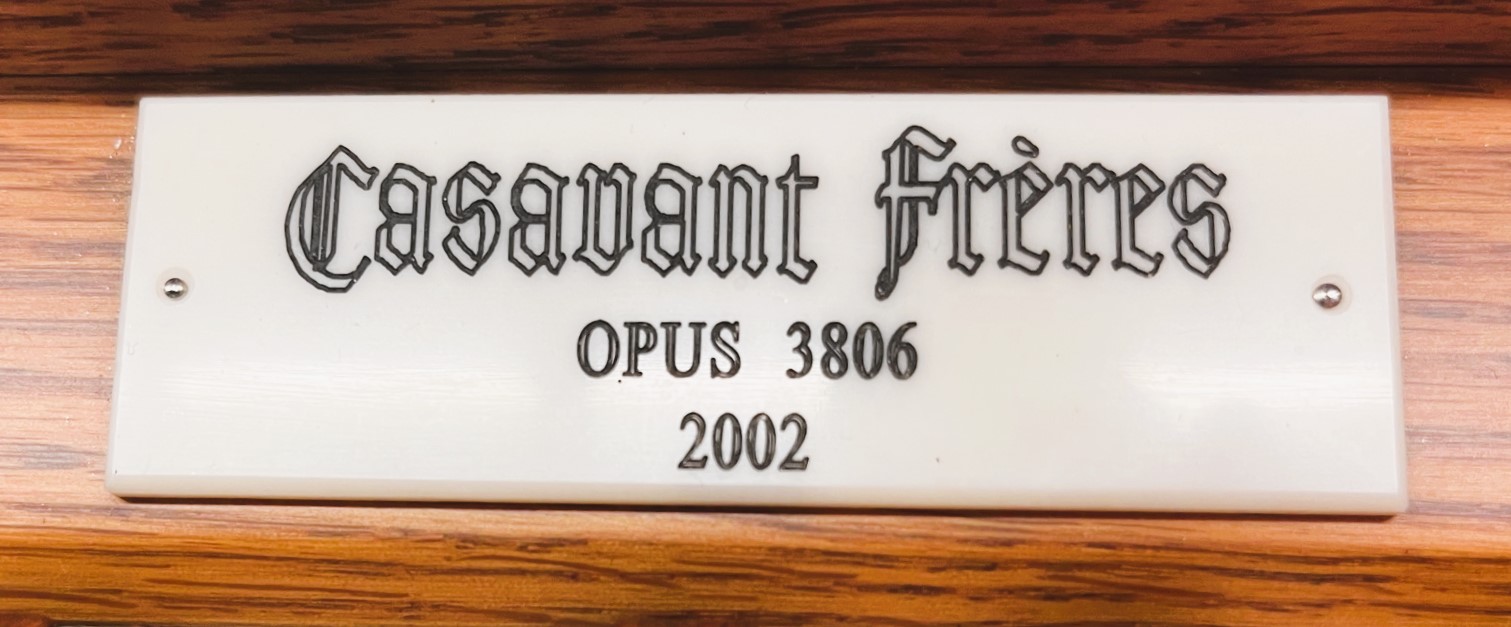

2023-10-04 - Builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

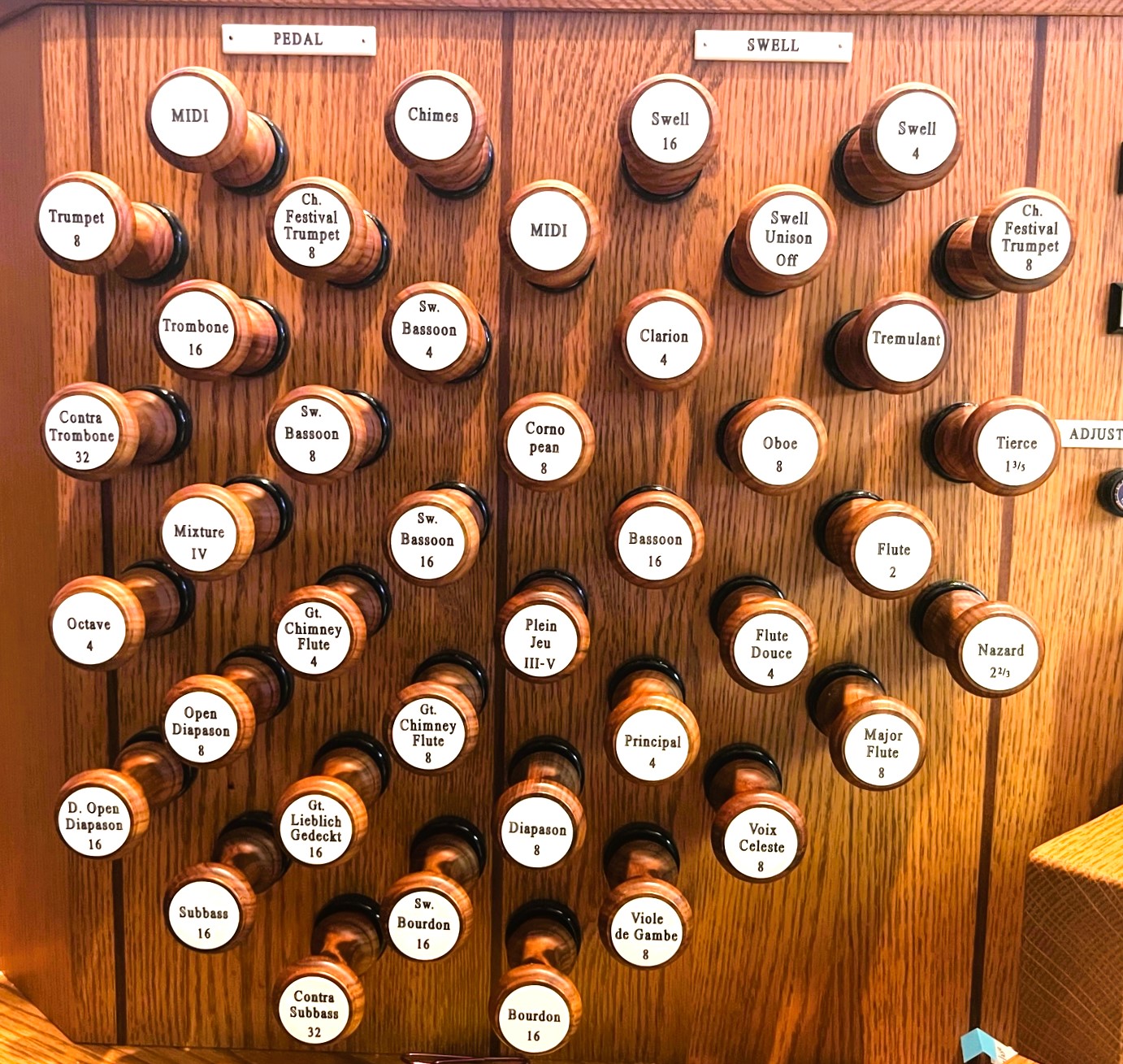

2023-10-04 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

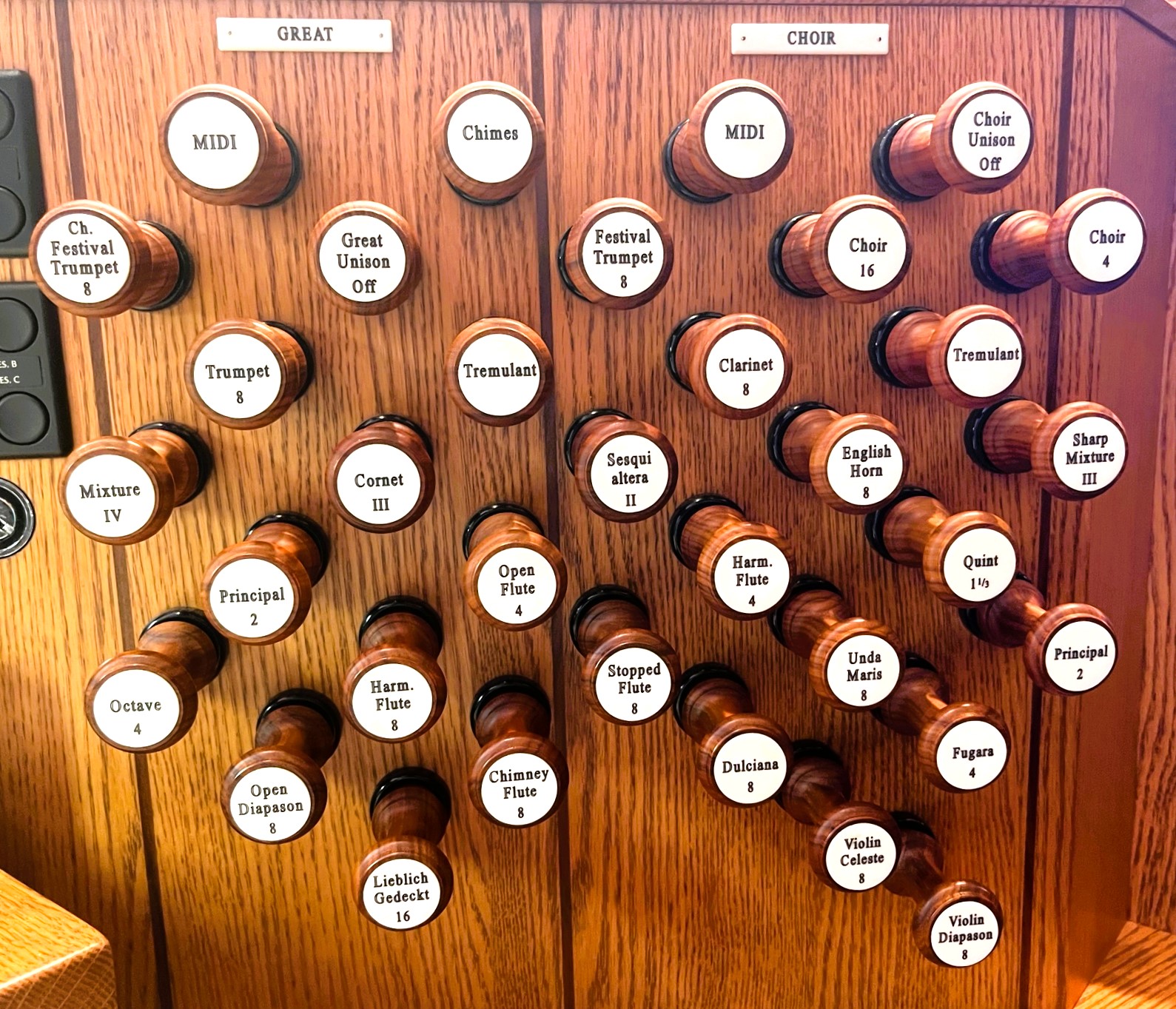

2023-10-04 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

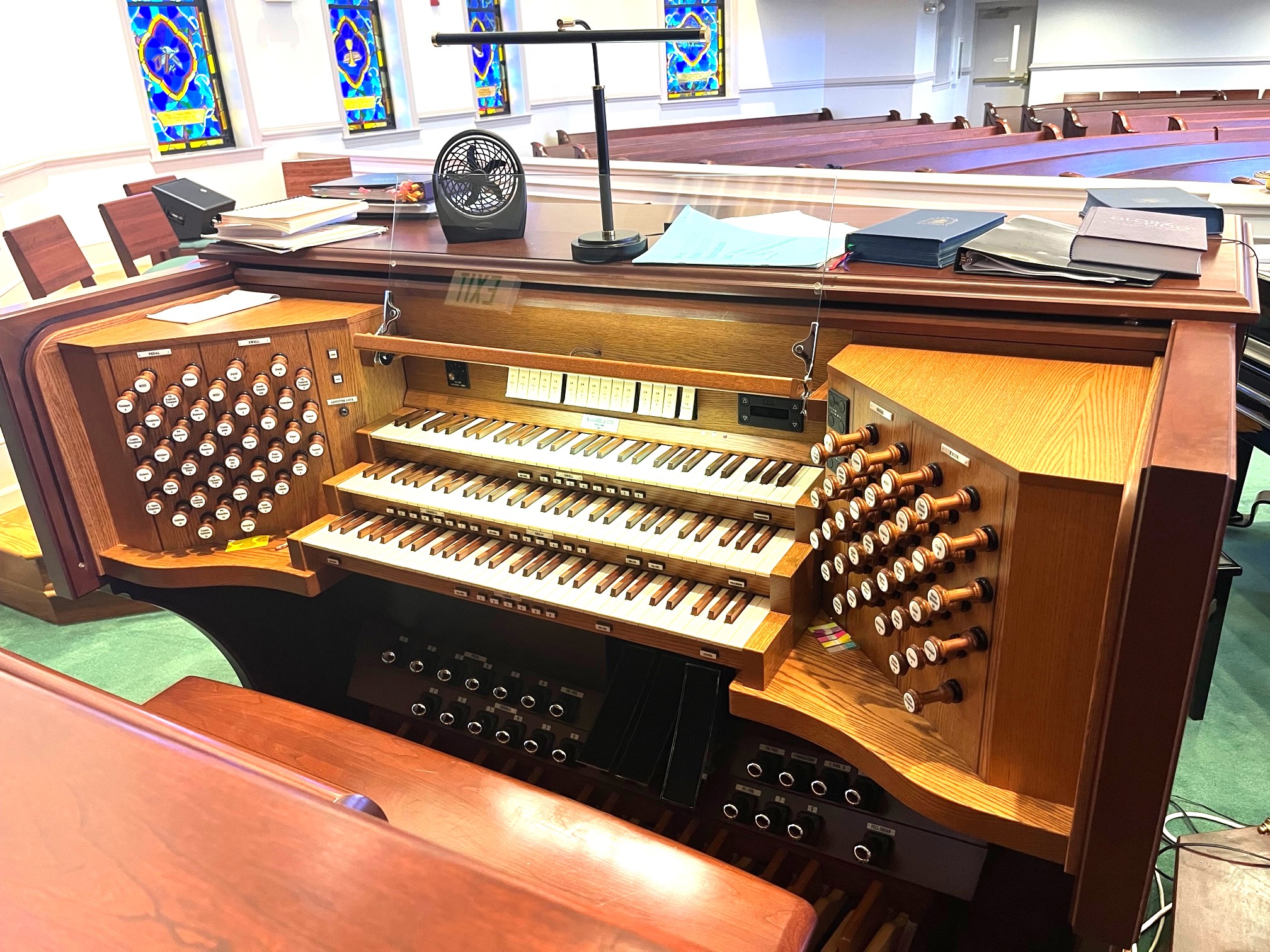

2023-10-04 - Console (Photograph by Jeff Scofield/Jeff Scofield)

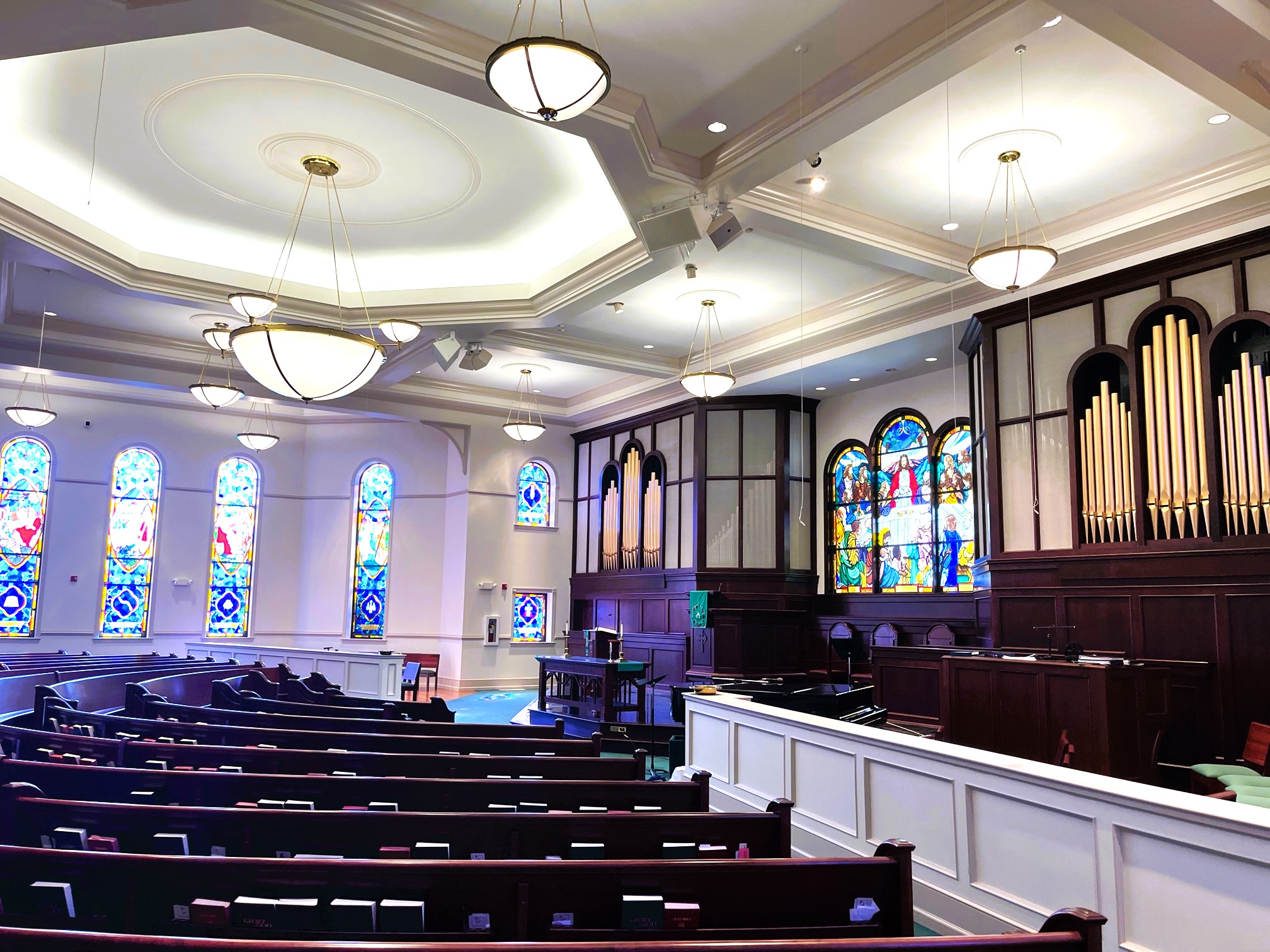

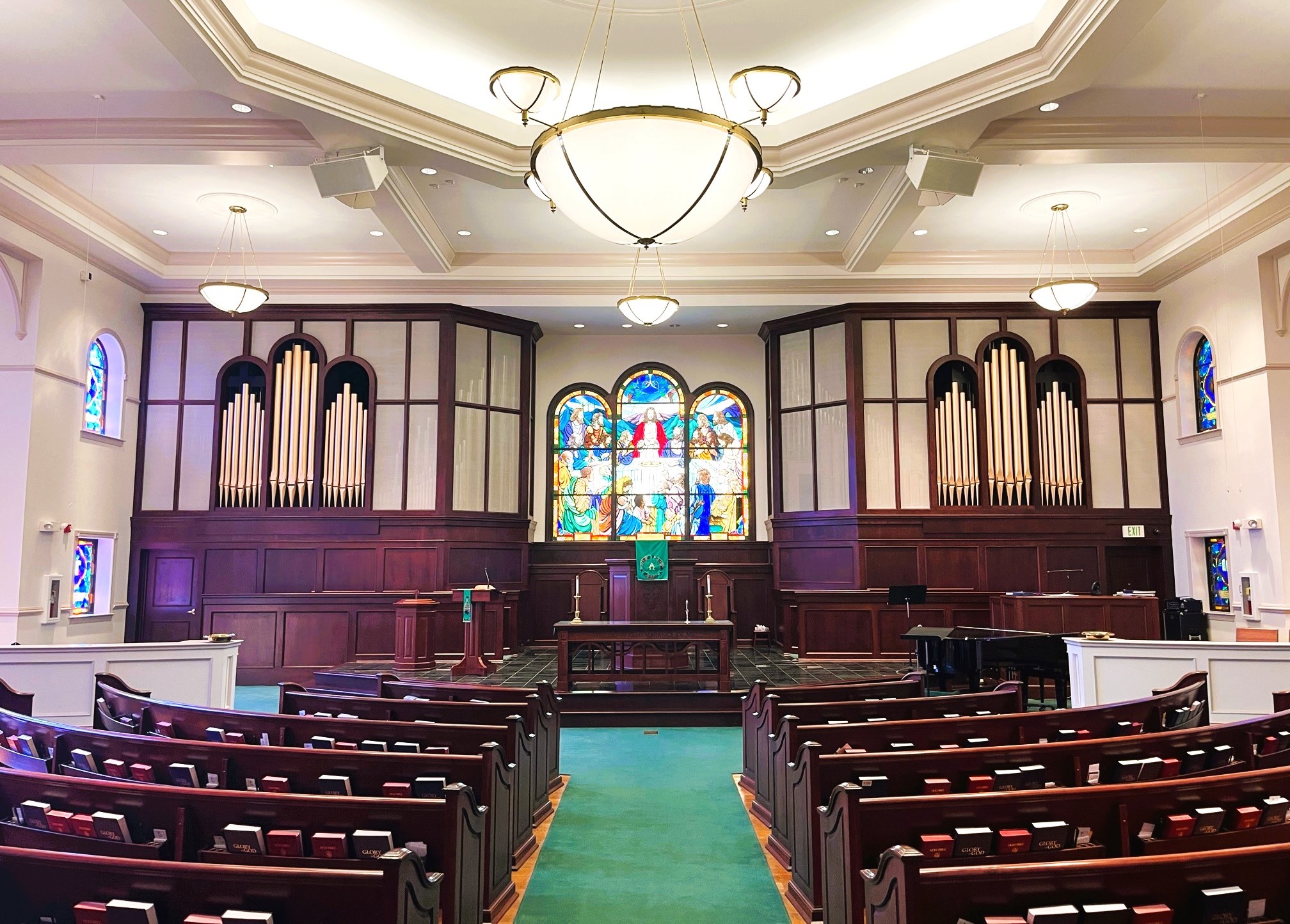

2023-10-04 - Interior and organ (Photograph by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
48 stops
37 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-07-03 - Identified through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Newton, North Carolina
       First Presbyterian Church

       Casavant   Op. 3806   2002   3/47

       Stoplist courtesy of Casavant Frères

       GREAT                             CHOIR
   16' Lieblich Gedeckt 12 (wood)     8' Violin Diapason 61
    8' Open Diapason 61               8' Violin Celeste tc (pf)
    8' Chimney Flute 61 (1-12 wood)   8' Stopped Flute 61
    8' Harmonic Flute 49 *            8' Dulciana 61
    4' Octave 61                      8' Unda Maris 49 tc
    4' Open Flute 61                  4' Fugara 61
    2' Principal 61                   4' Harmonic Flute 61
  III  Cornet (pf)                    2' Principal 61
   IV  Mixture 244                1 1/3' Larigot 61
    8' Trumpet 61                    II  Sesquialtera 122
       Tremulant                    III  Sharp Mixture 183
       Unison Off                     8' Clarinet 61
       Chimes 25                      8' English Horn 61
    8' Festival Trumpet (pf)             Tremulant
       MIDI                              Sub
                                         Unison Off
    *  1-12 from Chimney Flute           Super
                                      8' Festival Trumpet GT
       SWELL                             MIDI
   16' Bourdon (pf)
    8' Diapason (pf)                     PEDAL
    8' Major Flute 61                32' Contra Subbass -- (resultant)
    8' Viole de Gambe 61             16' Double Open Diapason 32
    8' Voix Celeste 49 tc            16' Subbass 32
    4' Principal 61                  16' Lieblich Gedeckt GT
    4' Flute Douce 61                16' Bourdon SW (pf)
2 2/3' Nazard 61                      8' Open Diapason 12
    2' Flute 61                       8' Chimney Flute GT
1 3/5' Tierce 61                      4' Octave 32
III-V  Plein Jeu 292                  4' Chimney Flute GT
   16' Bassoon 61 (1-12 L/2)         IV  Mixture (pf)
    8' Cornopean 61                  32' Contra Trombone 12
    8' Oboe 61                       16' Trombone 32
    4' Clarion 61                    16' Bassoon SW
       Tremulant                      8' Trumpet 12
       Sub                            8' Bassoon SW
       Unison Off                     4' Bassoon SW
       Super                             Chimes
    8' Festival Trumpet GT            8' Festival Trumpet GT
       MIDI                              MIDI

[Received on line from Jeff Scofield July 04, 2009.]

Documents

(2002-05-05) Dedicatory program, via Jeff Scofield -Jeff Scofield
