Better Pipe Organ Database

Casavant Frères Opus 3846 (2005)

First Lutheran Church
1515 N. Cascade Ave.
Colorado Springs, CO

Images

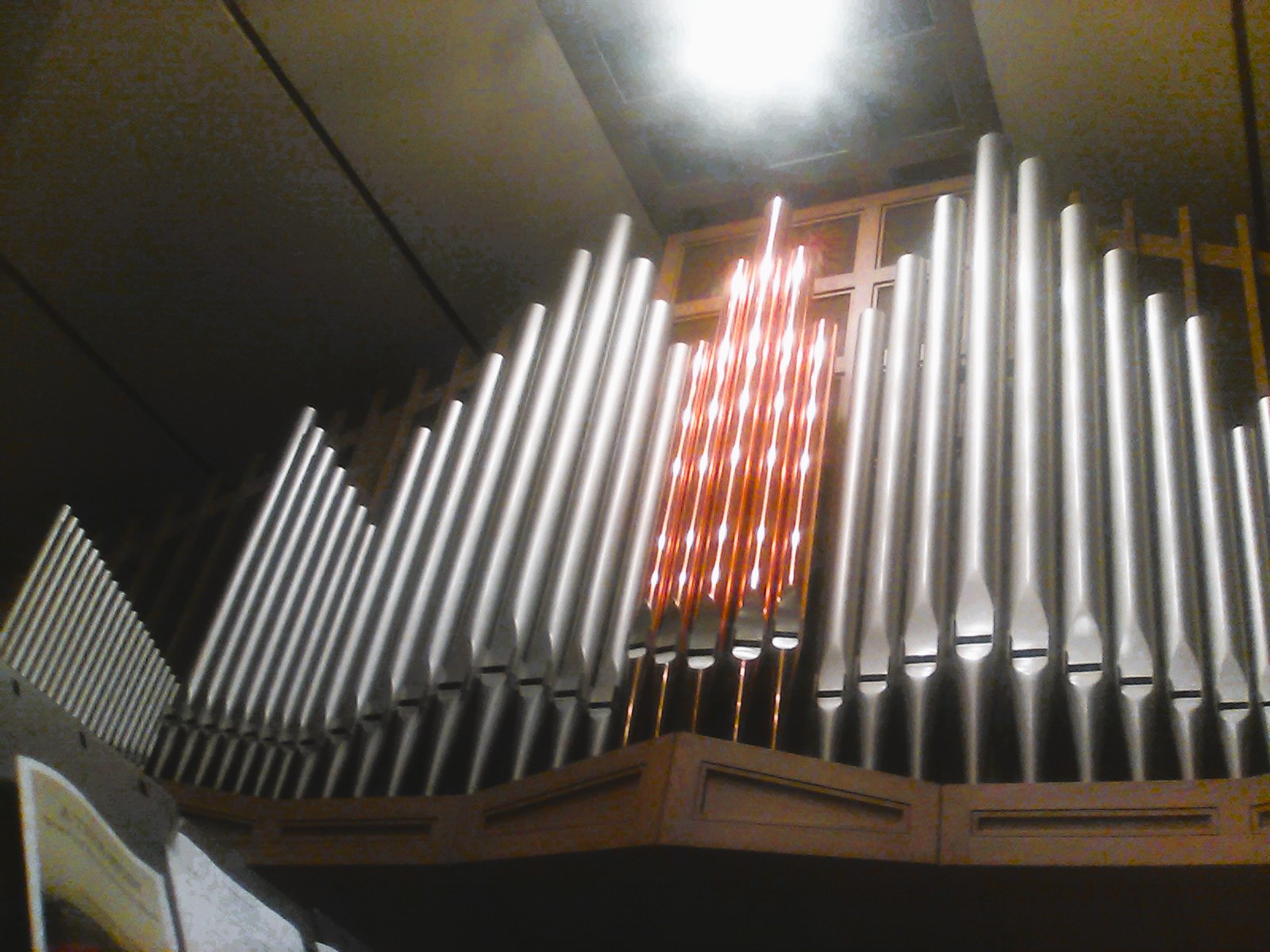

2022-09-06 - Organ case and facade (Photograph by Daniel Wicks/Daniel Wicks)

2022-09-06 - Console (Photograph by Daniel Wicks/Daniel Wicks)

2022-09-14 - Organ in rear gallery (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

2020-03-22 - Sanctuary interior showing organ in rear gallery (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

Undated - Church exterior (Photograph from an archival source: Yelp, submitted by Jim Stettner/Jim Stettner)

Consoles

Gallery

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
3 manuals
32 stops
51 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-07-06 - Identified through online information from Jeff Scofield. -Database Manager

2023-02-08 - The Choir Cromorne was replaced with a new A.R. Schopp's Clarinet c. 2018. The Cromorne pipes are stored in the organ. -Daniel Wicks

Stoplist

Source: Stoplist copied from the factory specifications Date not recorded

Colorado Springs, Colorado
First Lutheran Church

Casavant, Op. 3846, 2005   3/41

Stoplist courtesy of Casavant Frères

       GREAT
16'    Bourdon                   12  (stopped wood)
8'     Principal                 61
8'     Chimney Flute             61
8'     Harmonic Flute            49  1-12 from Chimney Flute
4'     Prestant                  61
4'     Conical Flute             61
2'     Fifteenth                 61
IV     Mixture                  244
16'    Bassoon             (Sw)  --
8'     Trumpet                   61
4'     Clarion                   --  From Trumpet; top 8ve rpts
       Tremulant
       Chimes
       Harp

Unison Off


       SWELL (Expressive)
8'     Principal                 61
8'     Cor de nuit               61
8'     Viola da gamba            61
8'     Voix Céleste        (tc)  49
4'     Octave                    61
4'     Spindle Flute             61 *
2 2/3' Nazard                    61
2'     Octavin                   61
1 3/5' Tierce                    61
III-IV Plein Jeu                227
16'    Bassoon              L/2  12
8'     Trumpet                   61
8'     Oboe                      61
       Tremulant

Sub
Unison Off
Super

    *  Chimney flute in bass;
       Koppelflöte in treble

       CHOIR (Expressive)
8'     Bourdon                   61
8'     Gemshorn                  61  (1-12 stopped)
8'     Gemshorn Céleste    (tc)  49
4'     Principal                 61
4'     Harmonic Flute            61
2'     Principal                 61
III    Cymbale                  183
8'     Cromorne                  61
8'     Oboe                (Sw)  --
       Tremulant

Sub
Unison Off
Super


       PEDAL
32'    Resultant                 --
16'    Contra Bass               12  (existing, wood)
16'    Sub Bass                  32
16'    Bourdon             (Gt)  --
8'     Octave Bass               32
8'     Chimney Flute       (Gt)  --
4'     Octave                    32
4'     Chimney Flute       (Gt)  --
II     Mixture                   64
16'    Trombone            (Gt)  12  Full Length
16'    Bassoon             (Sw)  --
8'     Trumpet             (Gt)  --
8'     Oboe                (Sw)  --
4'     Clairon             (Gt)  --
4'     Oboe                (Sw)  --


[Received on line from Jeff Scofield July 09, 2009.]

Documents

(2005-06-30) Dedication program, via Jeff Scofield -Jeff Scofield
