Columbia Organ Works (1994)

St. Andrew's United Methodist Church: Church Nave
West Main St. and Old Mill Road
Valley View, PA

Images

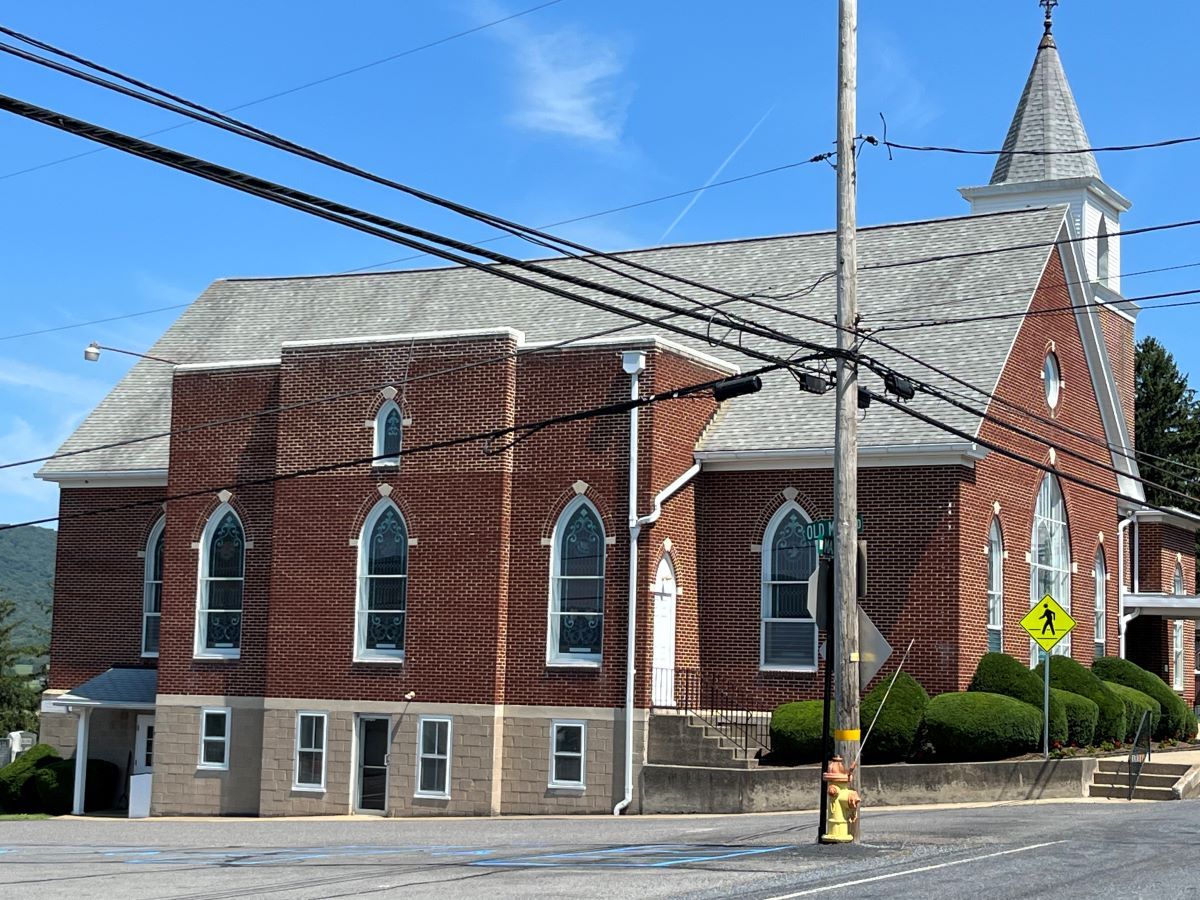

2023-08-19 - St. Andrew's UMC, west view (Photograph by Jack Umholtz/Jack Umholtz)

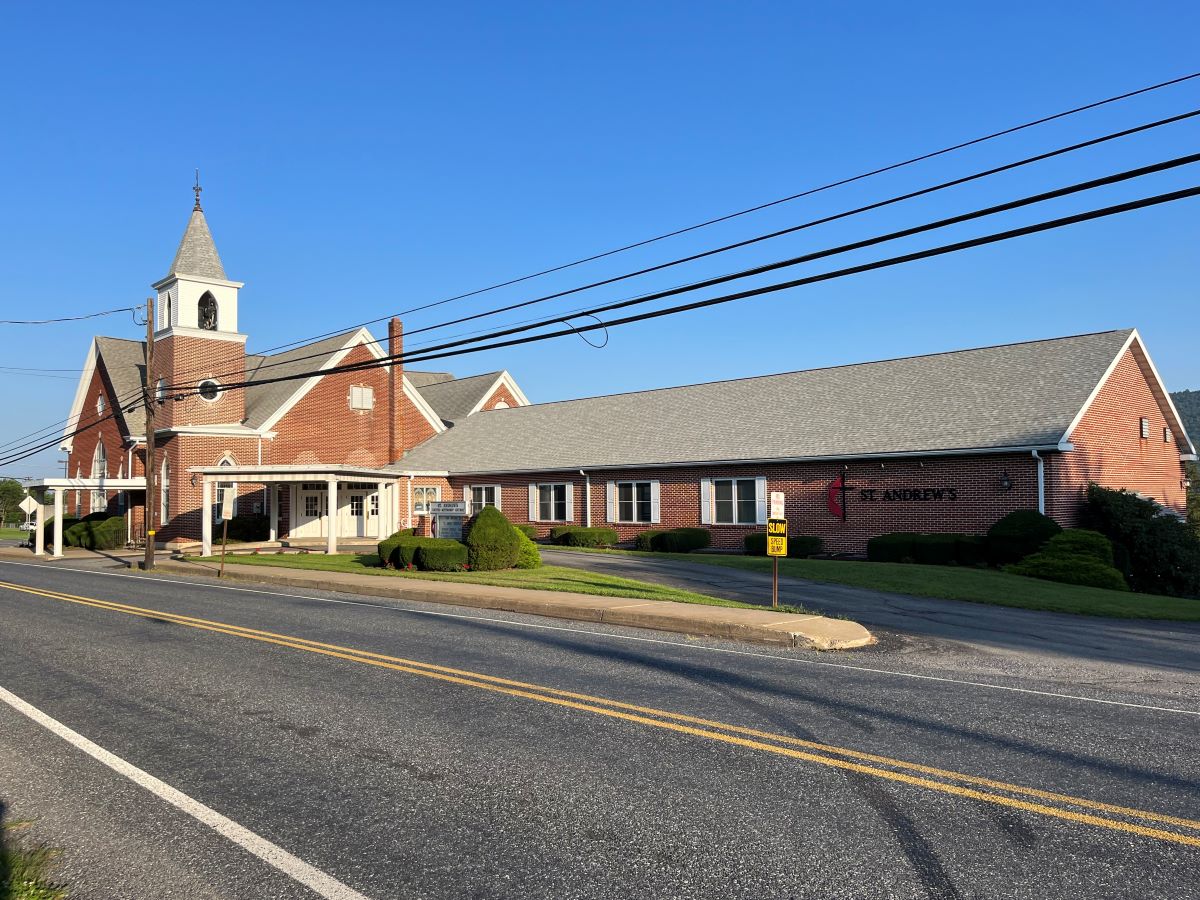

2023-08-19 - St. Andrew's street view from the east. (Photograph by Jack Umholtz/Jack Umholtz)

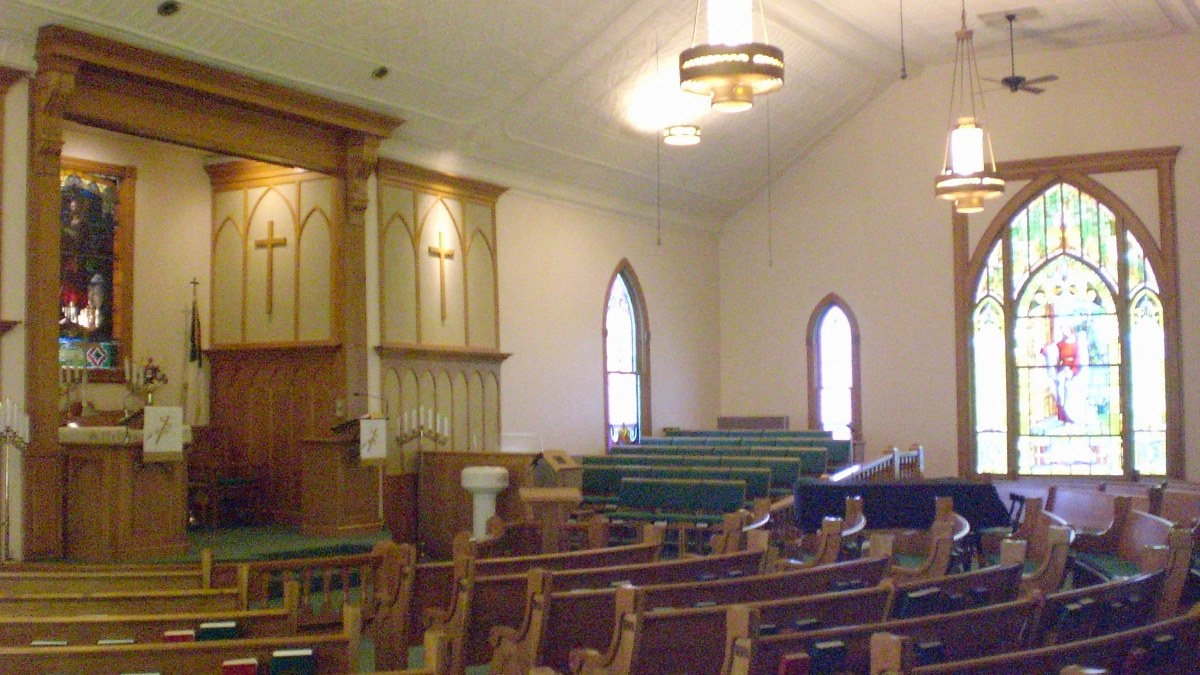

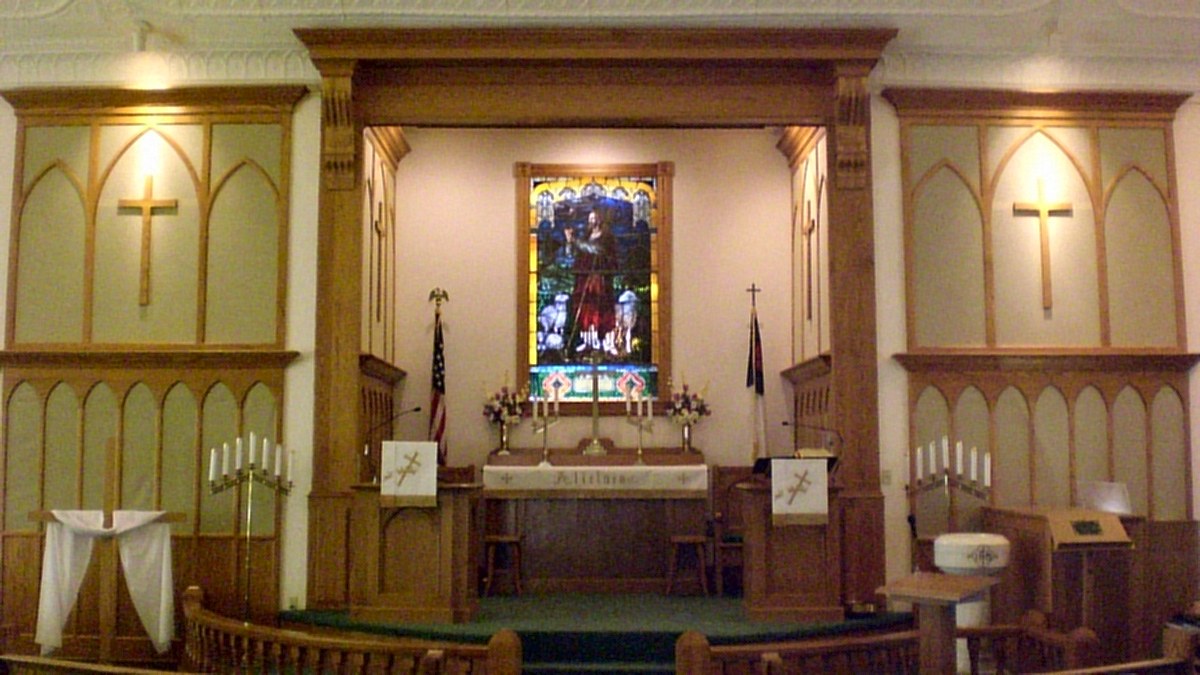

2012-04-09 - Chancel (Photograph by Jack Umholtz/Database Manager)

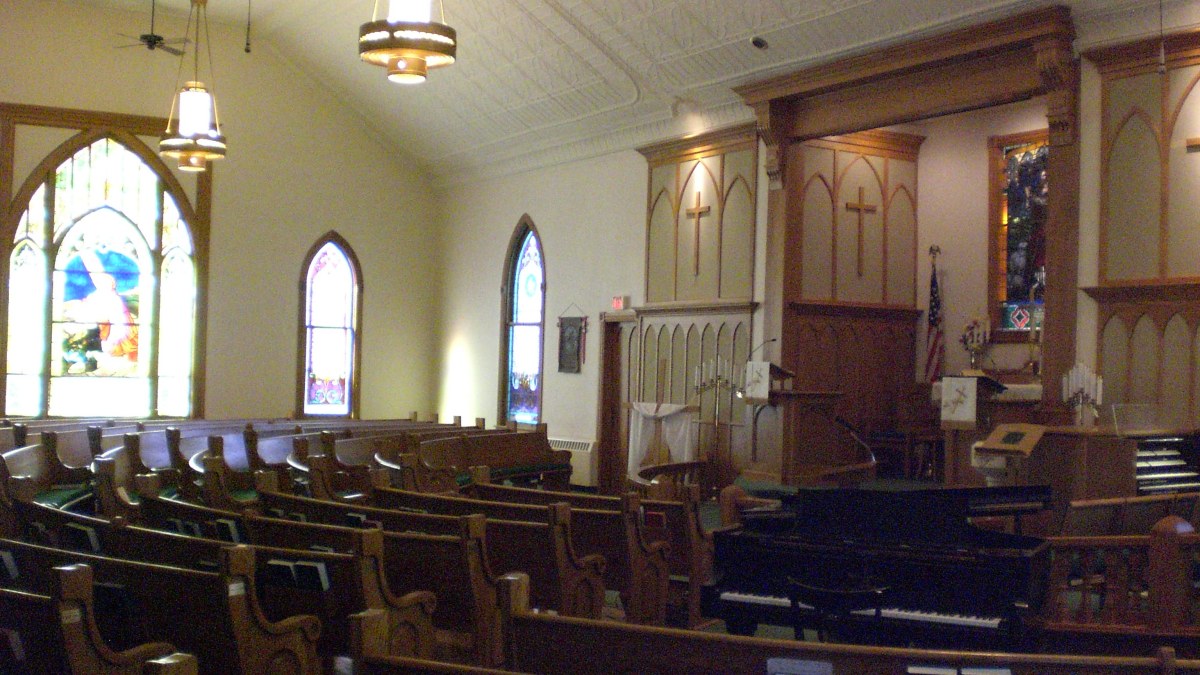

2012-04-09 - Chancel looking to Great Chamber and Console (Photograph by Jack Umholtz/Database Manager)

2012-04-09 - Chancel looking to Swell Chamber (Photograph by Jack Umholtz/Database Manager)

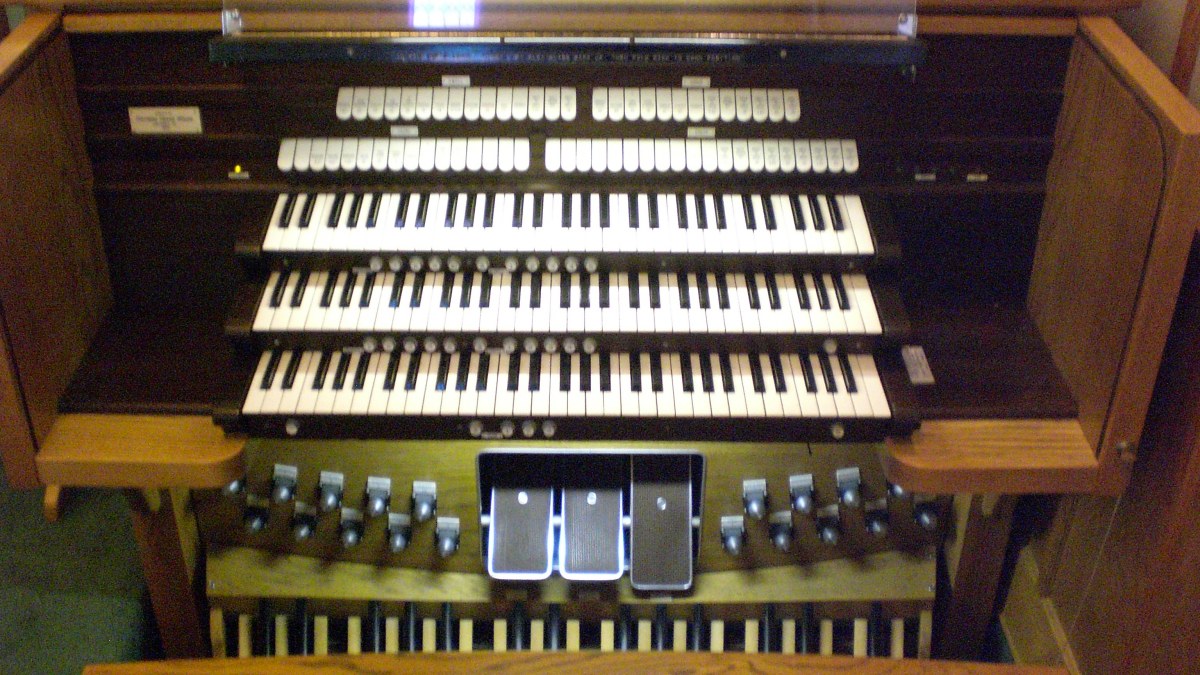

2012-04-09 - Console (Photograph by Jack Umholtz/Database Manager)

2012-04-09 - Console Detail - Swell and Pedal Stop Keys (Photograph by Jack Umholtz/Database Manager)

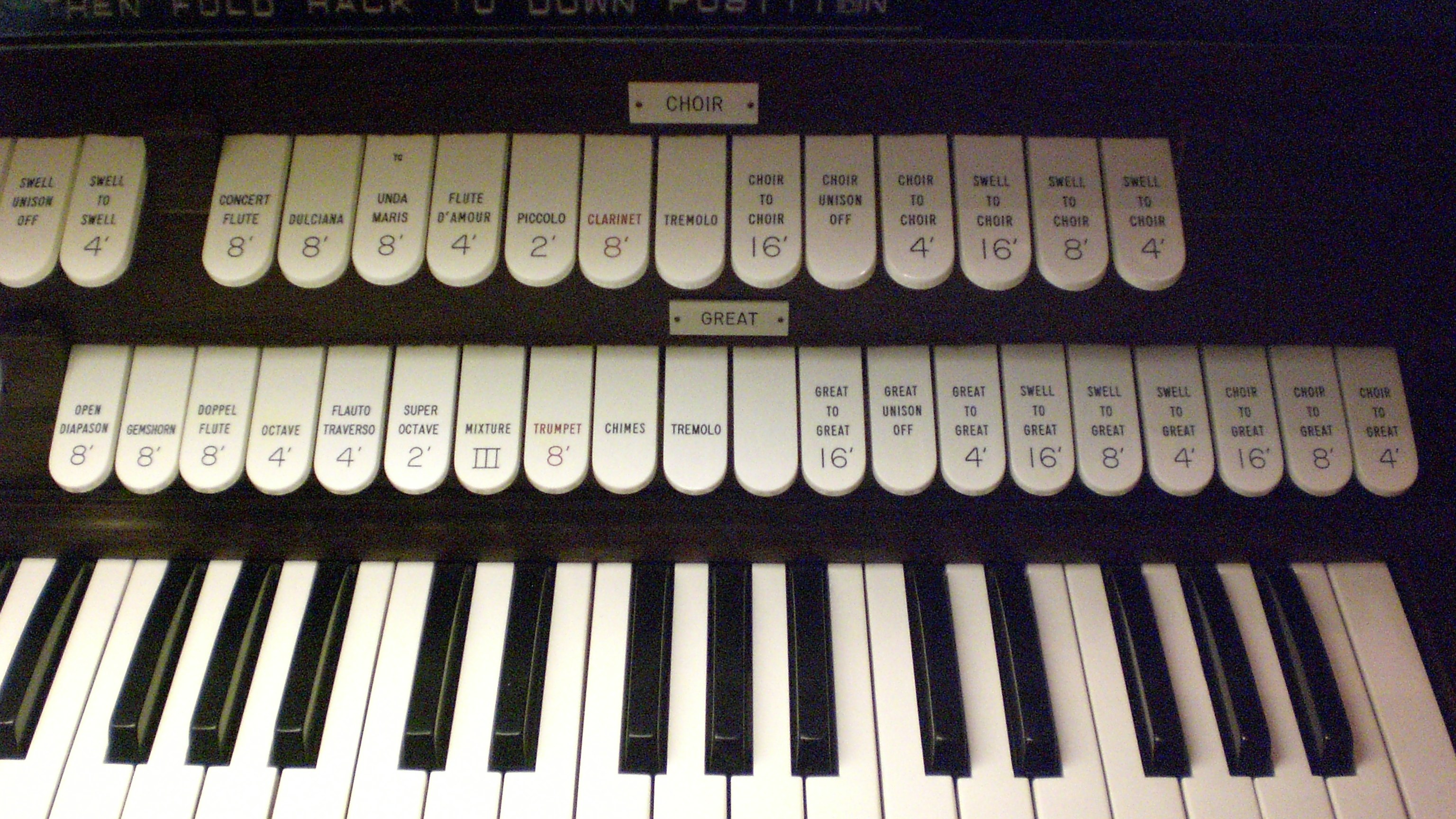

2012-04-09 - Console Detail - Great and Choir Stop Keys (Photograph by Jack Umholtz/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
24 stops
34 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-08-04 - Identified through on-line information from Jack Umholtz. -- This organ, Austin Opus 411 minus Echo, was purchased from St. Paul's Episcopal Church in Columbia, PA, where it was installed in the late 1940's/early 1950's. Most of the pipework from Austin 411 was installed on Electro-Pneumatic chests and was configured to fit in the available space. A totally new Great chorus was installed. -Database Manager

Stoplist

Source: Stoplist taken from console August 2009

Valley View, Pennsylvania
St. Andrew's United Methodist Church

Columbia Organ Works           1994     3/26

       GREAT
8'     Open Diapason          61  New 1994
8'     Doppelflute            61  Kimball
8'     Gemshorn               61  Austin
4'     Octave                 61  New 1994
4'     Flauto Traverso        61  Austin
2'     Super Octave           61  New 1994
III    Mixture               183  New 1994
8'     Trumpet                61  Austin
       Tremolo
       Blank
       Chimes

Great to Great 16'
Great Unison Off
Great to Great 4'


       SWELL (Expressive)
16'    Bourdon                61  Austin
8'     Open Diapason          61  Austin
8'     Gedeckt                12  ext. Bdn.
8'     Viole D'Orchestre      61  Austin
8'     Vox Celeste      (tc)  49
4'     Principal              61  New 1994
4'     Flute                  12  ext. Bdn.
2 2/3' Nazard                 61
2'     Flautino               12  ext. Bdn.
8'     Cornopean              61  Austin
8'     Oboe                   61  Austin
       Tremolo

Swell to Swell 16'
Swell Unison Off
Swell to Swell 4'


       CHOIR (Expressive)
8'     Concert Flute          61  Austin
8'     Dulciana               61  Austin
8'     Unda Maris       (tc)  49
4'     Flute D'Amour          61  Austin
2'     Piccolo                61  Austin
8'     Clarinet               61  Austin
       Tremolo

Choir to Choir 16'
Choir Unison Off
Choir to Choir 4'


       PEDAL
       Blank
       Blank
32'    Resultant              --
16'    Violone                32  Austin
16'    Bourdon          (Sw)  --
8'     Cello                  12  ext. 16'
8'     Bass Flute       (Sw)  --
4'     Choral Bass            32  New 1994
16'    Trombone               12  Gt. Trpt
8'     Trumpet          (Gt)  --


       INTER-DIVISIONAL COUPLERS
Swell to Pedal              8,4
Great to Pedal              8,4
Choir to Pedal              8,4

Swell to Great           16,8,4
Choir to Great           16,8,4

Swell to Choir           16,8,4


      FINGER PISTONS
General                  1 - 10
Swell                     1 - 5
  Sw to Ped               (rev)
Great                     1 - 5
  Gt to Ped               (rev)
Choir                     1 - 3
  Ch to Ped               (rev)
SFZ                       (rev)
Set
Cancel


      TOE STUDS
General                  1 - 10
Pedal                     1 - 5
Swell to Pedal            (rev)
Great to Pedal            (rev)
Choir to Pedal            (rev)
Sforzando                 (rev)


      PEDAL MOVEMENTS
Swell Expression         (bal.)
Choir Expression         (bal.)
Crescendo                (bal.)


[Received on line from Jack Umholtz  August 05, 2009.]
[Updated/augmented by James R. Stettner  September 4, 2023.]
