Schantz Organ Co. Opus 1534 (1978)

Seventh Reformed Church: Sanctuary
950 Leonard Street NW
Grand Rapids, MI

Images

2009-08-03 - Nave and Balcony (Photograph by Chad Boorsma/Database Manager)

2009-08-03 - Console (Photograph by Chad Boorsma/Database Manager)

2009-08-03 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

2009-08-03 - Chancel and Chamber Grillework (Photograph by Chad Boorsma/Database Manager)

2009-08-03 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

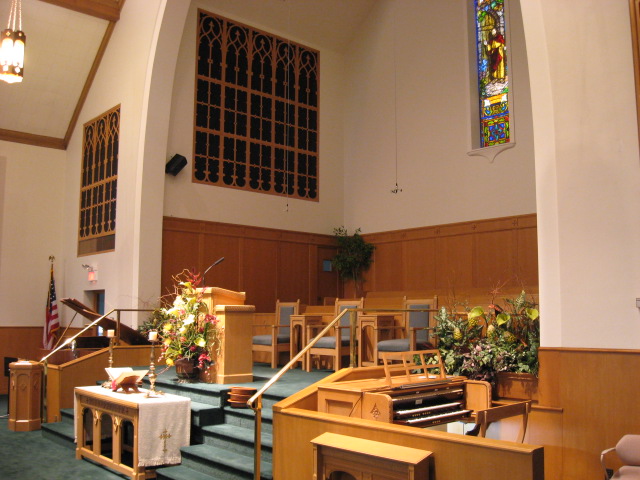

2009-08-03 - Chancel and Console (Photograph by Chad Boorsma/Database Manager)

2009-08-03 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

2009-08-03 - Console (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
32 stops
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2009-08-04 - Identified through on-line information from Chad Boorsma. -- The organ was originally built by Schantz with 15 ranks. It was expanded a second time by Donald Haan when he added digital voices in 1997. The Great division of the organ is under expression in the right chamber, while the Swell division is under expression in the left. The digital stops are available on both manuals or the pedal. Speakers are located in the main chambers and also in the balcony for the echo sounds. A dedication concert for the expanded organ was held November 16, 1997, with Joanne Jansen at the console. -Database Manager

Stoplist

Stoplist provided by the Schantz Organ Company Source: Source not recorded Date not recorded

Grand Rapids, Michigan
SEVENTH REFORMED CHURCH

Schantz Organ Company     Opus 172     1953/1978    21 ranks
______________________________________________________________________________________________

GREAT:                       SWELL:                           PEDAL:
  8' Open Diapason    73         16' Rohrgedeckt                16' Double Open Diapason  12
  8' Hohlfloete       73          8' Geigen Diapason   73       16' Bourdon               32
  8' Dulciana         73          8' Rohrfloete        73       16' Rohrgedeckt           12
  4' Octave           73          8' Salicional        73        8' Octave                GT
  4' Open Flute       12          8' Voix Celeste [TC] 61        8' Bass Flute            12
  4' Dulciana         12          4' Geigen Octave     12        8' Rohrfloete            SW
  2' Fifteenth        61          4' Rohrfloete                  4' Super Octave          GT
 IV  Mixture         244*         4' Violina           12        4' Flute                 12
     Chimes           pf      2 2/3' Nazard                     16' Fagot                 32*
     Tremulant                    2' Piccolo           12
                                III  Mixture          183
                                  8' Trompette         73+
                                  8' Oboe [TC]         73+
                                  8' Krummhorn         73*
                                  4' Oboe Clarion      12+
                                     Tremulant

   *new pipes and chests in 1978
   +pipes replaced in 1978

[Received online from Chad Boorsma • July 18, 2015]

Related Pipe Organ Database Entries

#41692 - Schantz Organ Co. Opus 172 (1953)
