Better Pipe Organ Database

Schantz Organ Co. Opus 2175 (2000)

Grace-St. Luke's Episcopal Church
1720 Peabody Avenue
Memphis, TN

Images

2012-07-24 - Stained Glass Windows (Photograph by Jeff Scofield/Database Manager)

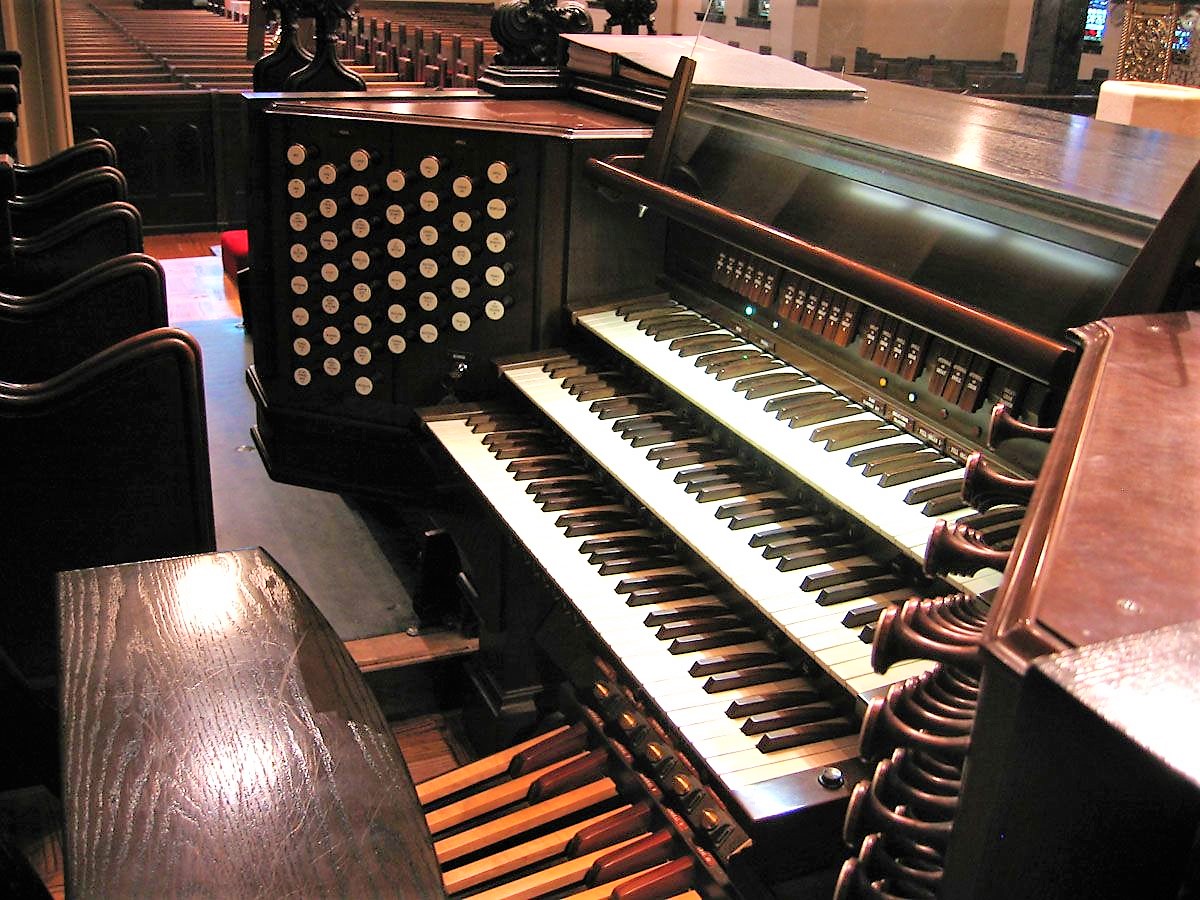

2012-07-24 - Console (Photograph by Jeff Scofield/Database Manager)

2012-07-24 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)

2012-07-24 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

2012-07-24 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)

2012-07-24 - Organ Case (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
3 manuals
45 stops
67 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-08-12 - Identified through online information from Jeff Scofield. -- Replaced 1966 3/36 Möller Op. 10200 -Database Manager

Stoplist

Stoplist copied from a company flyer Source: Source not recorded Date not recorded

       Memphis, Tennessee
       Grace-St. Luke's Episcopal Church

       Schantz   Op. 2175   2000   3/58

       GREAT                           SWELL
   16' Double Open Diapason 61     16' Stopped Bass 61
    8' First Open Diapason 61       8' Diapason 61
    8' Second Open Diapason 12      8' Chimney Flute 12
    8' Bourdon 49                   8' Salicional 61
    8' Harmonic Flute 61            8' Celeste 54
    4' Octave 61                    8' Voix Celeste II 110
    4' Spire Flute 61               4' Octave 61
2 2/3' Twelfth 61                   4' Traverse Flute 61
    2' Fifteenth 61             2 2/3' Nasard 61
1 3/5' Seventeenth 61               2' Block Flute 61
    V  Mixture 305              1 3/5' Tierce 61
   16' Double Trumpet 61           IV  Full Mixture 244
    8' Tromba 12                   16' Contra Oboe 61
       Tremulant                    8' Harmonic Trumpet 61
       Sub                          8' Oboe 12
       Unison Off                   8' Vox Humana 61
       Super                        4' Clarion 61
    8' Tuba CH                         Tremulant
       Chimes                          Sub
       MIDI                            Unison Off
                                       Super
       CHOIR                           MIDI
    8' Diapason 61
    8' Violoncello 61                  PEDAL
    8' Violoncello Celeste 49      32' Dylan Wooper Bass (cornet)
    8' Major Flute 49              32' Untersatz   dg
    8' Gedeckt 61                  16' Contra Bass 32
    4' Principal 61                16' Double Open Diapason GT
    4' Koppel Flute 61             16' Bourdon 32
    2' Octave 61                   16' Stopped Bass SW
1 1/3' Larigot 61                   8' Octave 12
   IV  Sharp Mixture 244            8' Second Open Diapason GT
   16' Bass Clarinet 61             8' Bourdon 12
    8' Clarinet 12                  8' Stopped Bass SW
    8' English Horn 61              4' Fifteenth 32
       Tremulant                    4' Flute 12
       Sub                        III  Mixture 96
       Unison Off                  32' Ophicleide dg
       Super                       16' Trombone 32
    8' Tuba 61                     16' Double Trumpet GT
       Harp (pf)                   16' Contra Oboe SW
       Zimbelstern                 16' Bass Clarinet SW
       MIDI                         8' Trumpet 32
                                    8' Oboe SW
       ANTIPHONAL (pf)              4' Clarion 12
    8' Diapason                     8' Tuba CH
    8' Bourdon                         MIDI
    4' Principal
    4' Flute                           ANTIPHONAL PEDAL (pf)
   IV  Mixture                     16' Bourdon
       MIDI                         8' Bourdon

[Received on line from Jeff Scofield August 13, 2009.]
