Schantz Organ Co. Opus 947 (1969)

Pacific Hills Lutheran Church
1110 S. 90th Street
Omaha, NE

Images

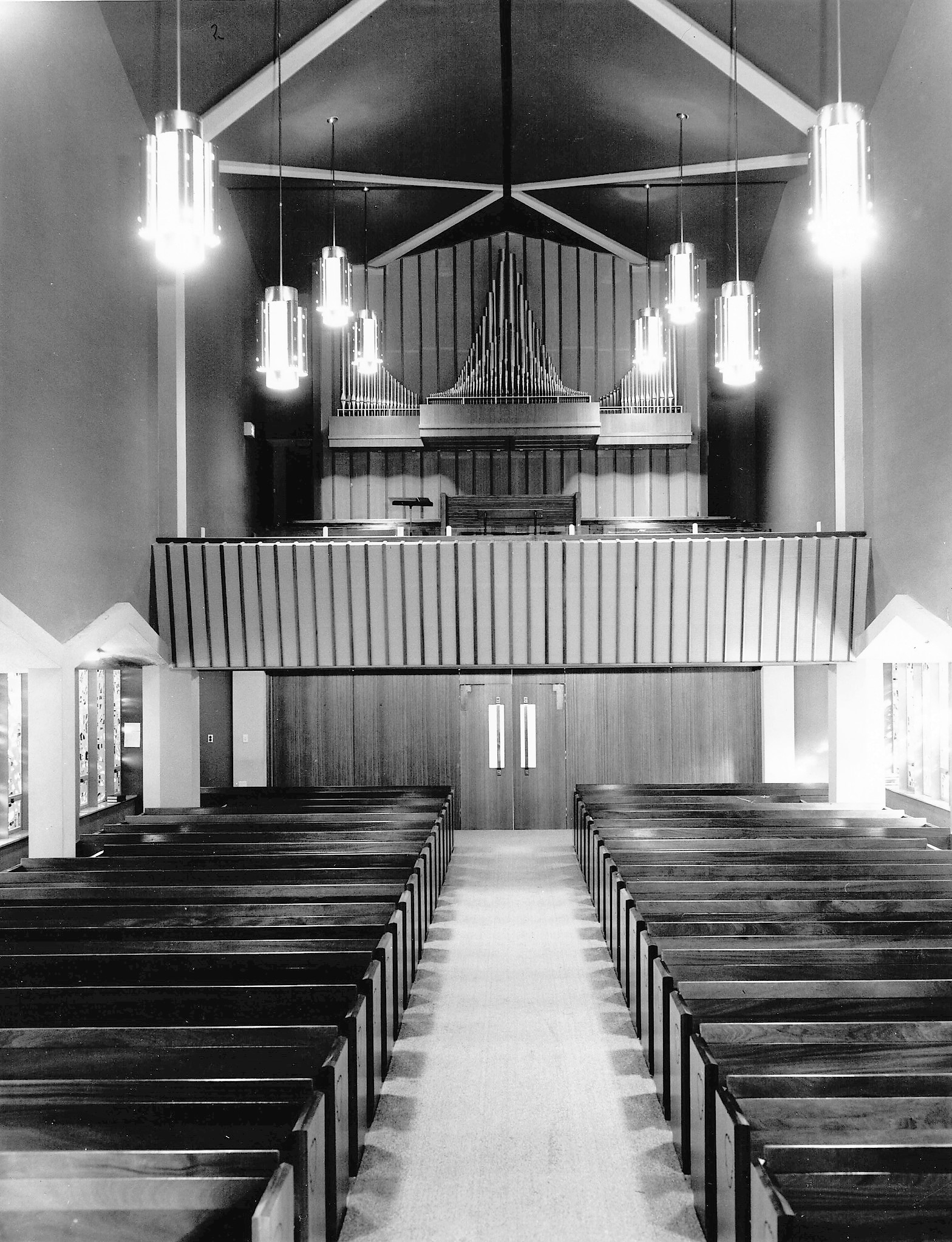

1969 - Church interior to rear, organ and exposed pipes (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

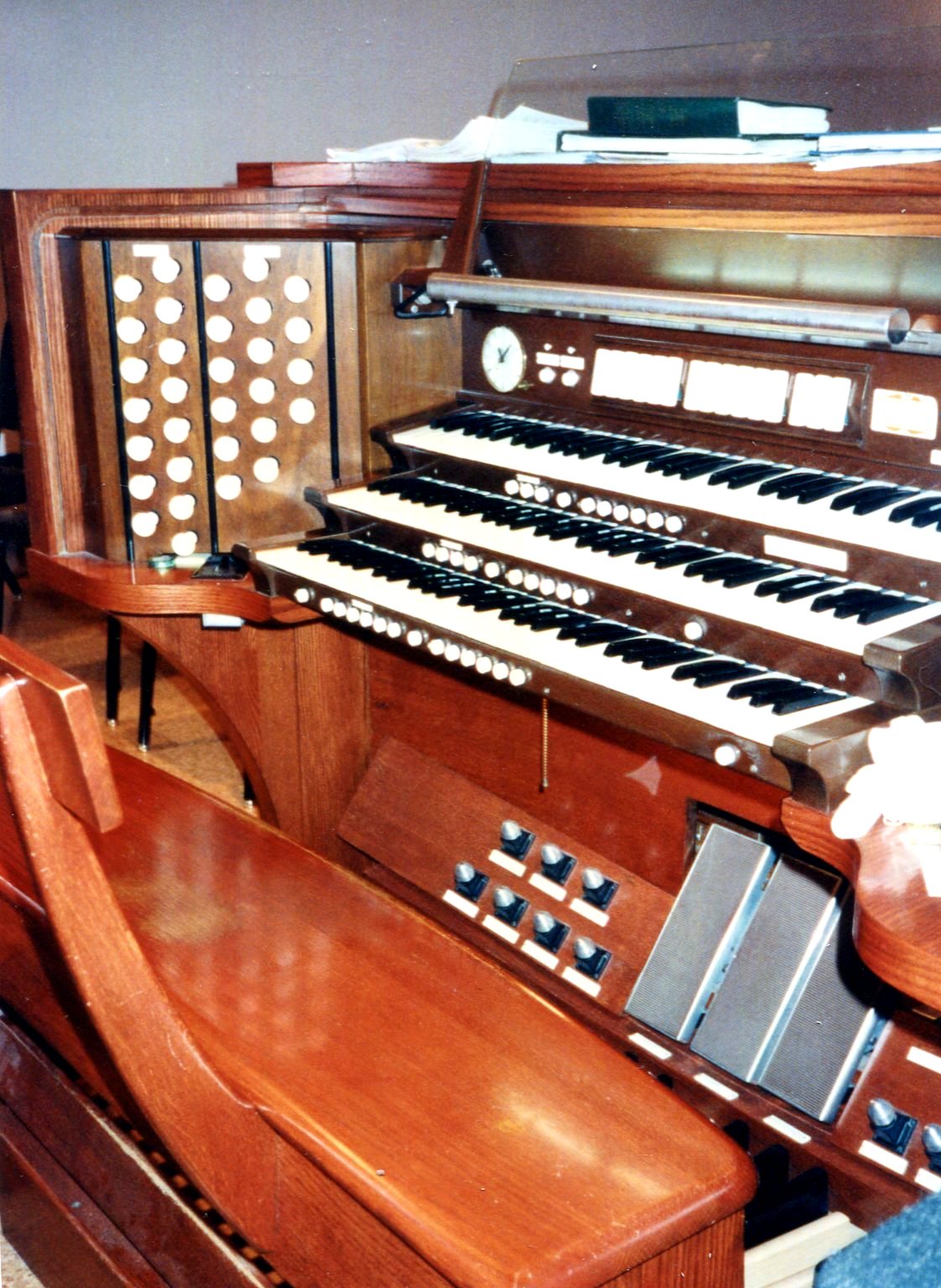

1992-05-26 - Console to left (Photograph by Jeff Scofield/Database Manager)

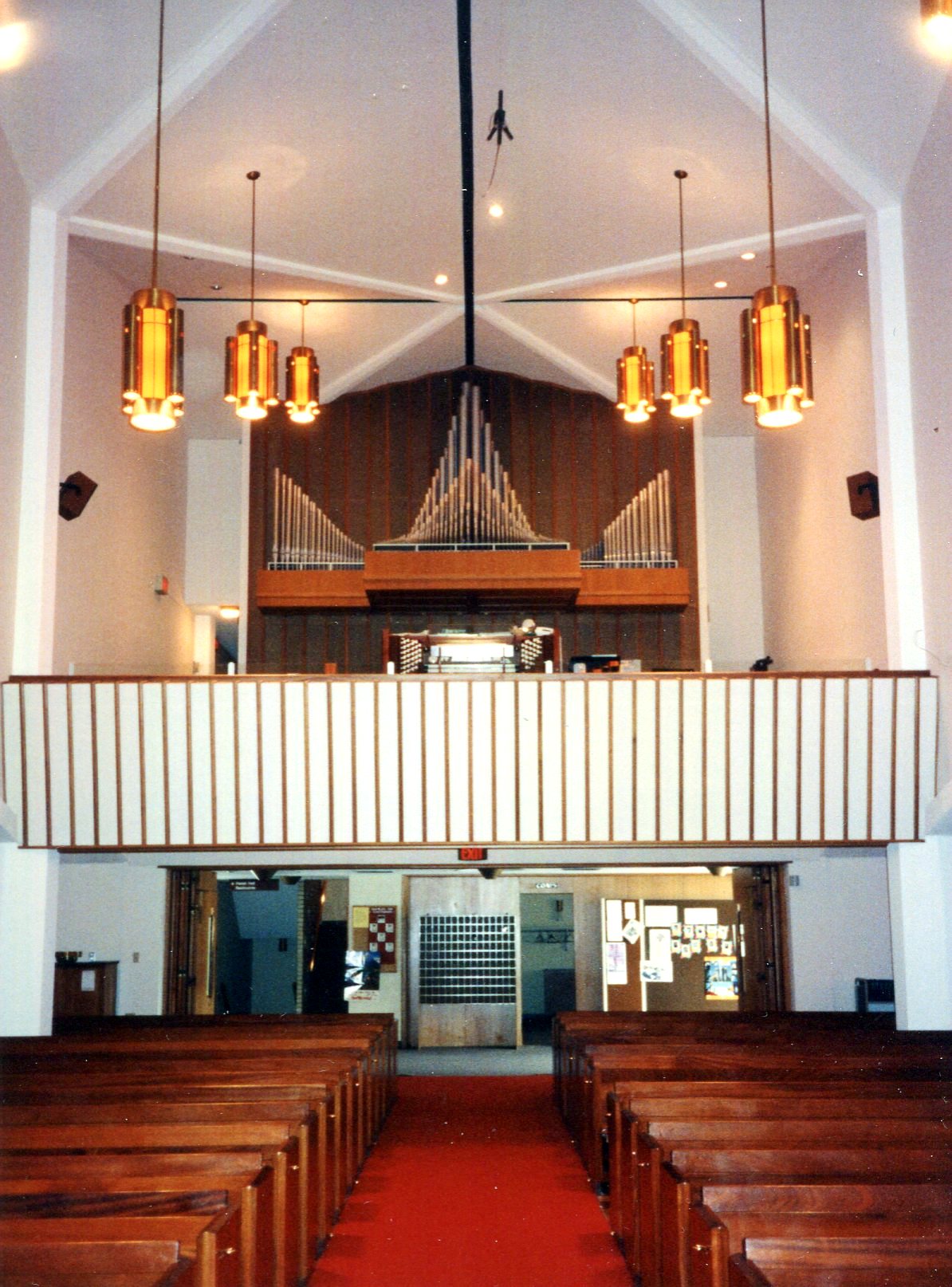

1992-05-26 - Gallery organ and exposed pipes (Photograph by Jeff Scofield/Database Manager)

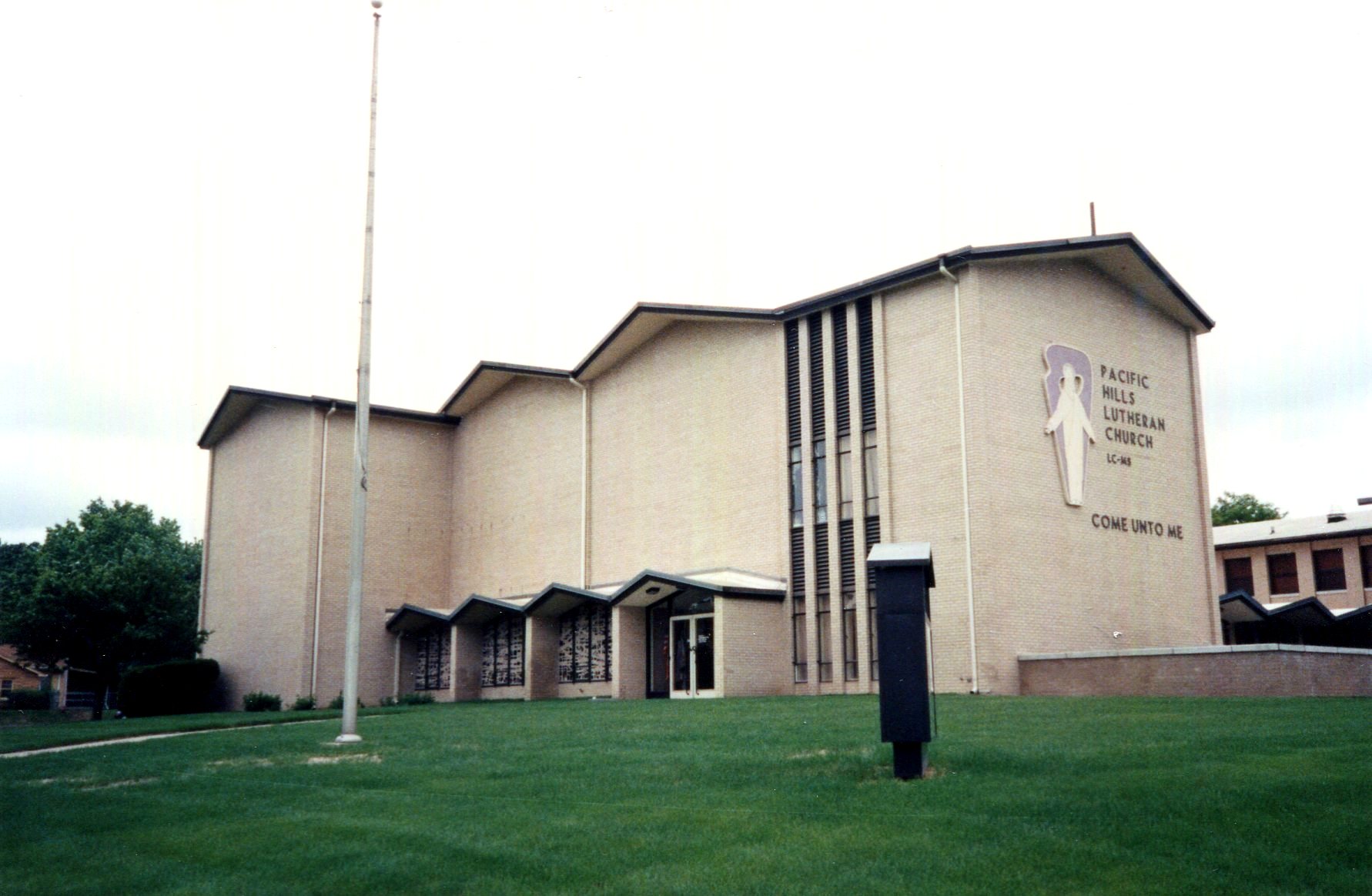

1992-05-26 - Church exterior (Photograph by Jeff Scofield/Database Manager)

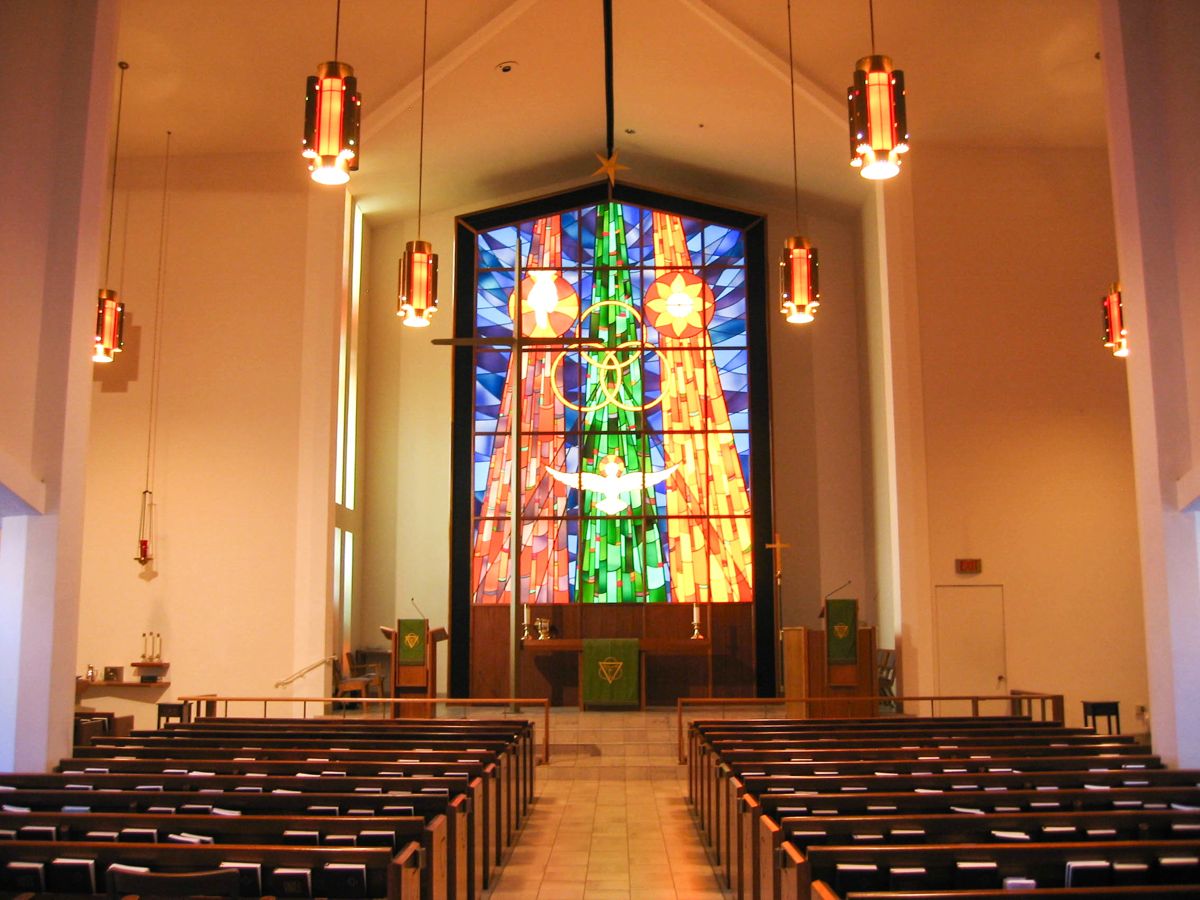

2014-11-12 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)

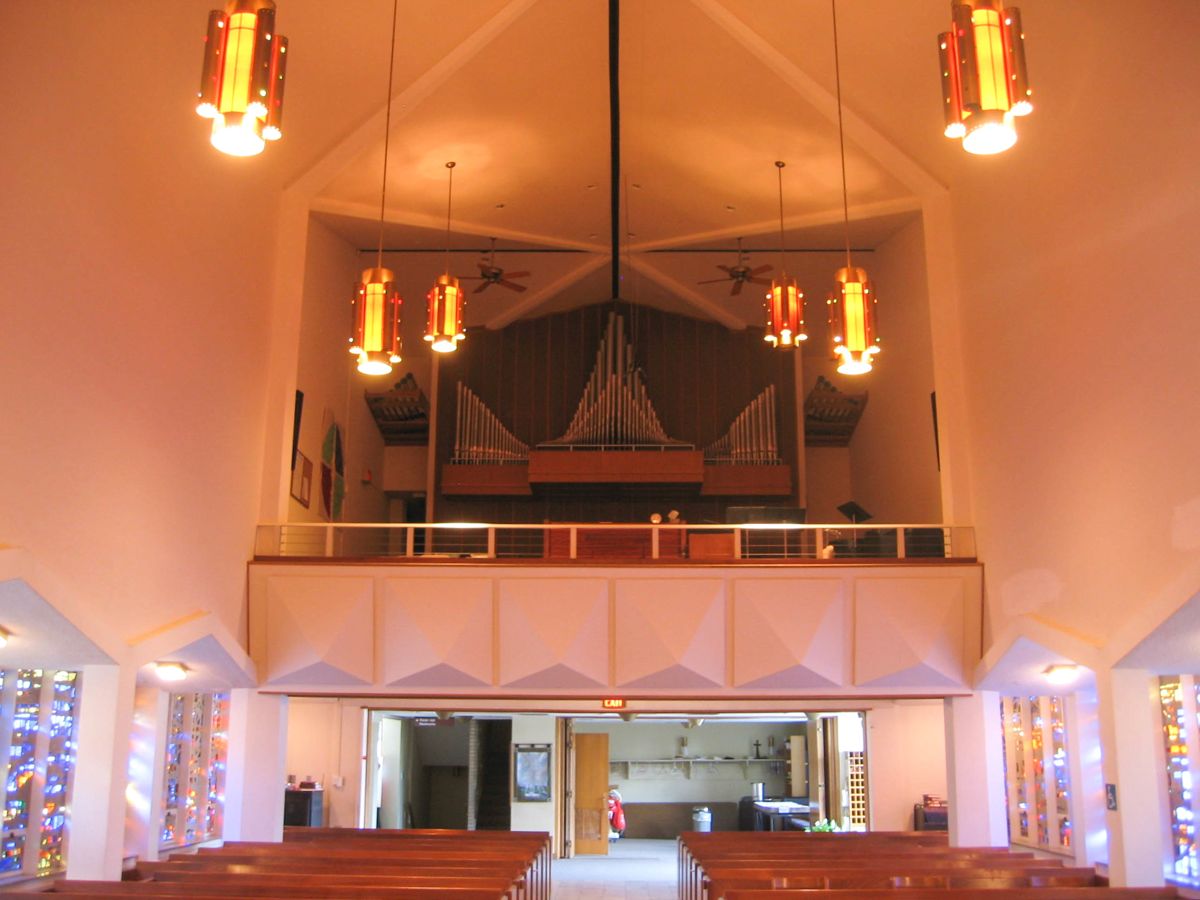

2014-11-12 - Nave, Balcony, and Pipe Display (Photograph by Jeff Scofield/Database Manager)

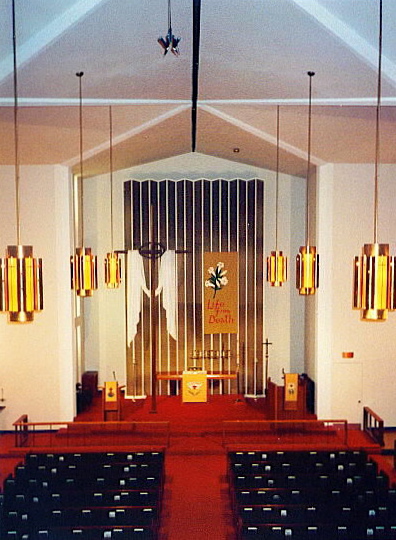

1992-05-26 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)

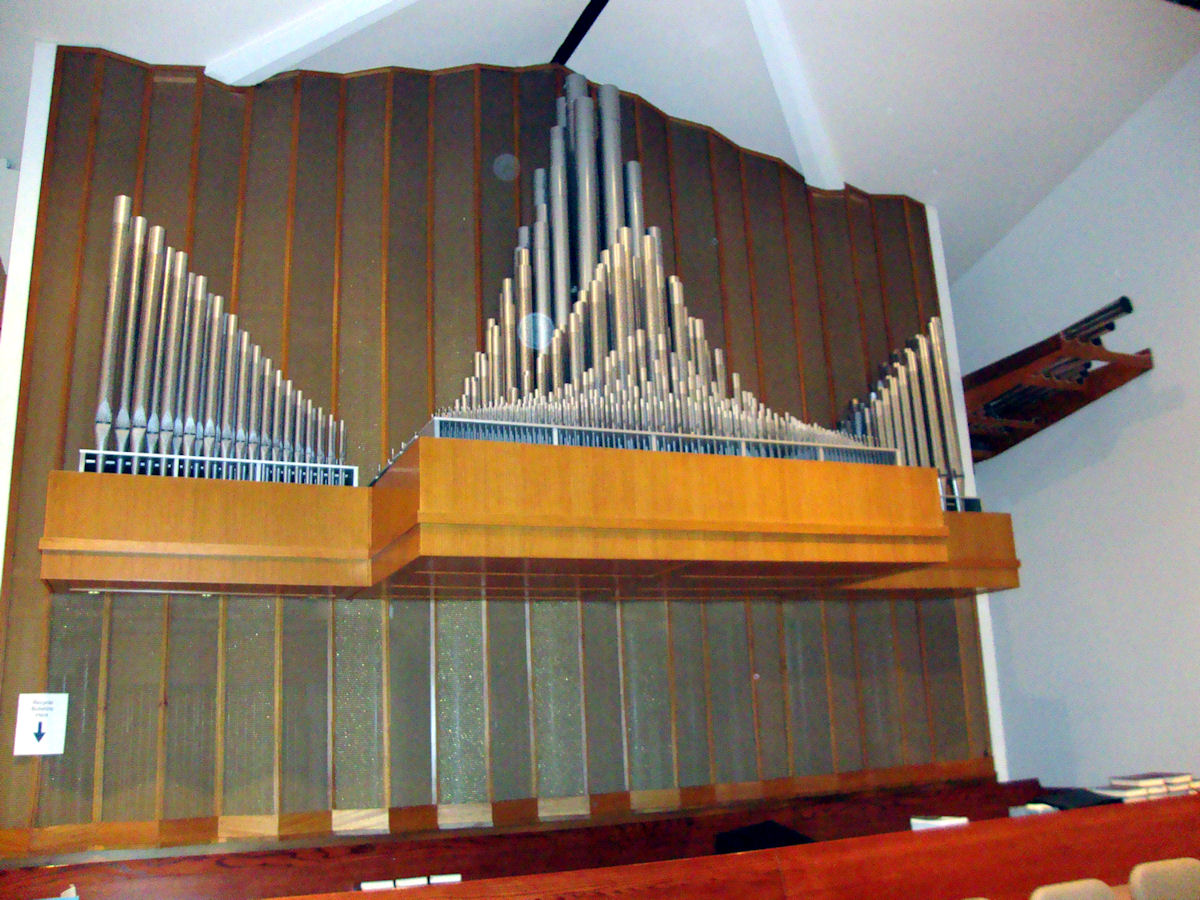

2009-07-21 - Exposed pipes (Photograph by Ray Ahrens/Database Manager)

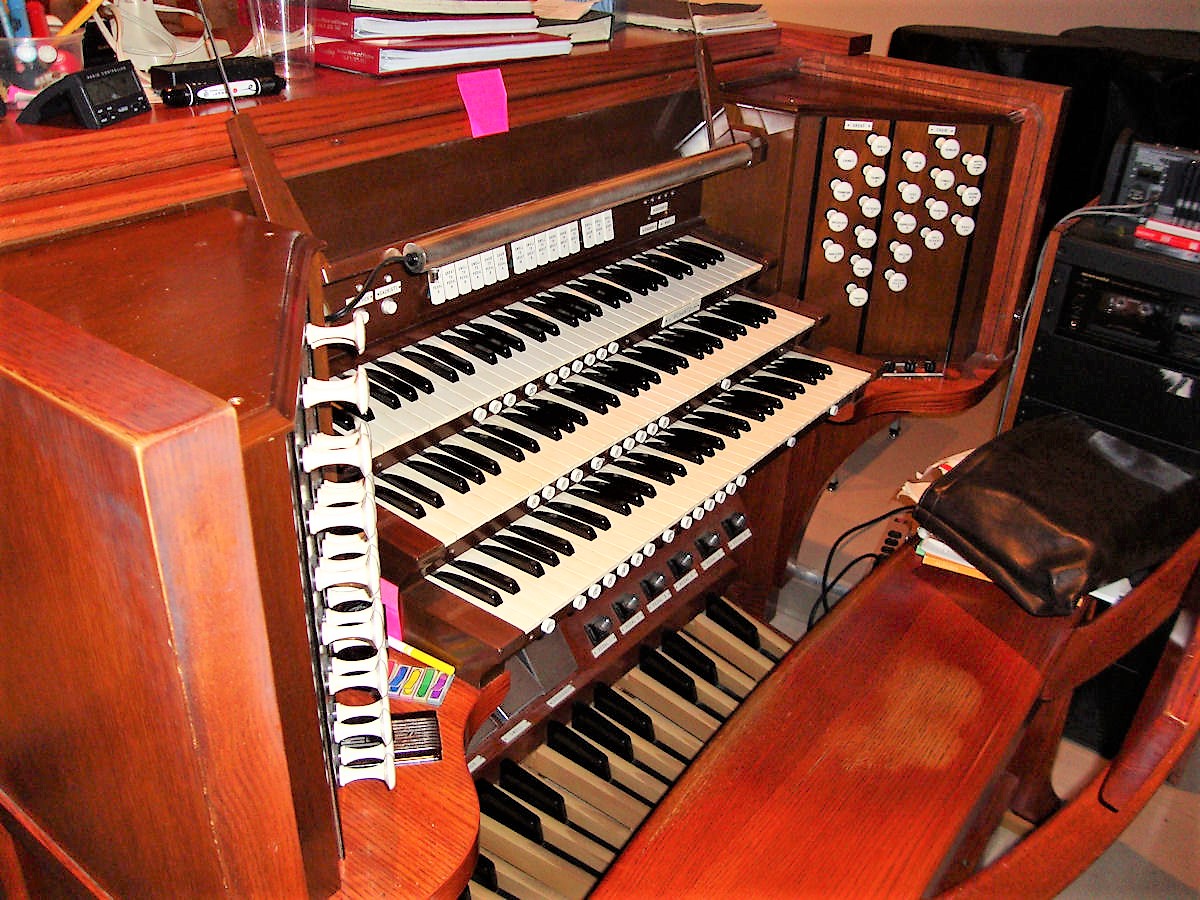

2009-07-21 - Console (Photograph by Ray Ahrens/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
29 stops
41 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-08-20 - Identified through online information from Ray Ahrens. -- Later altered by Gene Bedient. -Database Manager

2010-08-29 - Updated through online information from James R. Stettner. -Database Manager

2011-04-18 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist taken from console August 19, 2009 Source: Source not recorded Date not recorded

Pacific Hills Lutheran Church LCMS
Omaha, Nebraska

Schantz 1972/Revised Gene Bedient


Great:                Swell:                       Choir:

16'  Principal         8'  Geigen Principal        8'  Holzgedeckt
 8'  Principal             Rohrflote                   Dolcan
     Hohlflote             Viole                       Dolcan Celeste
 4'  Octave                Viole Celeste           4'  Koppelflote
     Spitzflote        4'  Principal (ext 8)   2 2/3'  Nasat
 2'  Fifteenth             Flute Harmonique        2'  Principal
     Fourniture IV     2'  Waldflote           1 3/5'  Terz
 8'  Trumpet               Scharff III                 Cymbale III
     Chimes           16'  Contra Fagot (ext 8)    8'  Krummhorn
     Gt 4              8'  Trompette                   Martin Luther
                           Oboe Fagot                     Trumpet
                       4'  Fagot (ext 8)               Tremulant
                           Tremulant                   Ch 16'
                       Sw 16' U/O 4'


     Pedal:

     16'  Principal   (a)                Standard couplers
          Subbass     (b)                Zimbelstern (w/ controls)
 10 2/3'  Quinte      (c)                Pistons:
      8'  Principal   (a)                  General 7
          Flute       (b)                  Great   5
  5 1/3'  Quinte      (c)                  Swell   6
      4'  Choralbass  (a)                  Choir   6
          Flute       (b)
          Mixture III
     16'  Posaune      (ext Gt Trpt)
          Contra Fagot (Sw)
      8'  Trompete     (Gt)
          Fagot        (Sw)
      4'  Clarion      (Gt)
          Krummhorn    (Ch)

[Received on line from Ray Ahrens August 21, 2009.]
