Martin F. Pasi (1993)

Phinney Ridge Lutheran Church
7500 Greenwood Ave.N.
Seattle, WA

Images

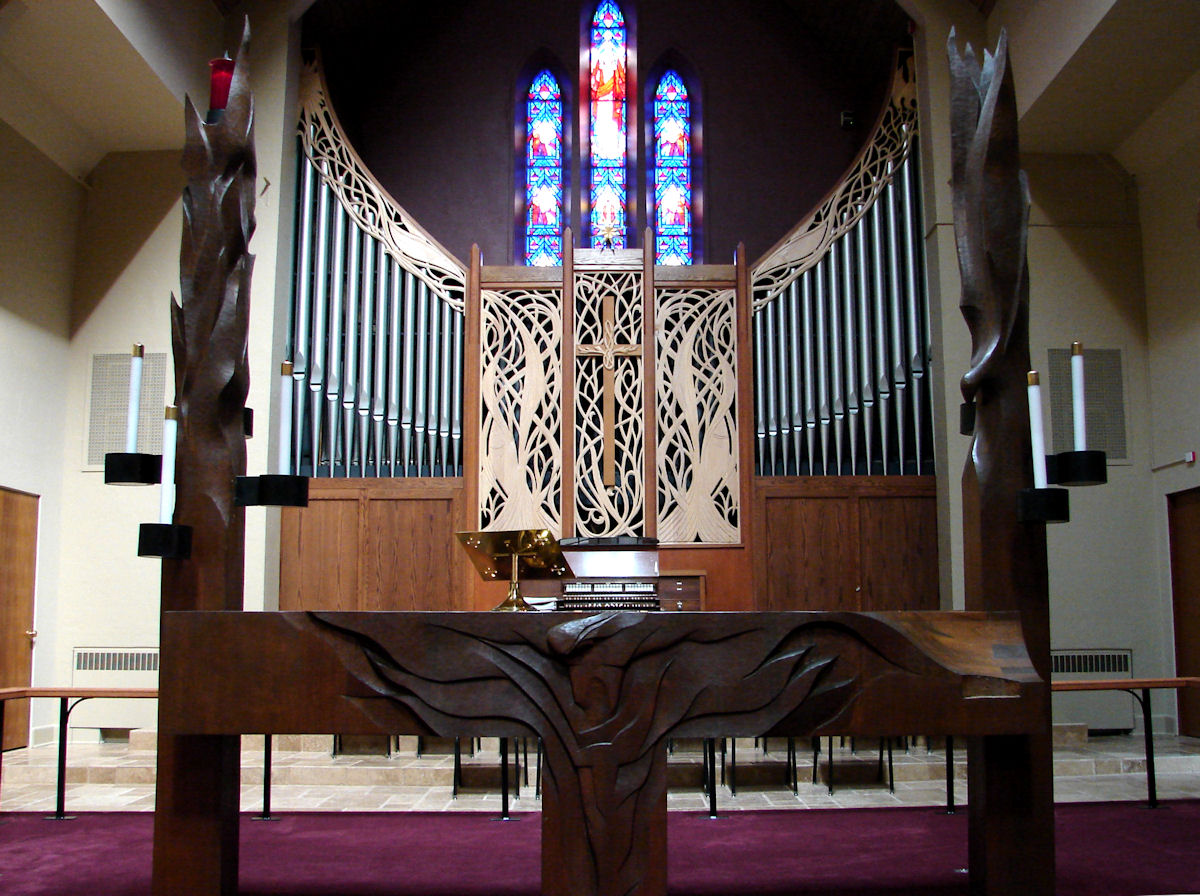

2009-08-31 - Altar and organ (Photograph by Michael A. Way/Database Manager)

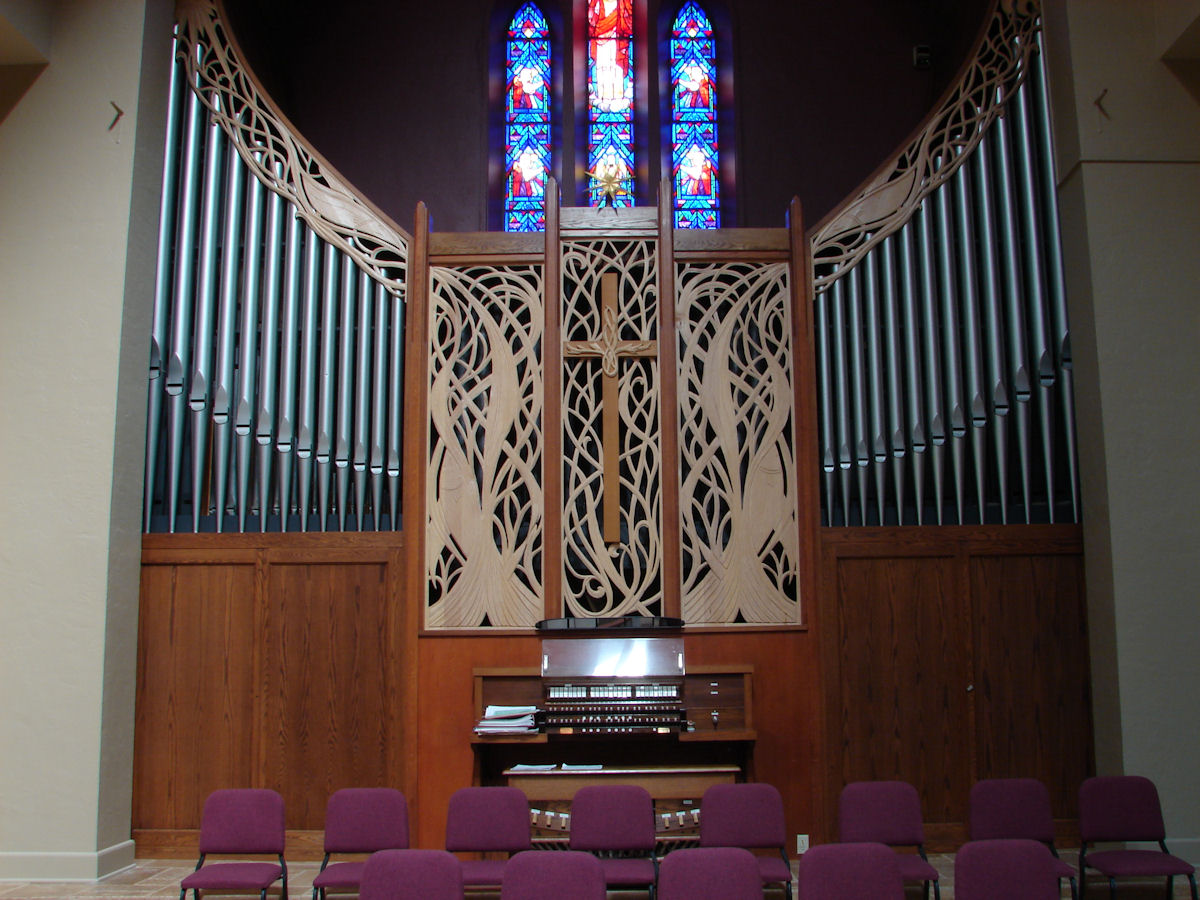

2009-08-31 - Organ (Photograph by Michael A. Way/Database Manager)

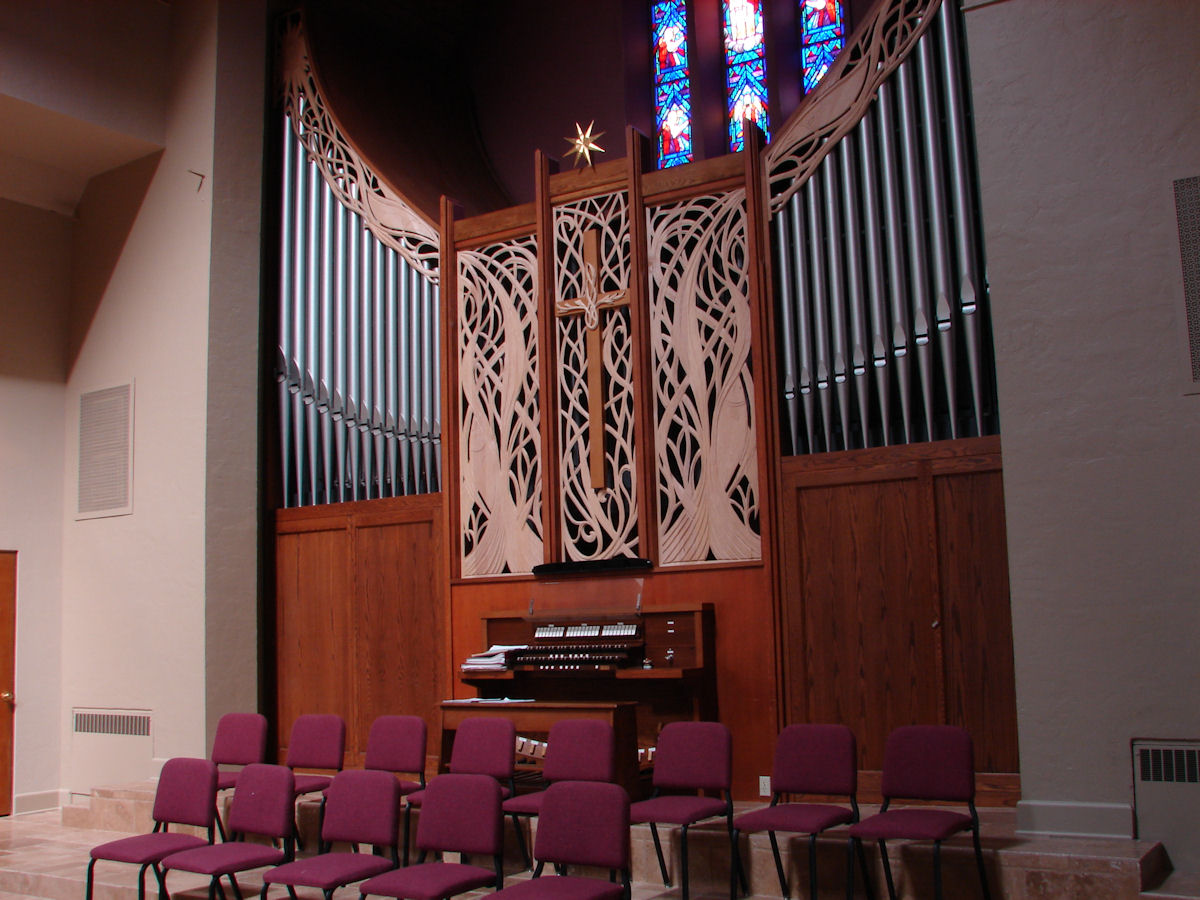

2009-08-31 - Organ from right (Photograph by Michael A. Way/Database Manager)

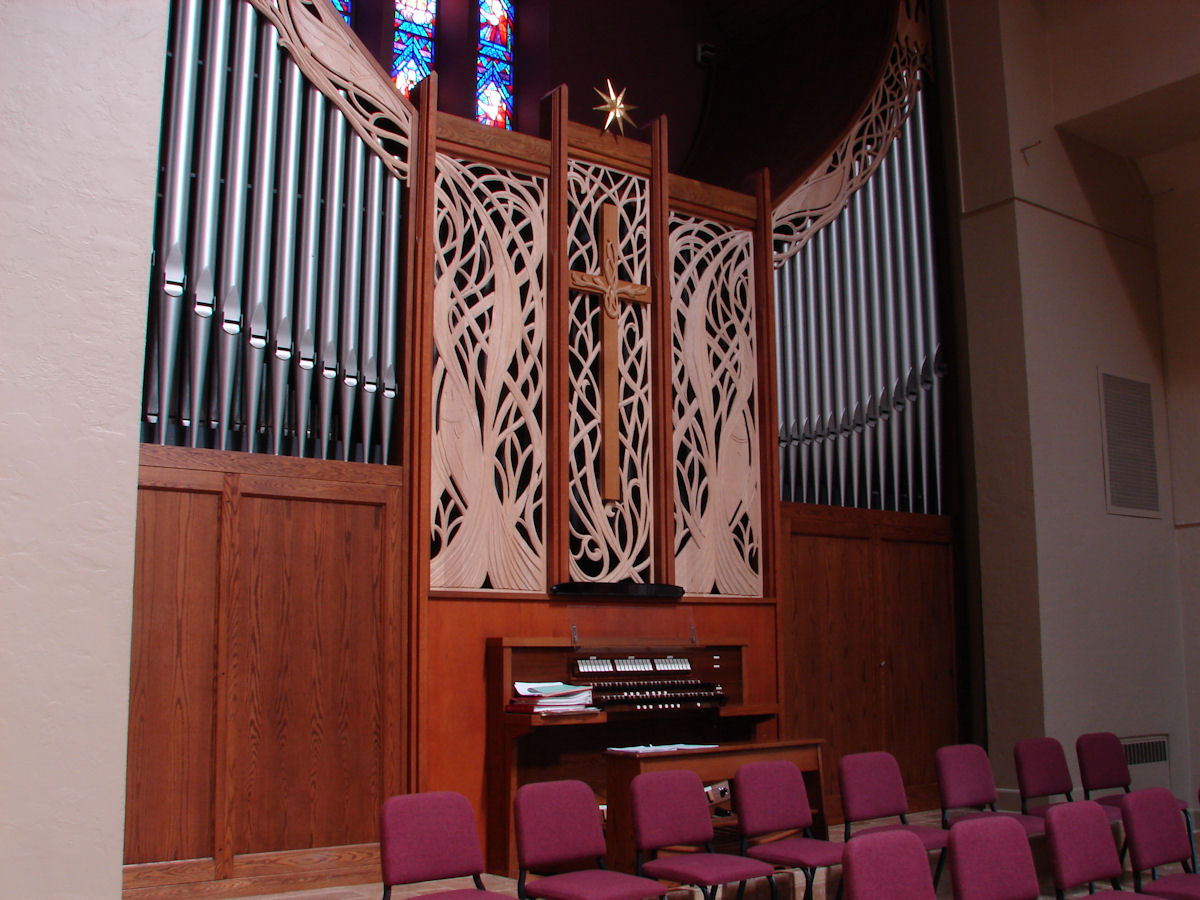

2009-08-31 - Organ from left (Photograph by Michael A. Way/Database Manager)

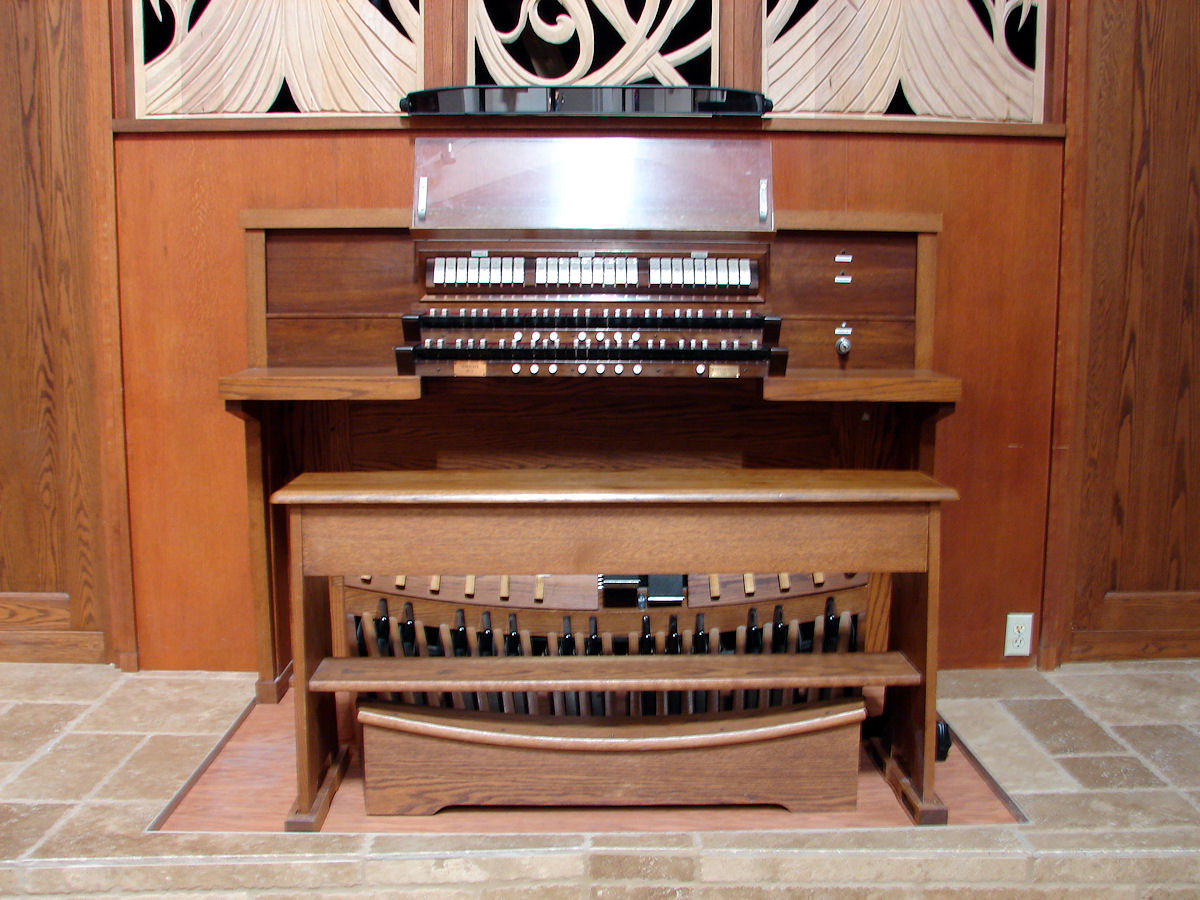

2009-08-31 - Console (Photograph by Michael A. Way/Database Manager)

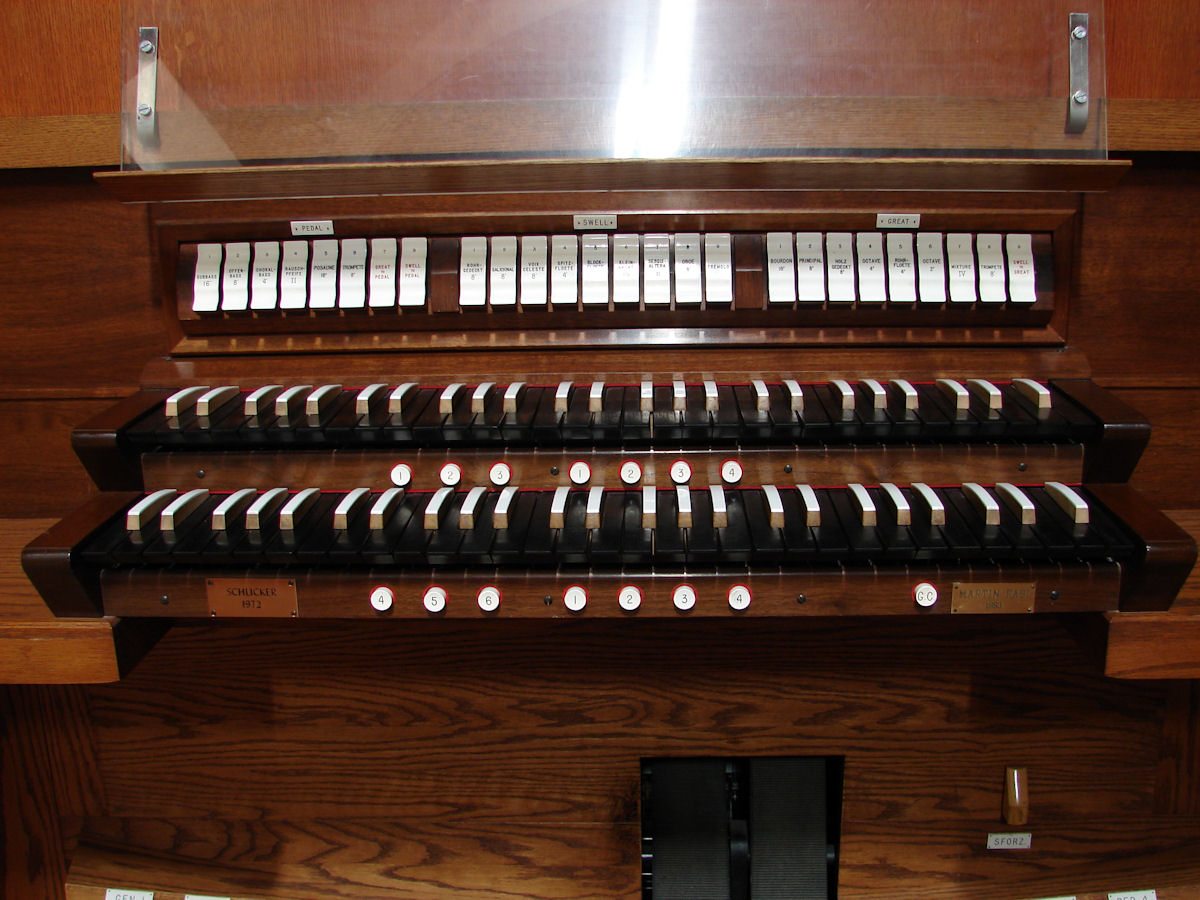

2009-08-31 - Manuals and stops (Photograph by Michael A. Way/Database Manager)

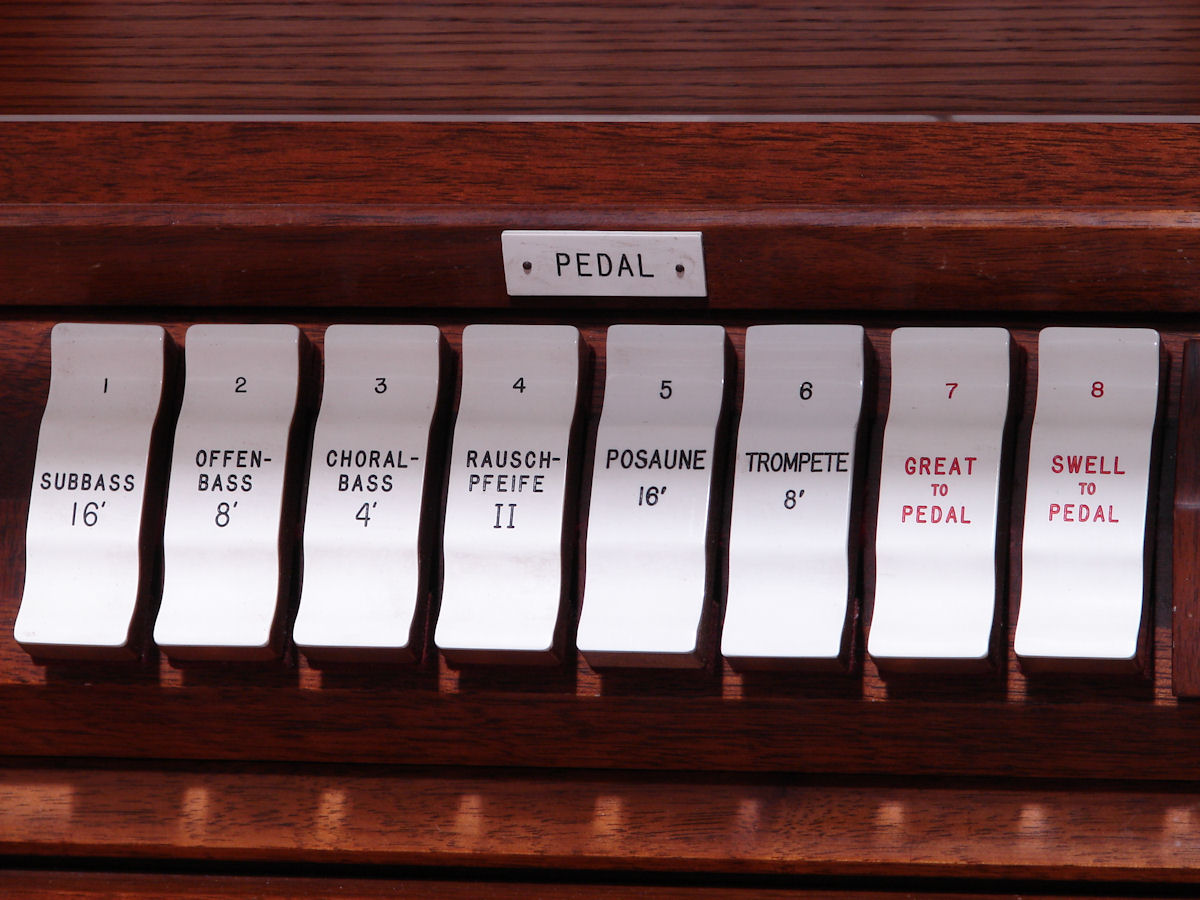

2009-08-31 - Pedal stops (Photograph by Michael A. Way/Database Manager)

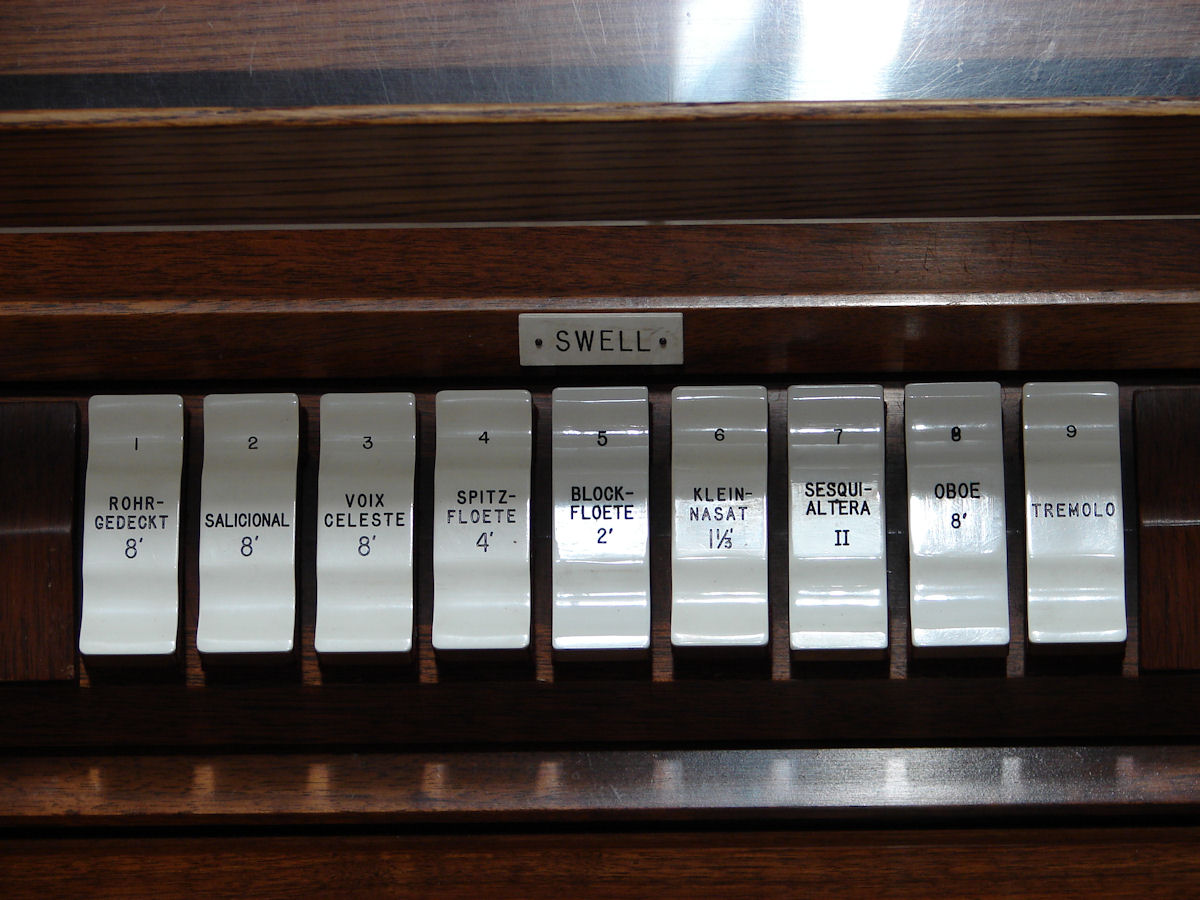

2009-08-31 - Swell stops (Photograph by Michael A. Way/Database Manager)

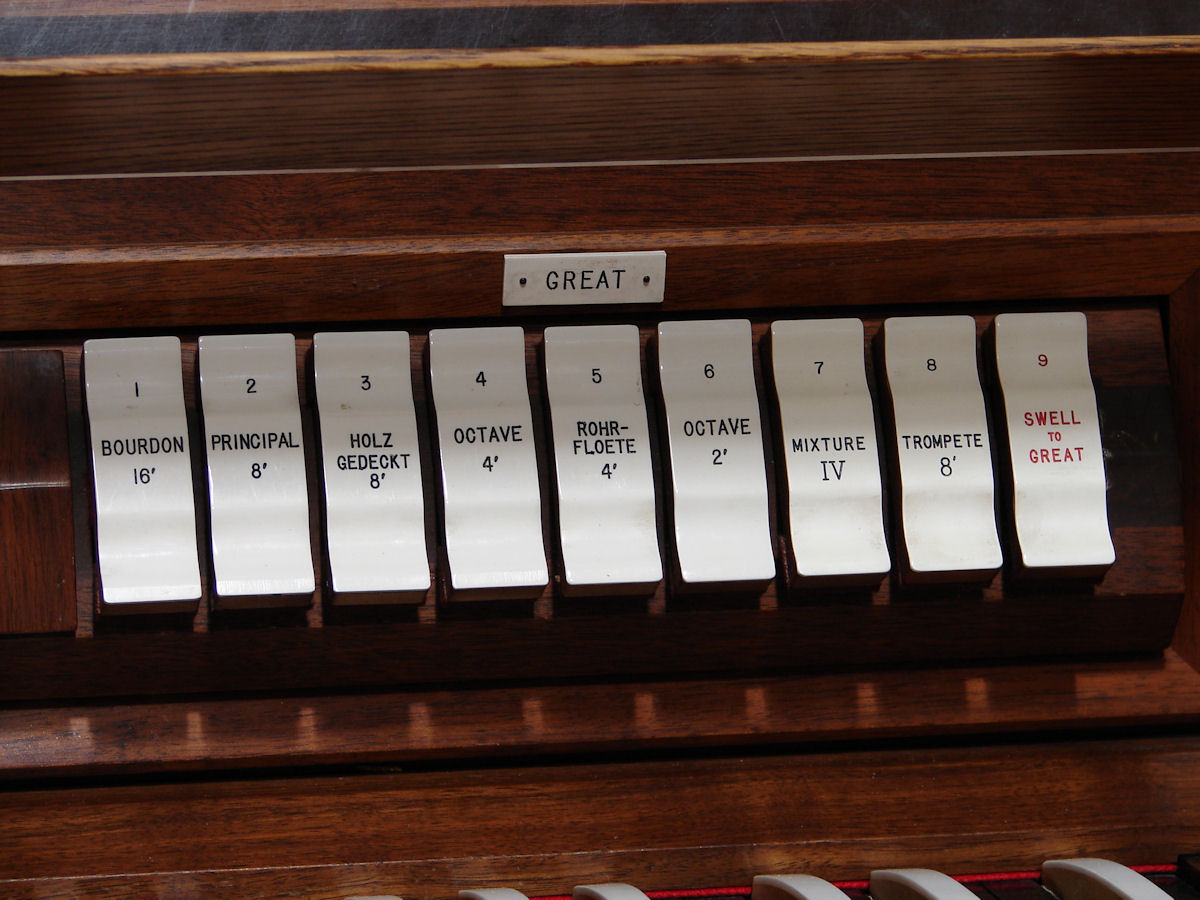

2009-08-31 - Great stops (Photograph by Michael A. Way/Database Manager)

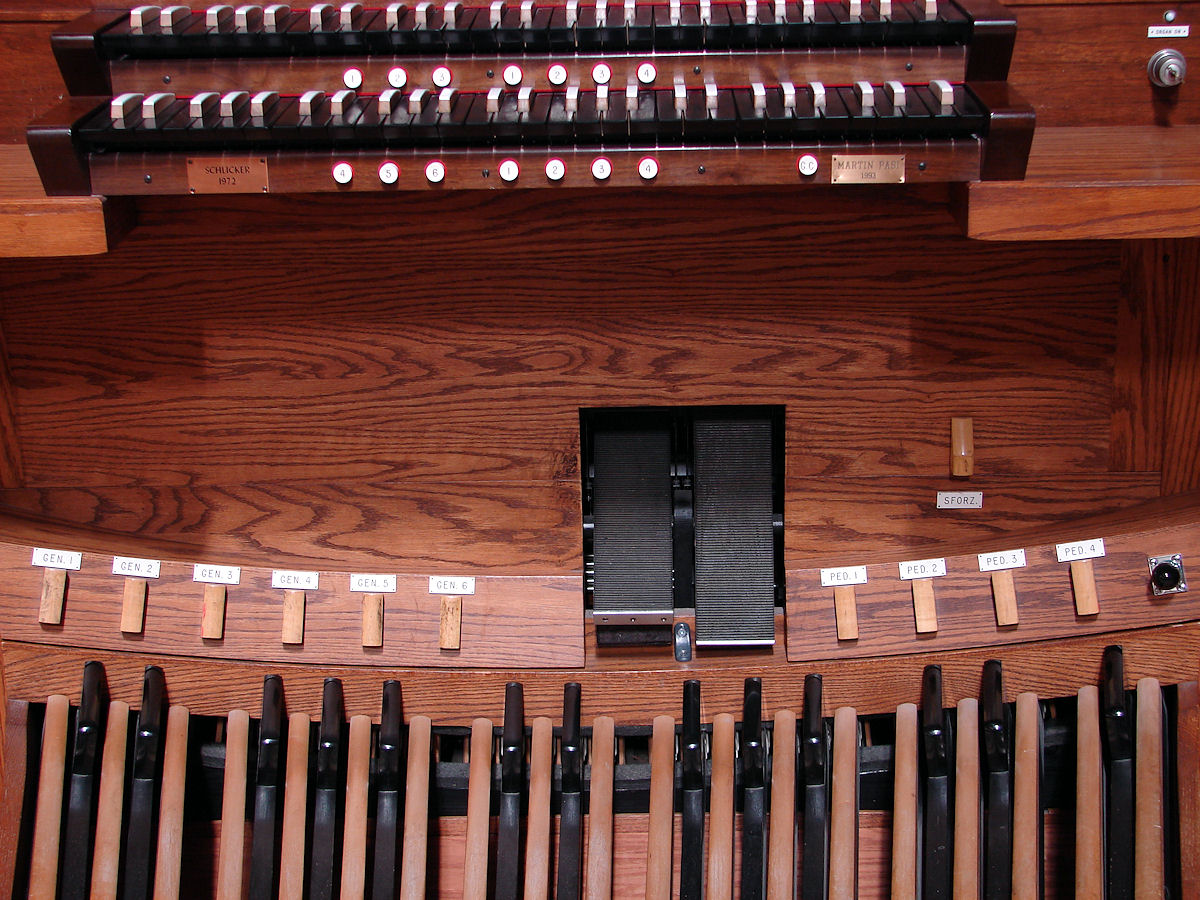

2009-08-31 - Wooden toe studs (Photograph by Michael A. Way/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
22 stops
22 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has tutti toe pistons

Notes

2009-09-02 - Identified through online information from James R. Stettner. -- This was the completion of prepared-for stops on the original 1972 Schlicker along with other tonal changes. Carved pipe shades and grille were also added making the organ appear less utilitarian. A zimbelstern was also added. -Database Manager

Stoplist

Stoplist copied from the console August 31, 2009 Source: Source not recorded Date not recorded

Seattle, Washington
Phinney Ridge Lutheran Church

Schlicker, 1972
Martin Pasi, 1993 - Tonal Completion & Revision

GREAT
   16'    Bourdon                   56   1993.
   8'     Principal                 56   1-13; left facade.
   8'     Holz Gedeckt              56
   4'     Octave                    56
   4'     Rohr Floete               56   1993.
   2'     Octave                    56   From Swell, 1993.
   IV     Mixture                  224   19-22-26-29. Revised 1993.
   8'     Trompete                  56

SWELL (Expressive)
   8'     Rohr Gedeckt              56
   8'     Salicional                56   New, 1993.
   8'     Voix Celeste        (tc)  44   Former 8' Sal. rescaled. 1993.
   4'     Spitz Floete              56
   2'     Block Floete              56   From Great, 1993.
   1-1/3' Klein Nasat               56
   II     Sesquialtera        (tc)  88   12-17. From Great, 1993.
   8'     Oboe                      56   1993.
          Tremolo

PEDAL
   16'    Subbass                   32
   8'     Offen Bass                32   1-13; right facade
   4'     Choral Bass               32
   II     Rausch Pfeife             64   15-19.
   16'    Posaune                   32   1993.
   8'     Trompete                  32   1993. Reworking of former 16' Fagott.

COUPLERS
   Swell to Pedal                  [8]
   Great to Pedal                  [8]
   Swell to Great                  [8]

FINGER PISTONS
   General                       1 - 6
   Swell                         1 - 4
   Great                         1 - 4
   G.C.

TOE STUDS
   General                       1 - 6
   Pedal                         1 - 4
   Sforz.                        (rev)
   Zimbelstern   [unlabeled]     (rev)   Added.

PEDAL MOVEMENTS
   Swell Expression             (bal.)
   Crescendo                    (bal.)

ACTION: Mech key; Elec. stop
VOICES: 22
STOPS: 22
RANKS: 27
PIPES: 1,308

[Received on line from James R. Stettner September 03, 2009.]

Related Pipe Organ Database Entries

#973 - Schlicker Organ Co. (1972)
