Better Pipe Organ Database

Pels & van Leeuwen (1970)

Hope College: Dimnent Memorial Chapel
277 College Avenue
Holland, MI

Images

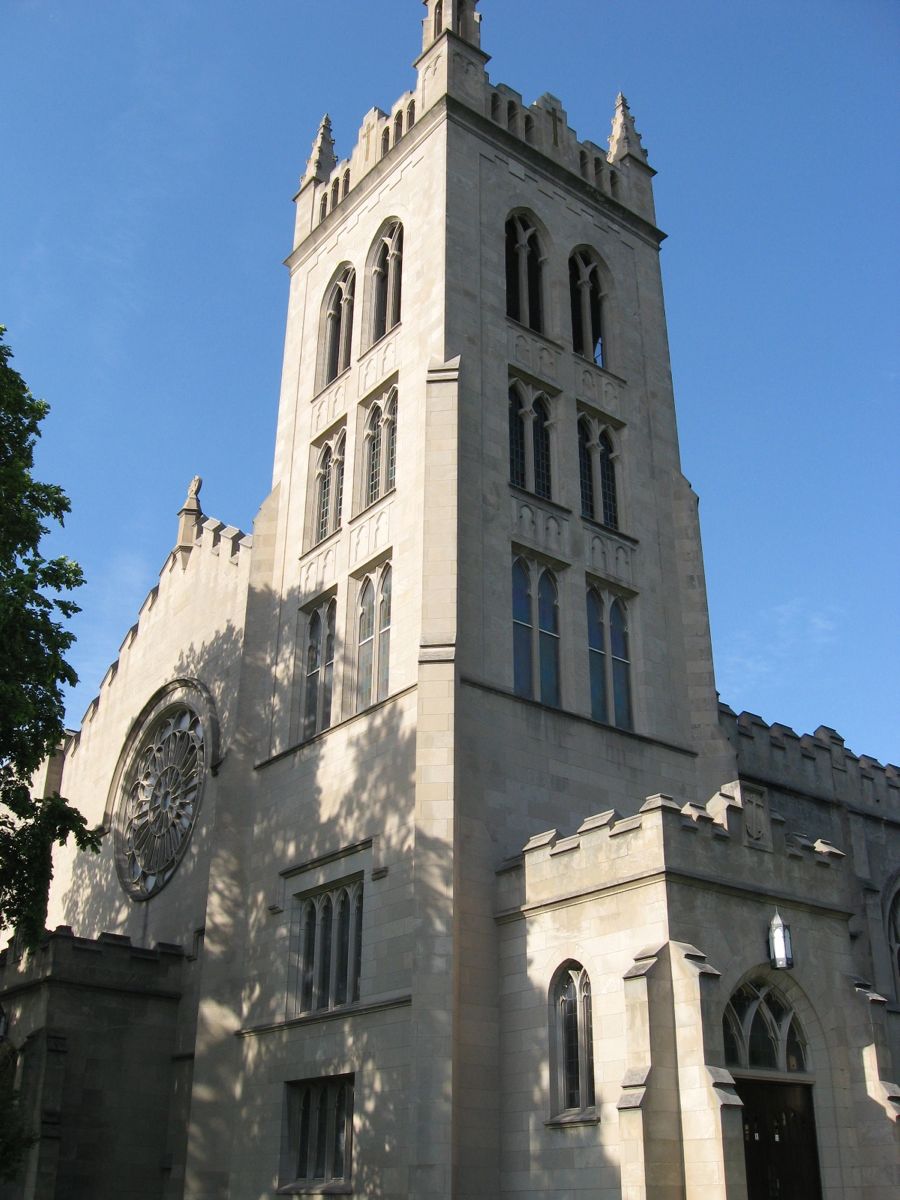

2016-05-24 - Chapel Exterior (Photograph by Chad Boorsma/Database Manager)

2009-11-08 - Rose Stained Glass Window in Balcony (Photograph by Chad Boorsma/Database Manager)

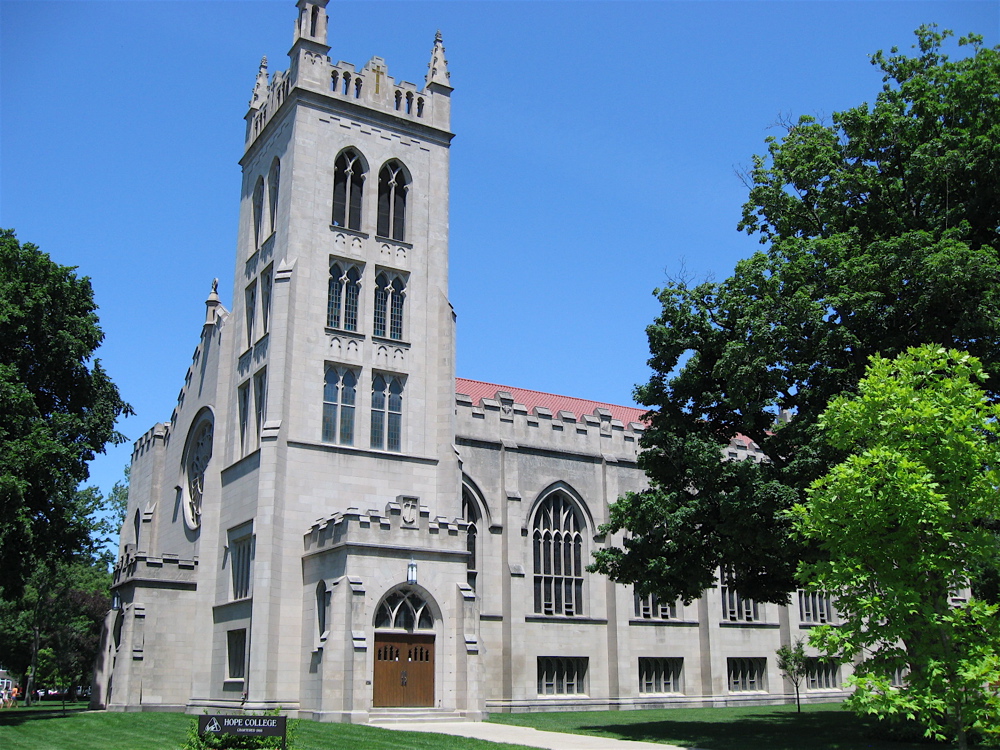

2011-06-29 - Chapel Exterior (Photograph by Chad Boorsma/Database Manager)

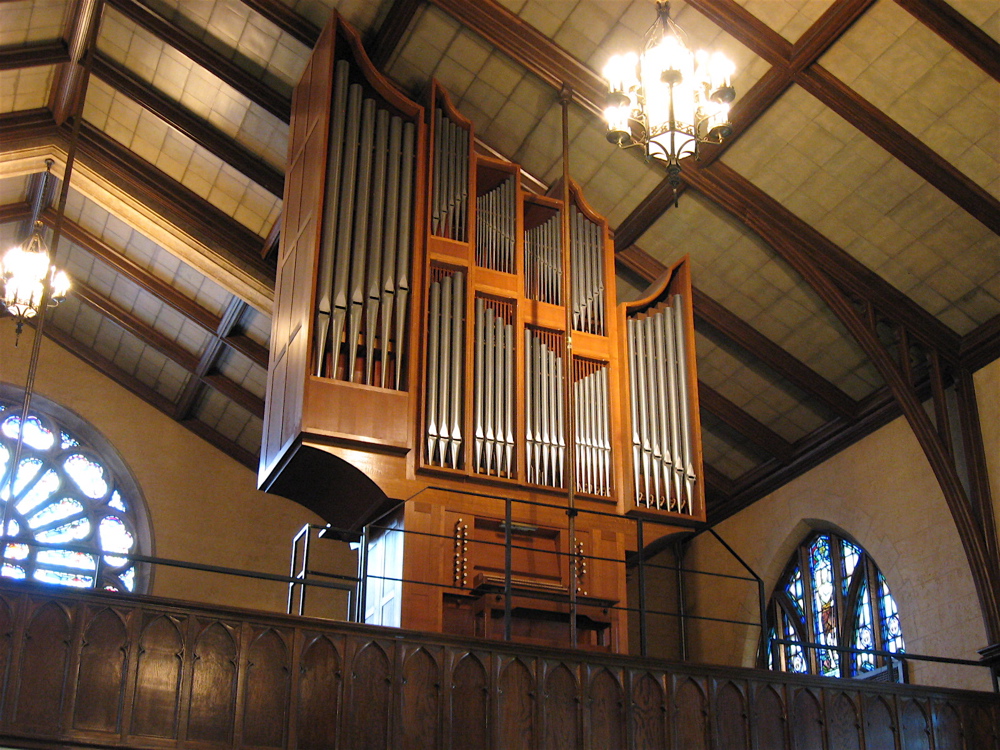

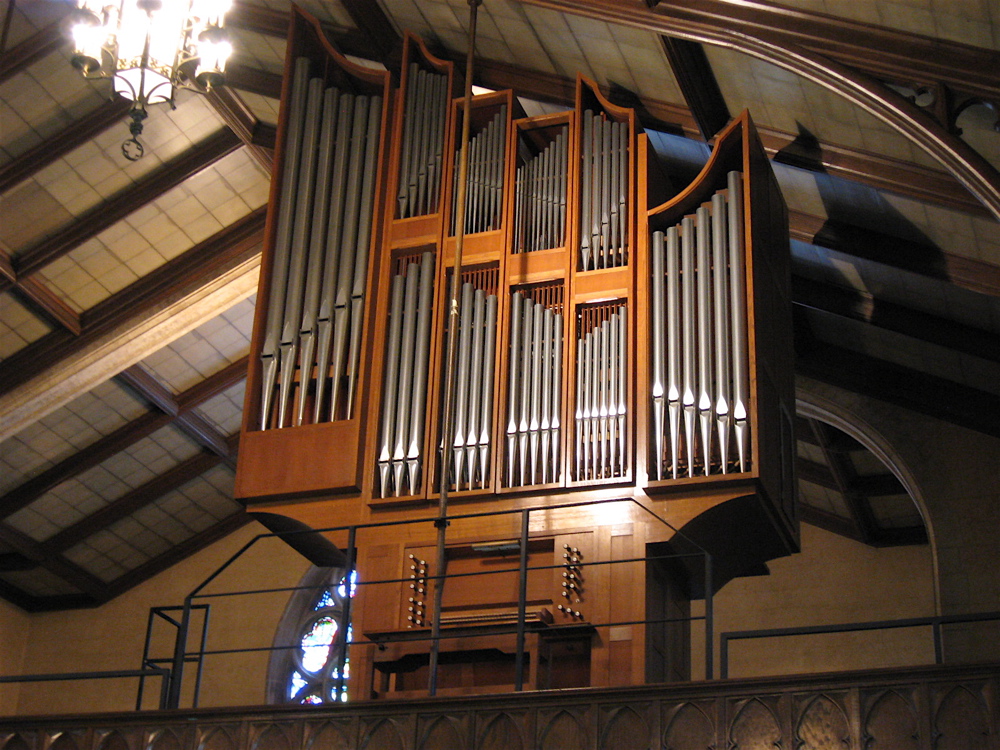

2011-06-29 - Organ Case (Photograph by Chad Boorsma/Database Manager)

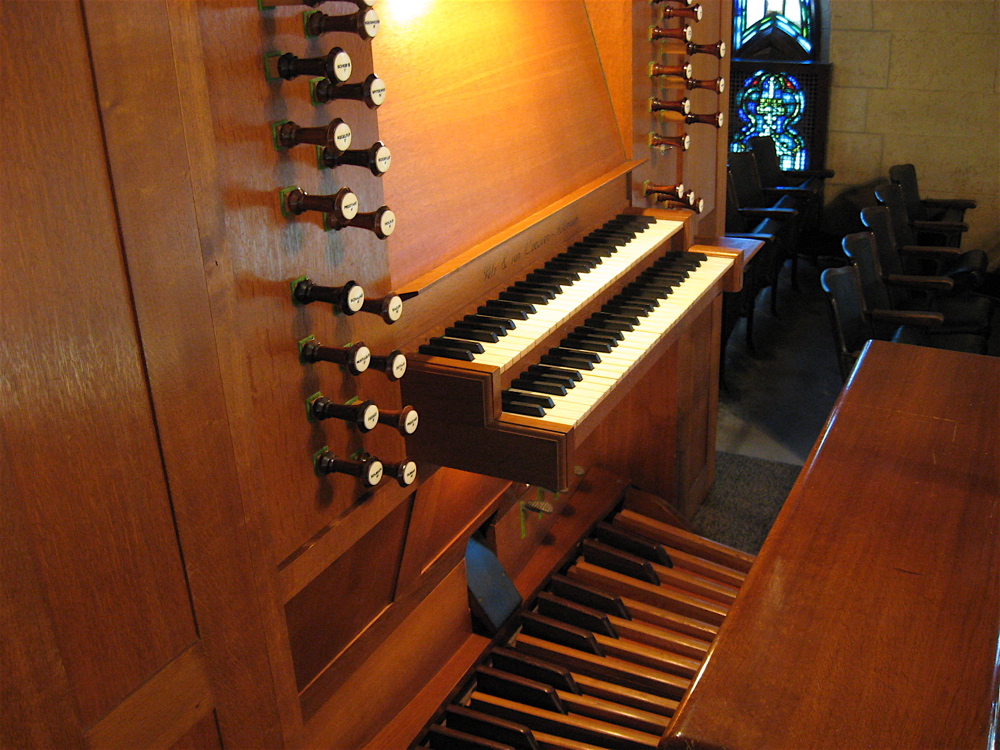

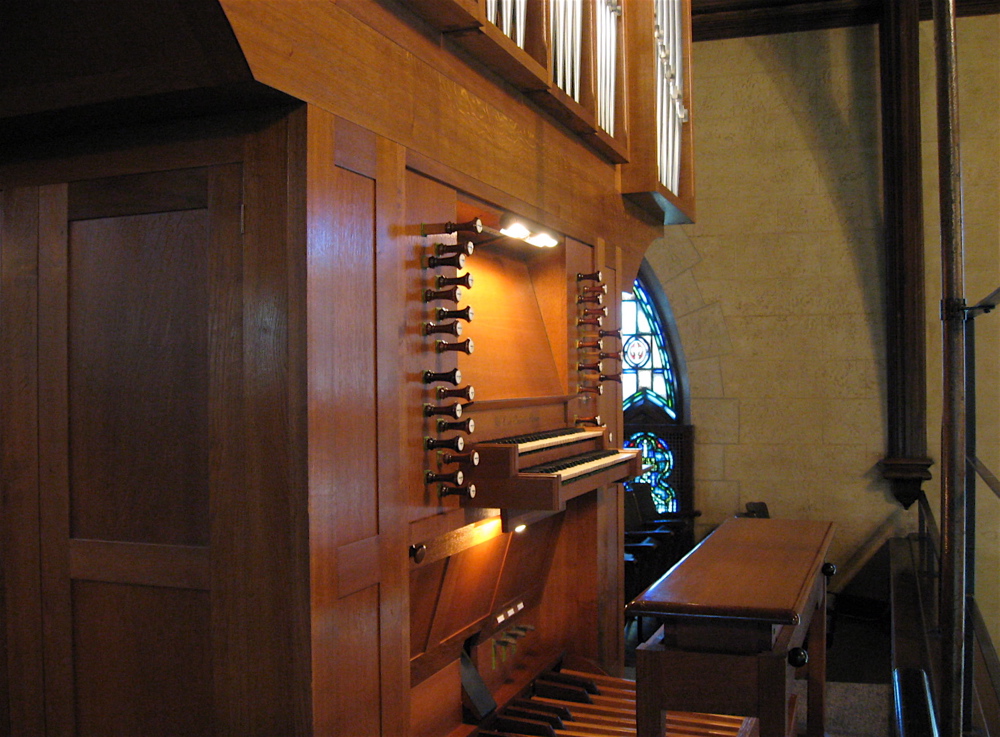

2011-06-29 - Keydesk (Photograph by Chad Boorsma/Database Manager)

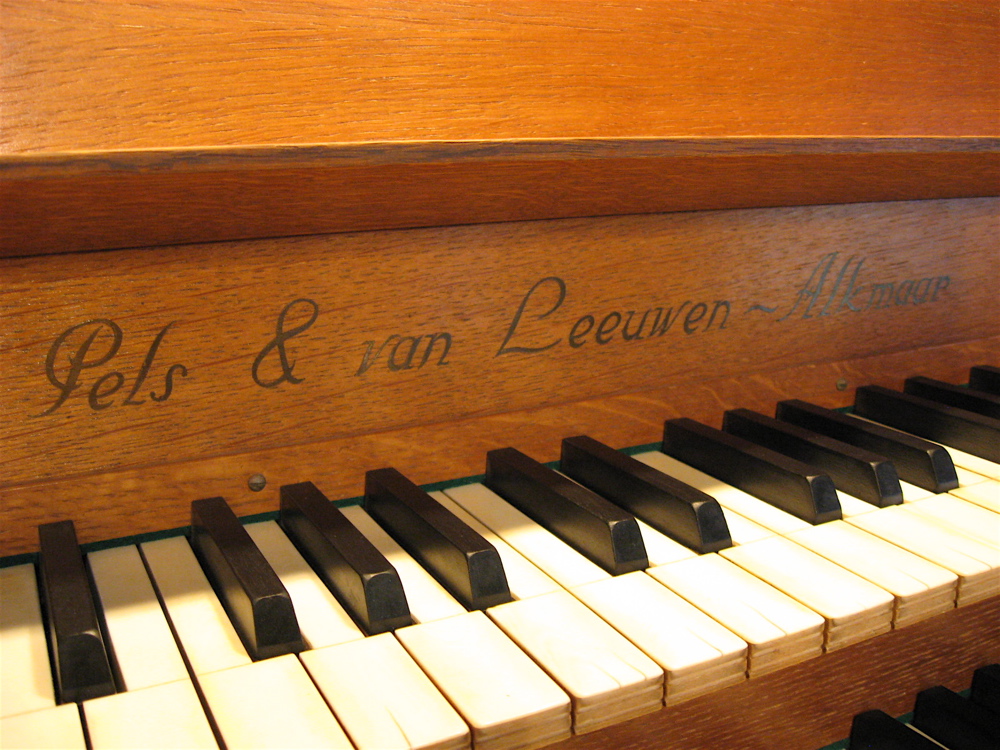

2011-06-29 - Manuals and Builder's Name Stencil (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached, Manuals Set Into Case
2 manuals
26 stops
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 30 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Combination action: None

Notes

2004-10-30 - 1 extension in pedal. -Database Manager

2009-11-09 - Updated through online information from Chad Boorsma. -- The gallery organ in Dimnent Memorial Chapel was built in 1970 in the style of the 17th and 18th century Dutch organs; it has low wind pressure. The principal rank of pipes for each of the divisions is called the Prestant (show pipes) and are exposed. As one looks at the front of the instrument, the two side towers house the Pedaal, the upper central section houses the Bovenwerk, and the lower central section houses the Hoofdwerk. The organ was a gift from Edsko and Claire Hekman. -Database Manager

2009-11-10 - Updated through online information from Chad Boorsma. -Database Manager

Stoplist

Stoplist taken from college program Source: Source not recorded Date not recorded

Holland, Michigan
GALLERY ORGAN
DIMNENT MEMORIAL CHAPEL
HOPE COLLEGE

Pels & van Leeuwen     1970     35 ranks
___________________________________________________________________

HOOFDWERK:                         BOVENWERK:
   16' Bourdon      56 pipes           8' Holpijp       56 pipes
    8' Prestant     56 pipes           4' Prestant      56 pipes
    8' Roerfluit    56 pipes           4' Roerfluit     56 pipes
    4' Octaaf       56 pipes           2' Kegelpijp     56 pipes
    4' Spitsfluit   56 pipes       1 1/3' Spitskwint    56 pipes
2 2/3' Nazard       56 pipes         III  Scherp       168 pipes
    2' Superoctaaf  56 pipes           8' Kromhoorn     56 pipes
1 3/5' Terts        56 pipes              Tremulant
   IV  Mixtuur     224 pipes
  III  Cimbel      168 pipes       COUPLERS:
    8' Trompet      56 pipes           Bovenkerk to Hoofdwerk
                                       Hoofdwerk to Pedaal
PEDAAL:                                Bovenkerk to Pedaal
   16' Subbas       30 pipes
   16' Bourdon          (HW)
    8' Prestant     30 pipes
    8' Gedekt       30 pipes
    4' Octaaf       30 pipes
   IV  Mixtuur     120 pipes
   16' Bazuin       30 pipes
    4' Schalmei     30 pipes

[Received on line from Chad Boorsma November 10, 2009.]
