St. James Episcopal Church: Church
105 W. Church St.
Greeneville, TN
Images

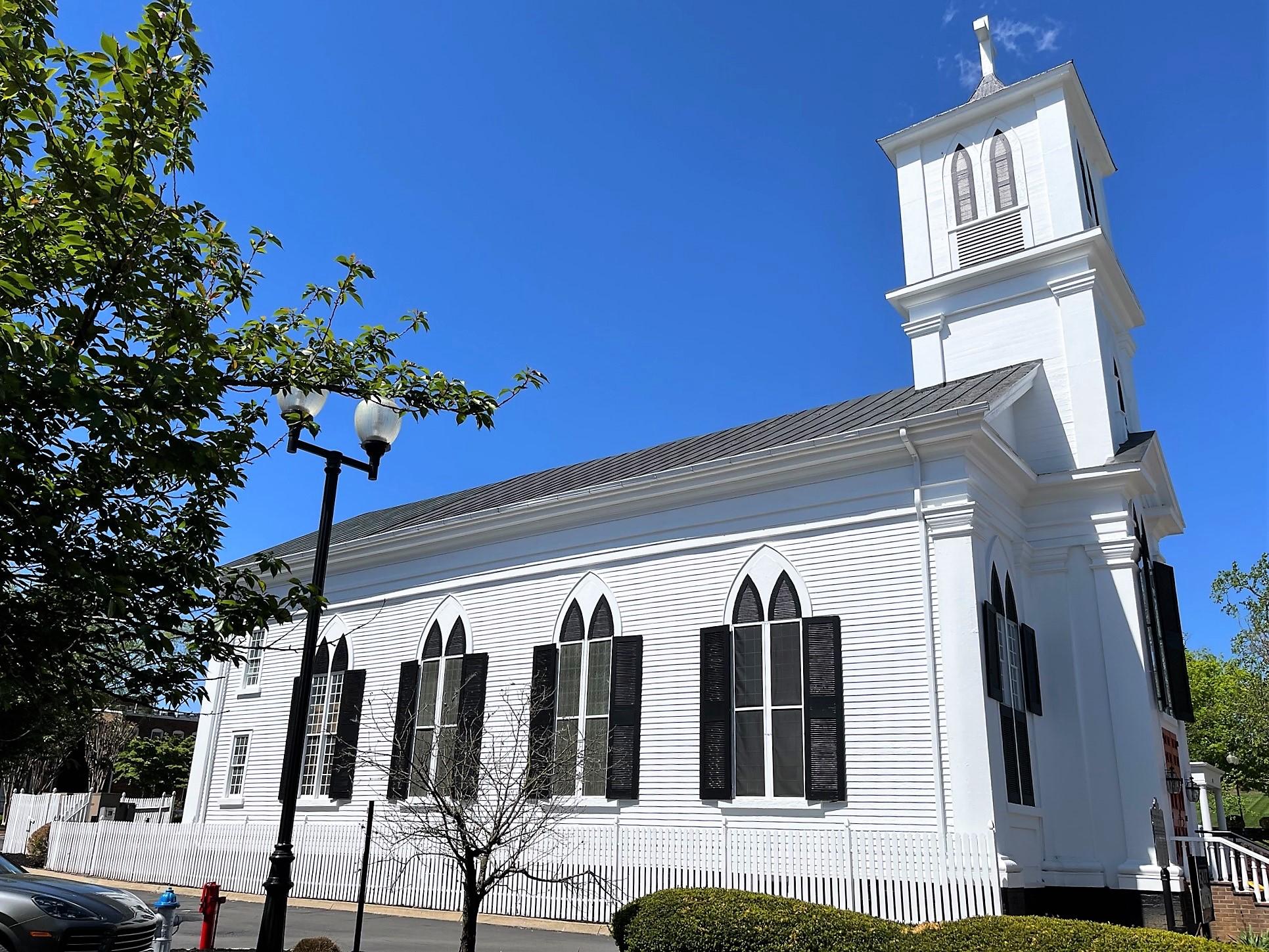

2023-04-18 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

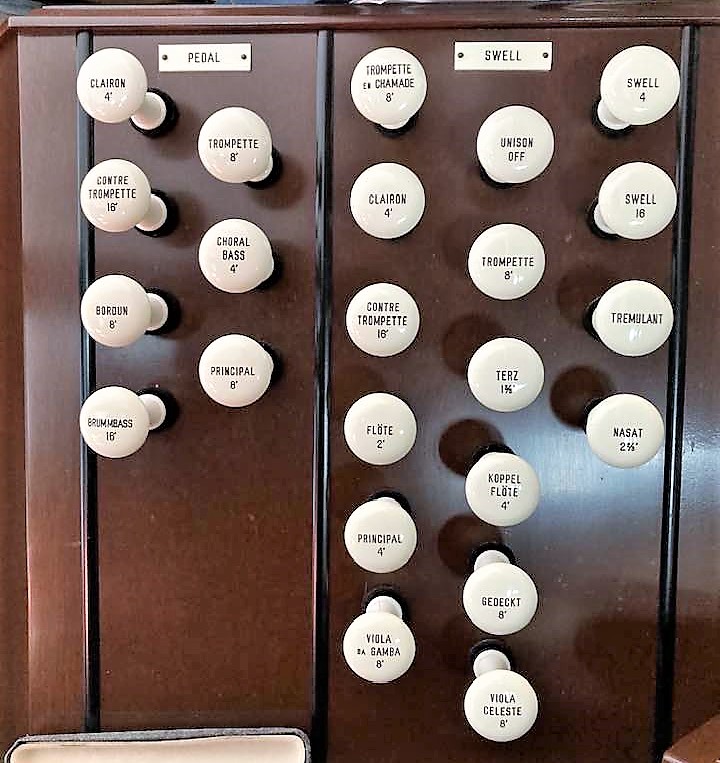

2022-10-22 - Left stopjamb (Photograph by Patti Hicks Whaley, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

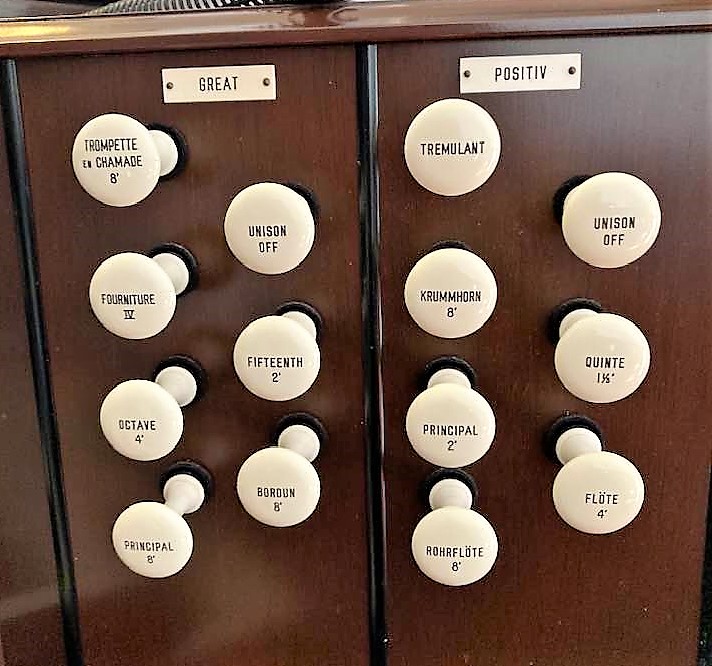

2022-10-22 - Right stopjamb (Photograph by Patti Hicks Whaley, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

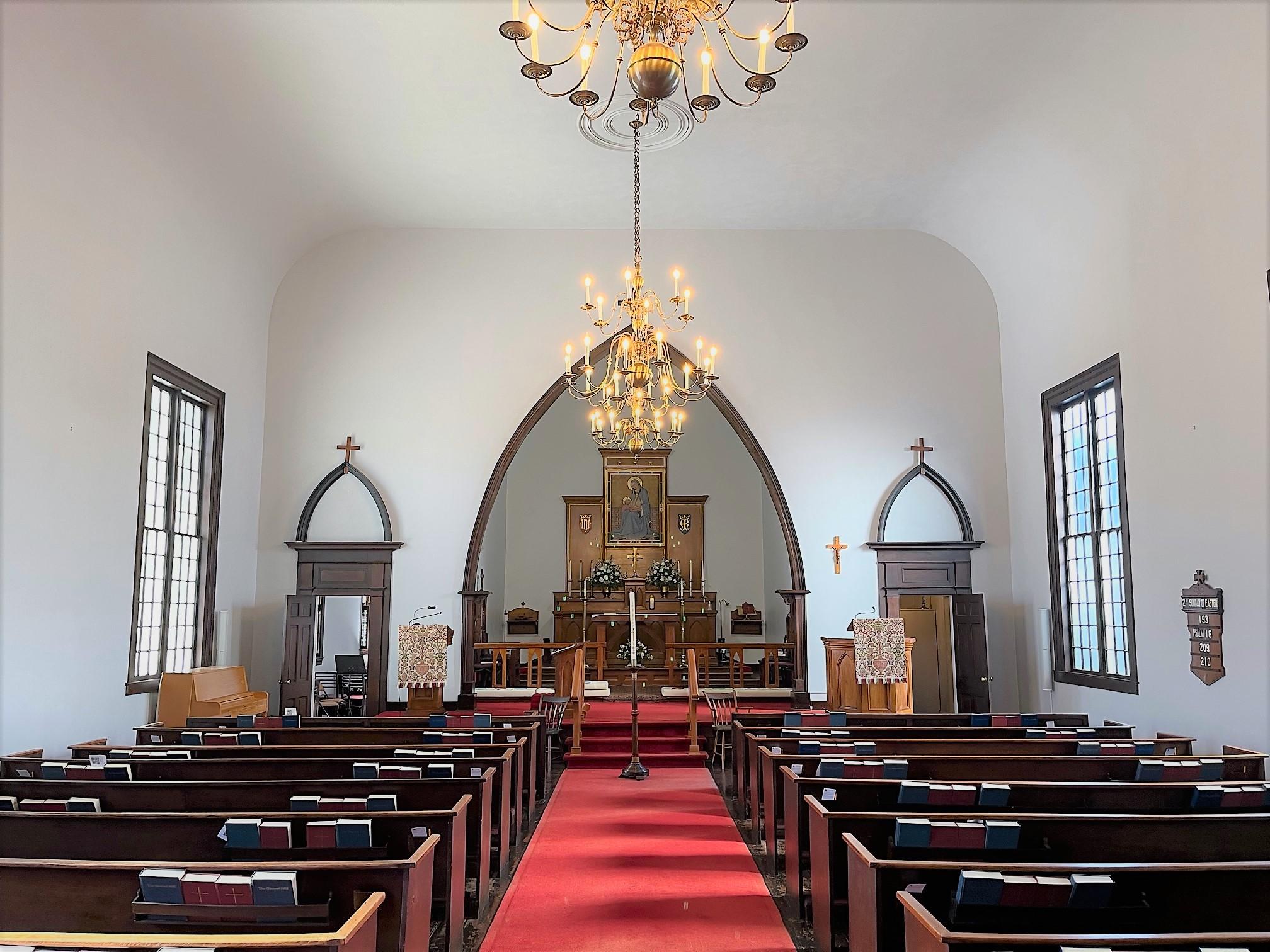

2023-04-18 - Church interior (Photograph by Jeff Scofield/Database Manager)

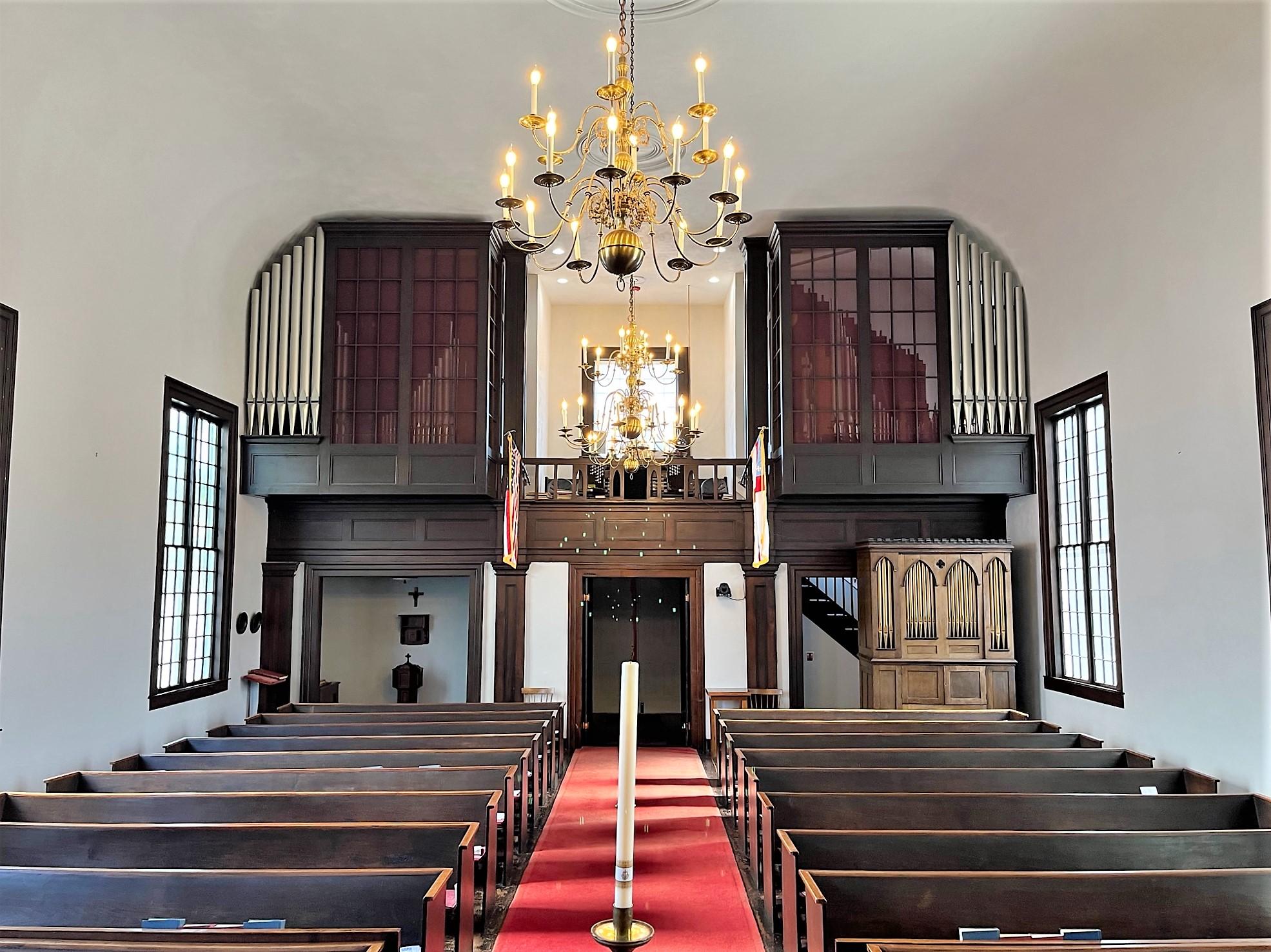

2023-04-18 - Rear gallery and organ (Photograph by Jeff Scofield/Database Manager)

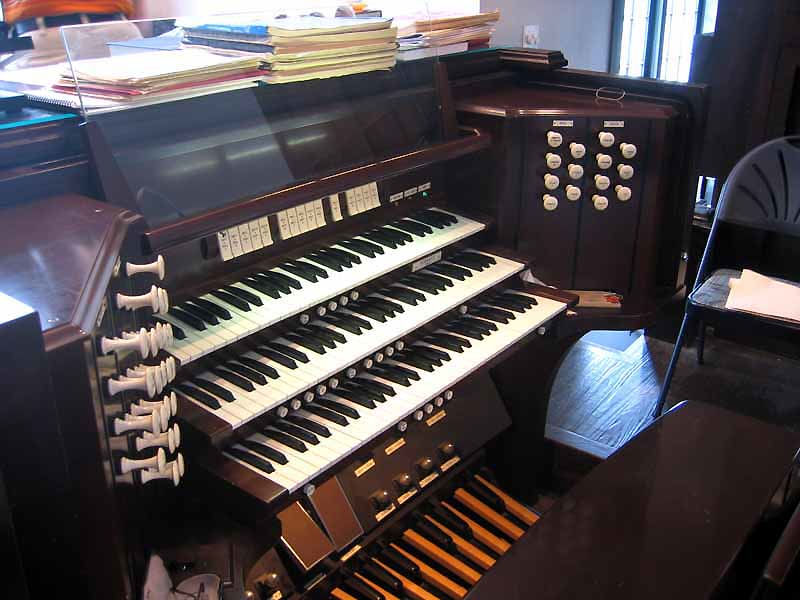

2009-09-17 - Console from left (Photograph by Jeff Scofield/Database Manager)

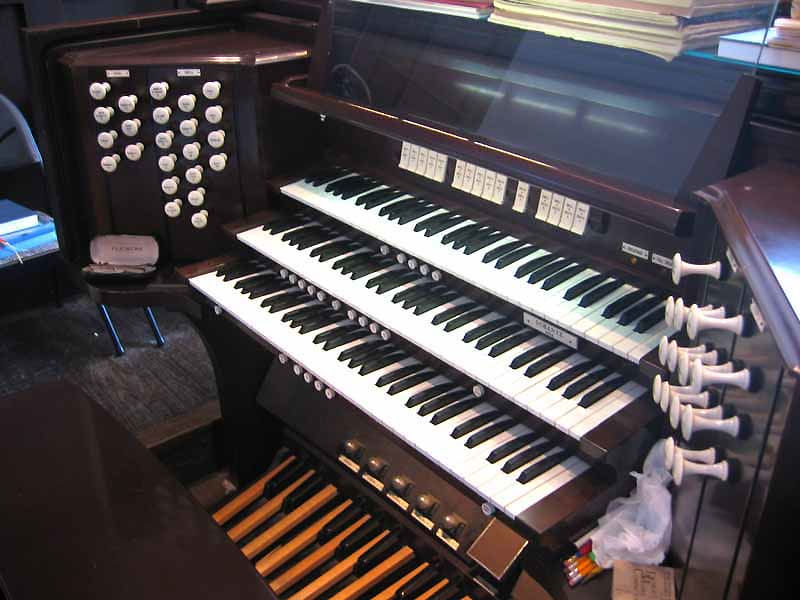

2009-09-17 - Console from right (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 18 stops
- 28 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Remote Pneumatic/Mechanical Capture
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2009-09-21 - Identified through on-line information from Jeff Scofield. -Database Manager
2023-04-24 - The small organ in the rear is an 1850 James Hall organ that used to be in the balcony. -Jeff Scofield
Stoplist
Stoplist taken from the console September 17, 2009 Source: Source not recorded Date not recorded
Greeneville, Tennessee
St. James Episcopal Church
Schantz Op. 2070 1994 3/20
GREAT POSITIV
8' Principal 61 8' Rohrflöte 61
8' Bordun 61 4' Flöte 12
4' Octave 61 2' Principal 61
2' Fifteenth 61 1 1/3' Quinte 61
IV Fourniture 183 * 8' Krummhorn 61
Unison Off Tremulant
8' Trompette-en-Chamade (pf) Unison Off
* Also draws 2' Fifteenth PEDAL
16' Brummbass 12
SWELL 8' Principal 32
8' Gedeckt 61 8' Bordun GT
8' Viola da Gamba 61 4' Choralbass 12
8' Viola Celeste 49 16' Contre Trompette SW
4' Principal 61 8' Trompette SW
4' Koppelflöte 61 4' Clairon SW
2 2/3' Nasat 61
2' Flöte 61
1 3/5' Tierce 49 tc
16' Contre Trompette 61
8' Trompette 12
4' Clairon 12
Tremulant
Sub
Unison Off
Super
[Received on line from Jeff Scofield September 23, 2009.]
