Better Pipe Organ Database

Casavant Frères Ltée. Opus 3713 (1992)

Southminster Presbyterian Church: Sanctuary
6306 Roe Ave
Prairie Village, KS

Images

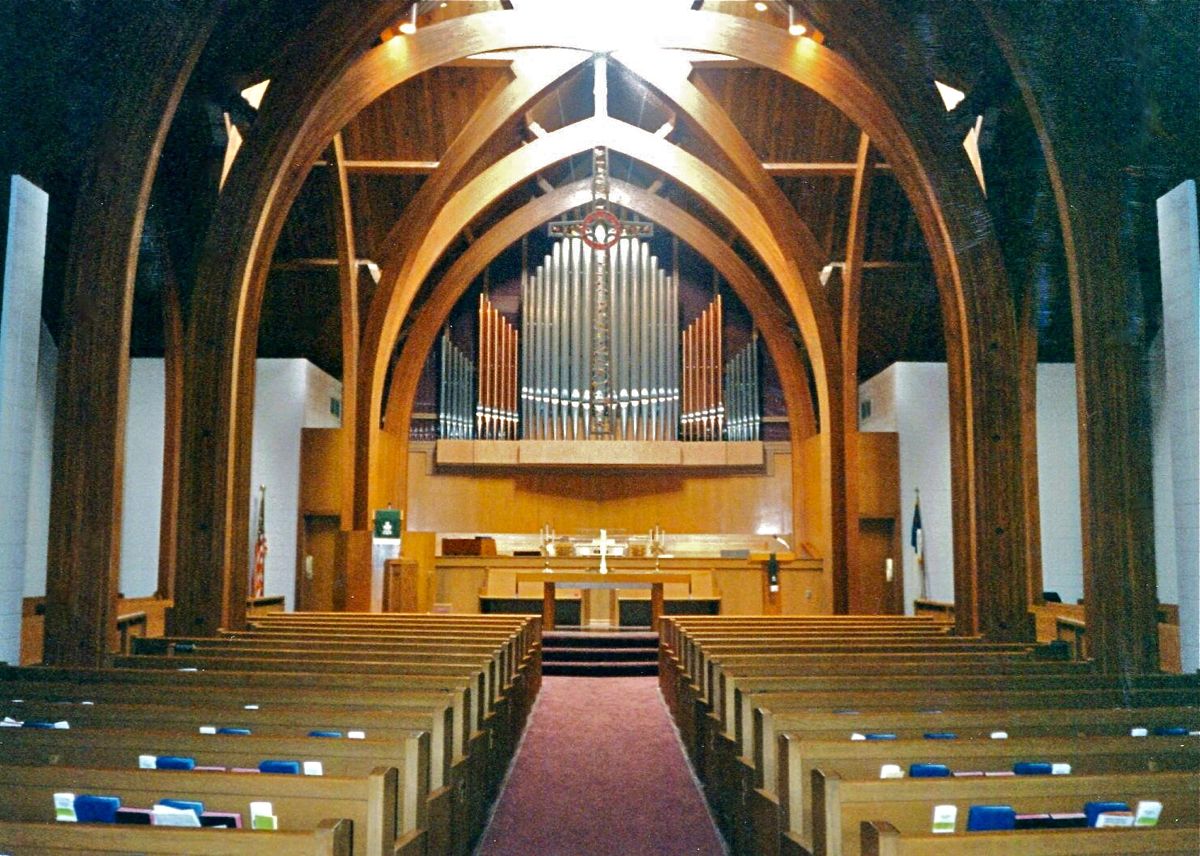

1995-06-19 - Sanctuary Interior, Chancel, and Pipe Facade (Photograph by Jeff Scofield/Database Manager)

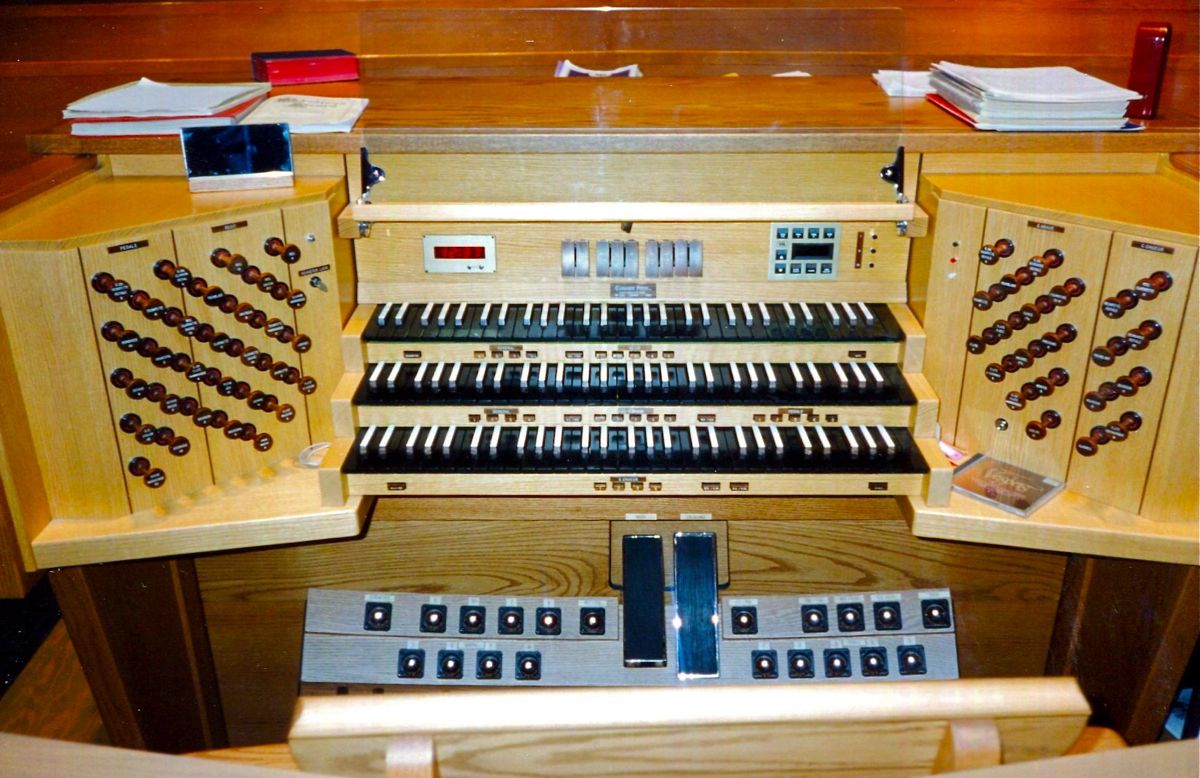

1995-06-19 - Console (Photograph by Jeff Scofield/Database Manager)

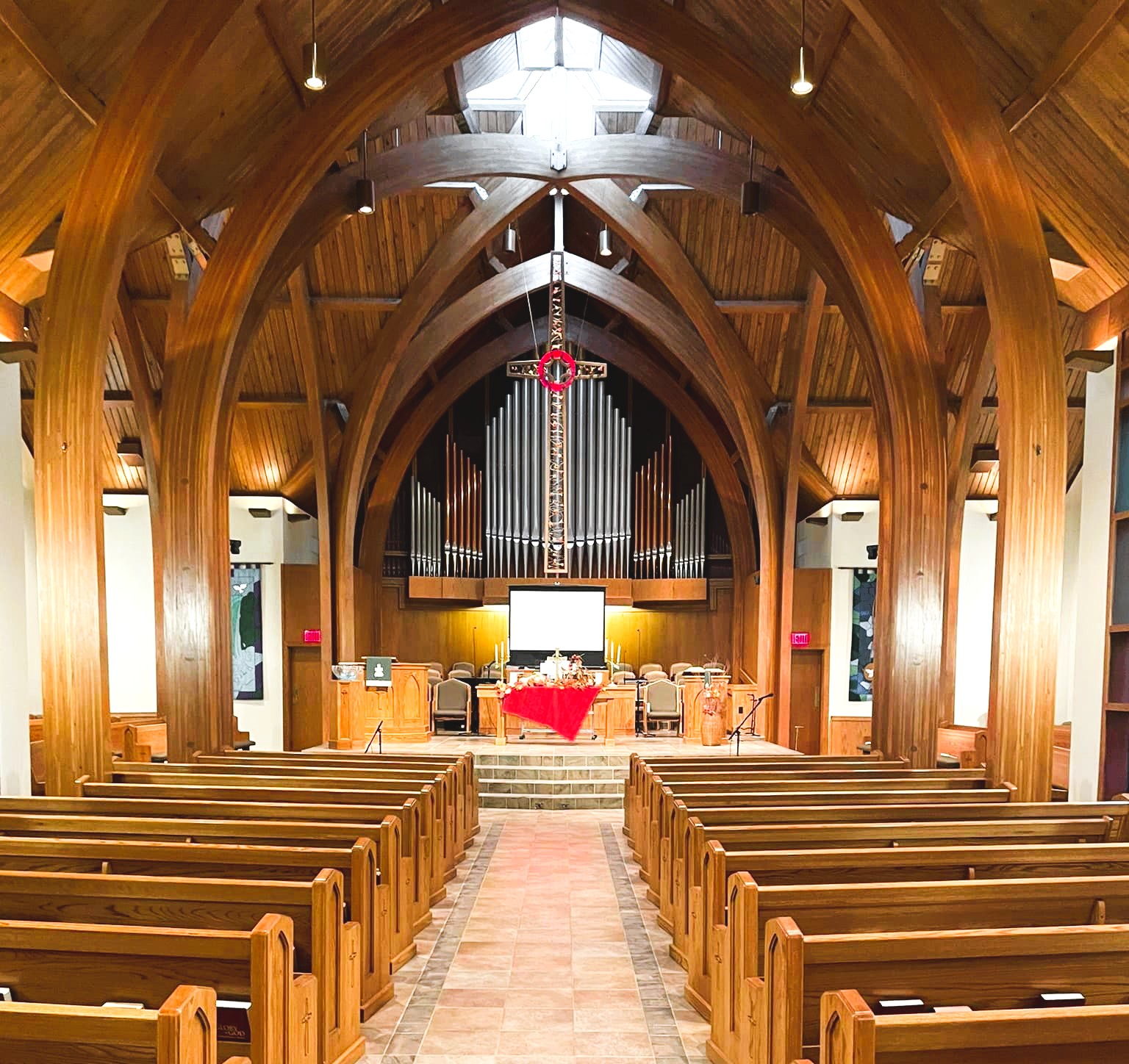

2021 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
3 manuals
29 stops
44 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-09-26 - Identified by Trailon Johnson from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-03-15 - Updated through online information from Jeff Scofield. -Database Manager

2011-03-30 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Prairie Village, Kansas
       Southminster Presbyterian Church

       Casavant   Op. 3713   1992   3/36

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada

       GRAND ORGUE                   RÉCIT
   16' Violon 61                  8' Salicional 61
    8' Montre 61                  8' Unda maris 49 tc
    8' Flûte harmonique GC        8' Flûte majeure 61
    8' Flûte à cheminée 61 *      4' Octave 61
    4' Prestant 61                4' Flûte à fuseau 61 (1-12 stopped)
    4' Flûte 61                   2' Doublette 61
2 2/3' Nazard 61              1 1/3' Larigot 61
    2' Flûte à bec 61            IV  Plein jeu 244
1 3/5' Tierce 61                 16' Clarinette basse 12
III-V  Fourniture 269             8' Trompette harmonique 61
    8' Trompette 61               8' Clarinette 61
       Tremblant                  4' Clairon harmonique 61
   16' Bombarde royale GC            Tremblant
    8' Trompette royale GC           Sub
                                     Unison Off
    *  Notes 1-12 wood               Super

       PÉDALE                        GRAND CHOEUR
   32' Basse acoustique --        8' Bourdon 29 (ext. of PED 8' Bourdon)
   16' Violon GO                  8' Flûte harmonique 42
   16' Soubasse 32                  (notes 1-19 common with 8' Bourdon)
    8' Octavebasse 32             4' Bourdon 12 (ext. of 8')
    8' Bourdon 12                    Tremblant
    4' Octave 32                     Cloches (pf)
    4' Flûte harmonique GO       16' Bombarde royale (1-12 from
    2' Principal 12                            PED 16' Bombarde)
   16' Bombarde 32                8' Trompette royale 61 (hooded)
   16' Clarinette basse RE
    8' Trompette 12
    8' Trompette royale GC
    4' Clairon royale GC

[Received on line from Jeff Scofield March 15, 2010.]

Documents

(1992-01-01) Organ Booklet, via Jeff Scofield -Jeff Scofield
