Better Pipe Organ Database

Casavant Frères Ltée. Opus 3729 (1993)

Our Lady of Grace Roman Catholic Church
18310 Middleton Road
Parkton, MD

Images

2013-05-14 - Stop Tablets (Photograph by David M. Storey/Database Manager)

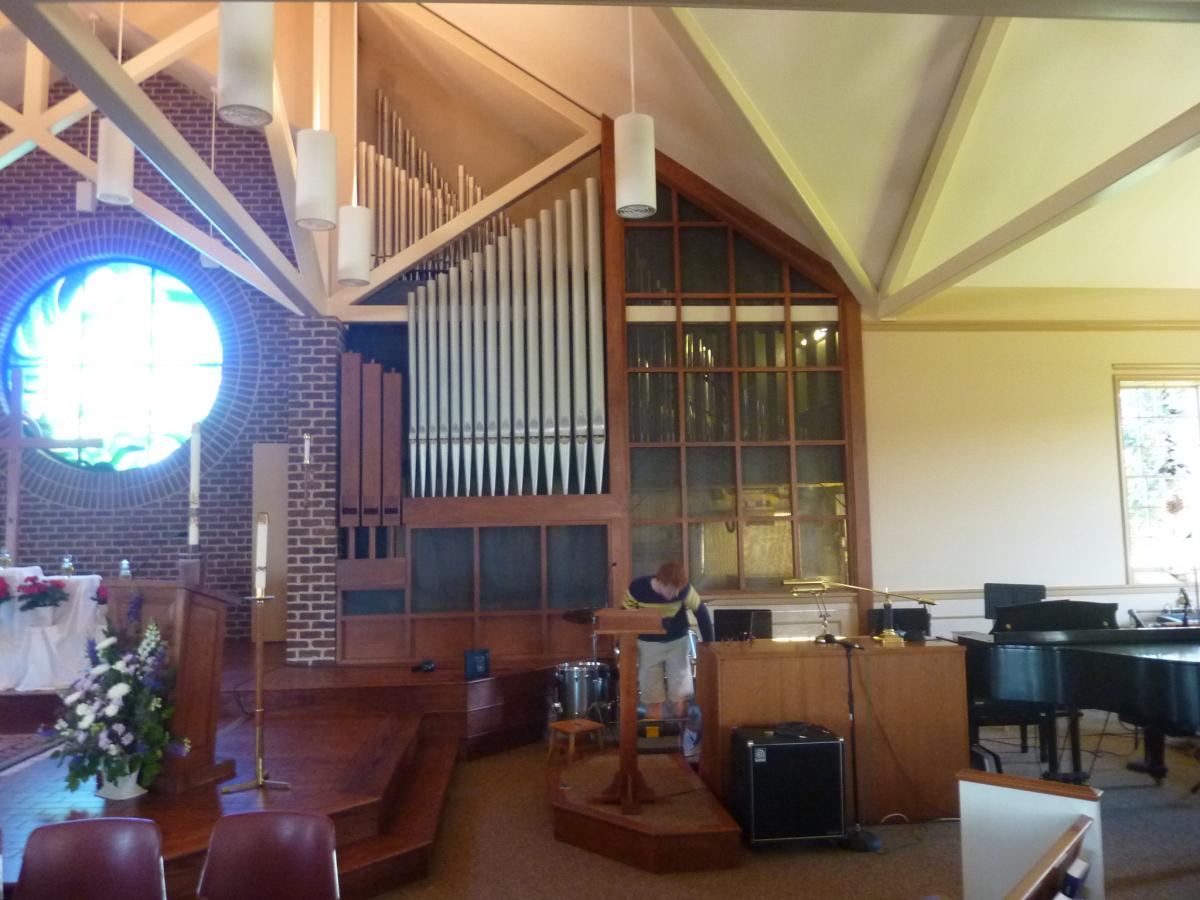

2013-05-14 - Organ Facade (Photograph by David M. Storey/Database Manager)

2013-05-14 - Console (Photograph by David M. Storey/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
2 manuals
15 stops
22 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons

Notes

2009-09-26 - Identified by Trailon Johnson from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-05-05 - Updated through online information from Jeff Scofield. -Database Manager

2017-11-24 - Updated by Steve Bartley, who maintains the organ.<br> The organ was installed at the same time the building was erected. The organ stands in a triangle shaped alcove at the front right of the room, with the console standing in front of the facade. (The rectangle building has the altar against a long wall.) -Database Manager

2018-02-26 - Updated by David M. Storey, who maintains the organ. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Parkton, Maryland
    Church of Our Lady of Grace, R. C.

    Casavant   Op. 3729   1993   2/19

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    _________________________________________________

    GRAND ORGUE                   RÉCIT
 8' Montre           61        8' Bourdon          61
 8' Flûte à cheminée 61        8' Flûte céleste tc 49
 4' Prestant         61        4' Flûte à fuseau   61
 4' Flûte à cheminée 12        2' Doublette        61
 2' Flûte            61    1 1/3' Quinte           61
II  Sesquialtera  tc 98       16' Basson           12 L/2
IV  Fourniture      244        8' Hautbois         61
 8' Trompette        61           Tremblant
                                  Sub
    PÉDALE                        Super
16' Soubasse         20
   (21-32 from GO Fl à chem)
 8' Octavebasse      20
   (1-12 from GO Montre)
 8' Flûte à cheminée GO
 4' Octave           12
16' Basson           RE
 8' Hautbois         RE
 4' Hautbois         RE

[Received on line from Jeff Scofield May 05, 2010.]
