Better Pipe Organ Database

Casavant Frères Ltée. Opus 3732 (1994)

St. Michael's Catholic Church
11441 Hubbard Street
Livonia, MI

Images

2020-06-10 - Pedal 16’ Bombarde (Photograph by Roman Lizak/Roman Lizak)

2020-06-10 - Grand Orgue stops (Photograph by Roman Lizak/Roman Lizak)

2020-06-10 - Récit stops (Photograph by Roman Lizak/Roman Lizak)

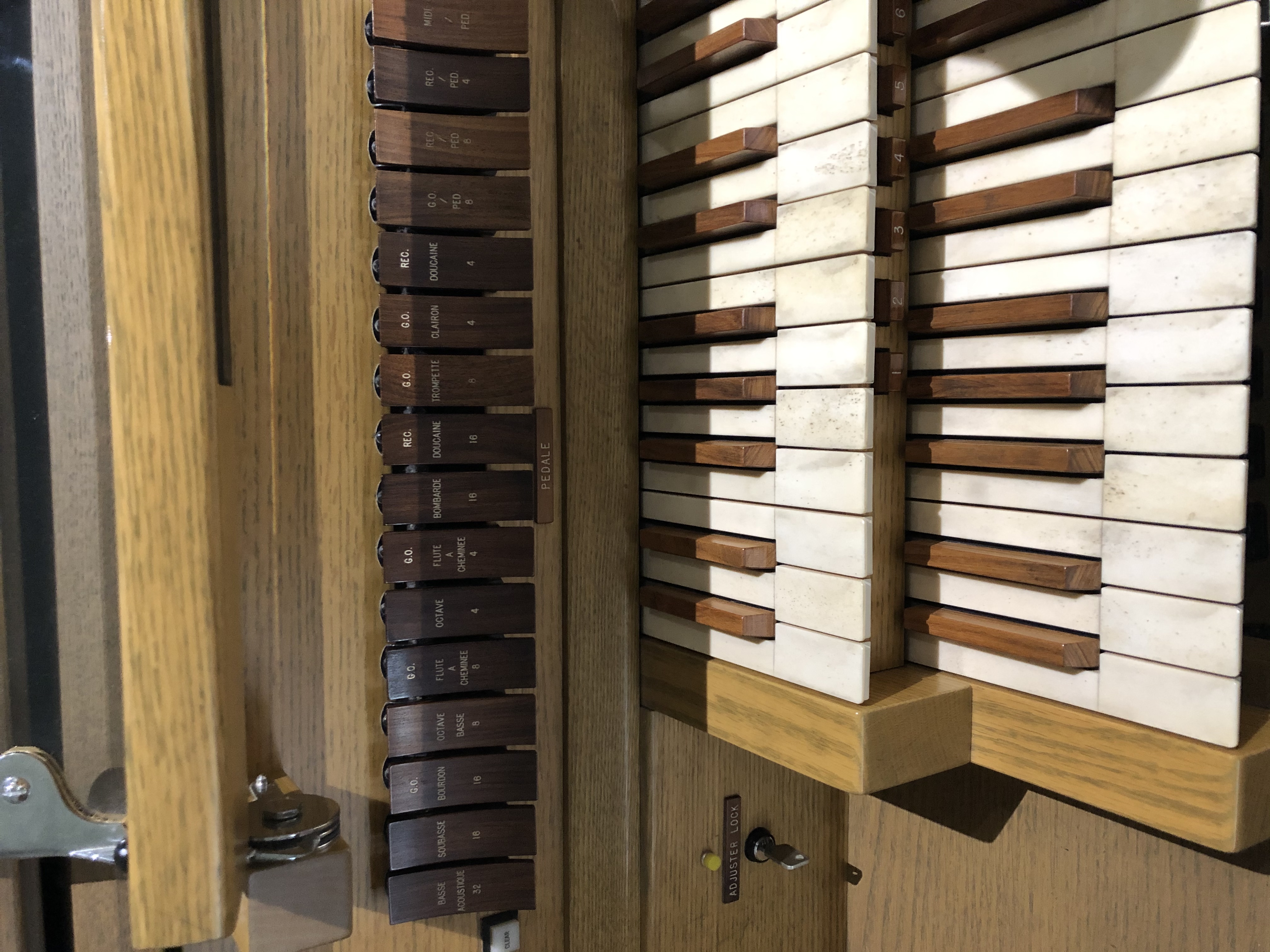

2020-06-10 - Pedal Stops (Photograph by Roman Lizak/Roman Lizak)

2020-06-10 - Console (Photograph by Roman Lizak/Roman Lizak)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
30 stops
19 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has tutti toe pistons

Notes

2009-09-26 - Identified by Trailon Johnson from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-07-21 - Updated through online information from Jeff Scofield. -Database Manager

2011-12-01 - Updated through online information from Joseph Moss. -Database Manager

2020-06-17 - Grand Orgue is on 80mm of Wind Pressure Récit is on 85mm of Wind Pressure Chests 4, 5, 6 and 7 are on 90mm of Wind Pressure Chest #8 is on 80mm of Wind Pressure Casavant Frères Limitee February 14, 1994 -Roman Lizak

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Livonia, Michigan
       St. Michael's Church

       Casavant   Op. 3732   1994   2/26

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       ___________________________________________________

       GRAND ORGUE                    PÉDALE
   16' Bourdon             12     32' Basse acoustique  --
      (ext. of Flûte à chem)      16' Soubasse          32 (wood)
    8' Montre              56     16' Bourdon           GO
      (1-5 polished copper)        8' Octavebasse       32
    8' Flûte harmonique    44      8' Flûte à cheminée  GO
      (1-12 from Flûte à chem)     4' Octave            12
    8' Flûte à cheminée    56      4' Flûte à cheminée  GO
    4' Prestant            56     16' Bombarde   F/L    12 GO
    4' Flûte à fuseau      56     16' Douçaine         [pf]
    2' Flûte               56      8' Trompette         GO
   II  Cornet          CC 112      4' Clairon           GO
   IV  Fourniture         224      4' Douçaine         [pf]
    8' Trompette           56
       Tremblant

       RÉCIT
    8' Bourdon             56
    8' Viole de gambe      56
    8' Voix céleste     tc 44
    4' Principal          [pf[
    4' Flûte conique       56
    2' Doublette           56
1 1/3' Larigot             56
   IV  Cymbale            224
   16' Douçaine           [pf]
    8' Hautbois            56
    8' Douçaine           [pf]     [Received online from Jeff
       Tremblant                    Scofield   July 21, 2010]
