Better Pipe Organ Database

Karl Wilhelm (1978)

Western Washington State University: Performing Arts Center - Practice Rm
516 High St.
Bellingham, WA

Images

2021-12-13 - Two Pedal stop hitch-downs, and a I - II (NOT II - I) hitch-down coupler. (Photograph by James R. Stettner/Jim Stettner)

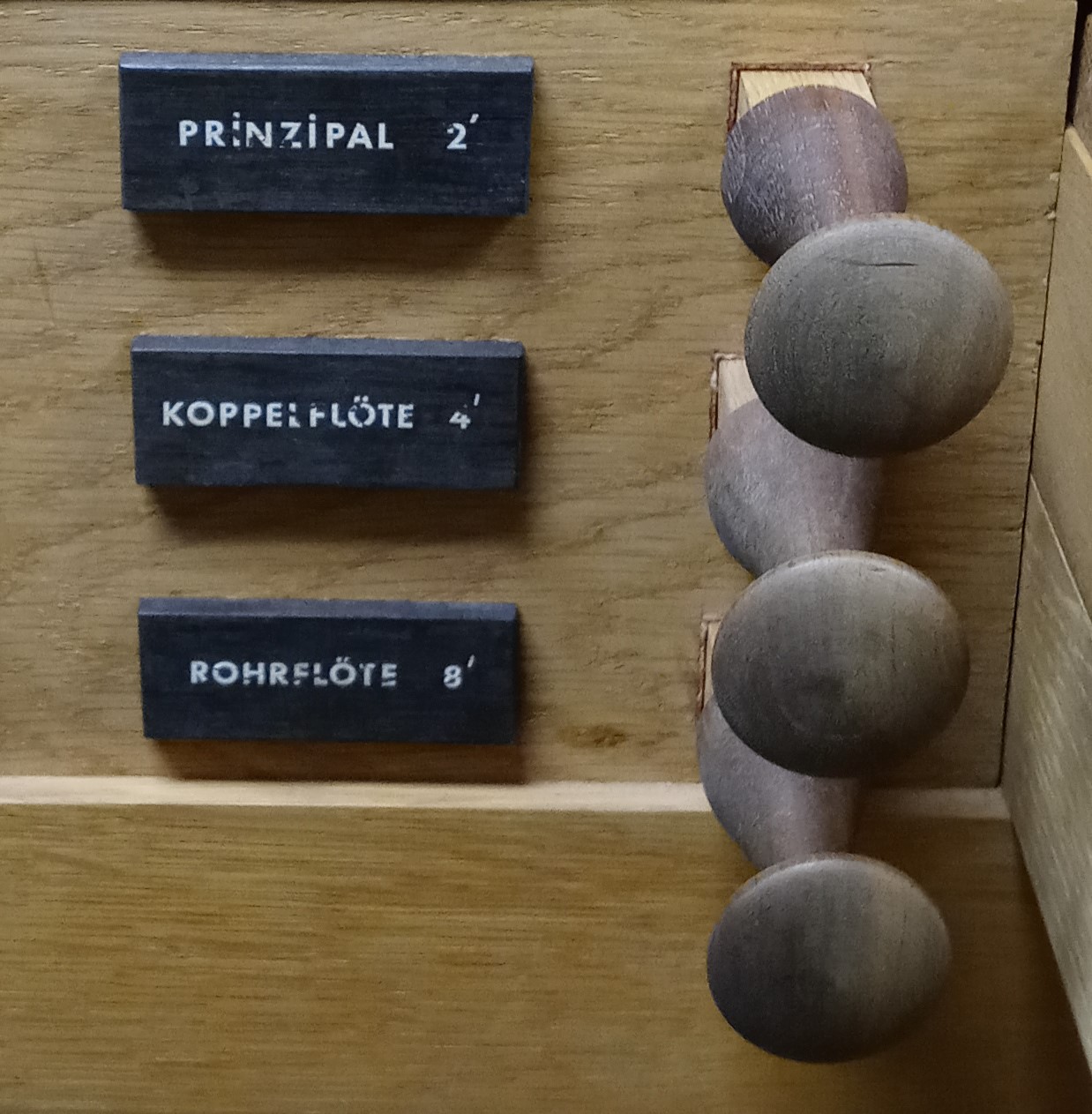

2021-12-13 - Manual II stops (Photograph by James R. Stettner/Jim Stettner)

2021-12-13 - Manual I stops (Photograph by James R. Stettner/Jim Stettner)

2021-12-13 - Keydesk (Photograph by James R. Stettner/Jim Stettner)

2021-12-13 - Organ case (right door broken) (Photograph by James R. Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
7 stops
8 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 30 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: No Enclosed Divisions
Combination action: None
Has hitchdown couplers

Notes

2004-10-30 - Status Note: There 1978. -Database Manager

2006-01-09 - Updated through online information from James R. Stettner. -- The 4' Koppelflote is duplexed to play on both manuals, but will only play on one or the other, but not both simultaneously. Each manual then has two completely independent registers, and the Pedal has two which are operated by hitch-down pedals. -Database Manager

2021-12-13 - The organ was originally installed in a choral rehearsal hall, but has been moved to a practice room adjacent to the Concert Hall - which it sares with two harpsichords and a piano. -Jim Stettner

Stoplist

Source: Stoplist copied from the keydesk December 13, 2021

Bellingham, Washington
Western Washington State University

Karl Wilhelm (1978)


       MANUAL I
8'     Gedeckt                   56
4'     Koppelflöte               56
1 1/3' Quinte                    56

       MANUAL II
8'     Rohrflöte                 47   1-9 from 8' Gedeckt
4'     Koppelflöte        (M I)  --
2'     Prinzipal                 56

       PEDAL
8'     Bourdon                   30
4'     Flöte                     30

HITCH-DOWNS (Labeled; l - r)
8'     Bourdon
4'     Flote
I / Ped
