Better Pipe Organ Database

M. P. Möller Opus 3356 (1922)

National Home for Disabled Volunteer Soldiers: Catholic Chapel
Lamont St. and Veterans Way
Johnson City, TN

Images

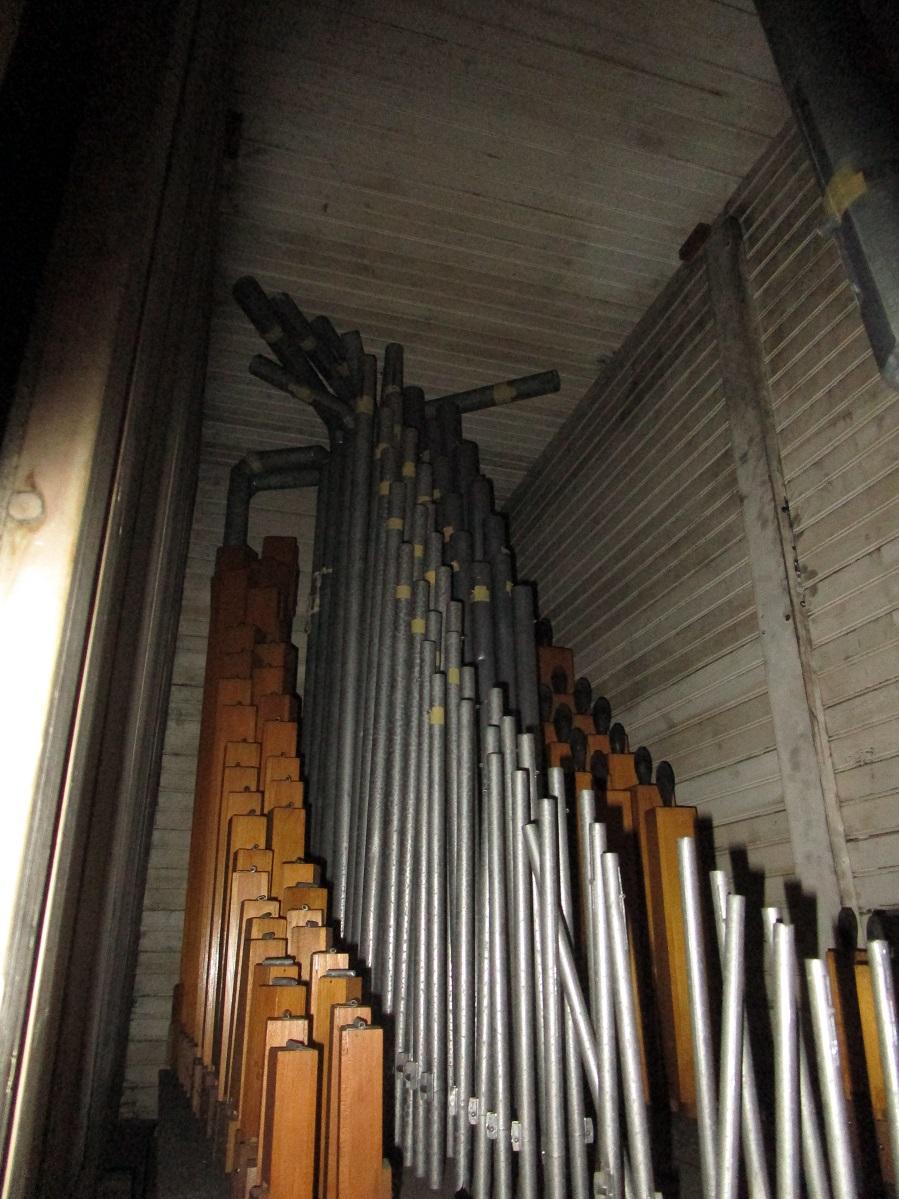

2021-11-29 - Inside the swell box showing chromatic pipe arrangement and missing pipes (Photograph by William Dunklin/William Dunklin)

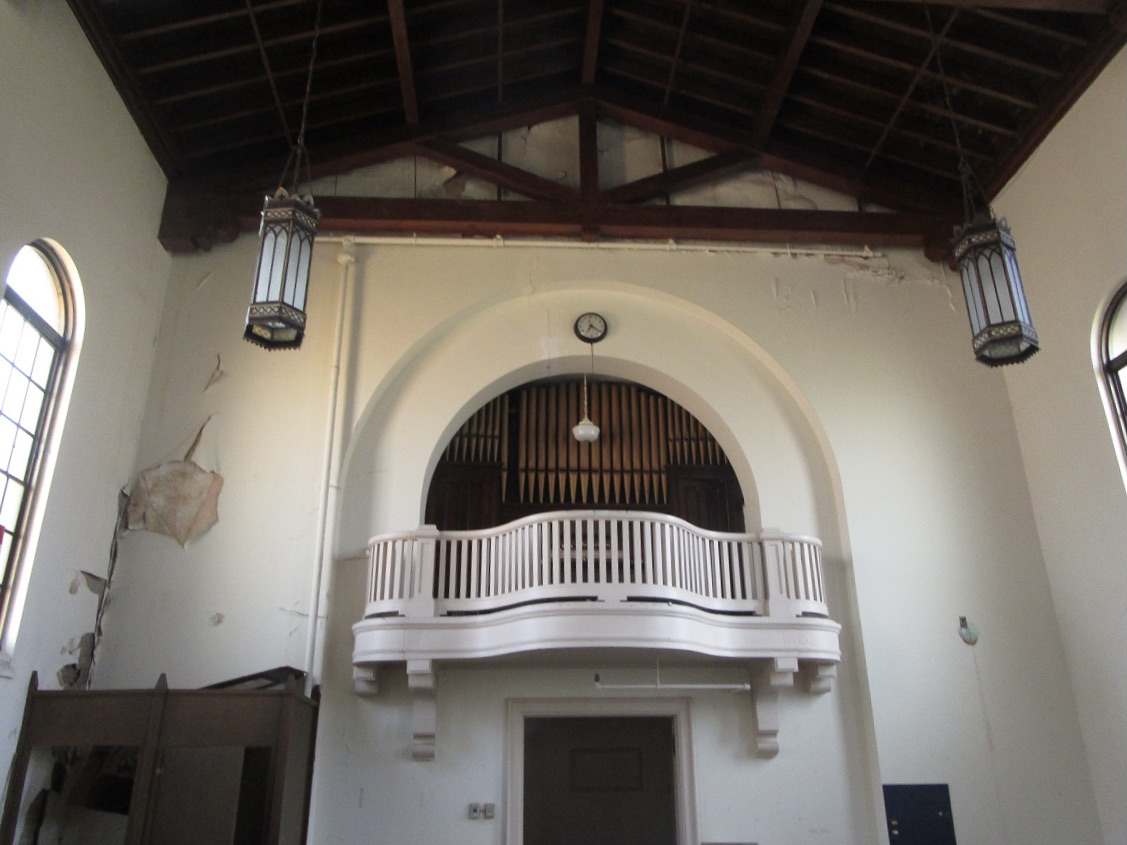

2021-11-29 - Organ case in rear balcony (Photograph by William Dunklin/William Dunklin)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Keydesk Attached
2 manuals
6 stops
11 registers
3 divisions
Key action Type: Tubular Pneumatic (Details Unknown)
Stop action Type: Tubular Pneumatic (Details Unknown)
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2009-09-30 - Identified through information in <i>List of More than 5200 Moller Pipe Organs</i> (Hagerstown, Maryland. M. P. Möller, 1928). -Database Manager

2021-12-02 - The facility is a pair of chapels with a common narthex. Moller opus 3356 is in the rear balcony of the Roman Catholic chapel. Moller opus 3355 is in the chancel of the protestant chapel. Both organs are slated for removal in 2022 during renovation of the facility. Moller opus 3356 has 4 ranks in the swell box. The 8' Open Diapason is outside the box as is the pedal 16' Pedal Bourdon. The facade pipes are all dummies. The original swell action was mechanical. Both organs were originally tubular pneumatic and were electrified sometime during the 1960s. New attached consoles were provided at that time. Original Moller contract documents provided by the OHS indicate that there was to be a single blower to wind both instruments, however, there are 2 Kinetic blowers on site. -William Dunklin

Stoplist

Source: Courtesy of the OHS Archives

    Johnson City, Tennessee
    National Home for Disabled Volunteer Soldiers
    Catholic Chapel

    Möller   Op. 3356   1922   2/6
    ______________________________________________

    GREAT
8'  Open Diapason                61
8'  Stopped Diapason       (Sw)  --
8'  Dulciana               (Sw)  --
8'  Viole D'Orchestre      (Sw)  --
4'  Flute Traverse         (Sw)  --

Great 4'


    SWELL (Expressive)
8'  Gedeckt                      61
8'  Viole D'Orchestre            61
8'  Dolce                        49  1-12 from Gedeckt
4'  Flute                        61
    Tremulant

Swell 16'
Swell 4'


    PEDAL
16' Bourdon                      32
16' Lieblich Gedeckt *           --  Bourdon on soft wind


    COUPLERS
Swell to Pedal        [8]
Great to Pedal        [8]

Swell to Great     16,[8],4


    FINGER PISTONS
Swell & Pedal         1 - 3
Great & Pedal         1 - 3


    TOE STUDS
Gt. to Ped.           (rev)


    PEDAL MOVEMENTS
Swell Expression     (bal.)
Crescendo            (bal.)


[Received from Jeff Scofield November 27, 2021]

Documents

(1922-03-16) Factory Specifications Factory Specifications -Jeff Scofield
