Casavant Frères Ltée. Opus 3440 (1979)

St. John's Lutheran Church
4001 South 68th St.
Milwaukee, WI

Images

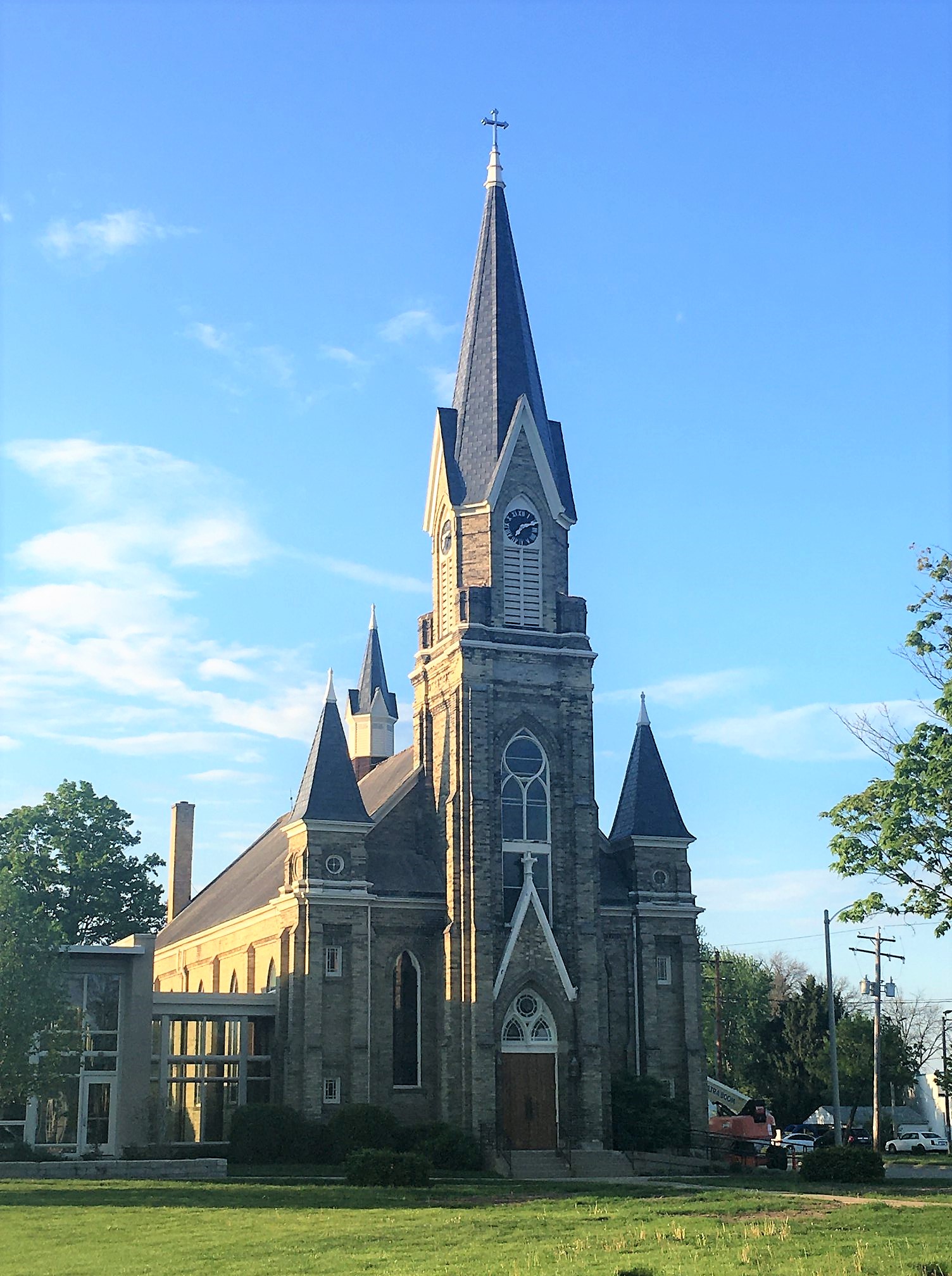

2020-11-29 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

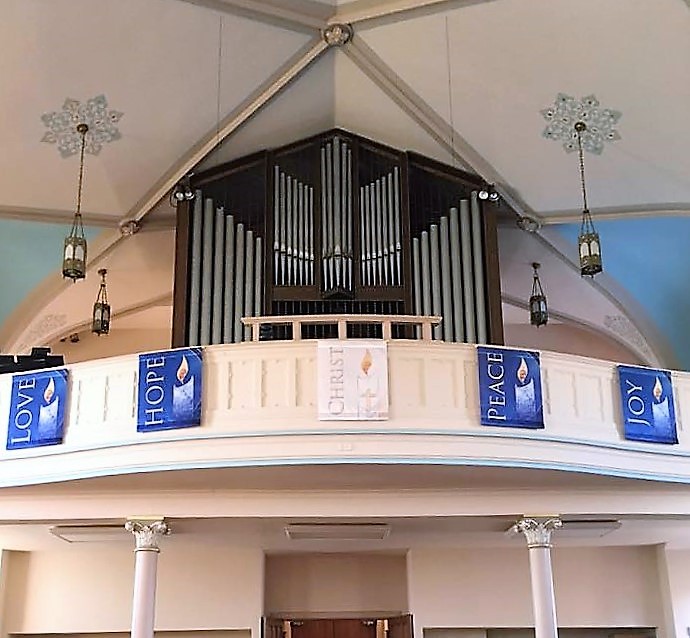

2015-12-19 - Balcony and organ clase (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

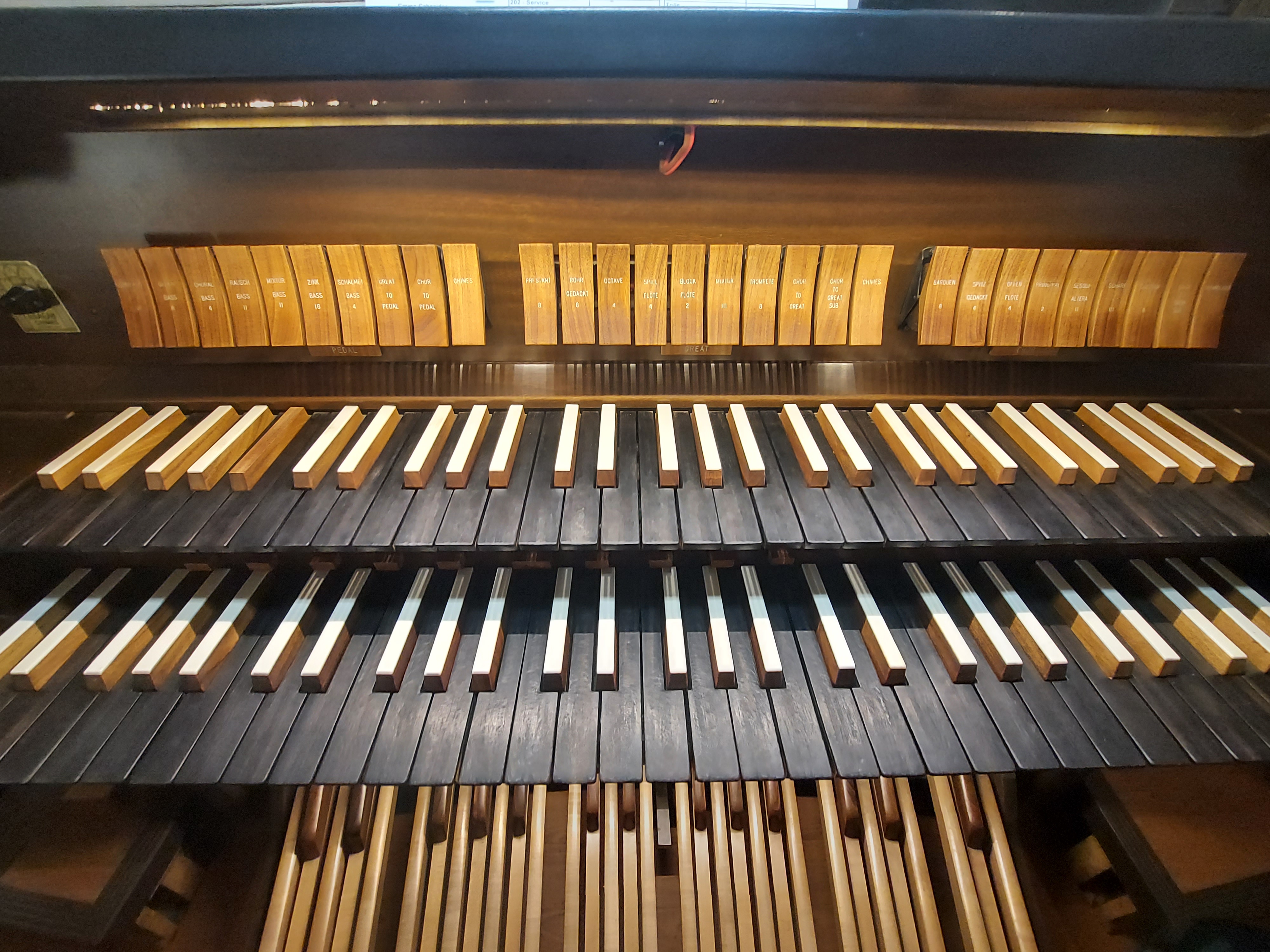

2022-11-22 - Console (Photograph by Emma Schneider /Emma Schneider )

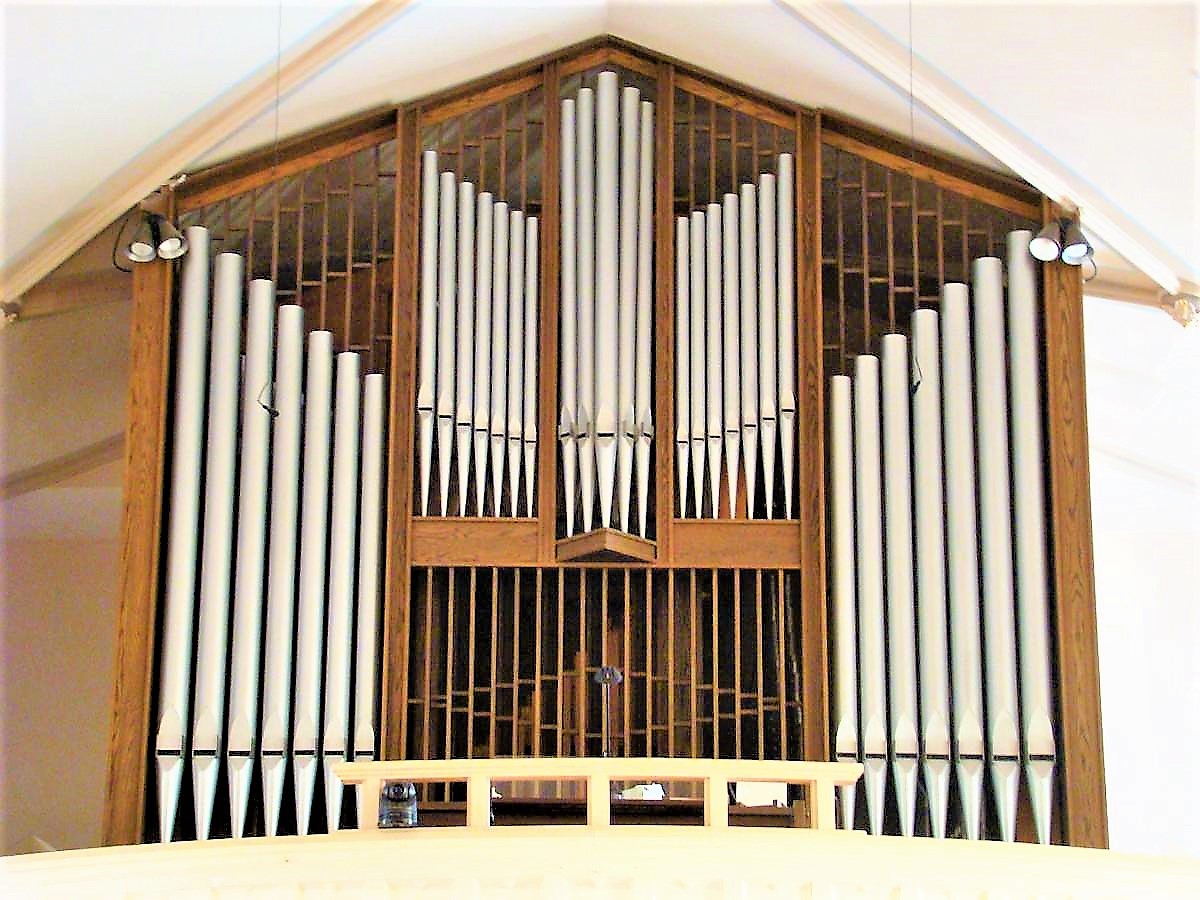

2013-06-13 - Organ case (Photograph by Craig Hirschmann/Jeff Scofield)

2025-03-18 - Sanctuary interior, to front from gallery (Daniel Boin/Daniel Boin)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
20 stops
21 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons

Notes

2009-10-01 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-06-07 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

     Milwaukee, Wisconsin
     St. John's Lutheran Church

     Casavant   Op. 3440   1979   2/28

     Courtesy of the Casavant Frères Archives
     St. Hyacinthe, Québec, Canada
     _______________________________________________________________

     Paul Bunjes, Consultant

     GREAT                   CHOR (exp)              PEDAL
  8' Prestant    61 a     8' Barduen (oak) 61    16' Subbass      32 d
  8' Rohrgedackt 61       4' Spitzgedackt  61     8' Offenbass    32 e
  4' Octave      61 b     4' Offenflöte    61     4' Choralbass   32
  4' Spillflöte  61       2' Principal     61    IV  Mixturbass  128
  2' Blockflöte  61      II  Sesquialtera 122    II  Rauschbass   --
III  Mixtur     183     III  Scharf       183    16' Zinkbass     32
  8' Trompete    61 c     8' Dulzian       61     4' Schalmeibass 32
     Chimes      21          Tremulant               Chimes
    (Deagan D)

  a  1-17 off-electrolytic zinc          b 1-5 off-electrolytic zinc
  c  1-12 half-length   d  1-32 off    e  1-16 off-electrolytic zinc

[Received on line from Jeff Scofield June 07, 2010.]
