Better Pipe Organ Database

Casavant Frères Ltée. Opus 3446 (1979)

St. Andrew's Episcopal Church
1125 Franklin St.
Downers Grove, IL

Images

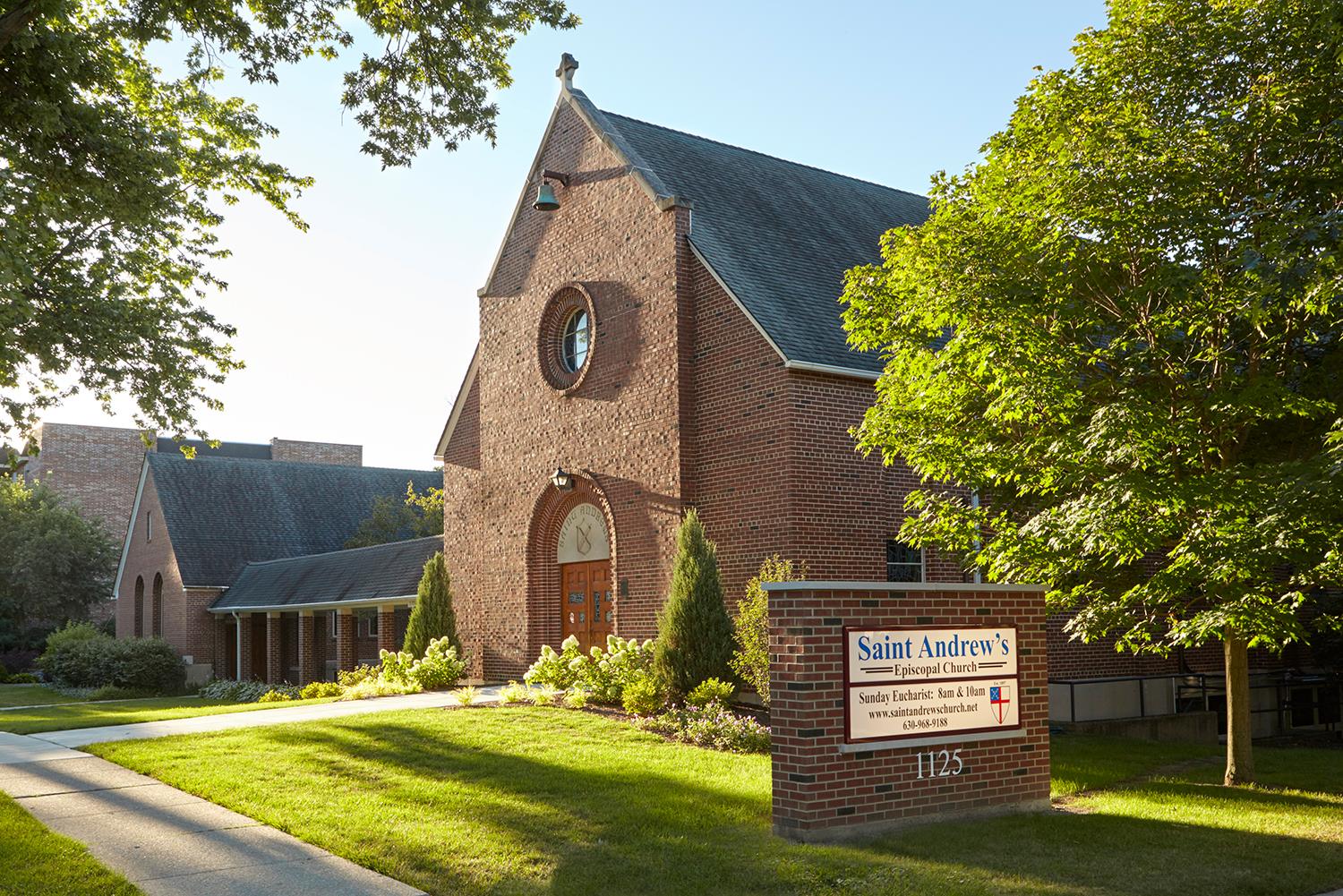

2023-01-25 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

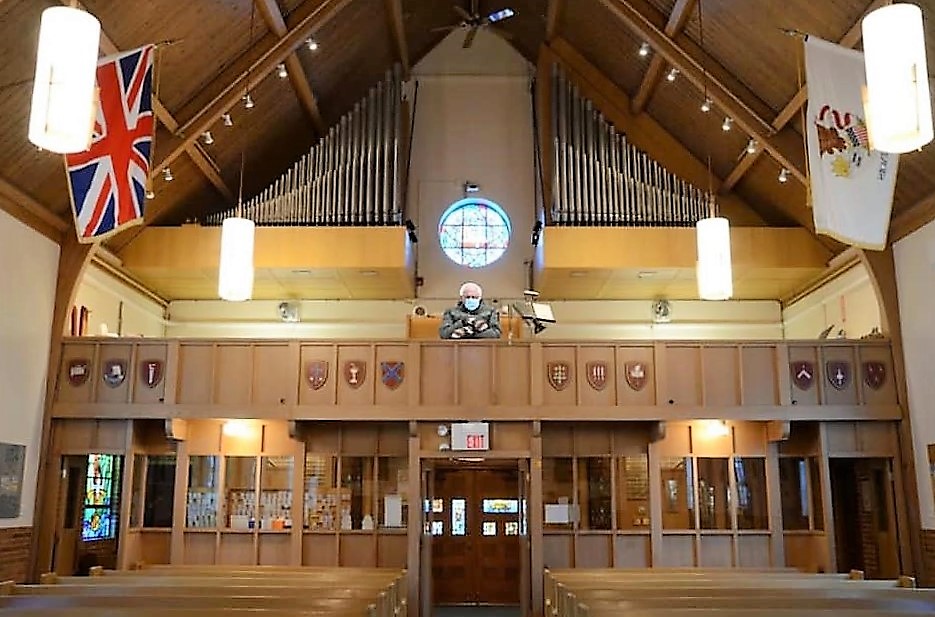

2021-01-21 - Balcony and exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
18 stops
19 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons

Notes

2009-10-01 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-08-09 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Courtesy of the Casavant Frères Archives Date not recorded

       Downers Grove, Illinois
       St. Andrew's Episcopal Church

       Casavant   Op. 3446   1979   2/21

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       ___________________________________________

       GREAT                   SWELL
    8' Open Diapason  56    8' Stopped Diapason 56
    8' Chimney Flute  56    8' Salicional       56
    4' Octave         56    8' Celeste       tc 44
2 2/3' Nasard         56    4' Conical Flute    56
    2' Forest Flute   56    2' Fifteenth        56
1 3/5' Tierce         56    8' Trumpet          56
   IV  Mixture       224
       Tremulant

       PEDAL
   16' Sub Bass       32
   16' Bourdon        32
    8' Principal      32
    8' Chimney Flute  GT
    4' Octave         32
   16' Bassoon        32
   [Received online from Jeff Scofield August 8, 2010]
