Casavant Frères Ltée. Opus 3627 (1987)

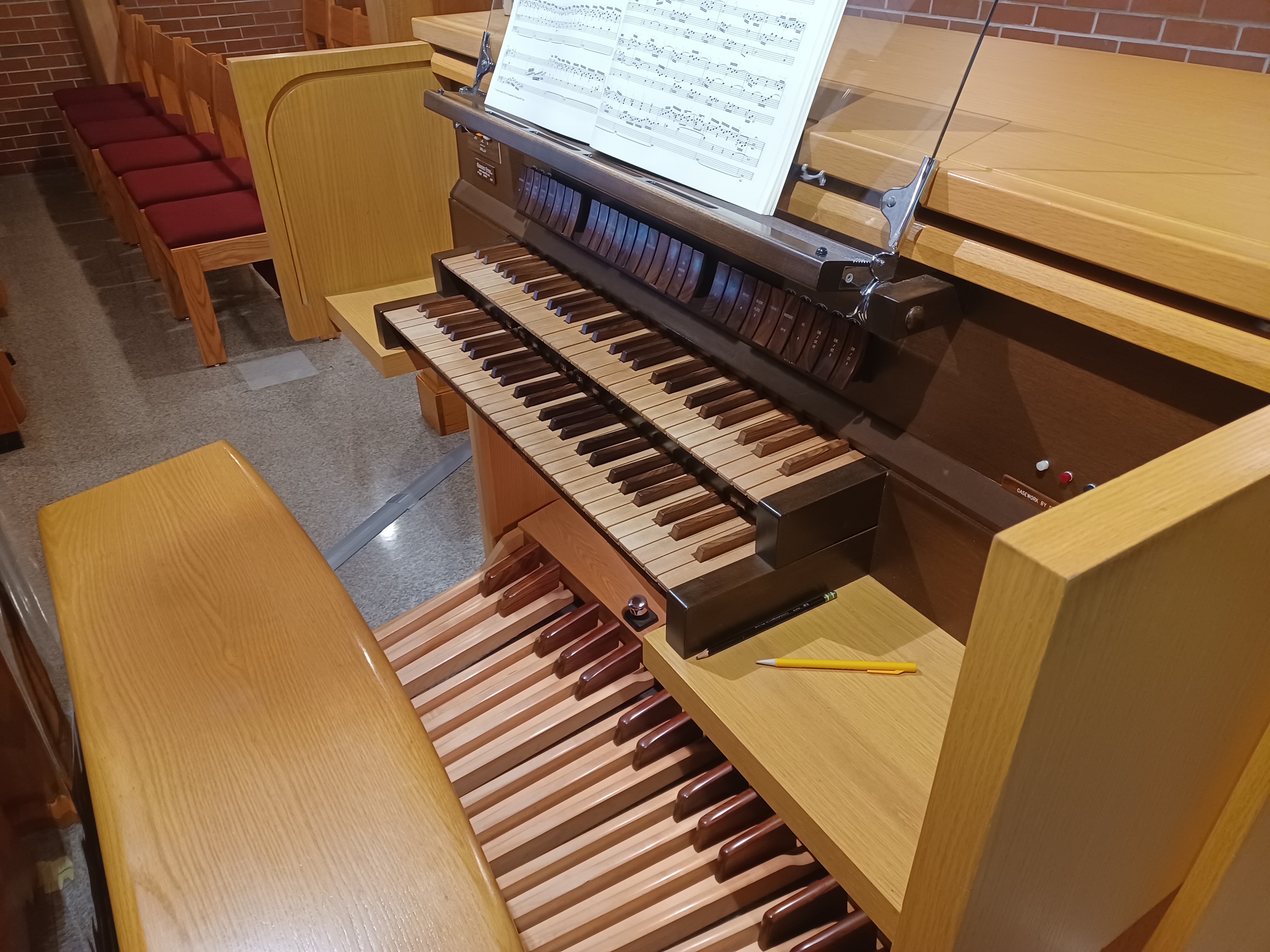

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Center
• 2 manuals
• 14 stops
• 17 registers
• 3 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Tilting/Rocking Tablets Above Top Manual
• Manual compass: 56 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Combination action: Adjustable Combination Pistons
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler toe pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Notes

2009-10-06 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-11-27 - Updated through online information from Jeff Scofield. -- II Kornett 88 tc added by Casavant in 1999. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

      Avon, Connecticut
      St. Matthew Lutheran Church

      Casavant  Op. 3627   1987   2/17

      Courtesy of the Casavant Frères Archives
      St. Hyacinthe, Québec, Canada
      _______________________________________________

      GREAT                   SWELL
   8' Prinzipal   56       8' Bordun               56
   8' Rohrflöte   56       8' Salizional           56
   4' Oktav       56       8' Salizional schwebung 44 tc
   2' Blockflöte  56       4' Spitzflöte           56
  II  Kornett  tc 88 *     2' Oktav                56
IV-V  Mixture    281       8' Trompette            56
      Super                   Tremulant
      Blank                   Sub
                              Unison Off
      PEDAL                   Super
  16' Subbass     12 GT       Blank
     (1-12 wood)
   8' Oktavbass   32
   8' Rohrflöte   GT
   4' Choralbass  12
  16' Posaune L/2 32

   *  added in 1998 and not affected by couplers

[Received online from Jeff Scofield November 27, 2010]
