Better Pipe Organ Database

Casavant Frères Ltée. Opus 3672 (1989)

St. John's Lutheran Church
5151 Alain Road
Vernon, BC, CA

Note: Not extant. Not playable. (in this location)

Images

2021-09-15 - Demolition of church building after organ was removed (Photograph from an archival source: Nan Gallo, submitted by Michael Dirk/Michael Dirk)

Feb 1999 - Console (Photograph by Michael Dirk/Michael Dirk)

Feb 1999 - Swell pipework (Photograph by Michael Dirk/Michael Dirk)

Feb 1999 - Great pipework (Photograph by Michael Dirk/Michael Dirk)

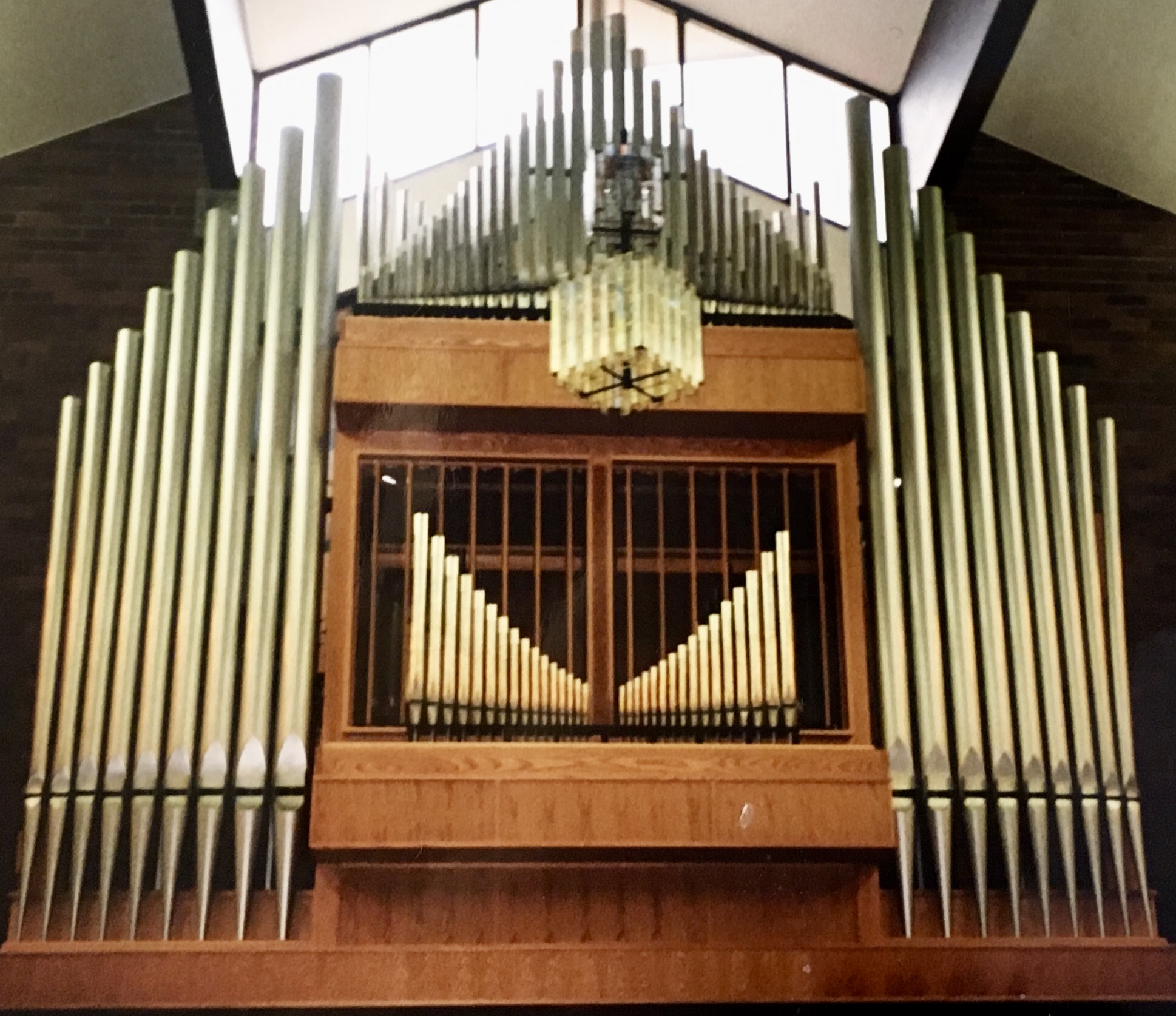

1999 - Organ facade (Photograph by Michael Dirk/Michael Dirk)

2018-04-08 - Church exterior (Photograph from an archival source: Morning Star, submitted by Michael Dirk/Michael Dirk)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
17 stops
20 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons

Notes

2009-10-06 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2022-11-22 - Organ was acquired by Holy Family Catholic Parish of Vancouver prior to St John’s being demolished due to seismic instability of shifting clay base -Michael Dirk

Stoplist

Source: Stoplist copied from a related OHS Database entry

Vernon, British Columbia
St. John's Lutheran Church

Casavant Frères Ltée. (Opus 3672, 1989)


       GREAT:
16'    Bourdon
8'     Principal
8'     Bourdon
4'     Octave
2'     Flute
II     Cornet
IV     Mixture
       Chimes	prepared for


       SWELL (Expressive):
8'     Major Flute
8'     Gemshorn
4'     Conical Flute
2'     Principal
1 1/3' Quint
8'     Trumpet
       Tremulant	prepared for

Swell 16'
Swell 8' off
Swell 4'


       PEDAL:
16'    Violon Bass
16'    Bourdon             (Gt)  --
8'     Octave
8'     Bourdon	           (Gt)  --
4'     Fifteenth
16'    Trombone
8'     Trumpet	           (Sw)  --


       COUPLERS
Swell to Pedal                  8,4
Great to Pedal                  8

Swell to Great               16,8,4


       FINGER PISTONS
General                       1 - 6
G.C.


       TOE STUDS
General                       1 - 6
Gt. - Ped.                    (rev)


       PEDAL MOVEMENTS
Swell Expression             (bal.)
Crescendo                    (bal.)

Related Pipe Organ Database Entries

#67027 - Marianne Huestis (2021)
